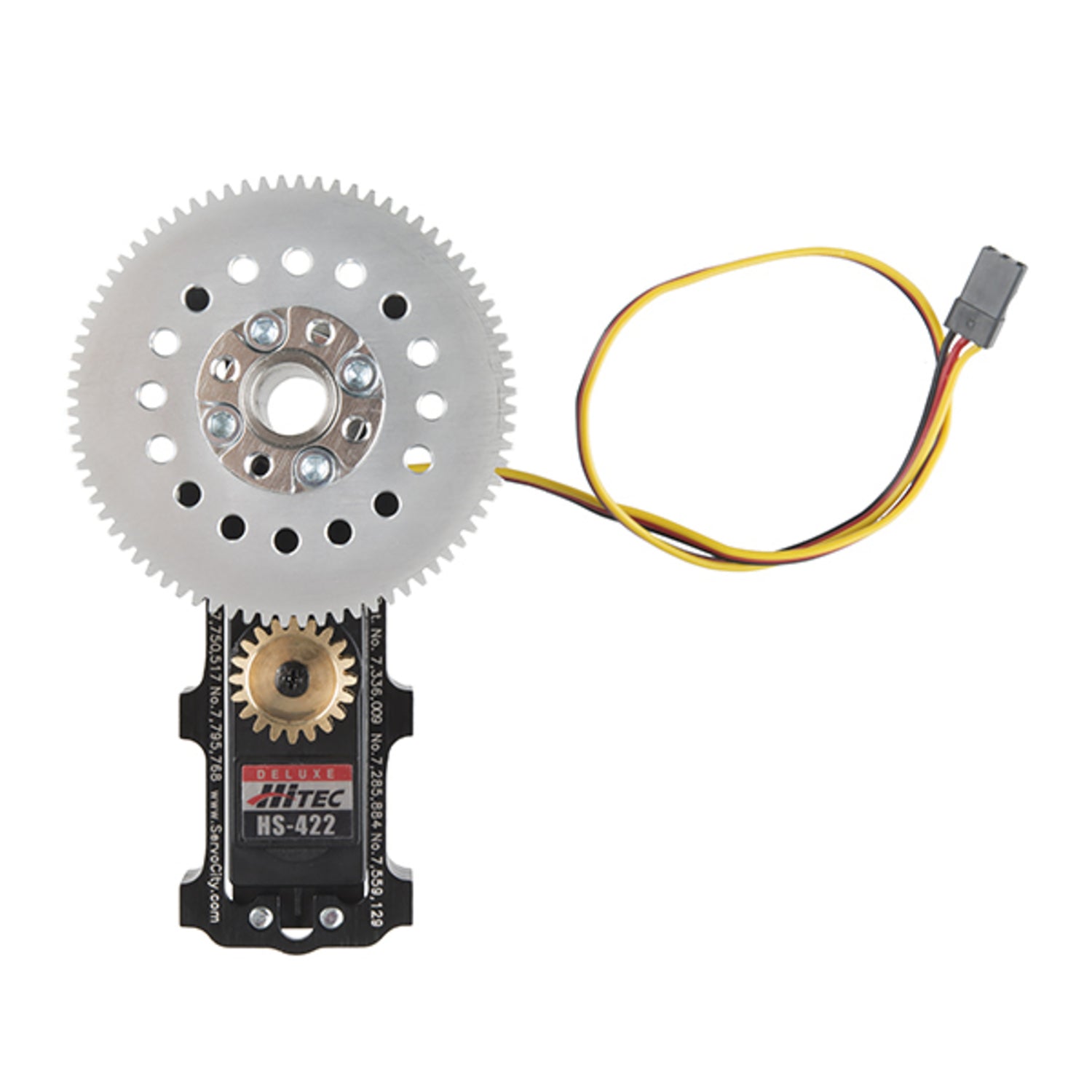

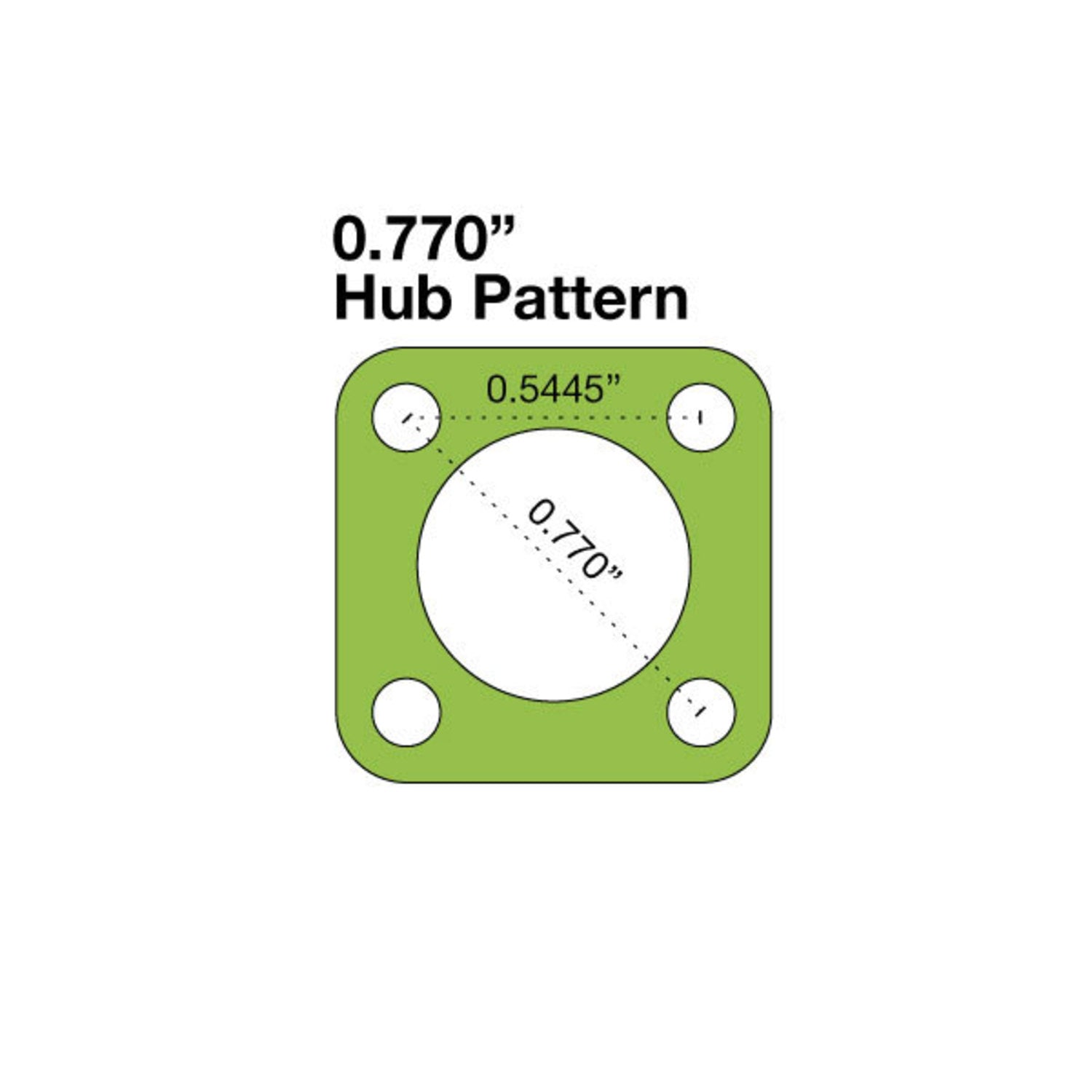

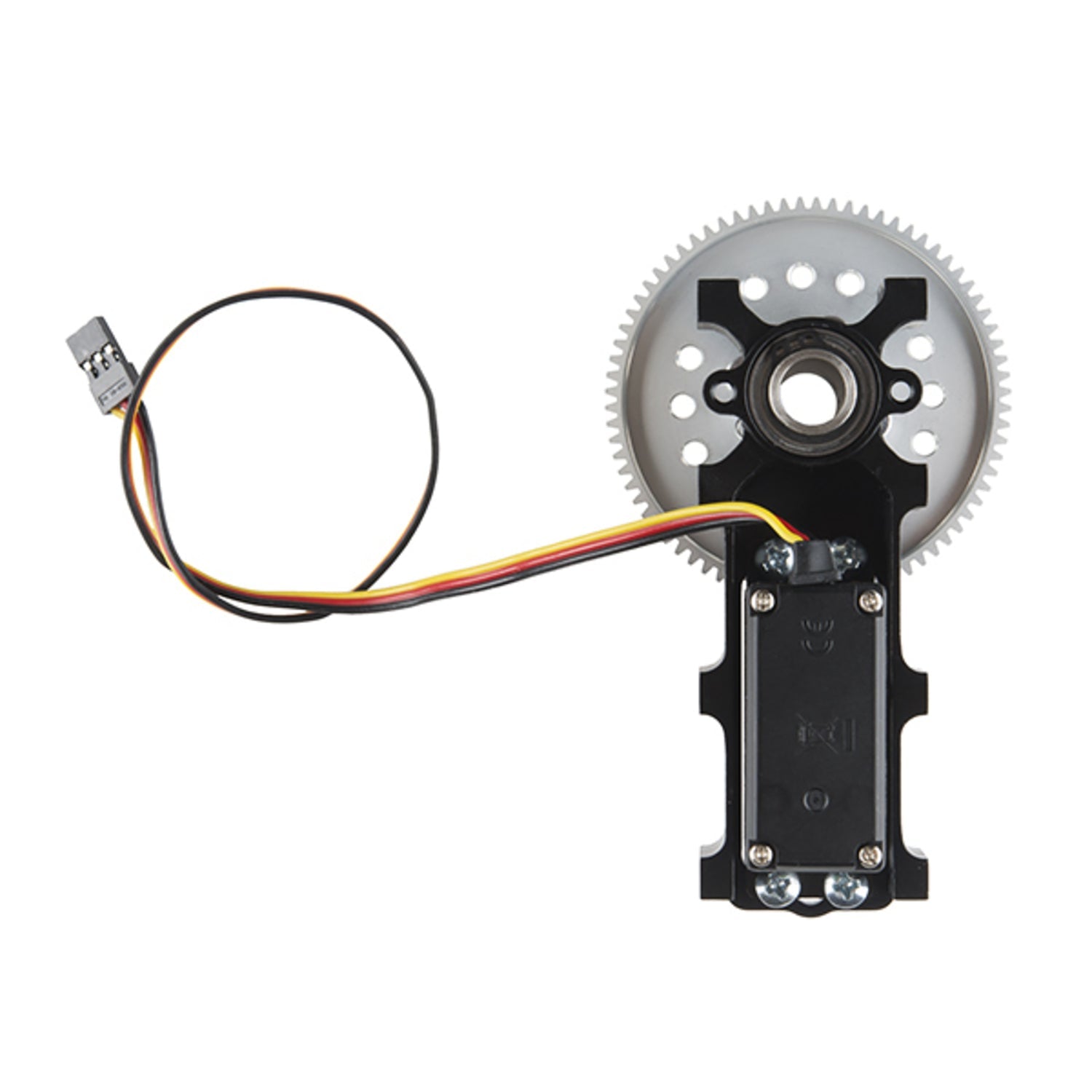

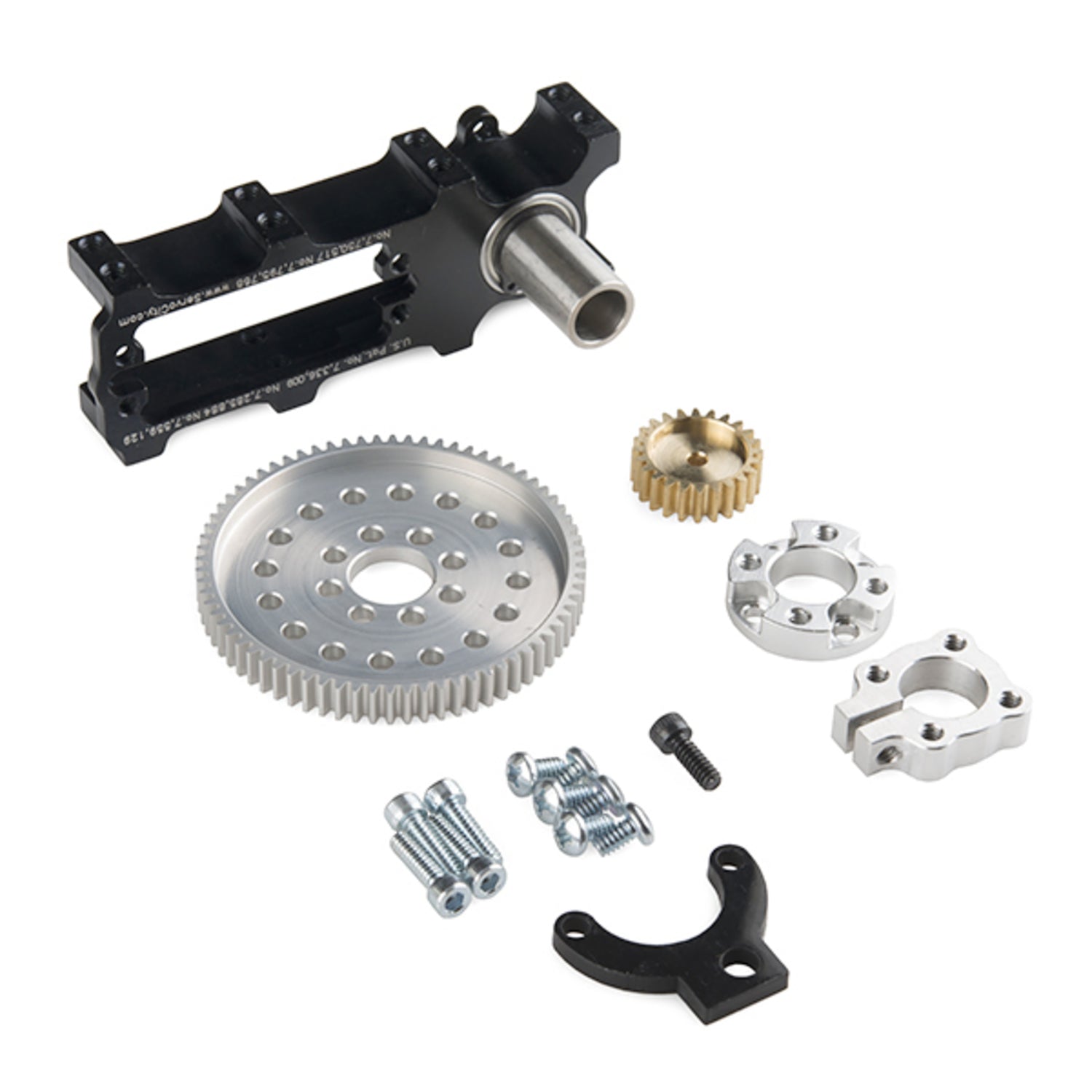

These continuous rotation channel gearbox kits with a 5:1 gear ratio are a game - changer for your robotics projects. They come with threaded side mounts, allowing you to easily attach a standard - sized servo to various Actobotics products like tubing and channel. Incorporating a servo - powered gearbox into your custom pan & tilt setup, mechanical device, or robotic structure has never been easier. Each kit features a hardened 1/2” stainless steel final shaft with dual ABEC - 5 precision ball bearings. This shaft can handle up to 200 pounds of vertical and horizontal loads. What's more, the output shaft has a 0.382' bore, letting you pass wires through the center axis of the gearbox. Actobotics is a well - designed robotics building system. It's based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to two standardized hole patterns, you can intuitively connect almost all Actobotics components. With a wide range of components, building complex electromechanical prototypes or finished projects becomes a reality. Note that this gearbox kit doesn't include a servo. Check the related items section for different Hitec servo options. Kit Includes: 1x Channel Mount Gear Box for Continuous Rotation, 1x Hub Mount Gear, 1x 5:1 Servo Gear, 1x Potentiometer Mounting Bracket, 1x 0.77' x 0.77' Servo Hub, 1x ½' Clamp Hub, 1x 6 - 32 x 3/8' Set Screw, 4x 6 - 32 x ½' Socket Head Screw, 4x 6 - 32 x ¼' Phillips Head Screw. Features: Unlimited rated rotation, 5:1 gear ratio, standard servo size, 0.77' hub pattern. Documents: Product Page (SPG400A - CM - CR5), Assembly Instructions.
Using this gearbox kit is easy. First, select a suitable Hitec servo as the kit doesn't come with one. Then, use the threaded side mounts to attach the standard - sized servo to Actobotics products such as tubing and channel. You can use it in custom pan & tilt setups, mechanical devices, or robotic structures. When assembling, refer to the assembly instructions provided. Be careful while handling the components, especially the precision ball bearings. For maintenance, keep the gearbox clean and free from dust. Periodically check the screws to make sure they are tight. If you need to pass wires through the gearbox, use the 0.382' bore in the output shaft. Remember, this kit is designed to work only with Hitec servos, so don't use other brands to avoid compatibility issues.
