Bus Pirate 5 KF141 Quick Connect Adapter - Right Angle

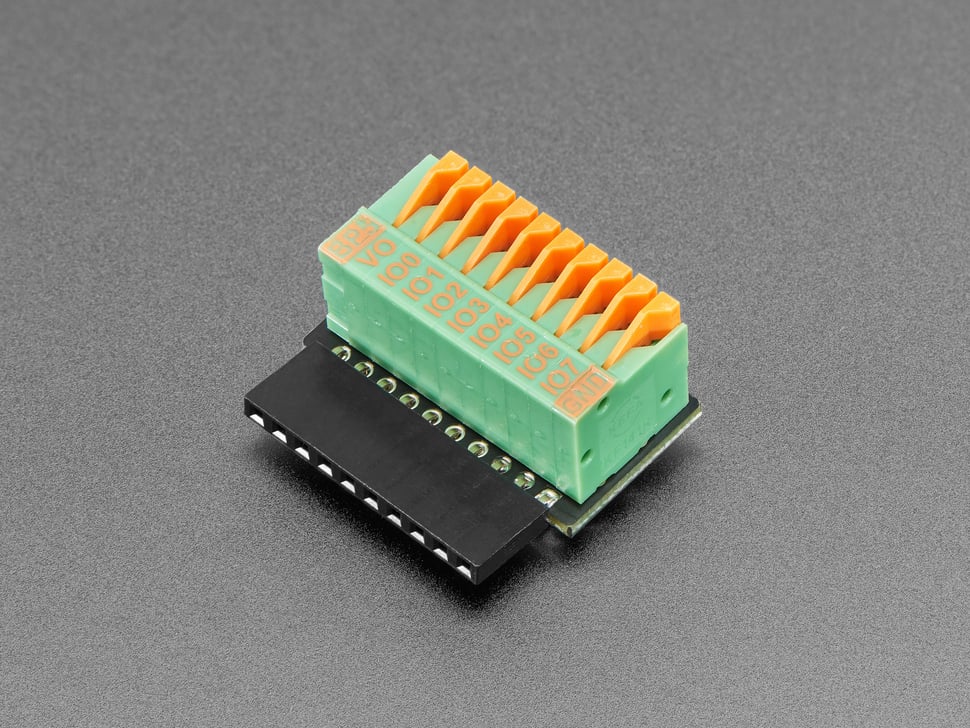

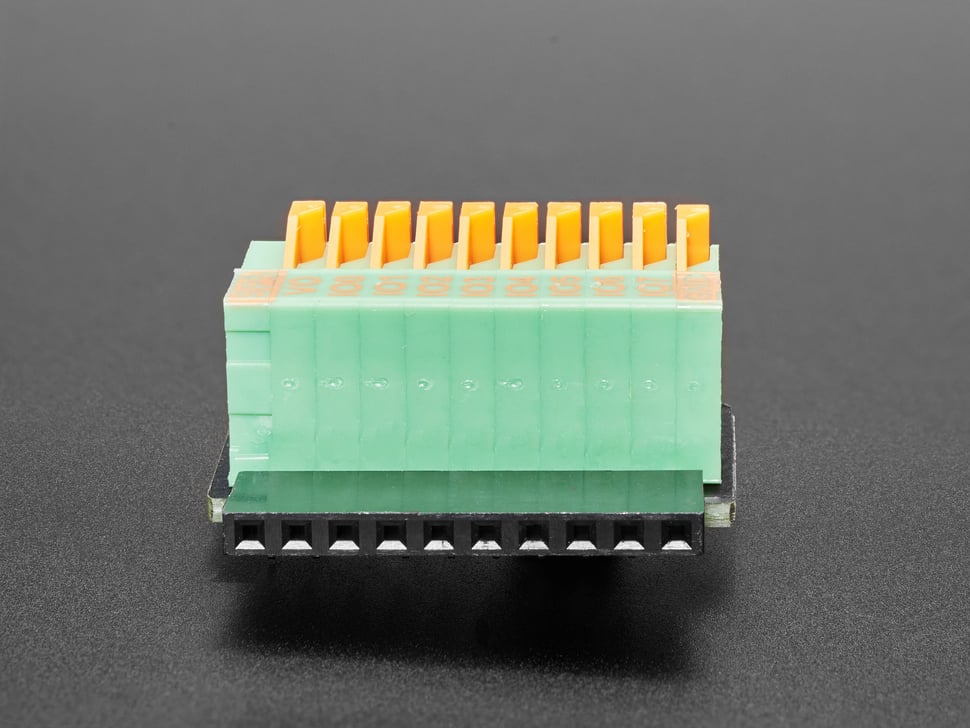

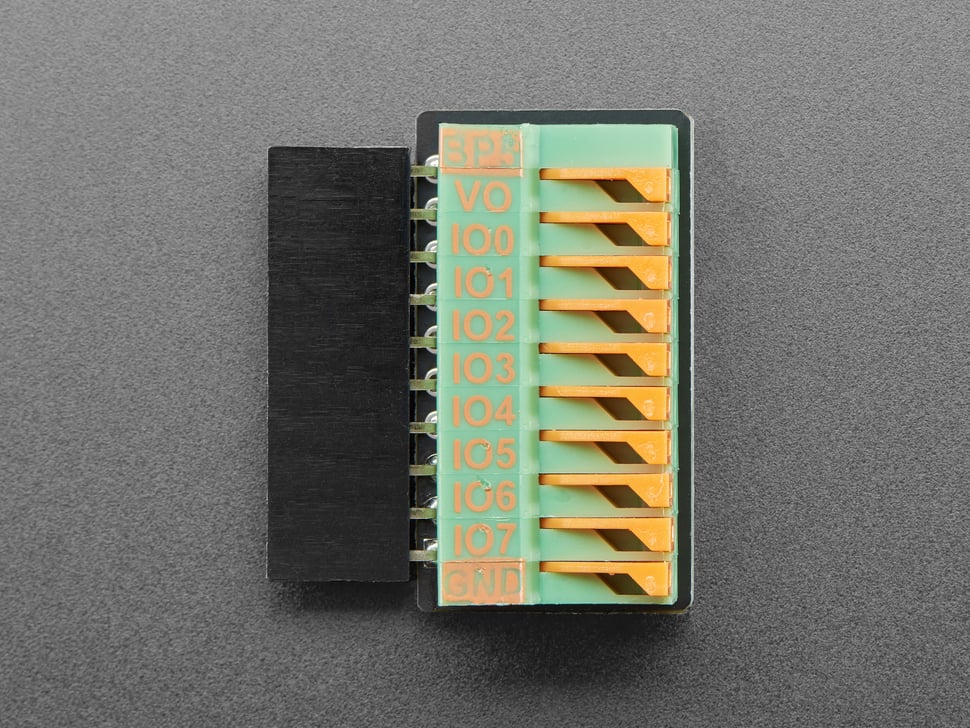

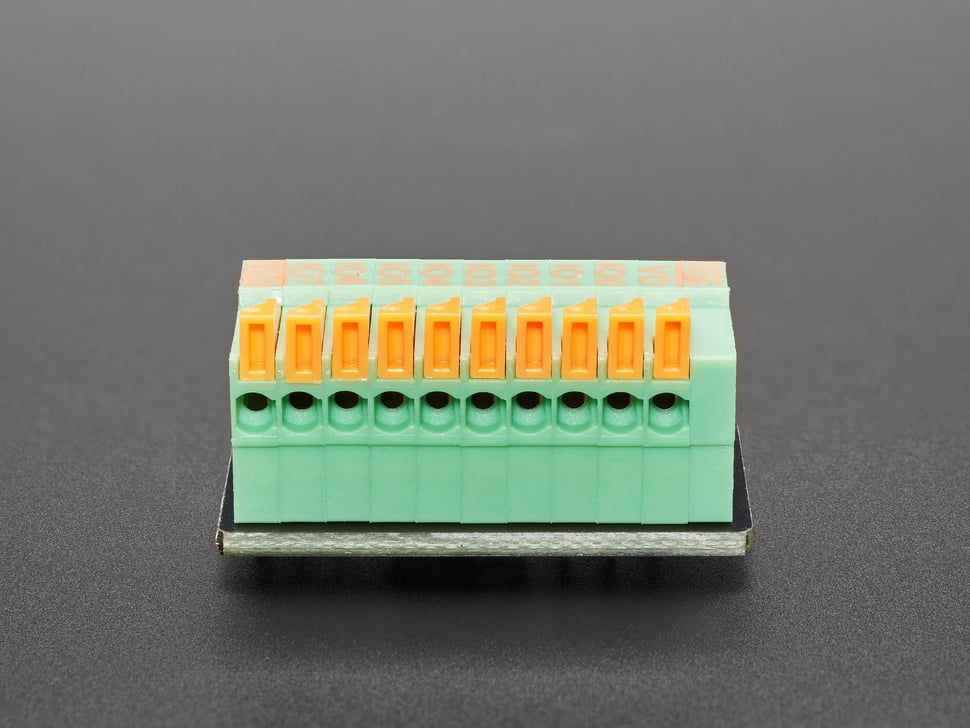

This amazing accessory makes it a breeze to wire sensors to your Bus Pirate 5. It comes with snap - open quick connects that effortlessly plug into the BP5’s header port. When you're eager to start a project, these quick connector boards let you make immediate connections right away. The KF141 quick connector block is well - known for its tough spring retention clamps. Simply press the lever, insert a stripped wire, and release the lever to secure the wire firmly. The pin names are clearly printed in bright orange, so you'll always make the correct connections. The wire clamps are at the front of the connector block, and the orange - marked pin names save you time and prevent confusion.

Using this Bus Pirate 5 KF141 Right Angle Quick Connect Adapter is easy. First, find the BP5’s header port and plug in the quick - connect adapter. To connect a wire, press the lever on the KF141 quick connector block, insert the stripped end of the wire, and then release the lever. The spring - loaded clamps will hold the wire firmly. When making connections, always double - check the orange - marked pin names to ensure you're connecting the right wires. As for maintenance, keep the adapter clean and dry. Avoid using excessive force when inserting or removing wires, as it may damage the spring retention clamps. If you notice any loose connections or damage, stop using the adapter and consider getting it repaired or replaced.
