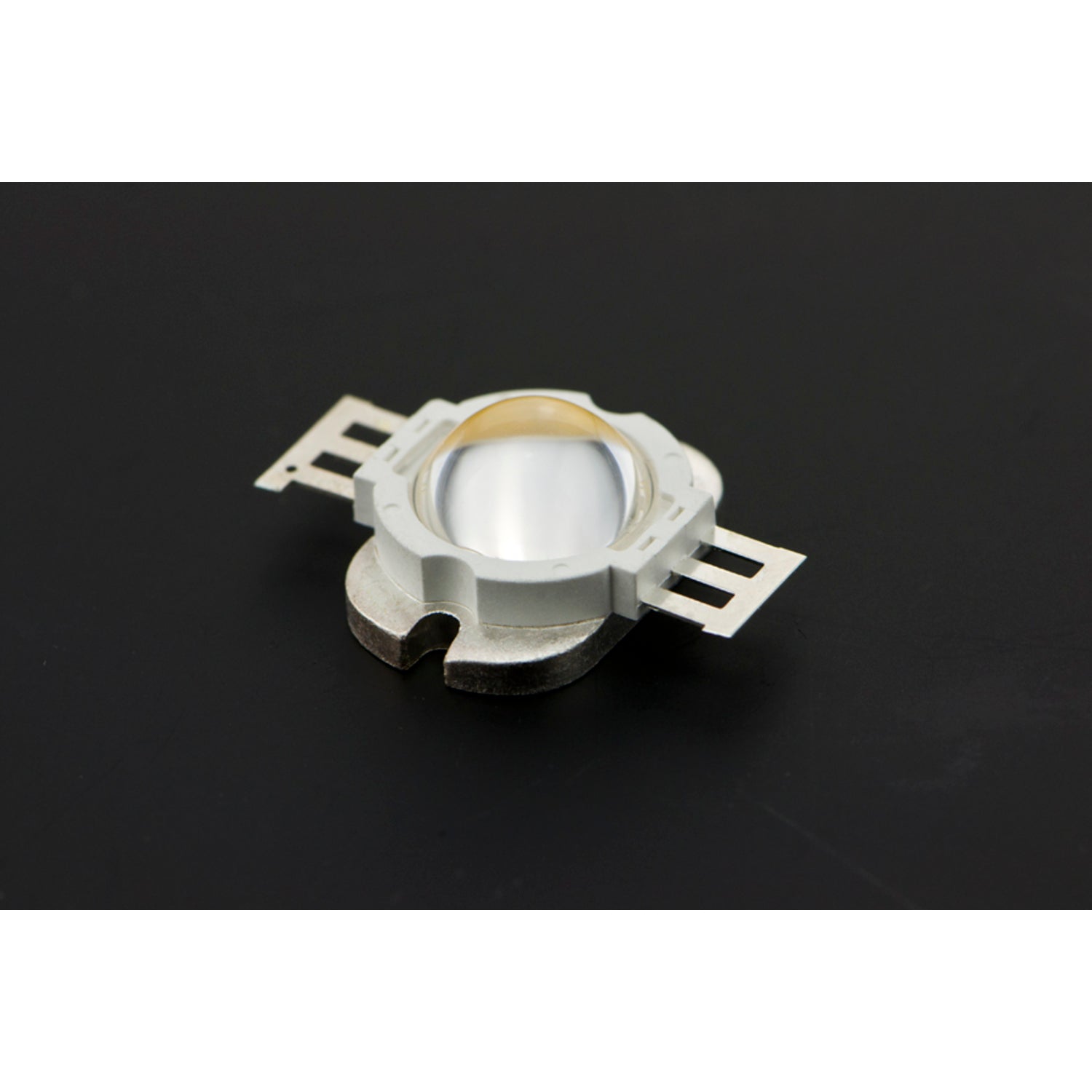

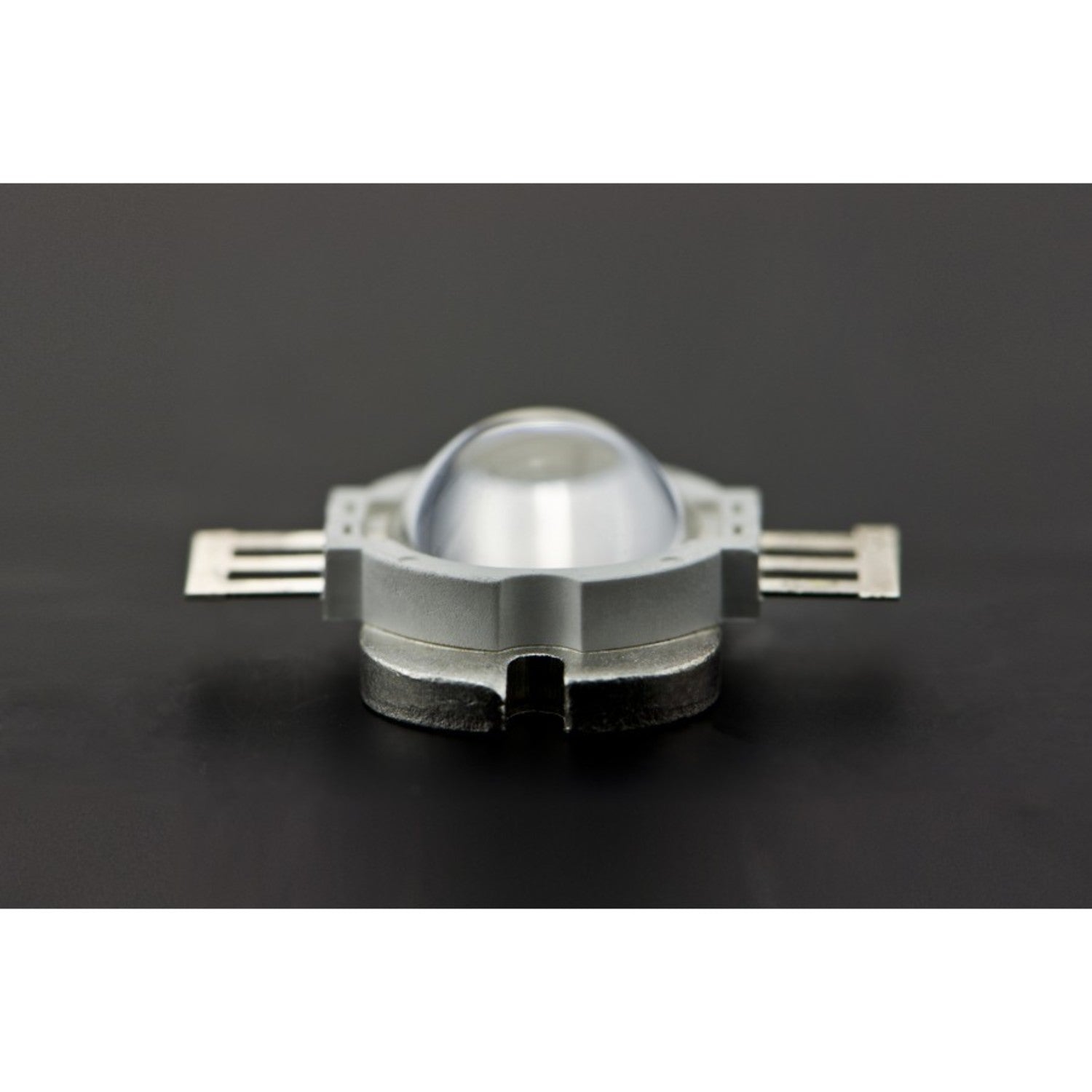

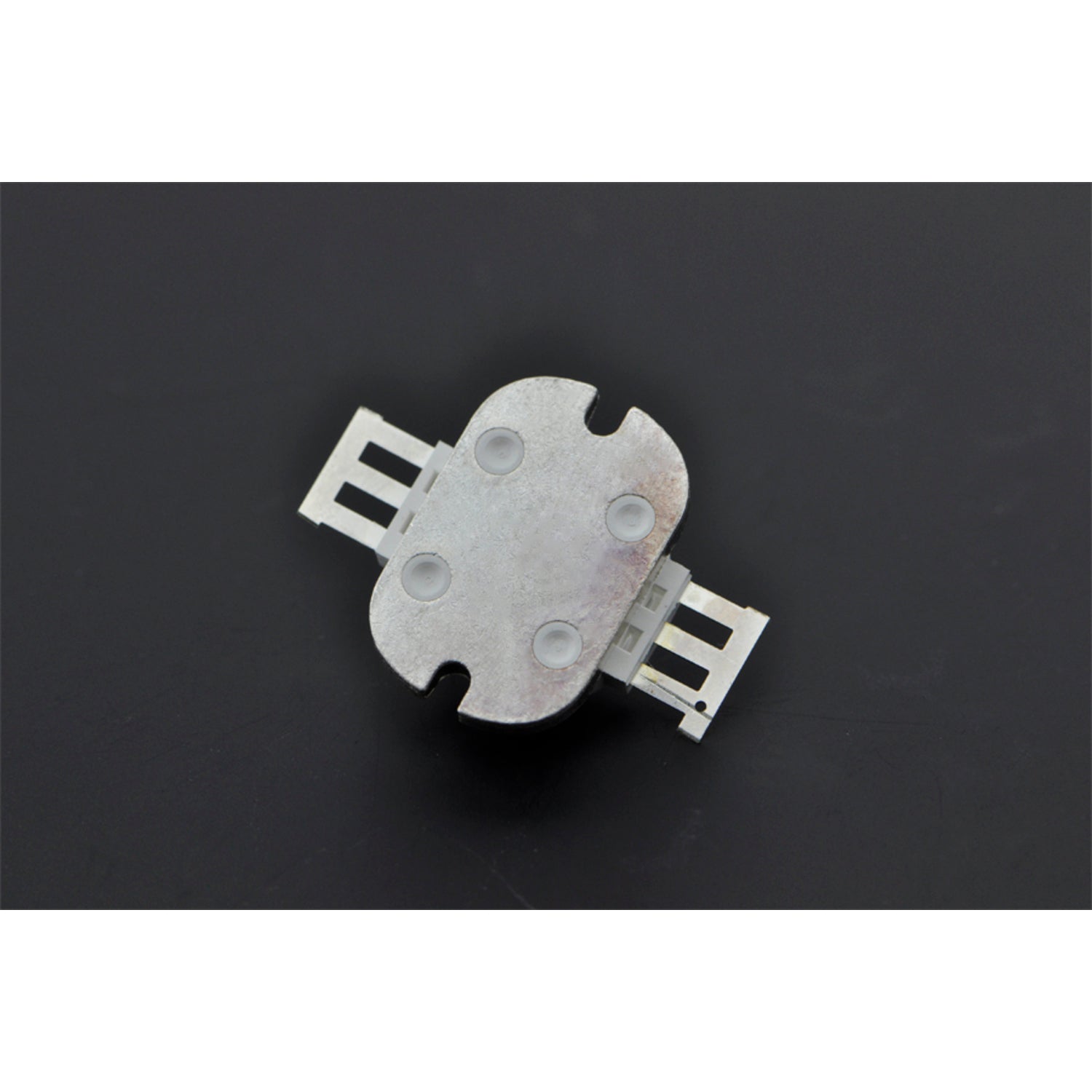

10W Super Bright LED - Warm White with 60 Degrees Lens

This 10 - watt ultra - bright LED is a perfect flash searchlight for your robot projects. It's made up of 9 individual LEDs and boasts a luminance of 500LM. The 60 - degree lens effectively focuses the light. You can choose from a variety of colors. Warning: When operating at full power, the LED gets very hot. Use a heat sink to cool it down. SPECIFICATIONS: Rated Power: 10W; Luminance: 500LM; Working Voltage: 9V - 11V (With Heat Sink); 7.5V - 8.5V (Without Heat Sink); Rated Current: 1000mA; Color Temperature: 3000K - 4000K; Angle: 120°; Working Temperature: - 20°C ~ 60°C; Reserving Temperature: - 20°C ~ 60°C; Size: 29mm*23mm(1.14'*0.91'); Weight: 10g. DOCUMENTS: Datasheet, Circuit Diagram. SHIPPING LIST: One Super Bright Warm - White LED with 60 - Degree Lens.

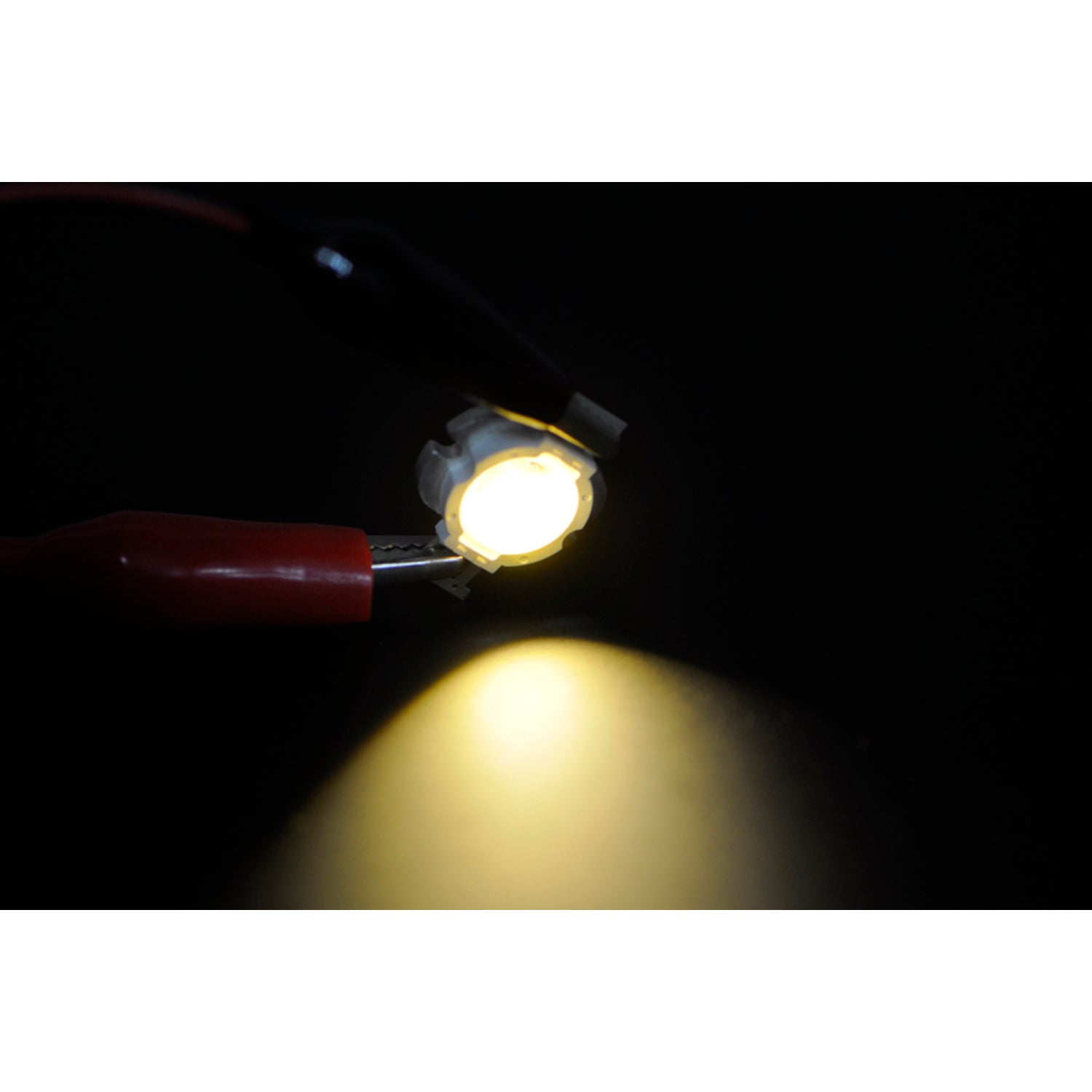

Using this LED is easy. First, make sure you connect it to the appropriate voltage. If you're using a heat sink, the working voltage is 9V - 11V. Without a heat sink, use 7.5V - 8.5V. When you turn it on, it'll give you a super - bright light that's great for your robot projects. Remember, if you use it at full power, it will get very hot. So, always use a heat sink to keep it cool. To maintain it, just keep it in a place where the temperature is between - 20°C and 60°C. When not in use, store it in the same temperature range. And that's all you need to know to get the most out of this LED!
