1 Channel RF Remote Control Module DC 5V

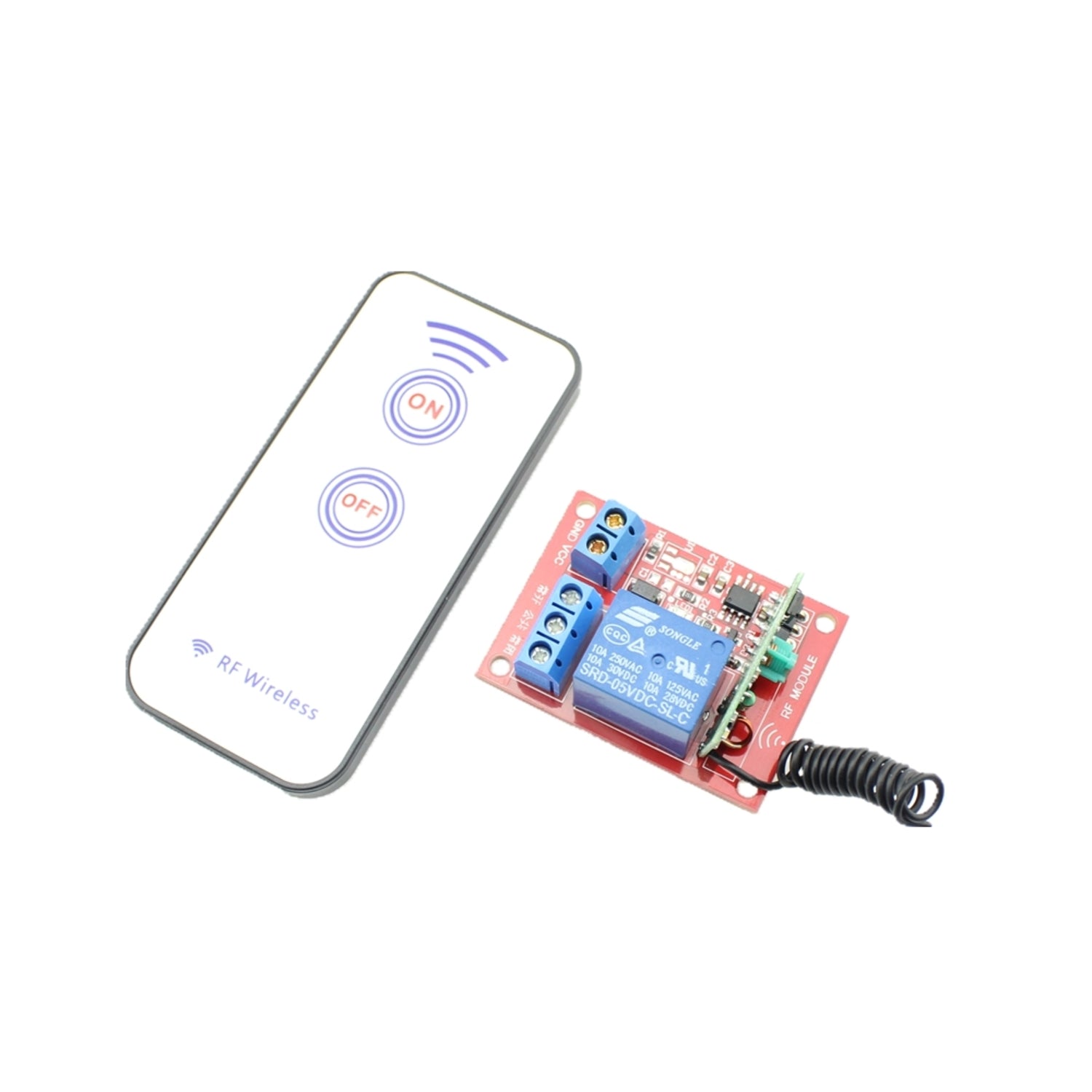

This 1-channel latching relay module has a passive output and comes with a 2-button RF wireless controller. When powered on, it can easily control various household appliances. It features a high-current relay, allowing it to handle large current loads. With a standard interface, it can be directly controlled by a microcontroller. LED indicators clearly show the relay output status. It operates on a DC voltage of 5 - 5.5V, has a working current of about 70mA, and a quiescent current of about 6mA. The maximum load voltage is 10A 250VAC or 10A 30VDC. The module size is 48 x 35 x 20mm, and it uses 433m RF wireless receiving. The remote control distance ranges from 15 to 30 meters, and it has a self-locking work status. The package includes one DC 5V 1-channel RF remote control module and one 2-key RF wireless remote controller.

Using this product is easy. First, make sure the module is powered on with a DC voltage between 5 and 5.5V. Then, use the 2-key RF wireless remote controller to send signals to the module to control connected appliances. Keep in mind that the remote control works best within a distance of 15 - 30 meters. When using, avoid overloading the module as the maximum load voltage is 10A 250VAC or 10A 30VDC. For maintenance, keep the module clean and dry. If you notice any abnormal LED indications, check the power supply and connections. That's all you need to know to get the most out of this product.
