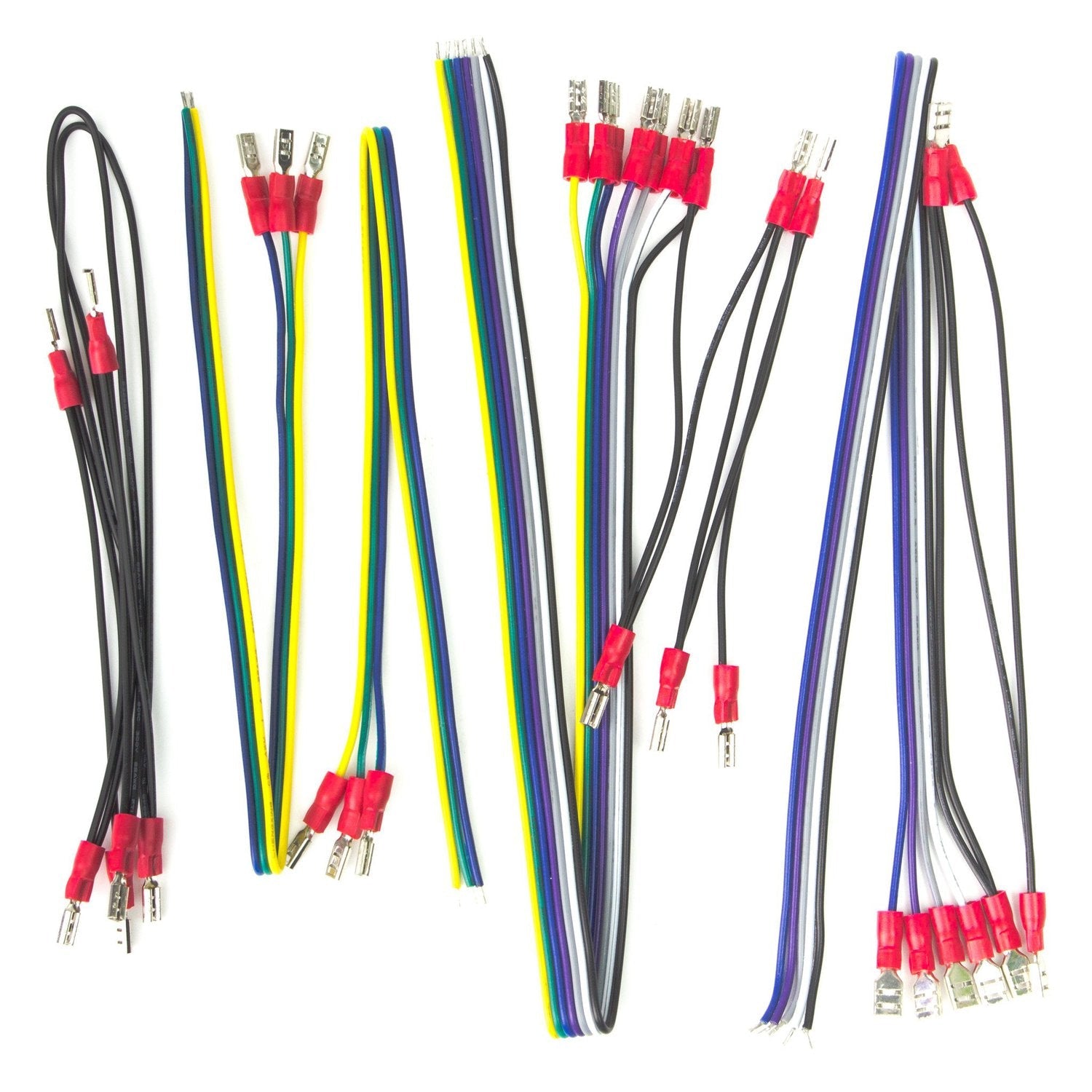

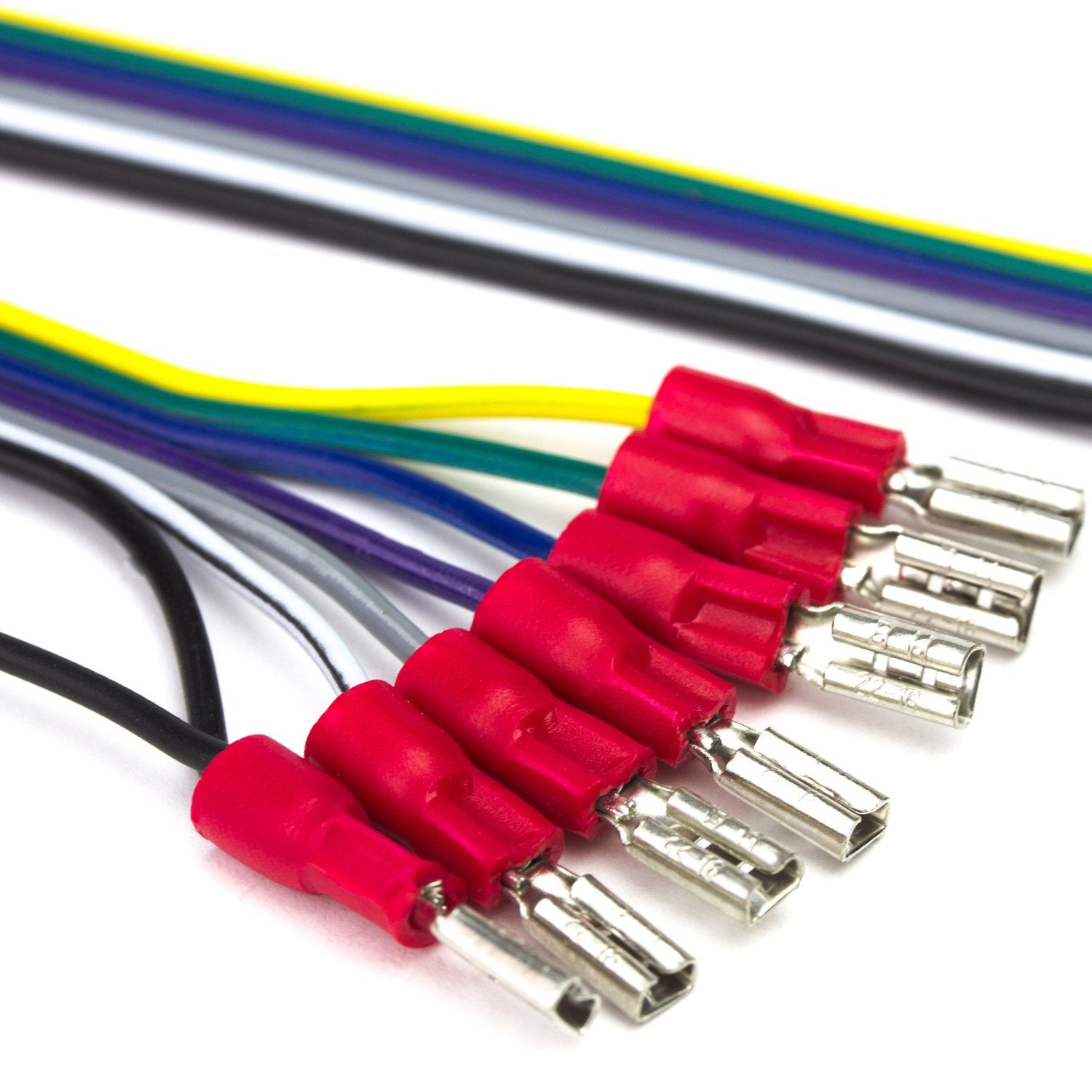

Originally crafted to link the Picade controller board with the joystick and arcade buttons, the Picade wiring loom is now at your disposal for all your prototyping endeavors. It features 32 crimped 2.8mm / 0.11 - inch female spade connectors. Use this vibrant and durable cable to integrate your Picade components into any case or setup you like. If you simply need color - coded cables with crimped connectors for your project, this bundle is perfect for you! Please note that the cable colors in this loom don't match the instructions that come with the Picade. Be cautious when making connections for your awesome arcade machine. The loom includes a set of 6 colored wires with 6 daisy - chained ground wires, a set of 4 colored wires with 4 daisy - chained ground wires, two sets of 3 colored wires, and a set of 6 daisy - chained ground wires.
Using the Picade wiring loom is easy. First, if you're building an arcade machine, connect the loom from the Picade controller board to the joystick and arcade buttons. For other prototyping projects, use the color - coded cables as you need. When making connections, pay close attention as the cable colors don't match the Picade instructions. Be gentle while handling the crimped connectors to avoid damage. To maintain the loom, keep it away from sharp objects that could cut the cables. Store it in a dry place to prevent corrosion. If you notice any loose connectors, try to re - crimp them carefully. That's all you need to know to make the most of your Picade wiring loom!
