Non-Invasive Current Sensor - 30A

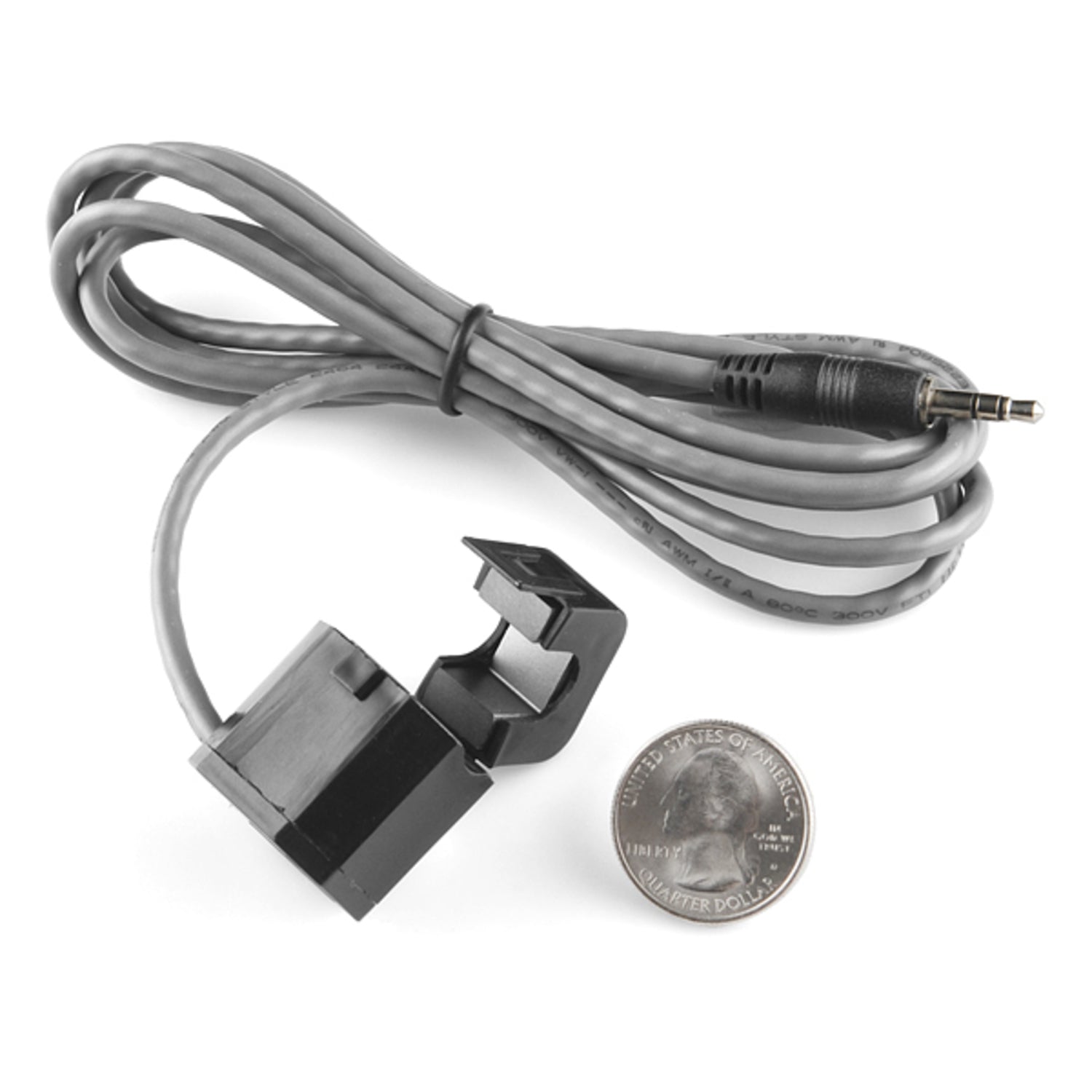

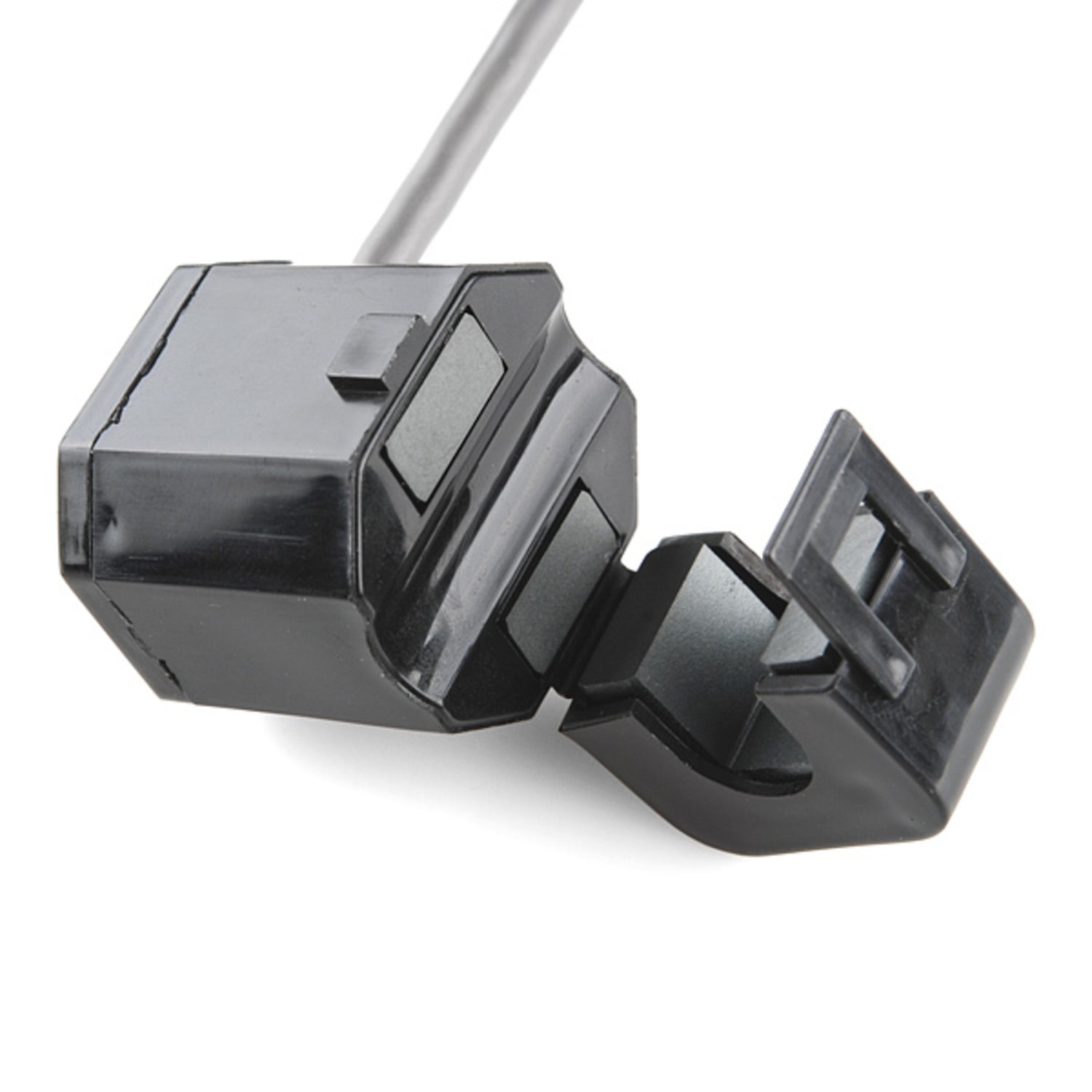

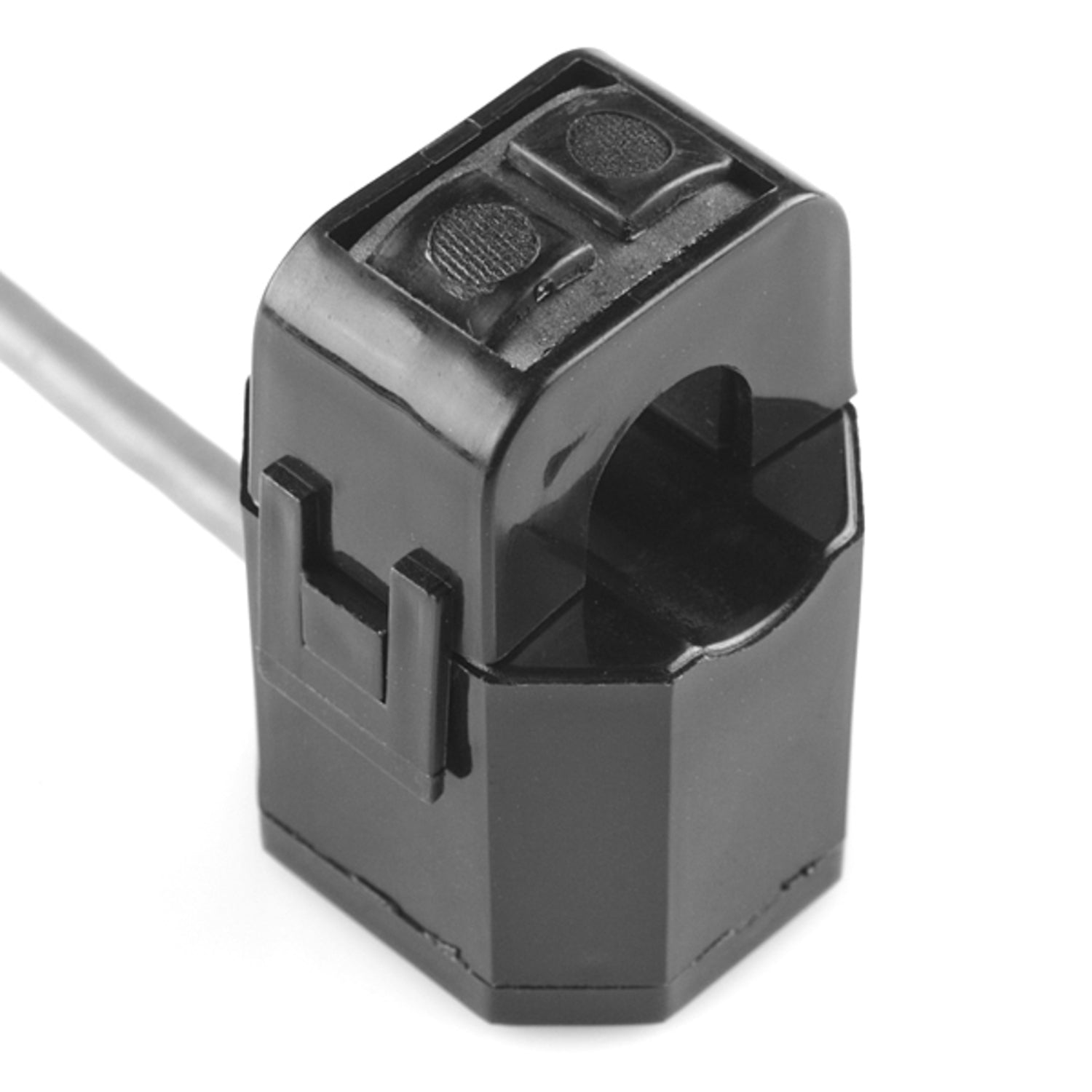

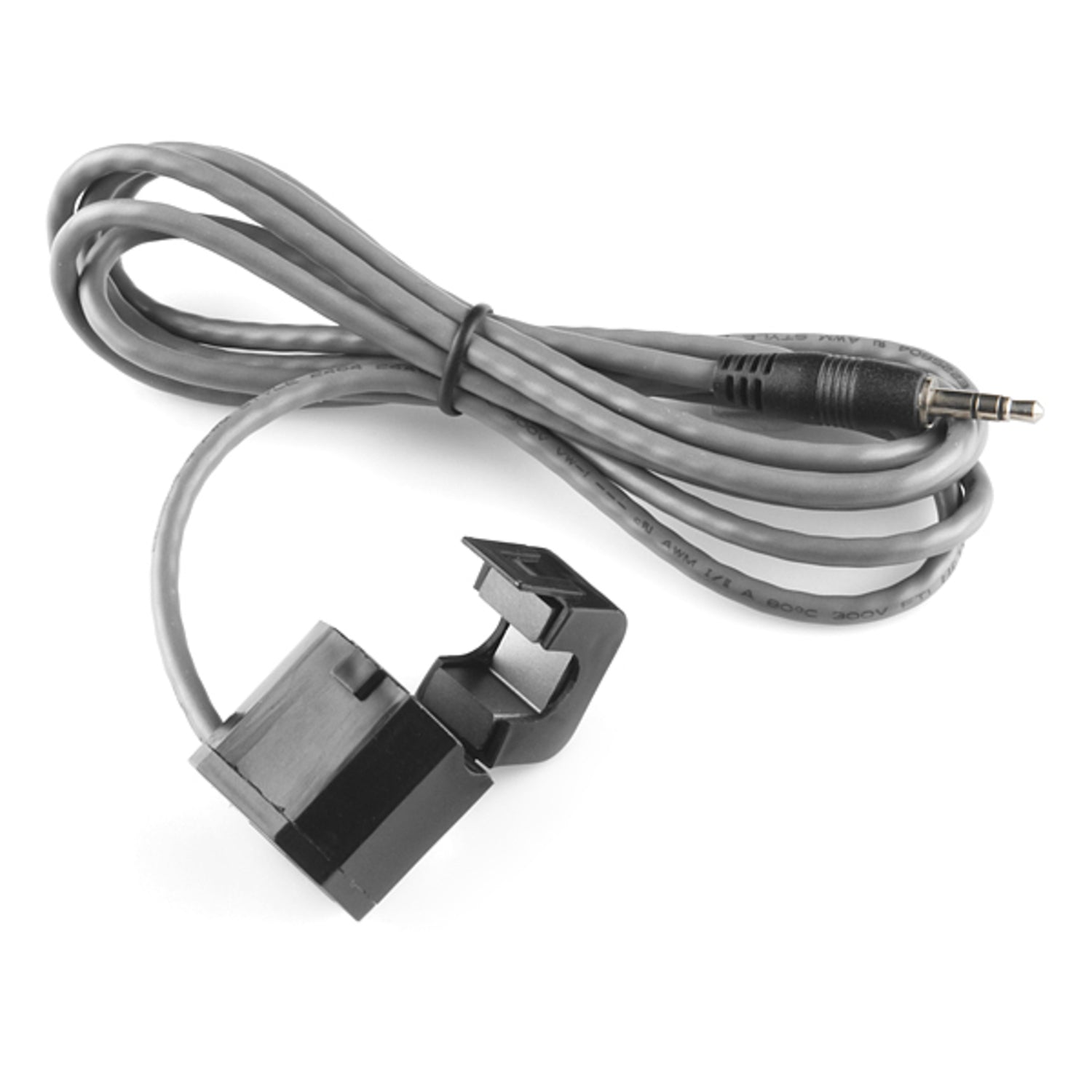

This non-invasive current sensor, also called a split core current transformer, can be easily clamped around an electrical load's supply line. It works as an inductor, reacting to the magnetic field around a current-carrying conductor. By reading the coil's current output, you can figure out the current passing through the conductor. This sensor can measure loads up to 30 Amps. It's ideal for creating your own energy monitor to reduce power usage or an over-current protection device for AC loads. It doesn't have a built-in load resistor, so you'll usually need to add a resistor across the output to turn the coil's induced current into a small measurable voltage. There are useful documents like the datasheet, 'Environmental Monitoring with the Tessel 2', and 'Arduino Energy Monitor Project'. It replaces SEN-10341.

Using this current sensor is easy. First, clamp it around the supply line of the electrical load you want to measure. Then, if needed, add a resistor across the output to convert the current to a measurable voltage. You can use the readings to calculate the current passing through the conductor. When using it for building an energy monitor or over - current protection device, make sure the load doesn't exceed 30 Amps. As for maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or strong magnetic fields. If you face any issues, refer to the datasheet for troubleshooting.
