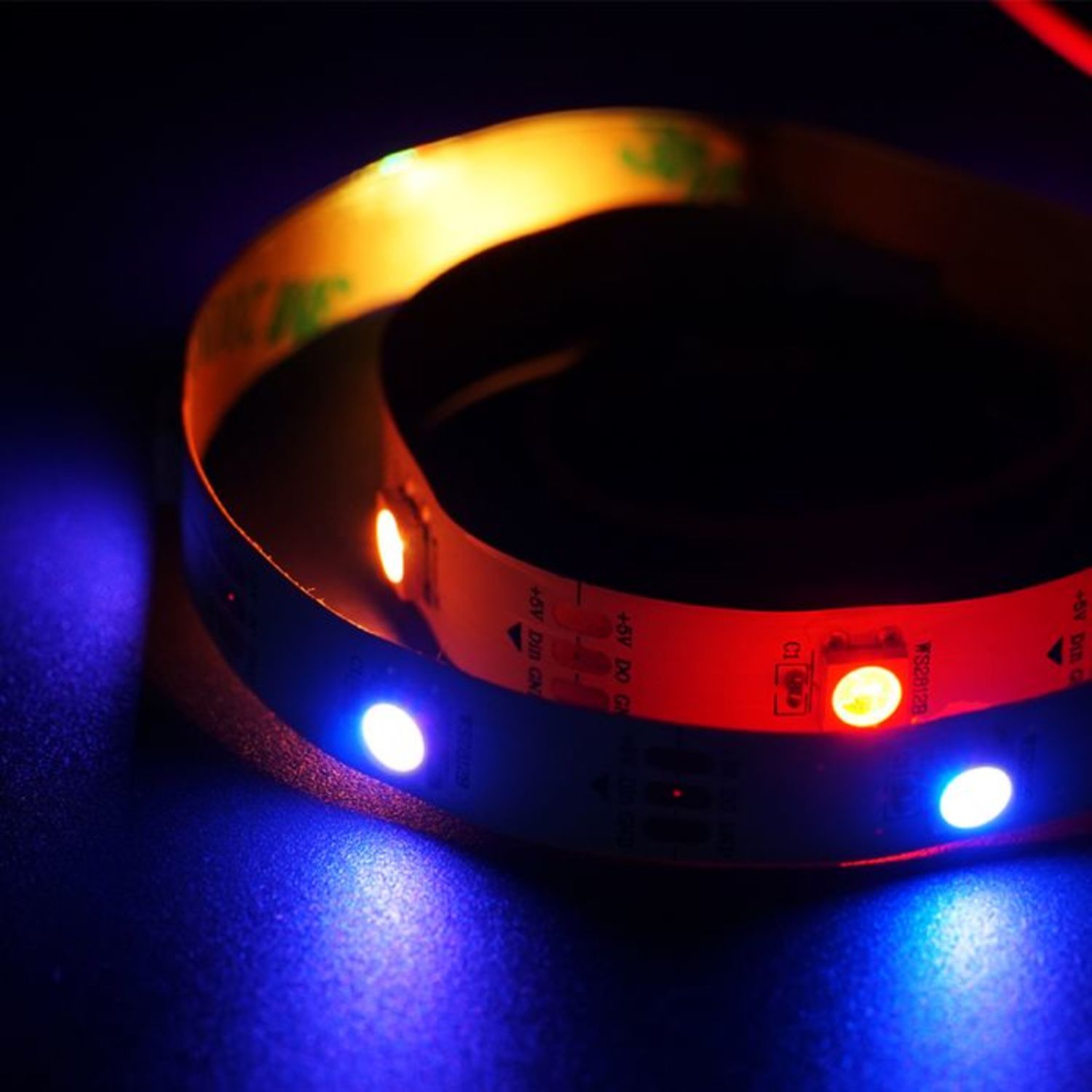

This amazing LED strip is built on WS2812B beads. It can show vivid RGB colors and support multiple cascades. The standard 3-pin GVS ports make it a breeze to plug in. Both ends come with connectors for easy cascading. It can power the micro:bit at 3.3V. With an SKU of EF04098, it has a working voltage of DC 3.0V and can take a power supply from 3V to 5V. The analog connector type is user - friendly. There are 10 beads, and the pin definition is clear: 1 - Signal, 2 - VCC, 3 - GND. It responds quickly with high sensitivity and has a simple drive circuit. It's stable and durable. To start, connect it to the P1 port of the extension board. In MakeCode, click 'Advanced' to see more options. Then click 'Extensions' and search 'neopixel' to download the LED bead codebase. Once programmed, the LED strips will display beautifully in a light - wave way.
Using this LED strip is easy. First, connect it to the P1 port of the extension board. Then, open MakeCode. Click on 'Advanced' to find more choices and then click 'Extensions'. Search for 'neopixel' in the box and download the codebase for the LED beads. After that, you can program it as shown in the picture. When it comes to power, make sure the power supply is between 3V and 5V. Also, be careful when plugging in the 3 - pin GVS ports to avoid any damage. For maintenance, keep it in a dry and clean place. If you're not using it for a long time, store it properly. With proper use and care, this LED strip will serve you well for a long time.
