Product Details

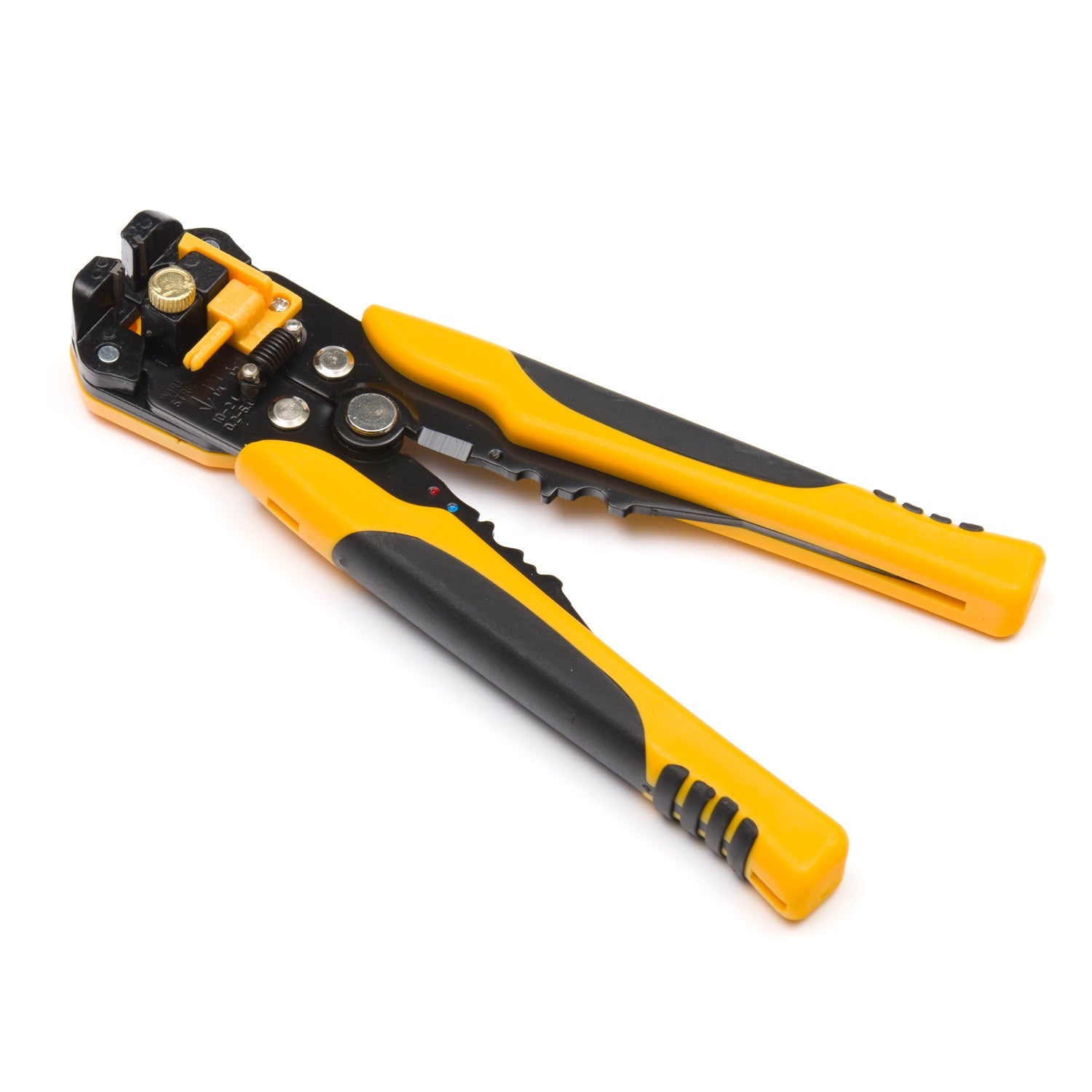

This multifunctional automatic wire stripper is crafted from high - quality steel. It combines three key functions: stripping, trimming, and crimping terminals all in one handy tool. Compared to traditional wire strippers, it saves effort, strips wires better without damaging them, and significantly boosts work efficiency. You can easily strip wires without any adjustments. Thanks to its special hardening process, this steel - made tool has a long service life. It can strip wires from AWG24 - 10 (0.2~6.0mm²), cut and strip cables, crimp both insulated and non - insulated terminals. For insulated terminals, it works with 10 - 22AW (0.5 - 6.00mm), for non - insulated terminals it fits 12 - 10AWG (4.0 - 6.0mm) and 22 - 14AWG (0.5 - 2.5mm), and it's also suitable for auto ignition terminals of 7 - 8mm. Specifications: The blade is made of SS41 and the handle is ABS+TPR. Blade hardness (HRC) is 52° - 57°, body hardness is HRC88° - 90°, cut hardness is HRC55° - 60°, total length is 210mm, and it comes in a bright yellow color. The package includes 1 x Multifunctional Automatic Wire Stripper Crimping Pliers Terminal Tool.
Using this wire stripper is easy. First, select the appropriate wire size range as indicated in the product description. Then, place the wire into the stripper and gently squeeze the handles. For crimping terminals, insert the terminal into the right slot and apply pressure until it's securely attached. When using it, make sure to keep your hands dry and away from the blade area to avoid injury. After each use, wipe the tool clean with a dry cloth. Store it in a dry place to prevent rust. If the blade seems dull over time, you may need to replace it, but usually, due to its high - quality material, it will serve you well for a long time.
