Product Details

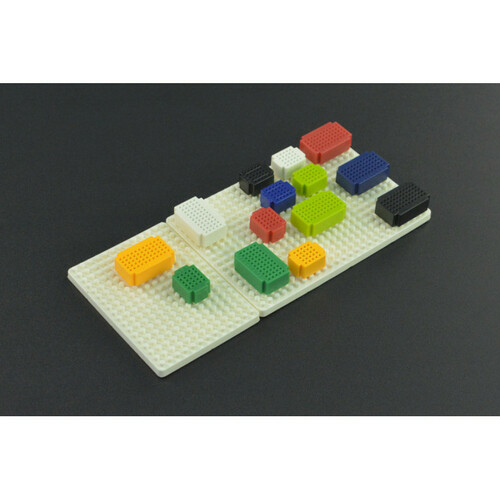

This amazing kit comes with two types of mini multi - colored block building breadboards and two base plates of different sizes. You can freely assemble these breadboards to create a wide range of projects when combined with microcontrollers like Arduino and Raspberry Pi. It's perfect for circuit assembly and testing in experiments or robotic applications. The breadboard's 5 holes are internally linked as shown. Features include a mini size for easy embedding, colorful blocks, assembly according to a fixed unit, and it's made of ABS material with ROHS certification. Applications cover circuit assembly and testing in experiments or robotics. Specifications: Material is ABS, with 25 and 55 - hole options, 2.54mm/0.1'' hole pitch, suitable for 20 - 29AWG wire. The 25 - hole breadboard is 1.5*2cm, 55 - hole is 2*3cm, small base plate is 9.2*6.7cm, large base plate is 13.2*9.2cm, operating temperature ranges from - 20°C to + 80°C, and breadboard colors include red, yellow, blue, green, black, white, and fresh green. The shipping list has 7 pieces of 25 - hole breadboards, 7 pieces of 55 - hole breadboards, 1 small base plate, and 1 large base plate.
Using this breadboard kit is a breeze. First, decide on your project, like building a simple circuit or a small robotic device. Then, pick the right breadboards from the 25 - hole and 55 - hole ones based on your needs. You can easily assemble them on the base plates according to a fixed unit. Connect them with other microcontrollers such as Arduino or Raspberry Pi to start creating. When it comes to using wires, make sure they are in the 20 - 29AWG range. As for maintenance, keep it in a dry place and avoid exposing it to extreme temperatures outside the - 20°C to + 80°C range. If you get it dirty, you can use a soft, dry cloth to clean it. And always handle it gently to prevent any damage to the holes or the structure.
