Mounting Bracket for Standard-Size Servos

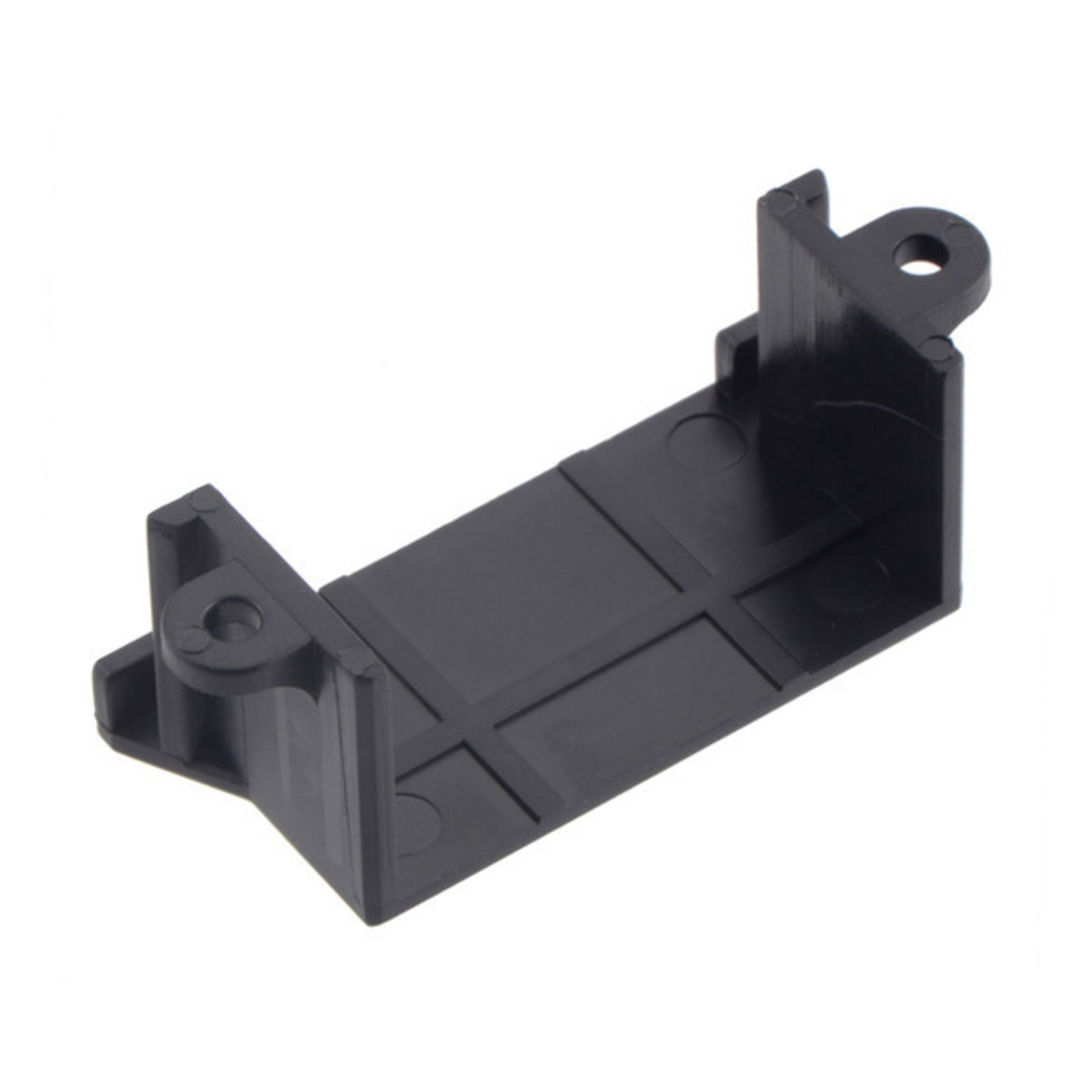

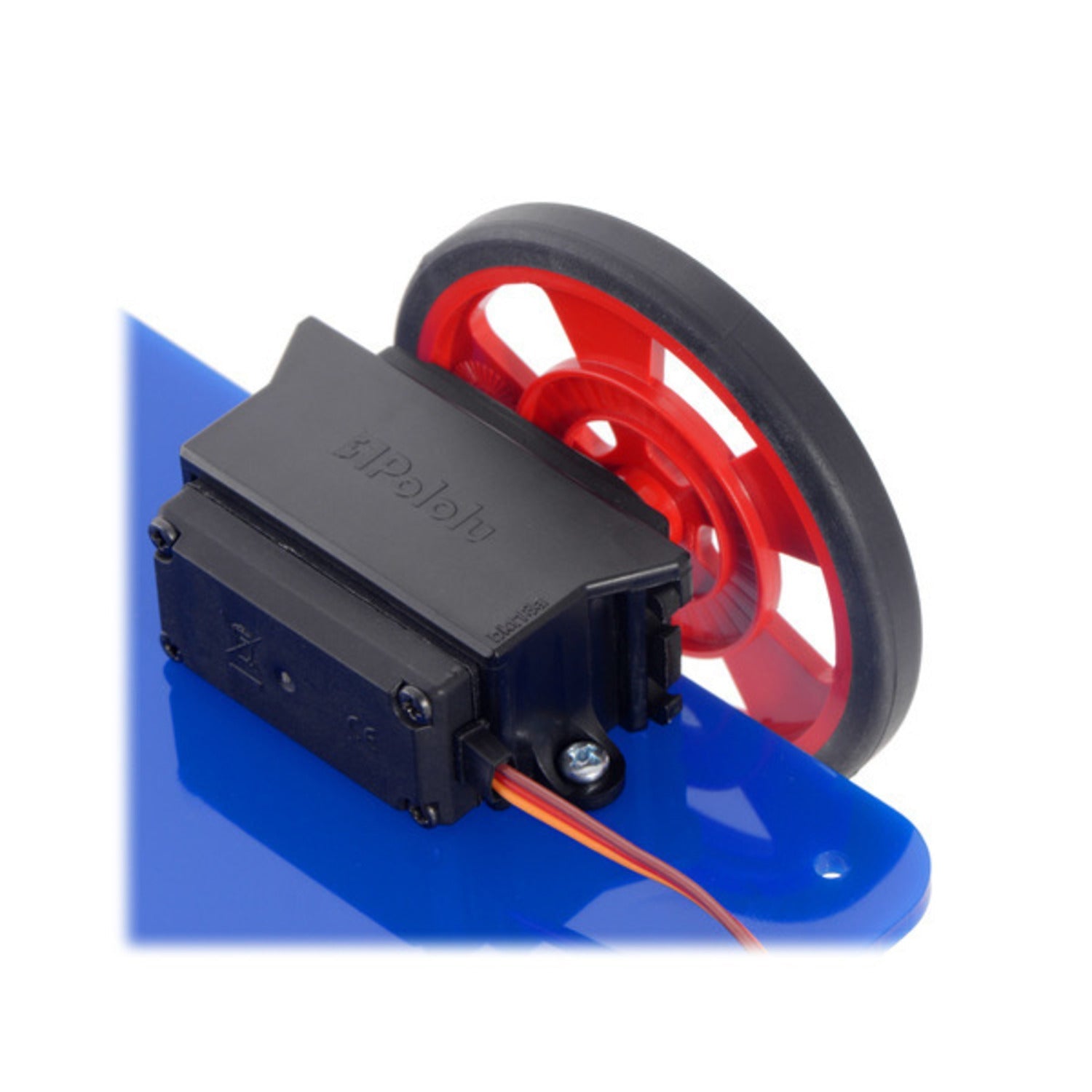

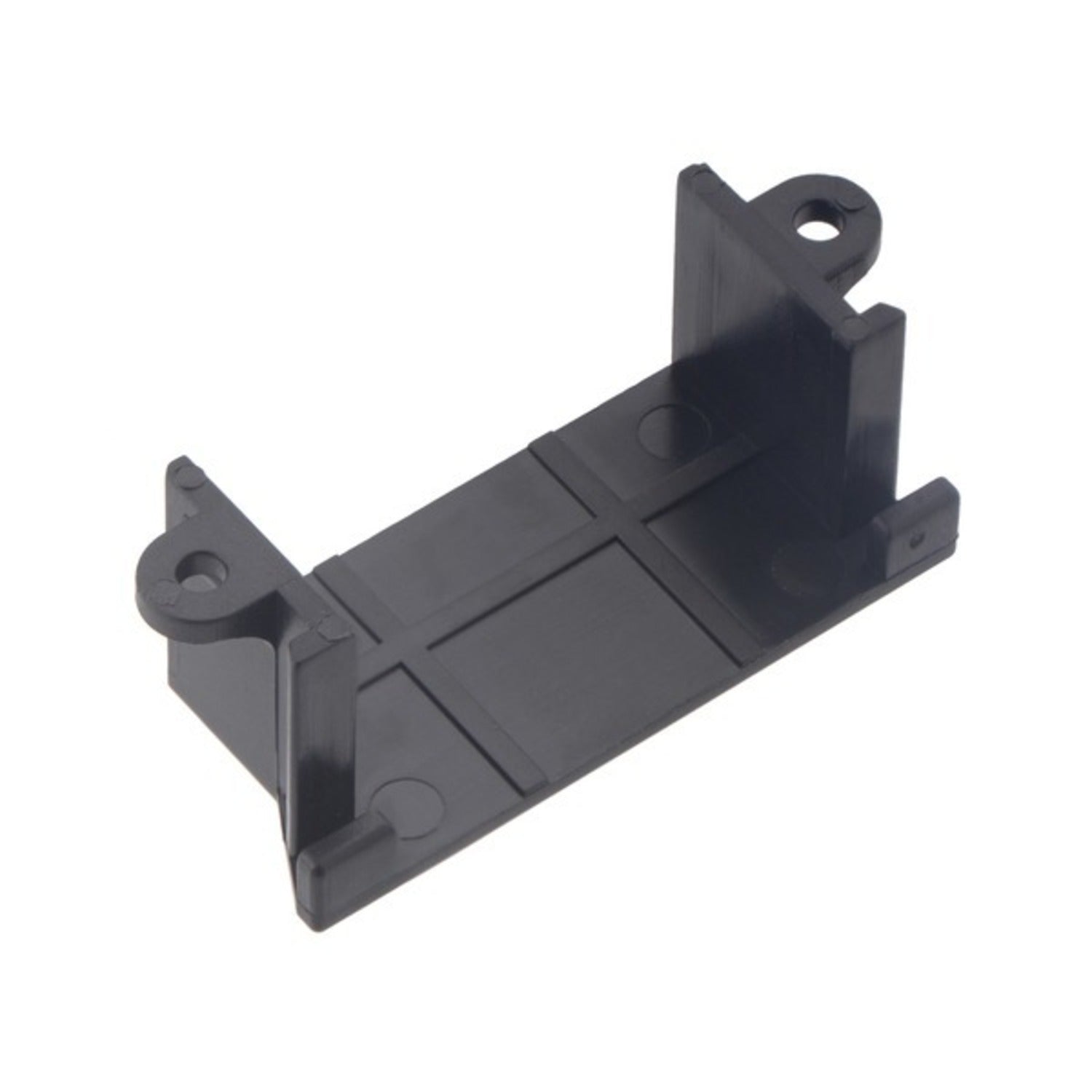

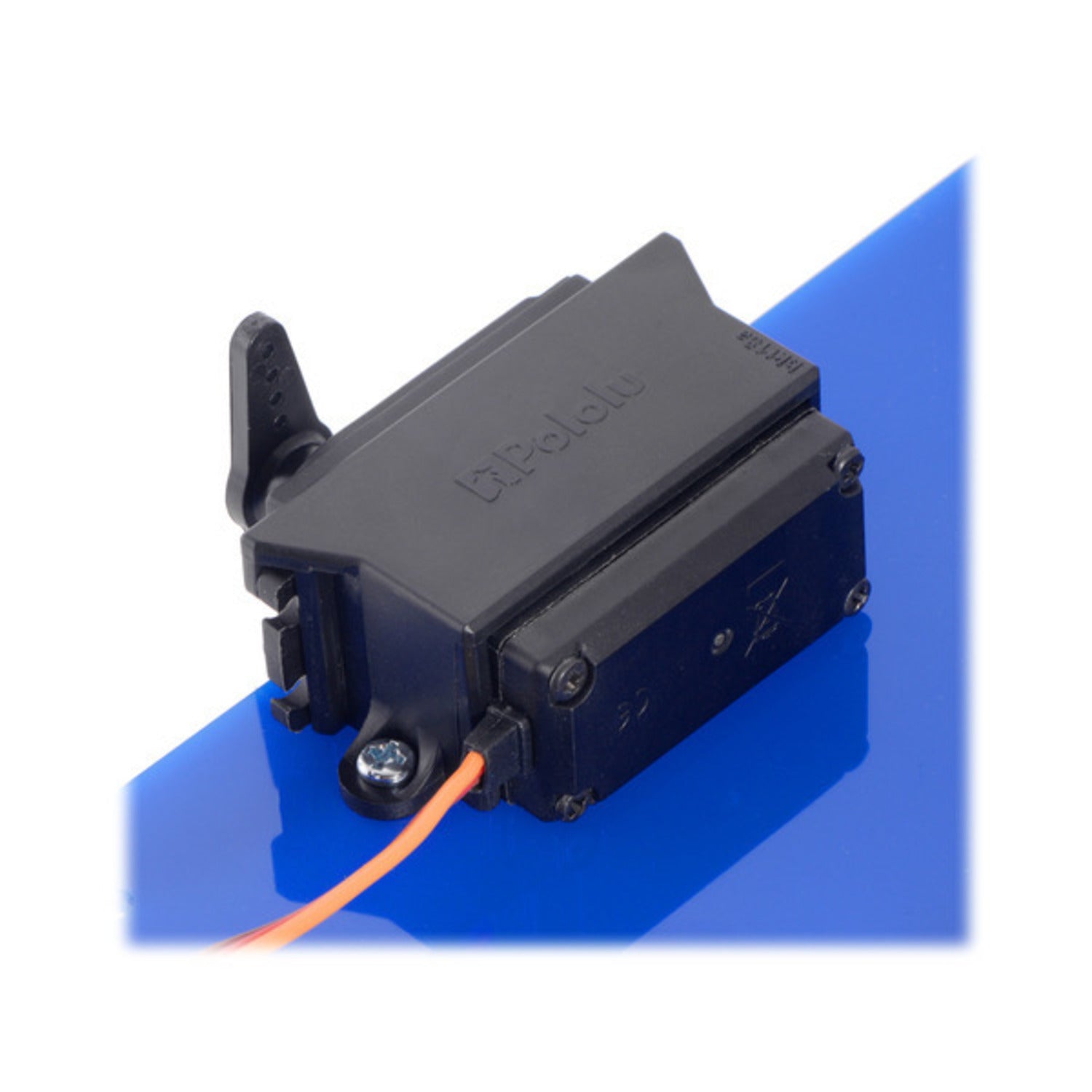

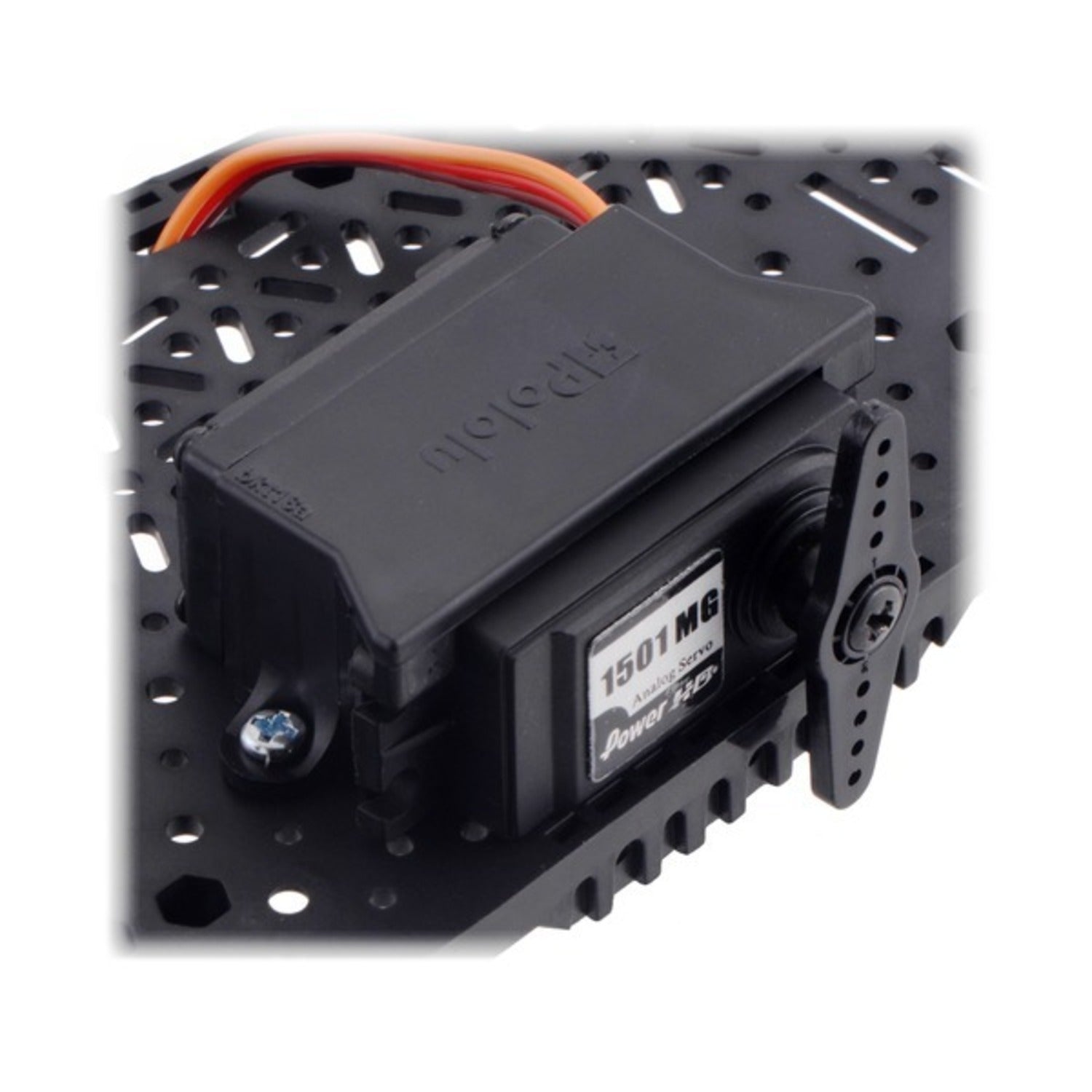

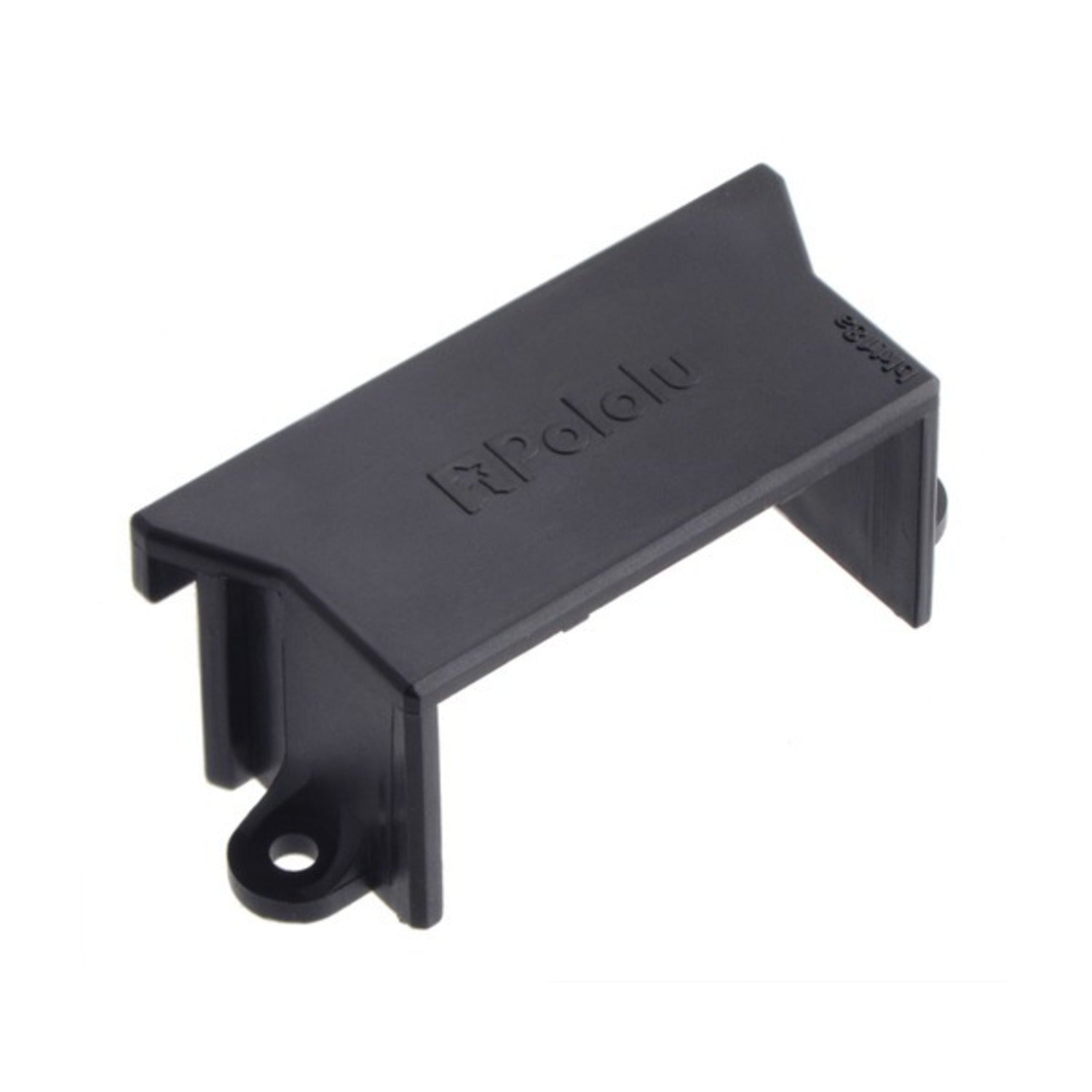

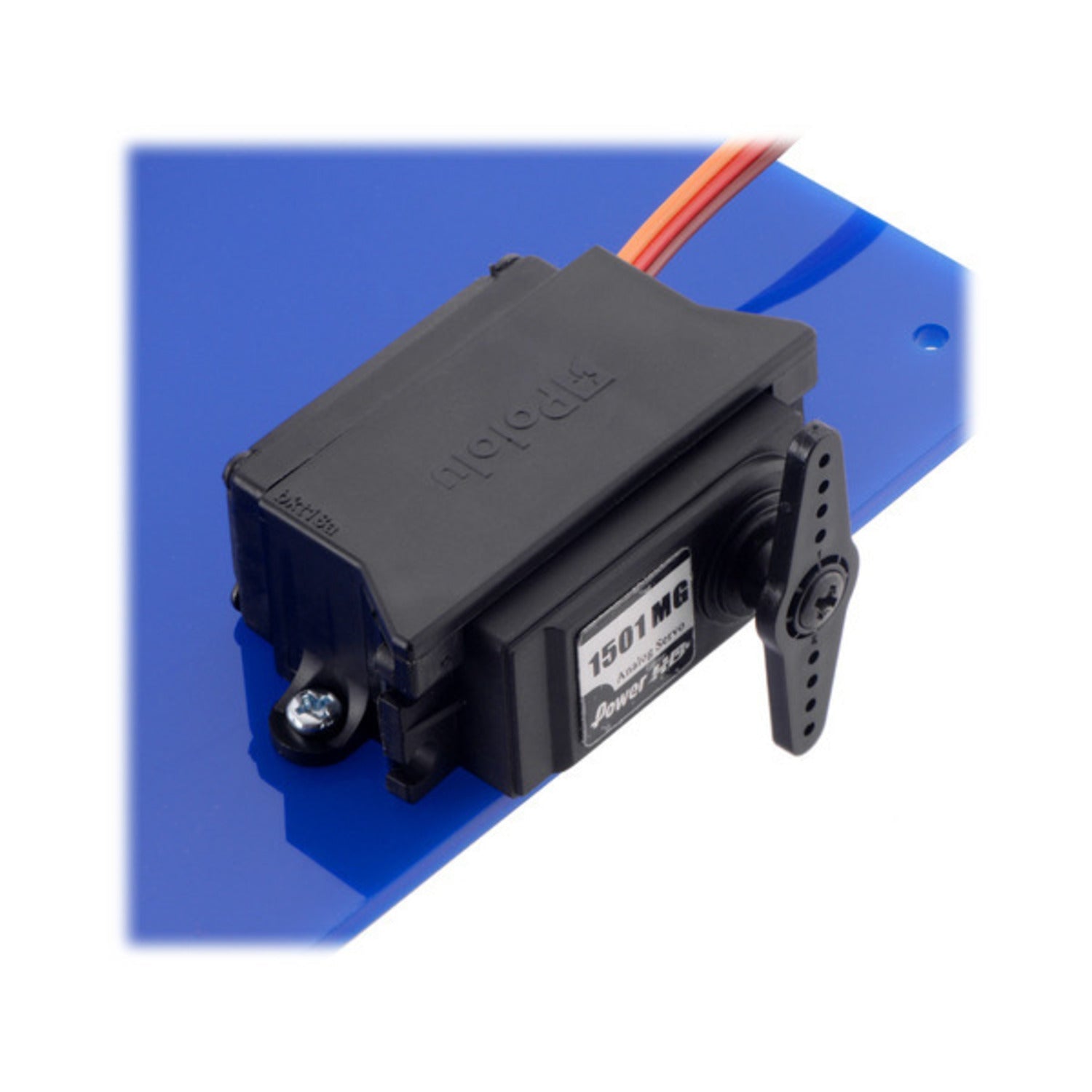

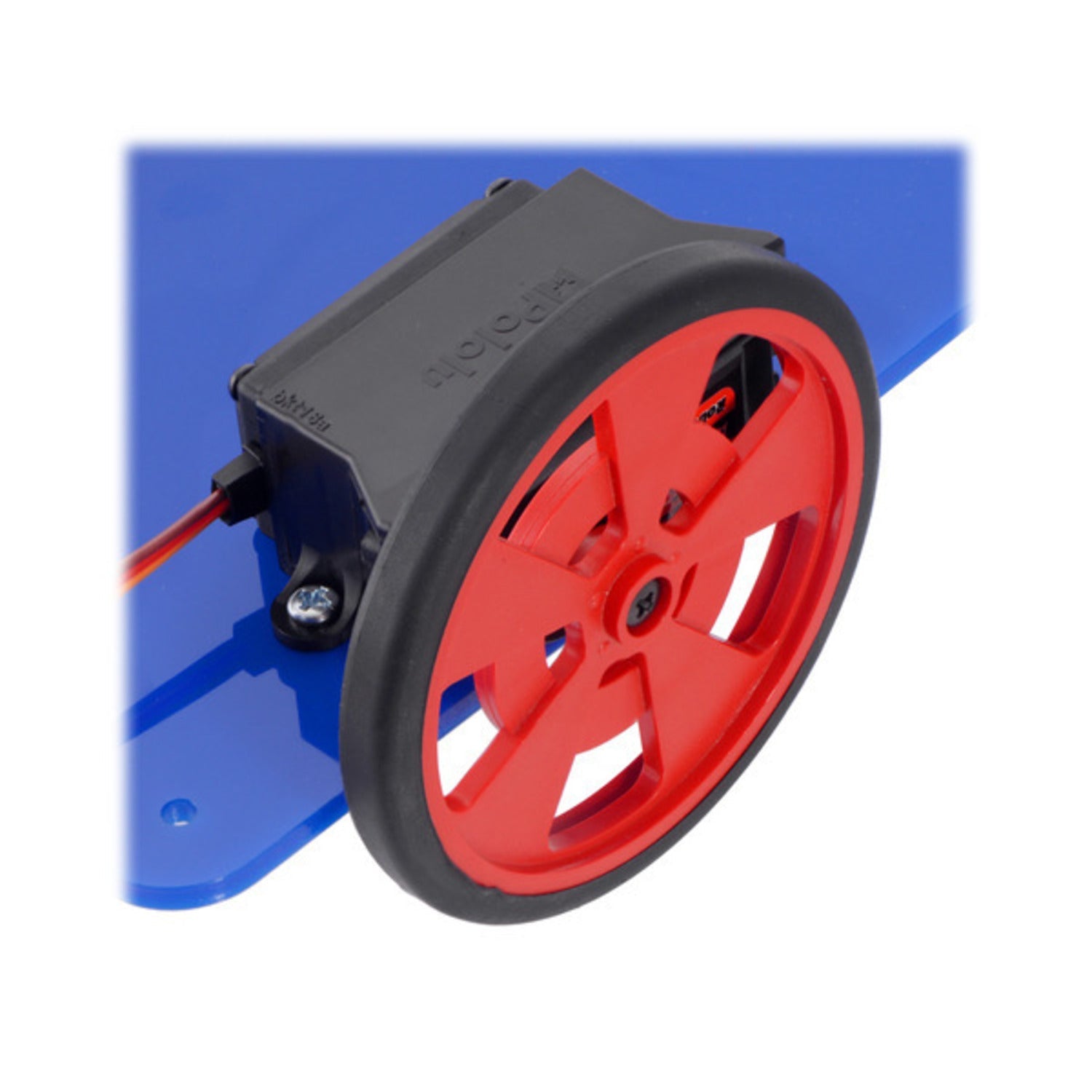

This versatile plastic mounting bracket is a great choice for standard-sized servo motors, such as the Power HD AR-3606HB continuous rotation servo and the FEETECH FS5103B standard servo. It easily clasps around the servo, gripping its mounting tabs firmly. This makes it super easy to mount the servo on its side. The mounting holes on the bracket are designed to work with M3 or #4-40 screws (screws not included). It fits most standard-sized servos, including all those in the related products list on this page. But be aware, some servos have thick mounting tabs that may not fit without some modification. So, it's a good idea to compare your servo's dimensions with the bracket's dimensions provided below. You can also download a PDF (245k) with the dimension diagram.

Using this mounting bracket is simple. First, take your standard - sized servo motor. Wrap the bracket around the servo so that it grabs the mounting tabs. This will hold the servo securely. Then, use M3 or #4 - 40 screws (you'll need to get these separately) to attach the bracket to your desired surface. When choosing a servo, remember to check its mounting tab thickness. If the tabs are too thick, you may need to make some adjustments to get a proper fit. As for maintenance, keep the bracket clean from dust and debris. You can use a dry cloth to wipe it down. Store it in a dry place when not in use to prevent any damage.
