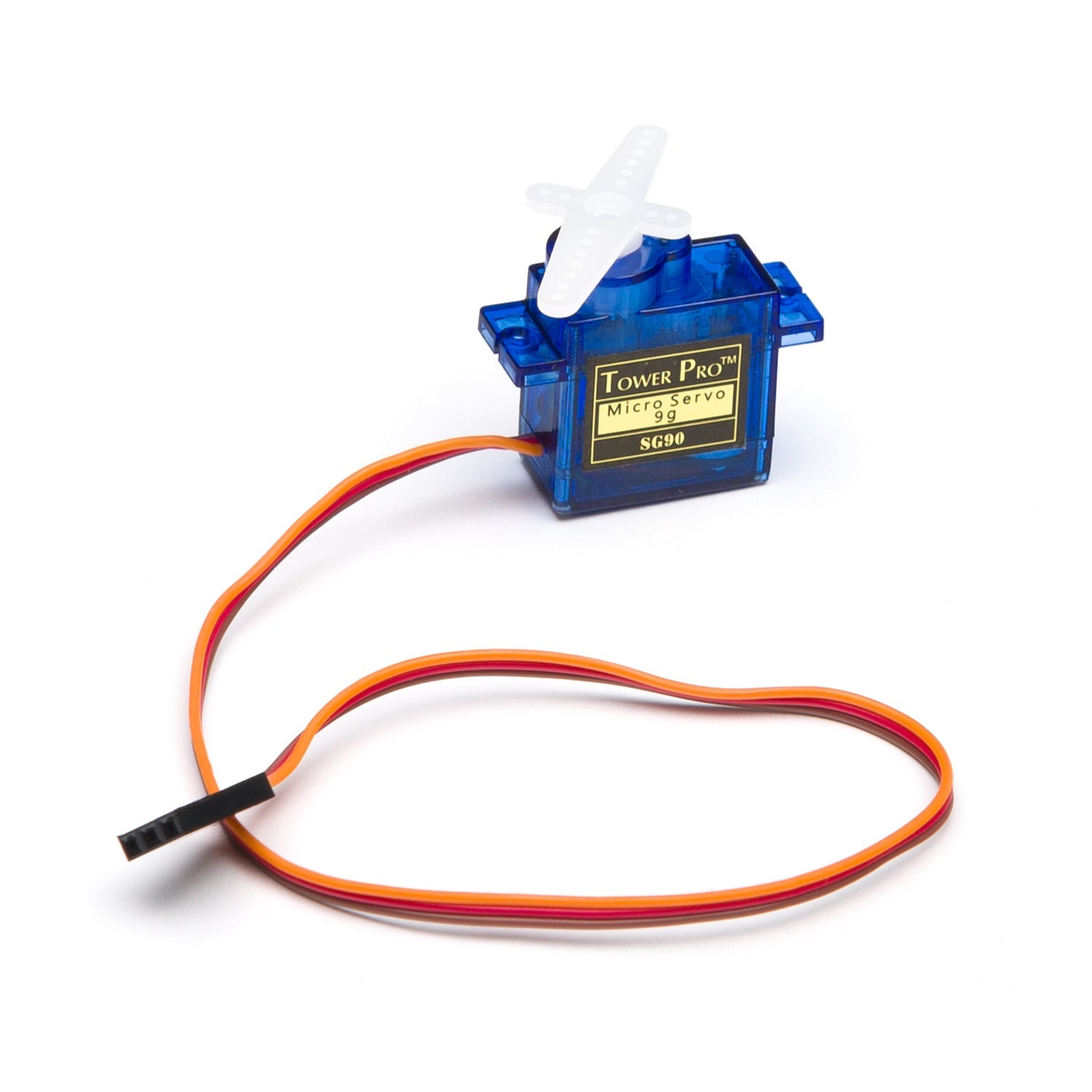

Micro Servo 9g

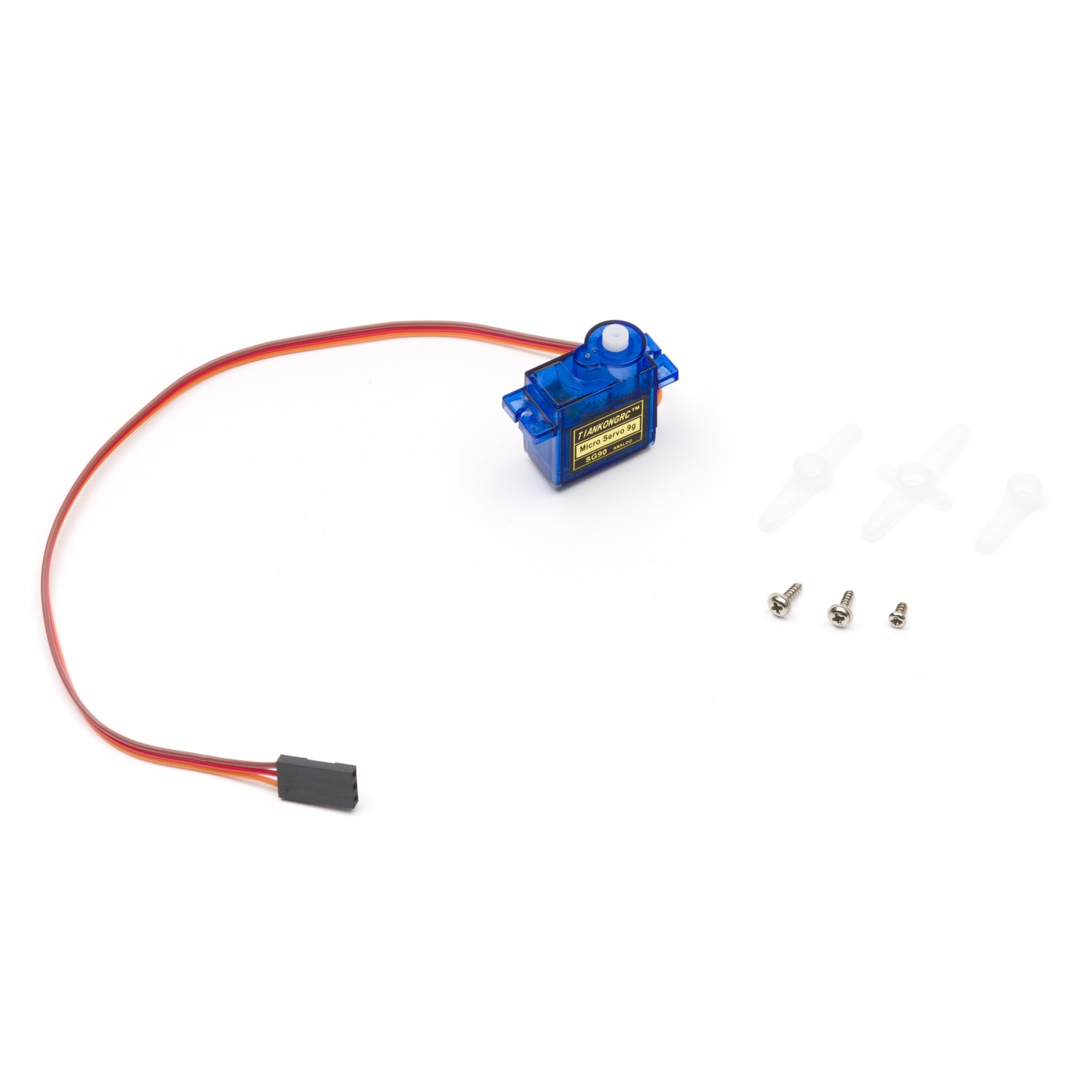

This top - notch micro - sized servo is a budget - friendly and user - friendly option for all your mechatronic requirements. It can work with a voltage ranging from 3.0v to 7.2v, and at 6.0V, it can generate a maximum torque of 1.6kg/cm in just 0.10 seconds per 60°. The servo comes with a 3 - wire cable for ground, power, and control, ending with a three - pin female header. In practice, it can rotate up to about 160°. Key features include an operating voltage of 4.8 - 6.0 Volts, a torque of 1.6kg/cm at 6.0V, a speed of 0.10 sec/60° at 6.0V, approximately 160° rotation, nylon gears, and a 3 - pole ferrite motor. The package includes 1 micro - size servo, 1 single - arm micro horn, 1 double - arm micro horn, 1 four - point micro horn, 2 mounting Phillips screws, and 1 horn Phillips screw.

Using this 9g micro servo is easy. First, connect the 3 - wire cable to the appropriate ground, power, and control sources using the three - pin female header. Make sure the power supply voltage is within the 3.0v - 7.2v range for proper operation. When using it, keep in mind that the servo can rotate about 160°. Don't force it to rotate beyond this range as it may damage the servo. For maintenance, keep it clean and dry. If it gets dirty, you can use a soft, dry cloth to gently wipe it. Check the gears regularly to ensure they are in good condition. Also, make sure the screws are tightened properly to avoid any loose parts during operation. That's all you need to know to get the most out of your micro servo.
