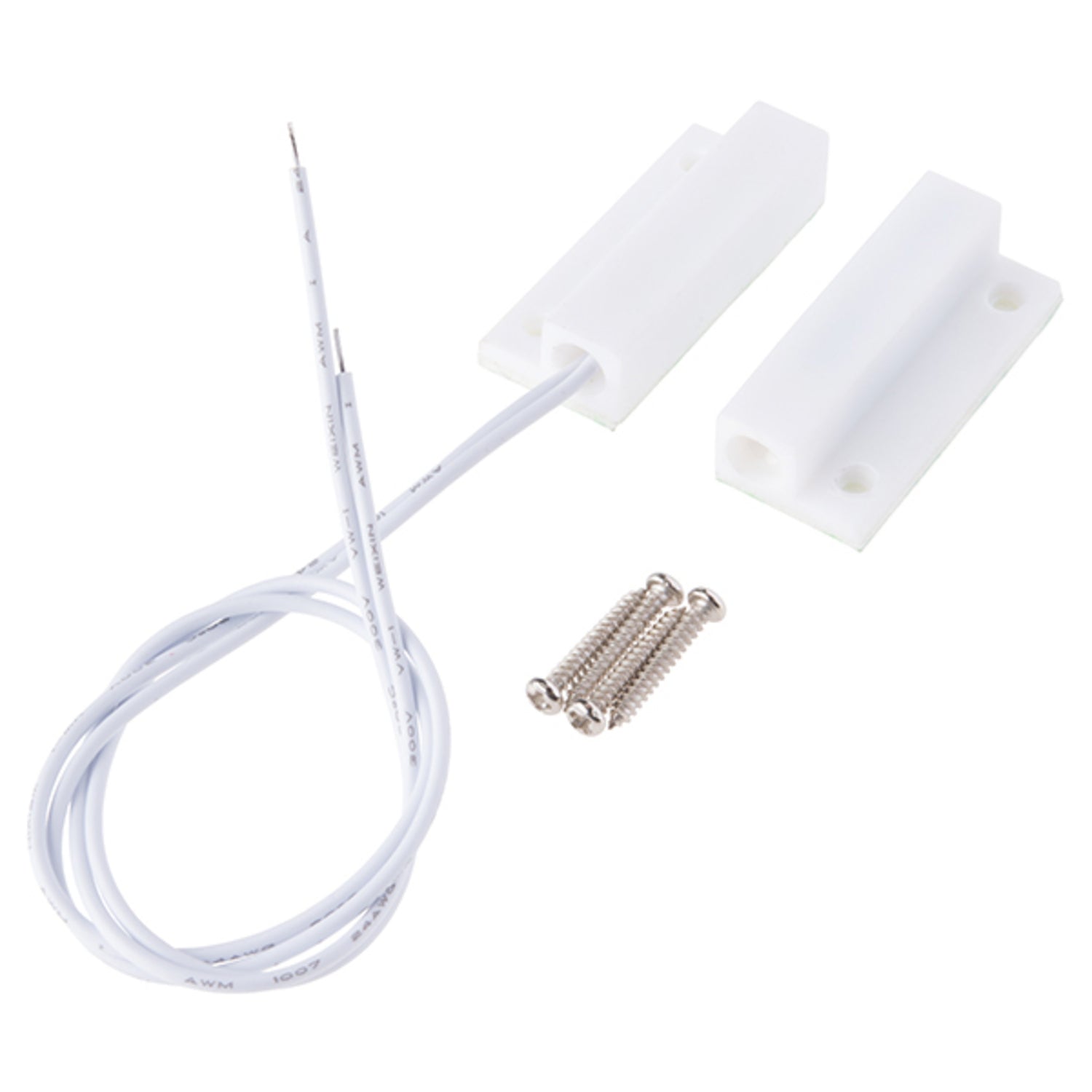

This Magnetic Door Switch Set is a great addition to your home security system. It's a small yet effective reed switch assembly. When doors, drawers, or any other openings are opened, it immediately alerts you. One part of the set is placed on the window or door frame, and the other on the window or door itself. Once the two parts separate, the contact breaks and triggers an alarm. When the magnet pieces are within 20mm of each other, they complete the circuit with the internal reed switches. Each set can handle a max voltage of up to 100V at 500mA. Housed in durable ABS plastic, it can be easily mounted on most surfaces with the included Phillips mounting screws. The dimensions are 34 × 41 × 6.5 mm. The set includes 1 Magnetic Door Switch Set and 4 Phillips Mounting Screws. Its features are Max Voltage ≤100VDC, Max Current ≤500mA, Max Rating ≤10W, Gap 20±5mm, and Contact Mode NO. There are also a Dimensional Drawing and a Product Video available.

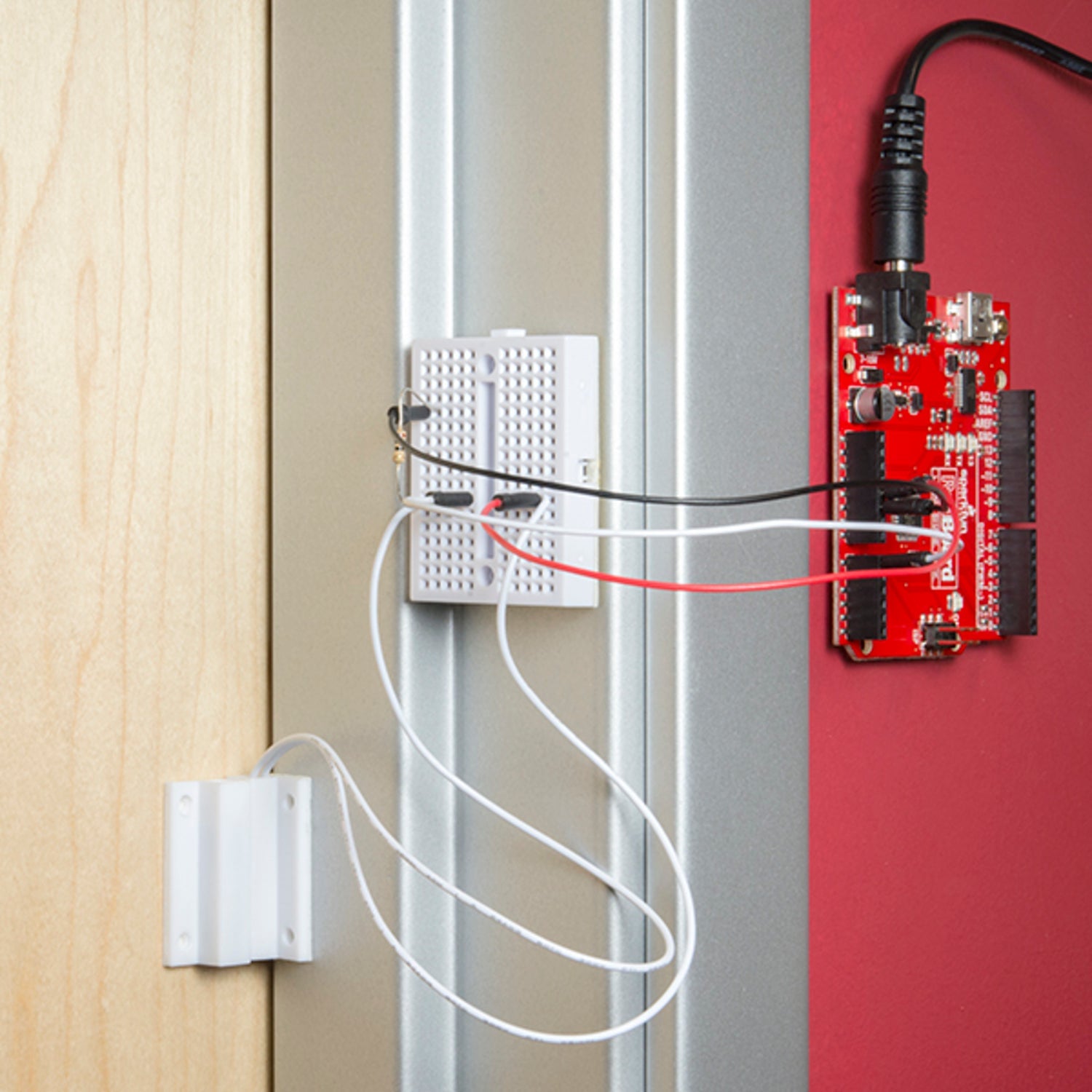

Using this Magnetic Door Switch Set is easy. First, decide where you want to install it, like on a door or window. Mount one part of the set on the frame and the other on the door or window itself using the included Phillips mounting screws. Make sure the two parts can come close to each other when the door or window is closed. When the door or window opens and the two parts separate, it will trigger an alarm. As for voltage and current, don't exceed the maximum ratings of 100V and 500mA. Keep the area around the switch clean. If there's dust or dirt on it, gently wipe it with a dry cloth. Also, check the screws regularly to make sure they're tight. If you have any questions, refer to the Dimensional Drawing and Product Video for more details.
