Macchina OBD-II 3-Way Breakout

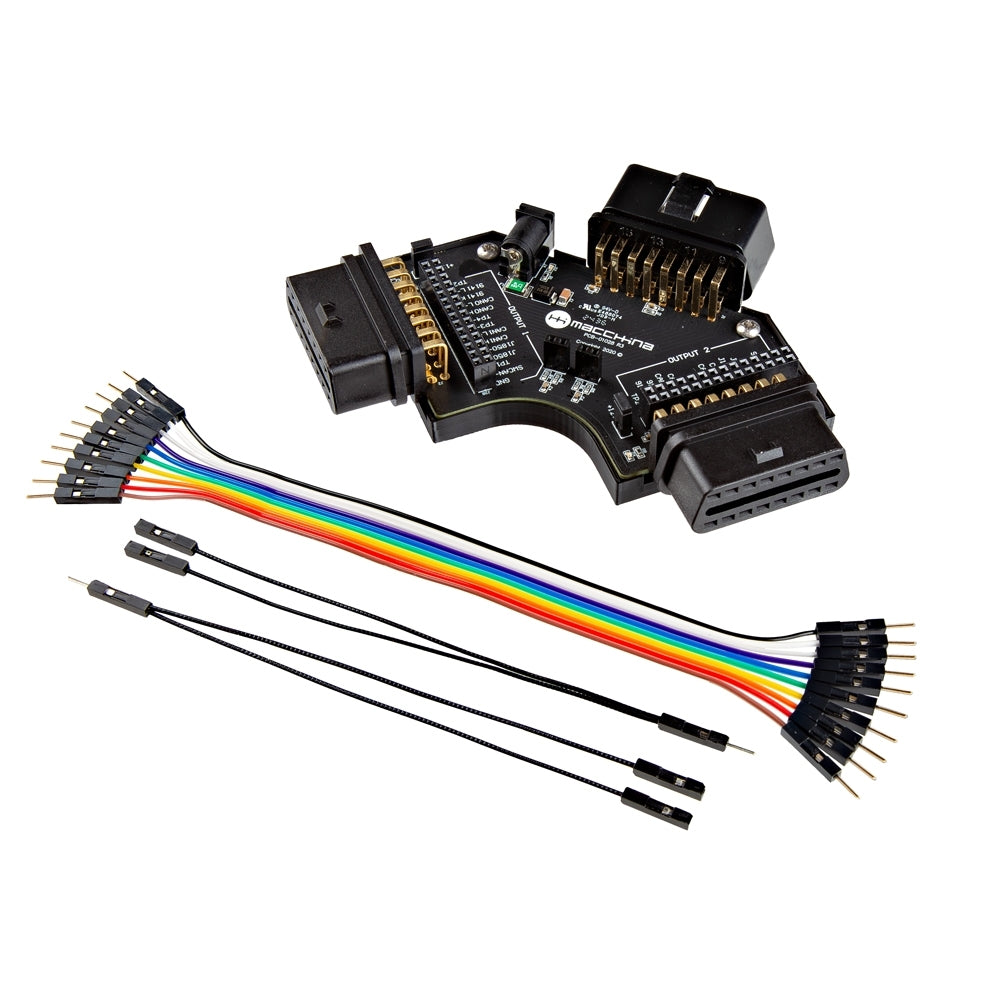

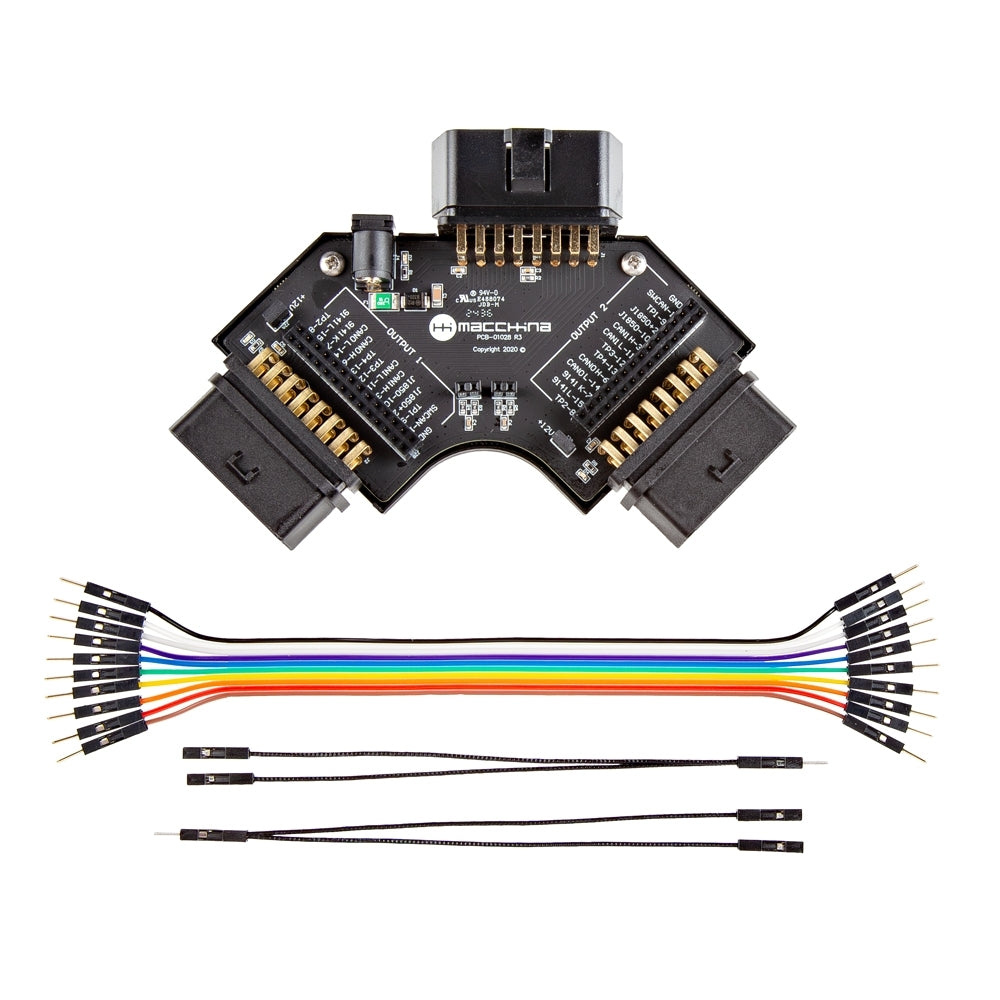

Meet the amazing OBD2 Breakout Board! It's your ultimate partner for simplifying OBD2 device development. This great board has junction blocks that allow you to easily adjust signal routing between connectors. Just install a jumper wire between rows for 'through' connections or change to other pins to rearrange signals as you want. It can work in multiple'modes', so you can customize the signal paths to fit your project. Features include a male-pinned OBD2 input connector, two female-pinned output connectors, support for a 12V power source (either from an external adapter for desktop development or from the vehicle via an OBD2 extension cable), power jumpers to control output power, flexible OBD2 signal routing with fully accessible signals, two sets of CAN termination resistors, and a green power indicator LED.

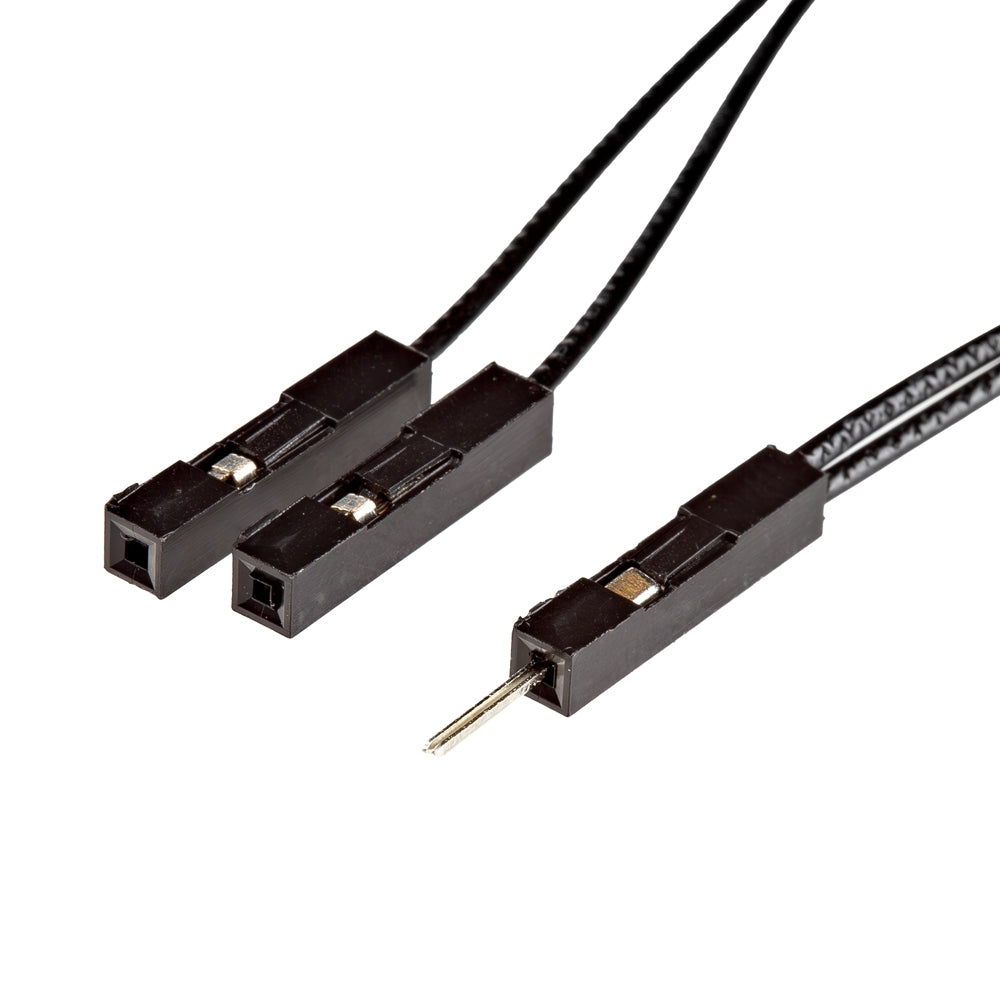

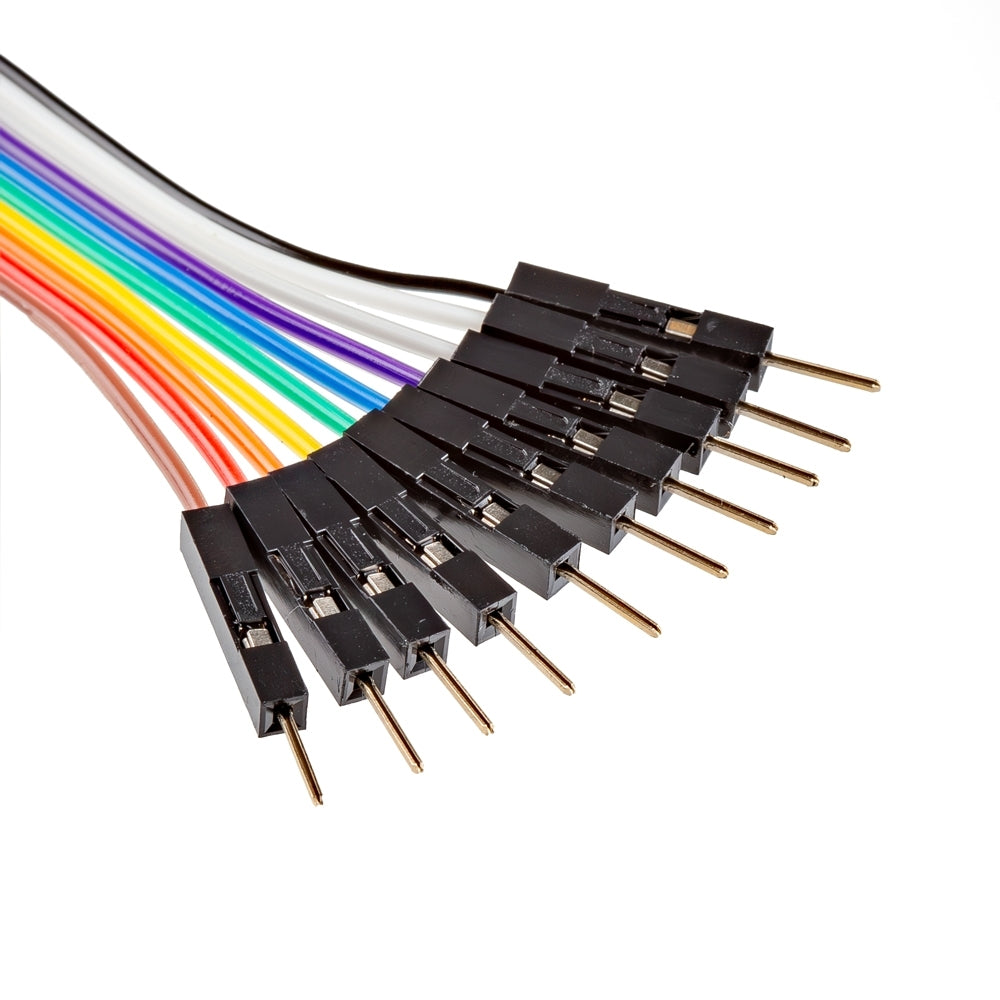

Using this OBD2 Breakout Board is easy. First, if you're doing desktop OBD2 development, connect an external 12V power adapter. Or, if you're using an OBD2 extension cable, the power will come from the vehicle. The green LED will light up when the power is on. To adjust the signal routing, you can install a jumper wire between rows for 'through' connections or change to other pins. You can use the power jumpers to manage the power to each output. When it comes to maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or moisture. If you have any issues, refer to the product overview and GitHub documentation for more help.
