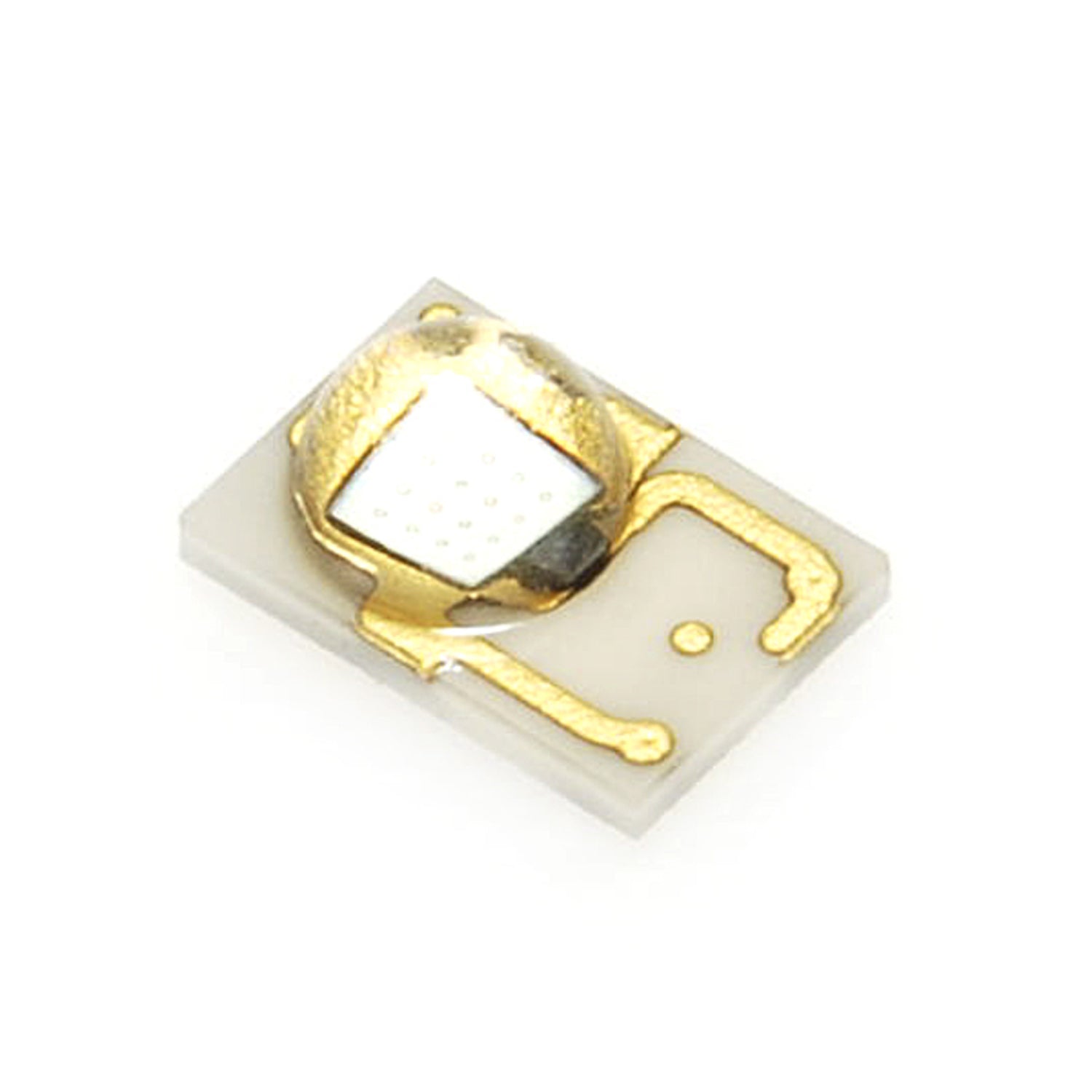

Luxeon Rebel High Power LED - Warm White

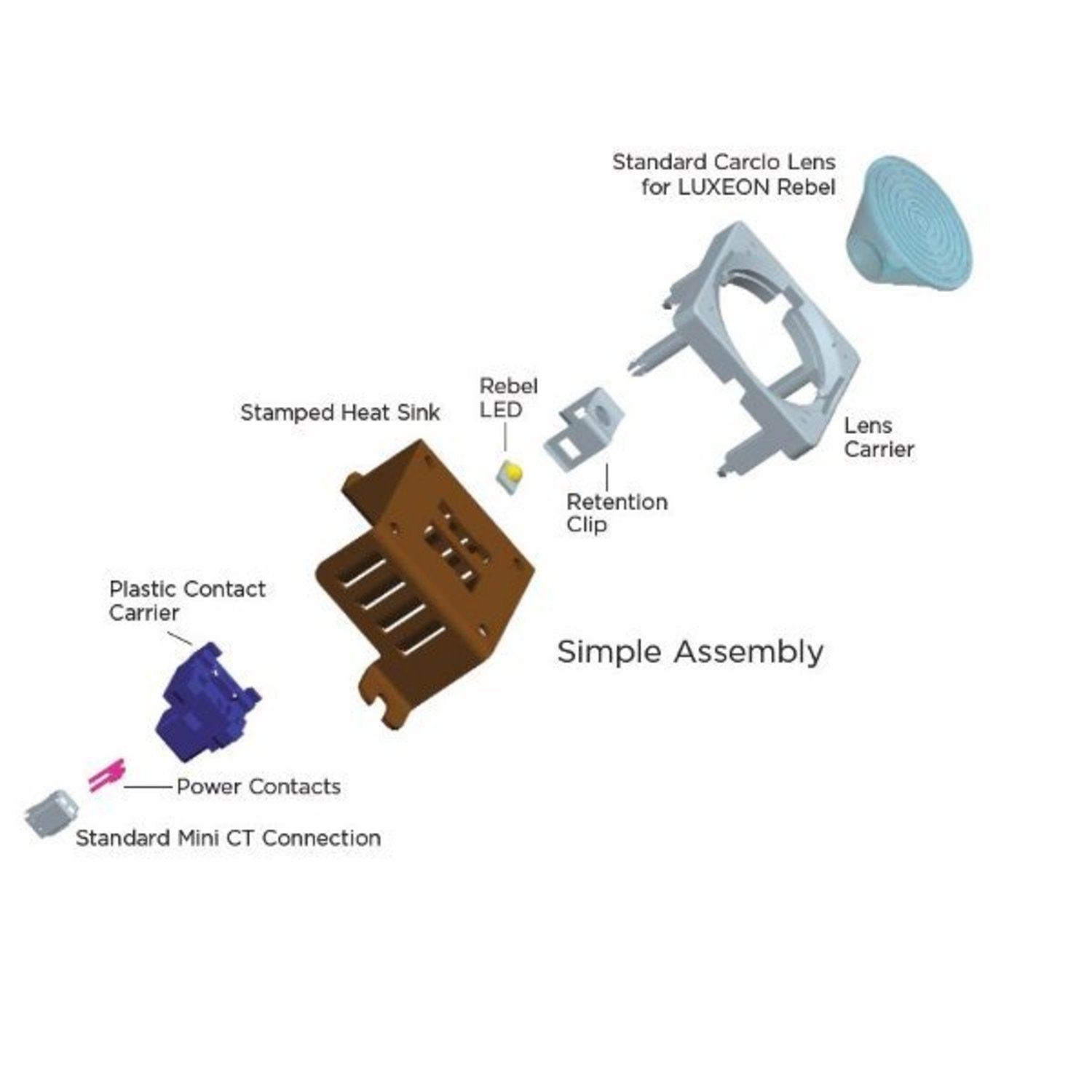

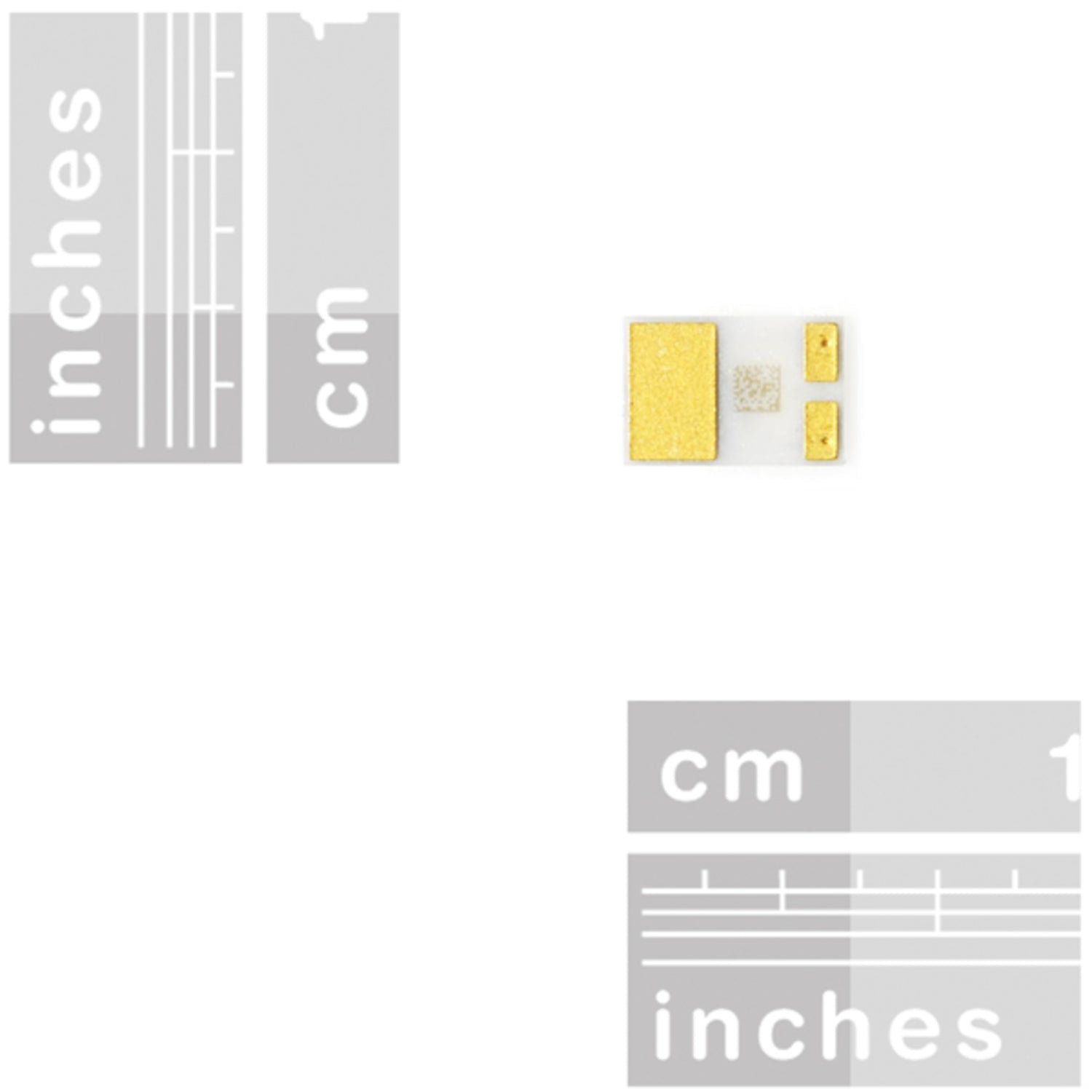

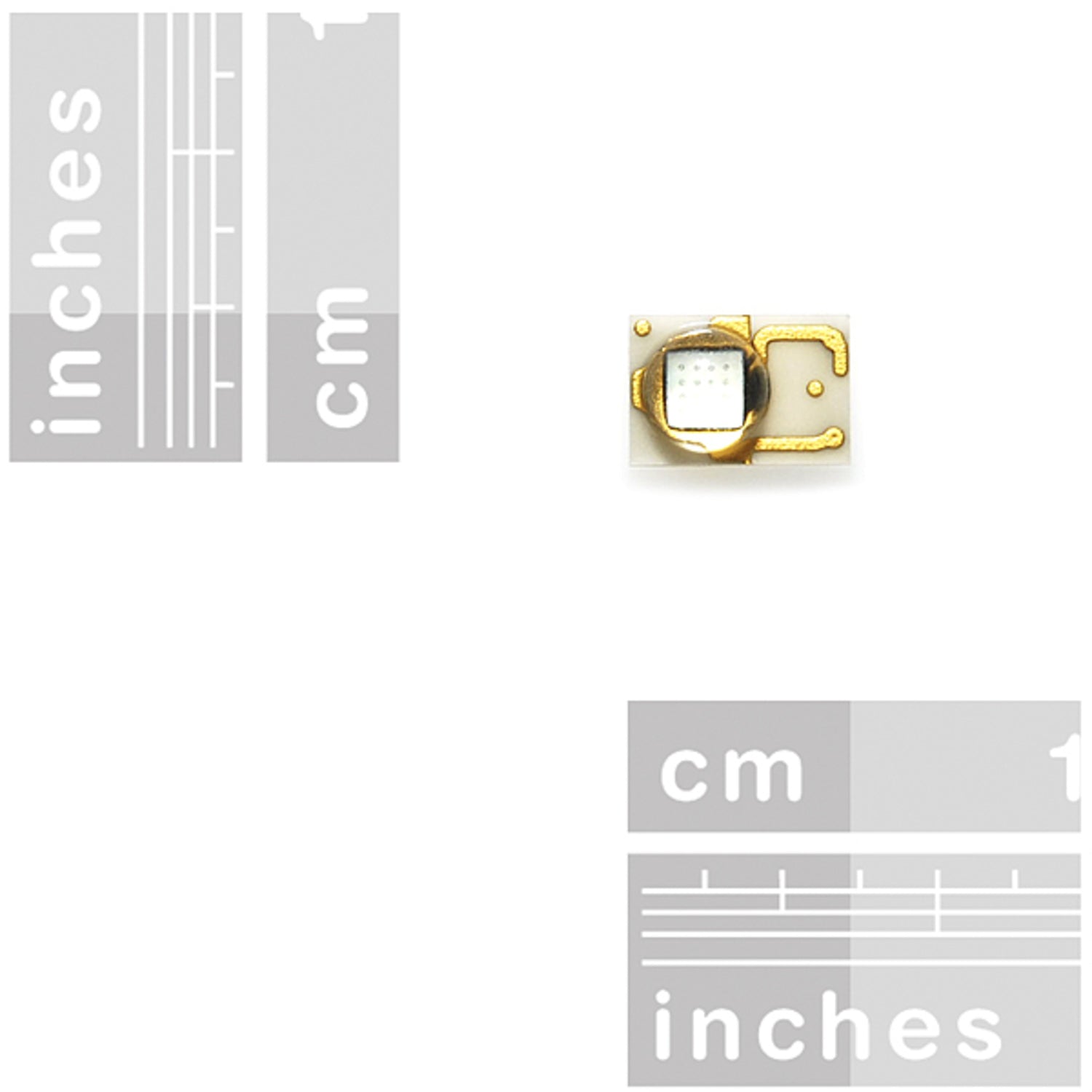

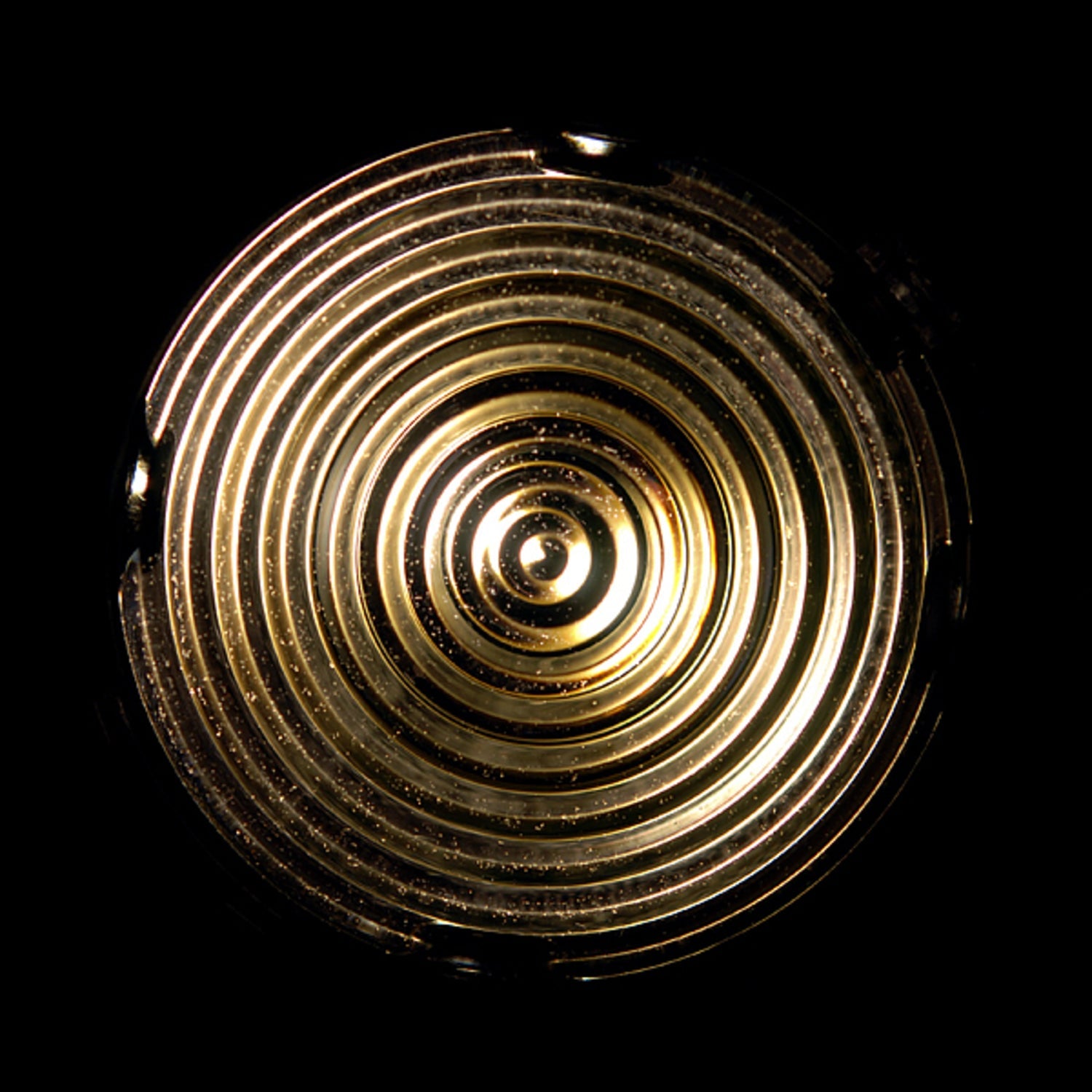

This Luxeon Rebel LED offers super-high intensity in a warm white hue. It provides excellent light quality and efficiency, perfect for various projects, especially LED illumination. It's extremely bright, with a maximum forward current of 1A and a typical forward voltage of 3VDC (ranging from 2.55V to 3.99V). Measuring just about 3 x 4.5 mm, it's very compact. The LED can get hot, so adding a heatsink is recommended. We also have a lens and lens carrier specific to these rebel LEDs. All these components are part of a solderless LED holder that snaps together, making the connection simple.

To use this LED, first make sure to connect it correctly according to the forward voltage requirements. You can use the solderless LED holder we provide, which includes a lens and lens carrier. Just snap all the components together. Since the LED can get hot during operation, it's important to add a heatsink. This will help keep the LED cool and extend its lifespan. When it comes to maintenance, check the connections regularly to ensure they are secure. If you notice any issues, refer to the datasheet (LXM3 - PW61) or the LED tutorial for more information.
