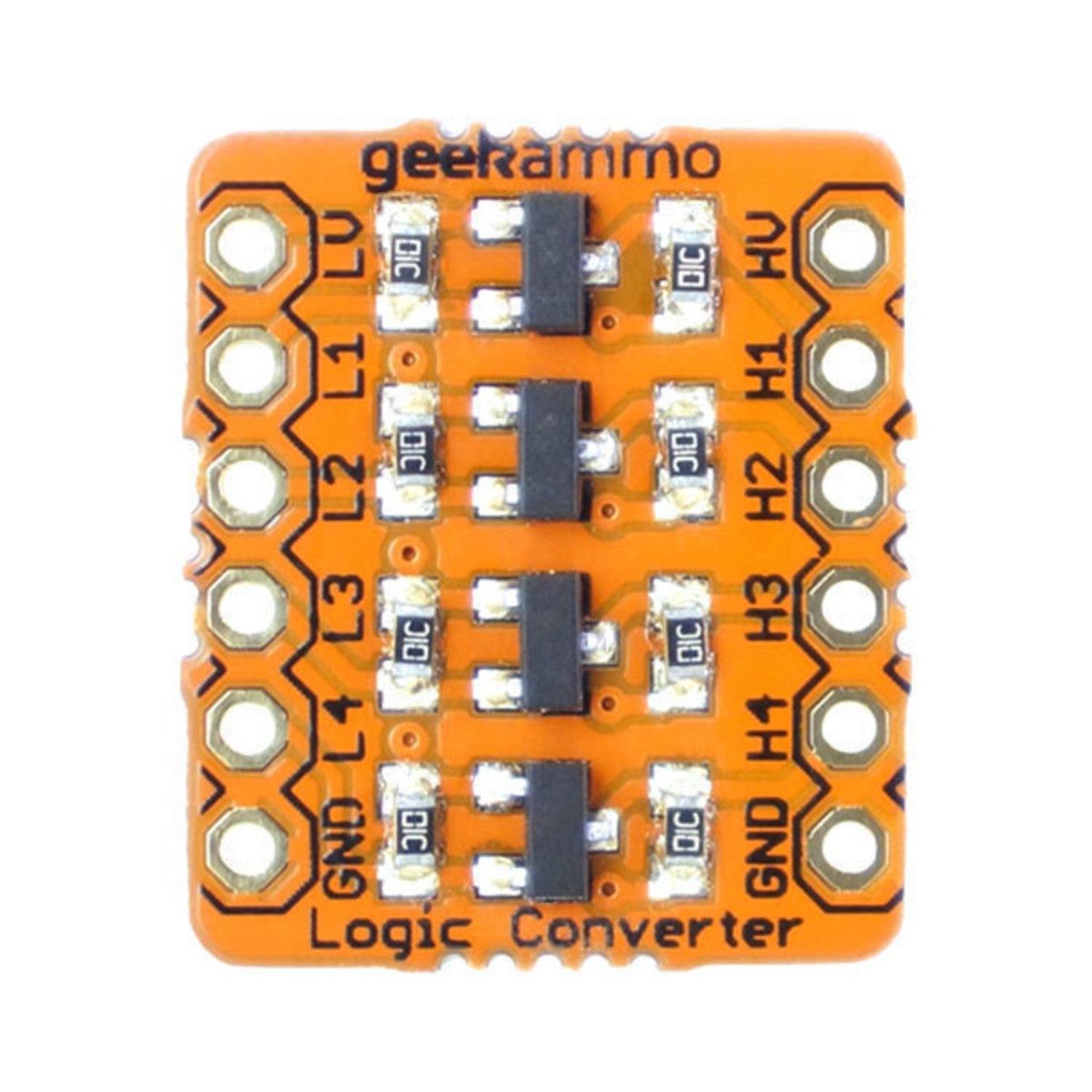

Logic Level Converter Module

Geek Ammo's Australian-made logic level converter is a game - changer. It enables seamless connection of 3.3V (or even lower voltage) sensors to 5V microcontrollers such as the Raspberry Pi. With this module, you can effortlessly link different logic voltage levels for bi - directional communication across up to 4 channels. This allows you to integrate low - voltage sensors with a 5V microcontroller easily. Key features include 4 bidirectional channels, simple connection of 3.3V sensors and devices to 5V microcontrollers, a pass - through GND connection, and compact dimensions of 18(W) x 16(H) x 4(D)mm.

Using this logic level converter is a breeze. First, connect the GND of your 3.3V sensors and 5V microcontroller to the pass - through GND connection on the module. Then, link your 3.3V sensors and 5V microcontroller to the appropriate channels on the module. You can use up to 4 channels for bi - directional communication. When using, make sure the power supply is stable to avoid any connection issues. For maintenance, keep the module in a dry and clean place. Avoid exposing it to extreme temperatures or humidity. If there are any signs of damage, stop using it immediately and contact the manufacturer.
