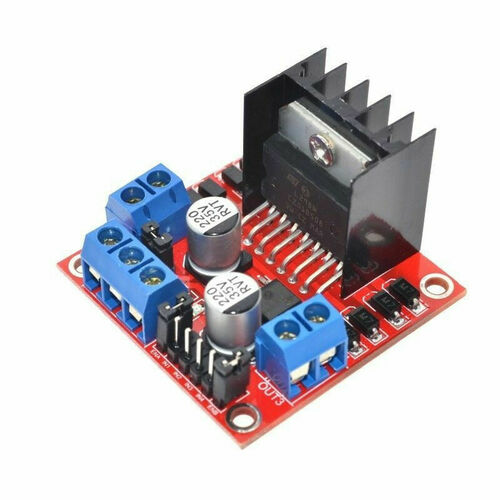

L298N Dual H-Bridge Motor Driver Board

The L298N Dual H-Bridge Motor Driver Board is a powerful module that enables full control of two DC motors or one stepper motor. It features screw terminals for easy wiring and LEDs to show power and output status. With six digital inputs, this board is versatile. It has 4 mounting holes for convenient installation. The key specifications include an L298N chip, a maximum output current of 4A, a storage temperature range from -20 ℃ to +135 ℃, a dual H-bridge driver operating mode, a drive voltage of 3 - 30V DC, and dimensions of 69x56x36mm.

Using this L298N Dual H - Bridge Motor Driver Board is easy. First, connect your DC motors or stepper motor to the screw terminals. Make sure to follow the correct wiring pattern. The LEDs will show you the power and output status, so you can quickly tell if things are working right. You'll need to provide six digital inputs to control the board. When it comes to installation, use the 4 mounting holes to secure it in place. As for storage, keep it in an environment where the temperature is between -20 ℃ and +135 ℃. When operating, use a DC power supply with a voltage between 3 - 30V. Avoid overloading the board with a current higher than 4A. To maintain it, just keep it clean and free from dust. If you notice any unusual behavior, check the wiring and power supply first.
