JST SH Vertical 6-Pin Connector - SMD

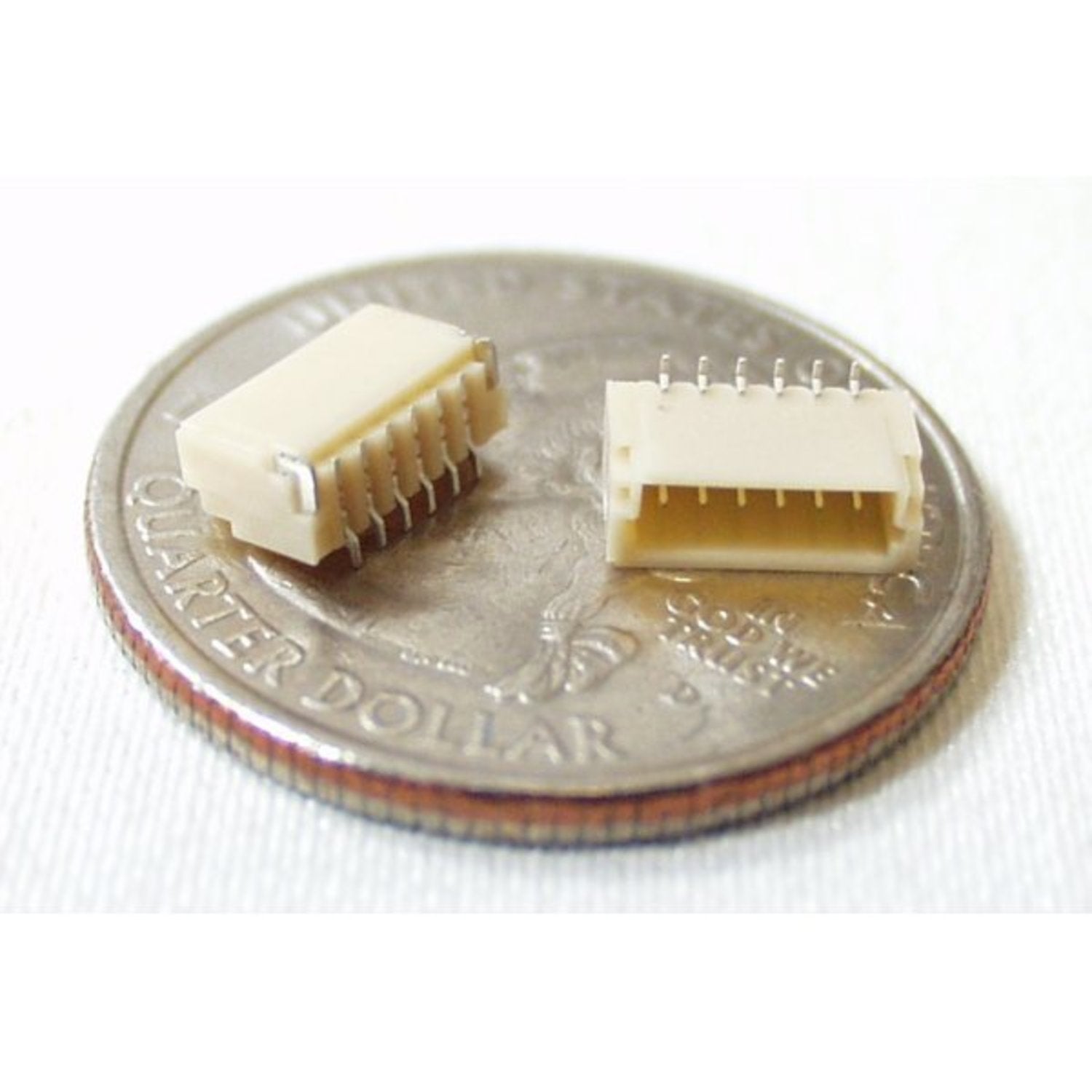

This is a six-pin vertical connector with a 1.0mm pitch. It's incredibly useful when you need a very small connection solution. Unlike the standard JST connectors used on most of our boards, this is the much smaller JST-SH type. You can find its datasheet in the documents section.

Using this connector is quite easy. First, make sure your device and the connection area are clean. Then, gently place the connector in the right position on your board, as it's a surface - mount type. Be careful not to apply too much pressure when soldering to avoid damaging the pins. When it comes to maintenance, keep it in a dry and clean place. If it gets dirty, you can use a soft brush to clean the pins gently. Also, avoid bending the pins during handling. This will help ensure the connector works well for a long time.
