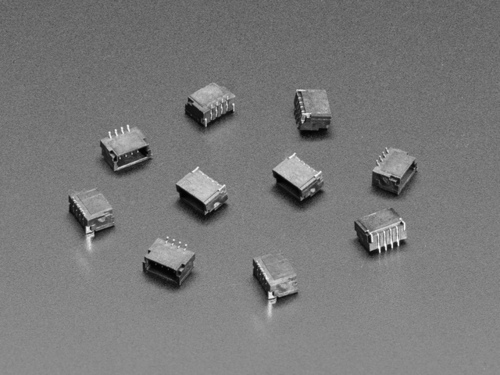

JST SH 4-pin Vertical Connector (10-pack)

Are you a DIY lover who wants to precisely handle your project's connections? Here's a 10-pack of micro JST SH connectors! These are made of solid plastic and come with 4 x 1mm pitch through-hole mounting tabs. In an SMT line, you can simply paste over the through holes and the pads will solder in place. These connectors are great for use with Qwiic boards and cables, allowing you to easily connect sensors and drivers between boards. Match them with the cables for compatibility (the cables are symmetric, so no need to worry about orientation). When used with Qwiic, the pins are: Ground (black wire on cables), 3.3VDC Power (red wire on cables), I2C SDA Data (blue wire on cables), and I2C SCL Clock (yellow wire on cables). We also have these connectors in right angle style.

Using these JST SH 4-pin vertical connectors is easy. First, if you're working in an SMT line, just paste over the through holes and the pads will solder in place. To connect sensors and drivers between Qwiic boards, simply use these connectors with the Qwiic cables. Remember to match the colors of the wires on the cables with the pins of the connectors: black for ground, red for 3.3VDC power, blue for I2C SDA data, and yellow for I2C SCL clock. Since the cables are symmetric, you don't need to worry about which side goes where. As for maintenance, keep them in a dry and clean place to avoid damage. If you need connectors in a different style, we also offer them in right angle.
