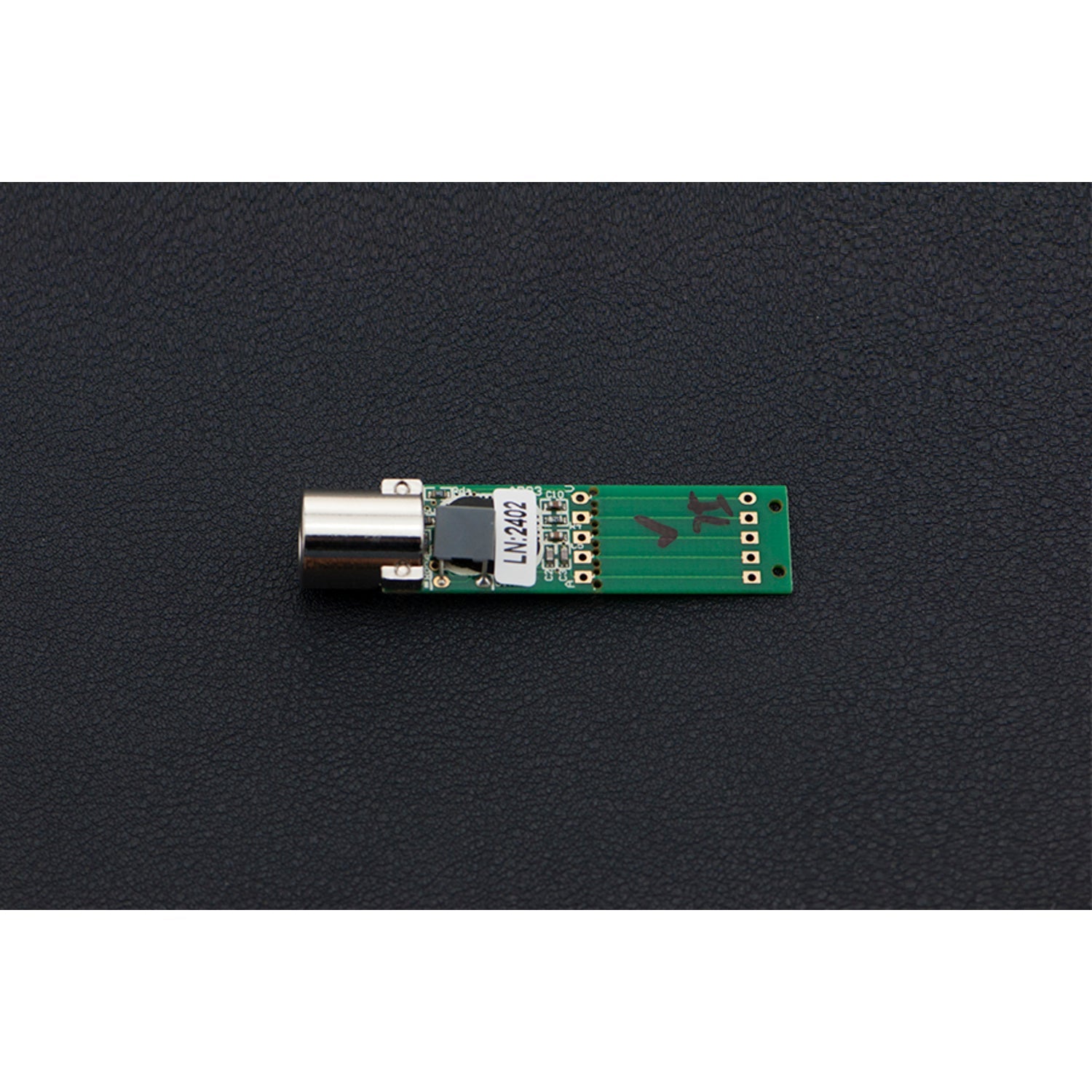

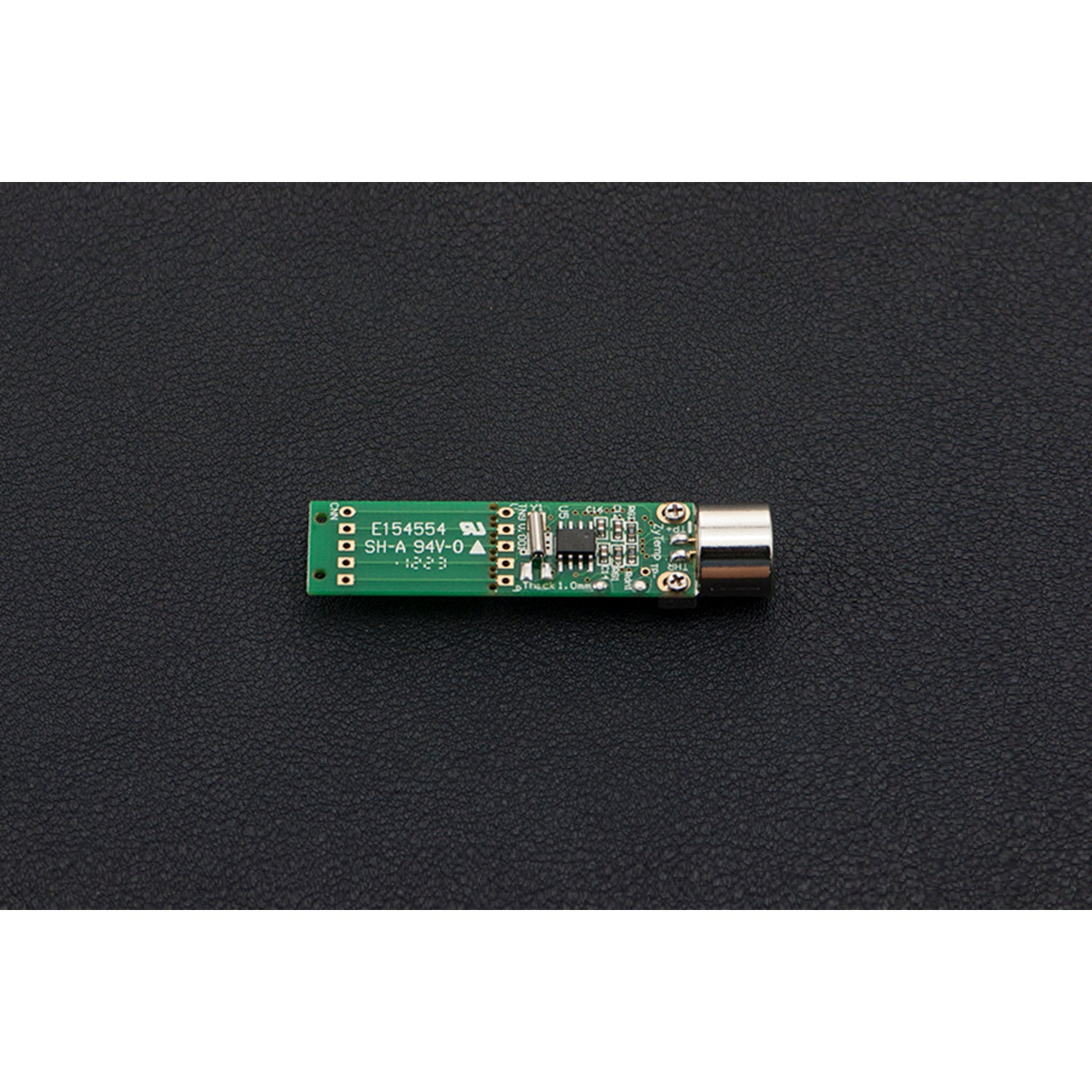

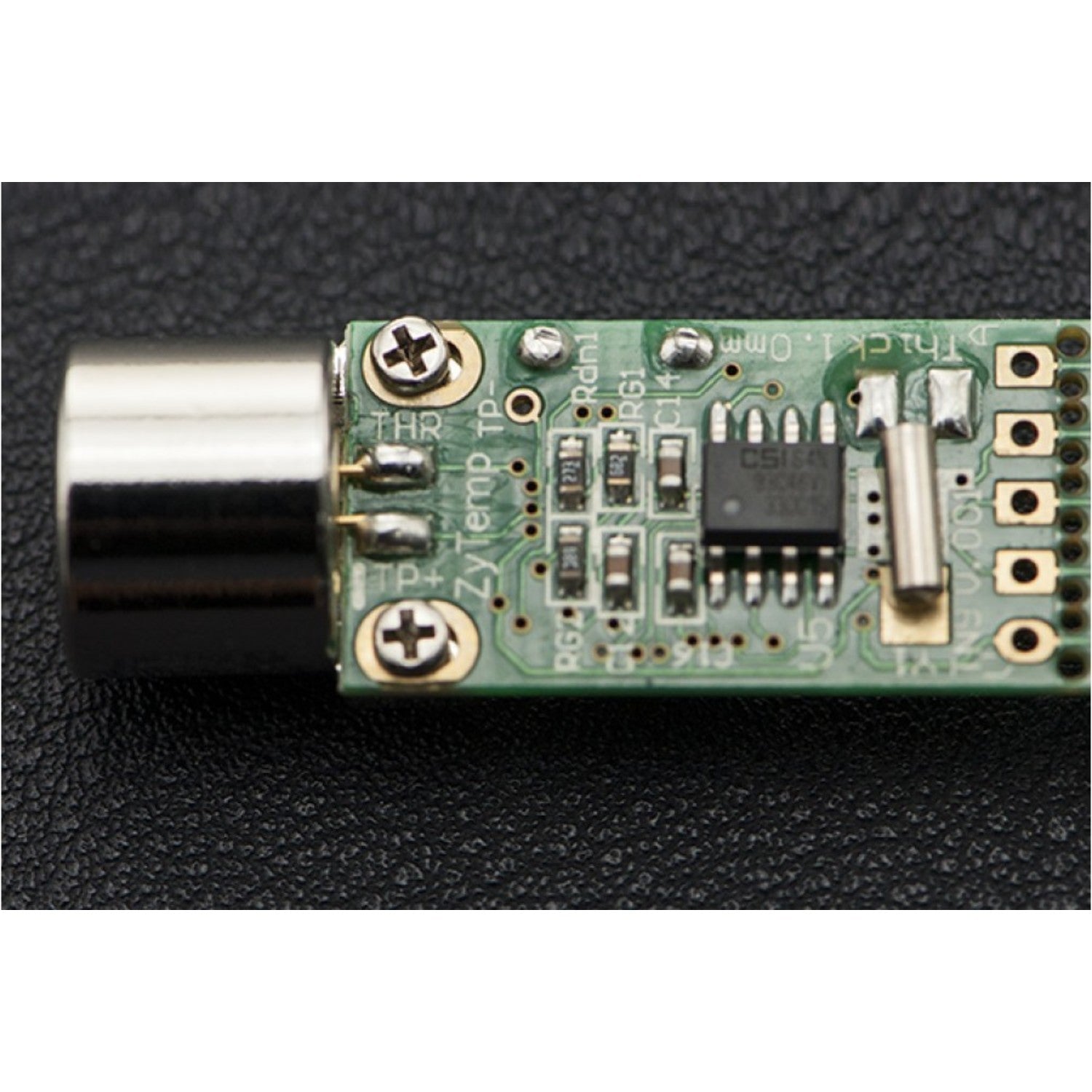

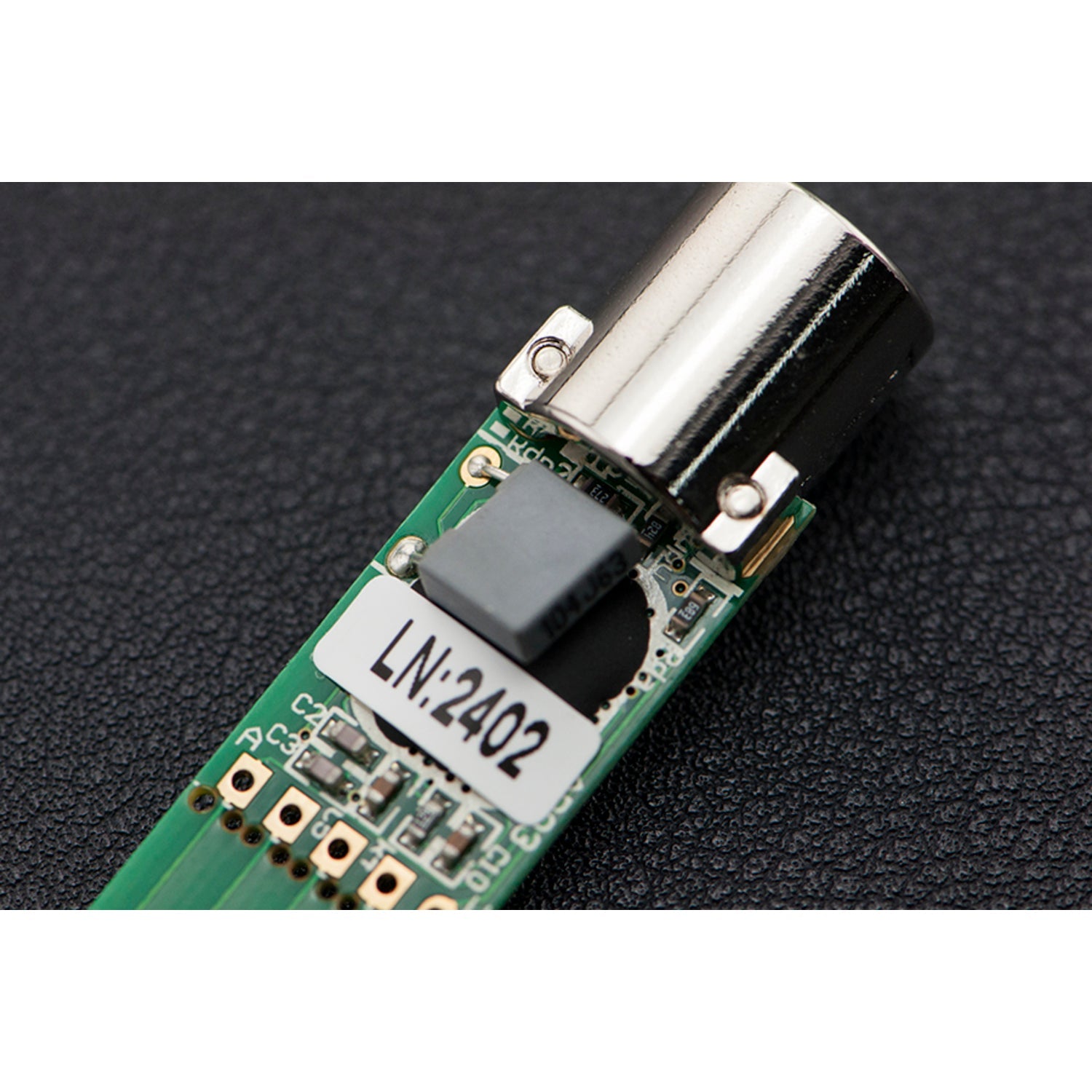

Infrared Thermometer Module

The TNm infrared thermometer module is a long - distance thermometer crafted for high sensitivity, high accuracy, low noise, and low power consumption. It uses a MEMS thermopile detector and high - precision ambient temperature compensation technology. This module offers flexible operating voltage options of 3V or 5V. Its measurement range spans from -33°C to 220°C (-27°F to 428°F), and it operates within -10°C to 50°C (14°F to 122°F). With an accuracy of +/-0.6°C when Tobj = 15 - 35°C and Tamb = 25°C, and a full - range accuracy of +/-2% or 2°C, it provides reliable temperature readings. It has a resolution of 0.0625°C across the full range. Compact in size at 12x13.7x35mm (0.47x0.54x1.38') and weighing only 9g, it's very portable. Included documents are a size diagram, user manual, and sample code. The shipping list contains one infrared thermometer module.

Using the TNm infrared thermometer module is straightforward. First, make sure to select the appropriate operating voltage, either 3V or 5V, according to your needs. Point the module at the object whose temperature you want to measure, within the measurement range of -33°C to 220°C (-27°F to 428°F). The module will then give you an accurate temperature reading. Remember that the module works best within the operating range of -10°C to 50°C (14°F to 122°F). When taking measurements, try to keep the ambient temperature around 25°C for the most accurate results. As for maintenance, keep the module clean and dry. Avoid dropping it or exposing it to extreme conditions. If you have any questions, refer to the user manual that comes with the product.
