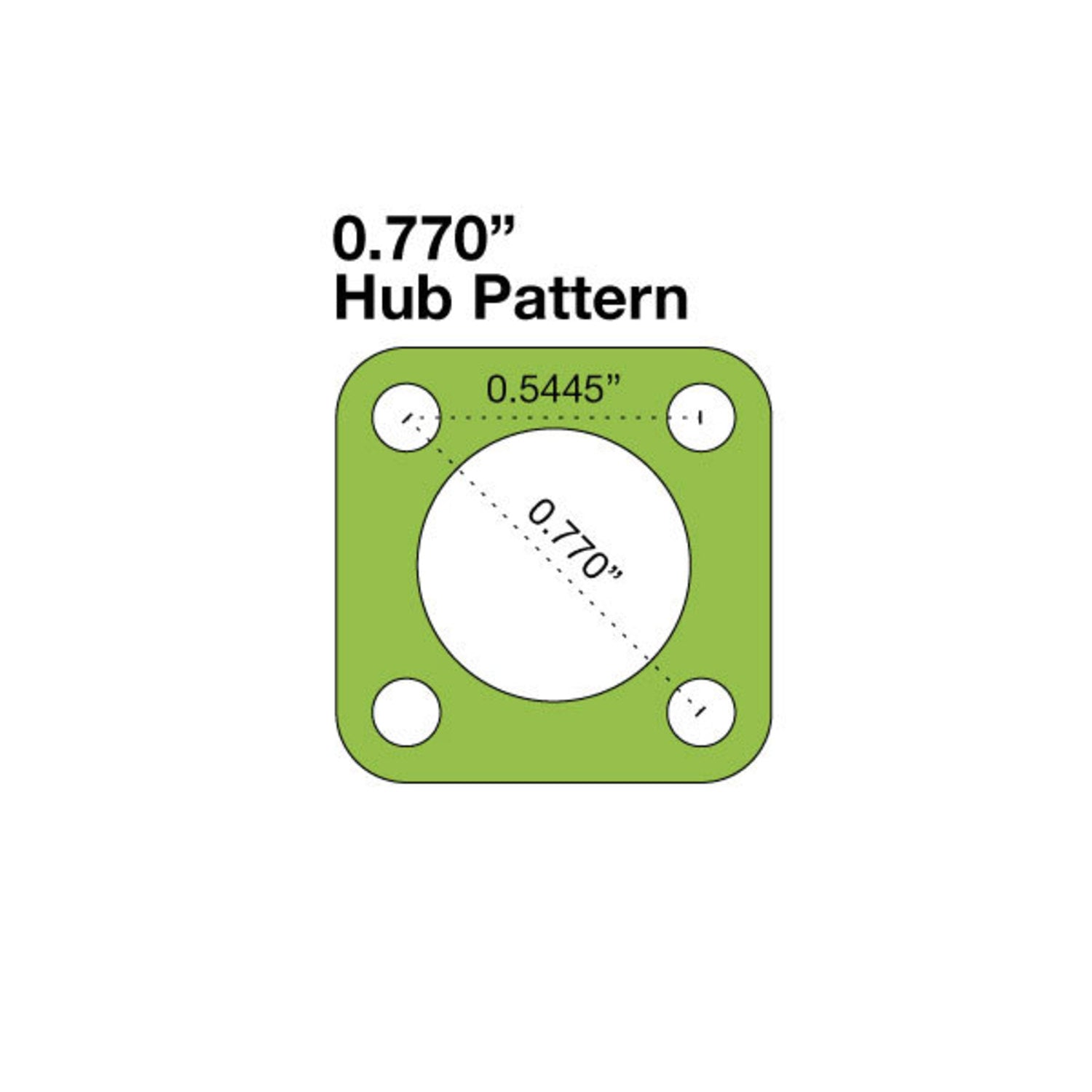

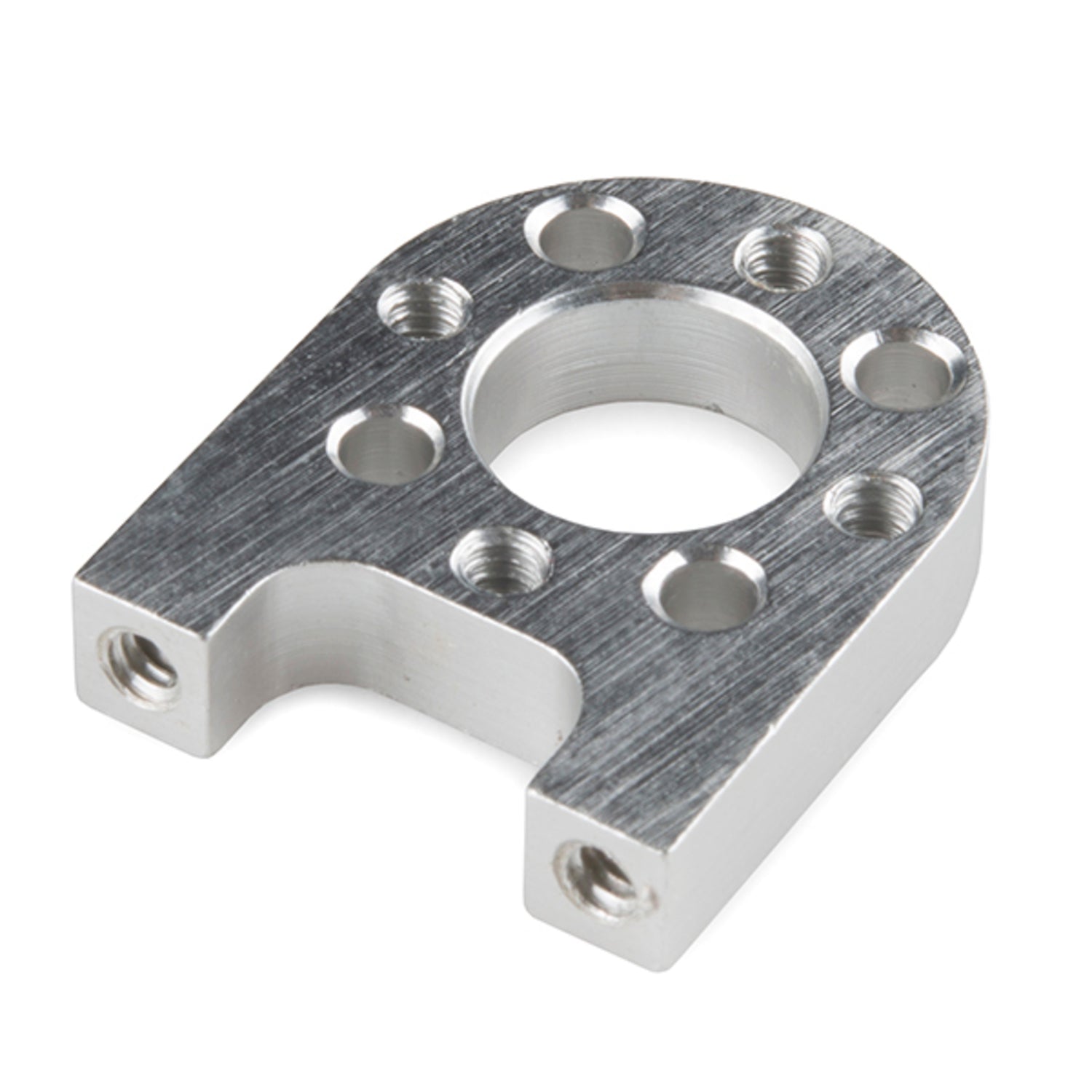

These hub mounts directly connect to Actobotics channels in multiple spots. They're great for attaching shafts and tubes with a 0.5' diameter and other hub - mountable items. Each hub mount has a 0.5' bore and uses the 0.77' hub pattern. Actobotics is a top - notch robotics building system featuring extruded aluminum channels, gears, precision shafts, and ball bearings. With two standardized hole patterns, almost all Actobotics components can be easily connected. The vast range of components makes it possible to build complex electromechanical prototypes or finished projects. Documents available include the SketchUp Part and the Product Page (545404).
To use this 90 - degree hub mount, first find the right position on the Actobotics channel where you want to attach it. Then, simply connect the hub mount directly to the channel. When attaching shafts or tubes with a 0.5' diameter, make sure they fit well into the 0.5' bore. Be careful when handling the hub mount to avoid any damage to the 0.77' hub pattern. For maintenance, keep it clean from dust and debris. If you notice any signs of wear, check the components for replacement. Always refer to the SketchUp Part and Product Page for more detailed information.
