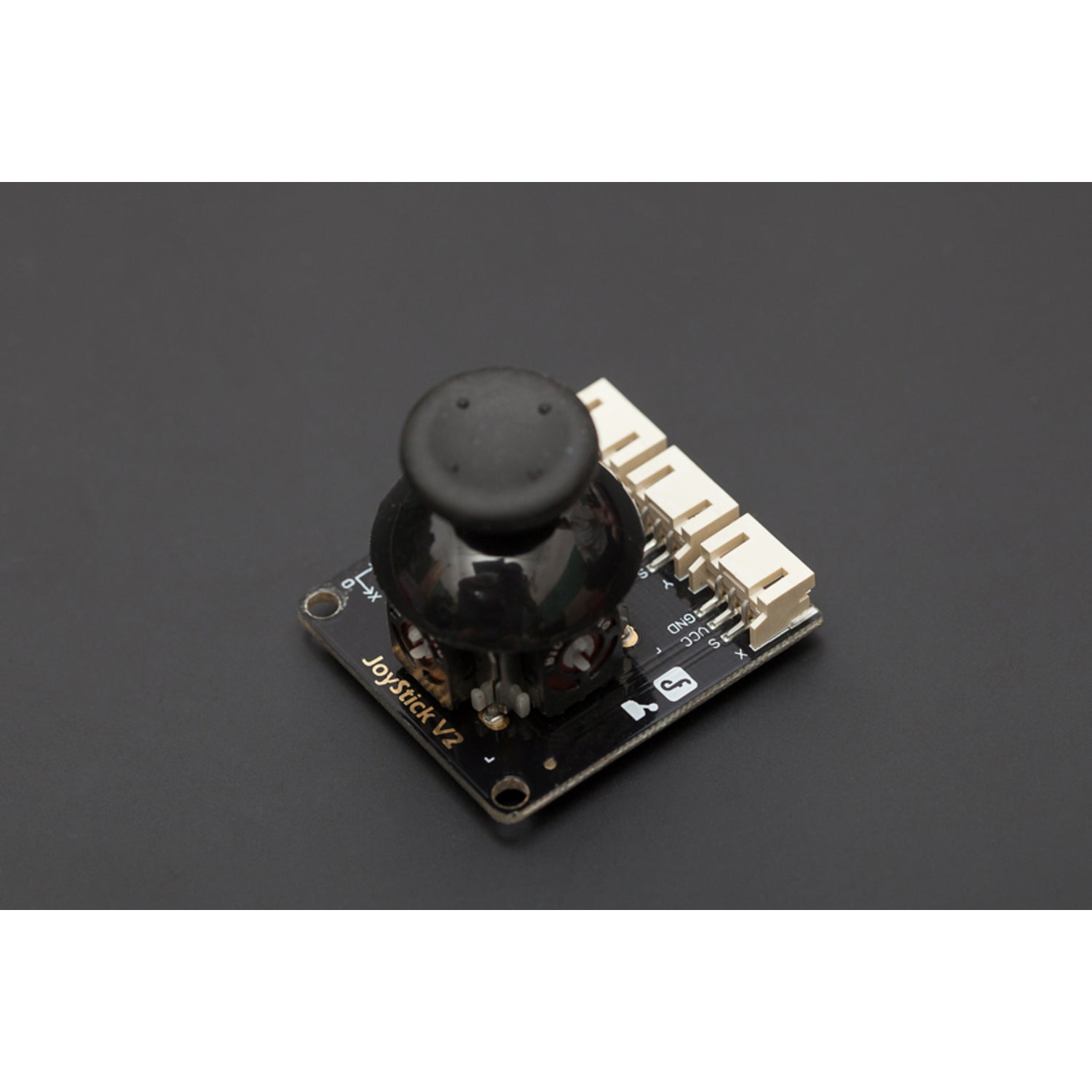

Gravity: Joystick Module V2

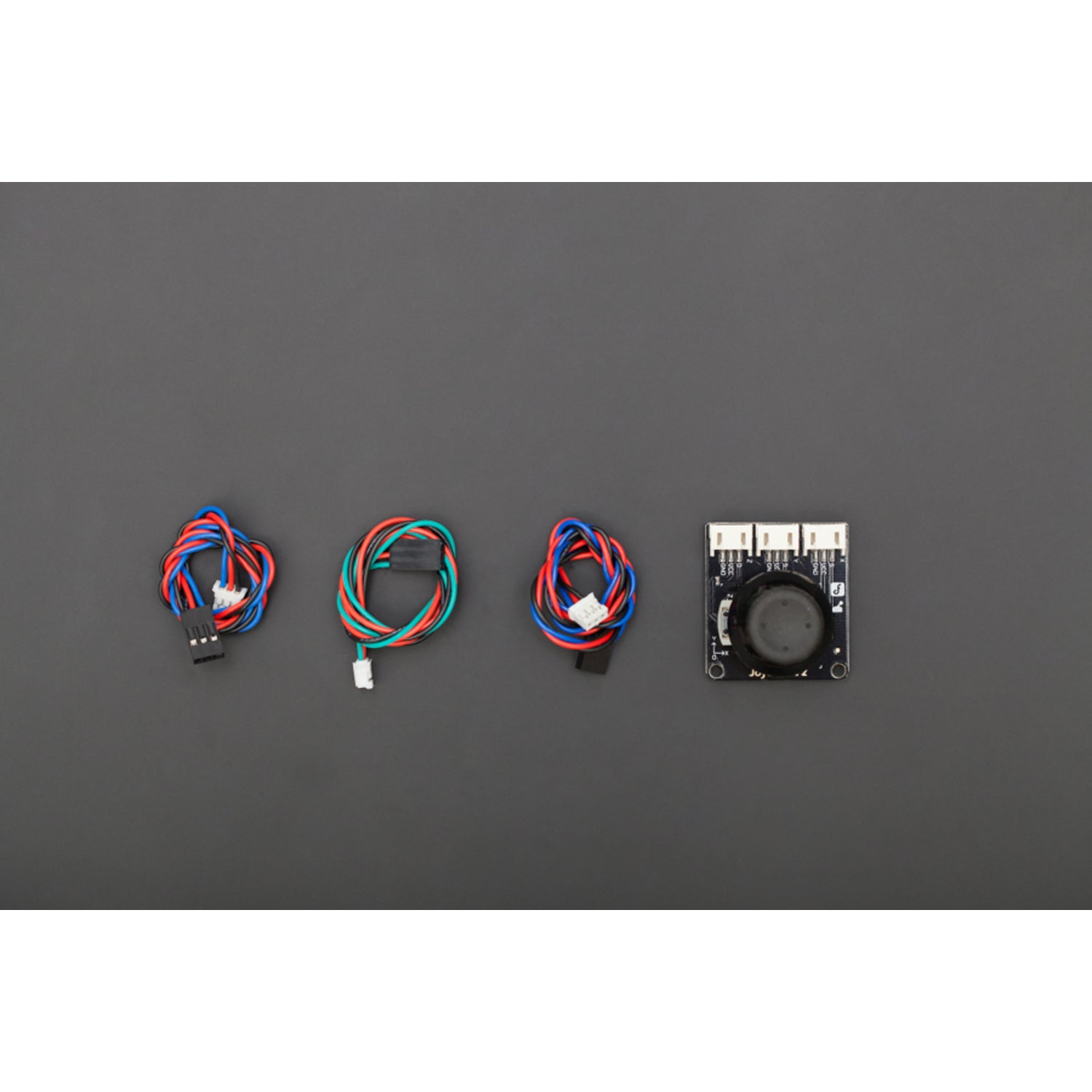

Many robot projects require a joystick. Our updated Joystick Module V2 offers an affordable option. Just connect it to two analog inputs, and you can control your robot in X and Y directions with ease. It also comes with a switch connected to a digital pin. You can easily connect this joystick module to your Arduino using our IO Expansion Shield and the provided cables. The new version of the analog sensor port pin mapping has been changed with the following features. Features: Wide voltage range from 3.3V to 5V; Standard assembling structure with two 3mm holes at intervals that are multiples of 5cm; Easily recognizable sensor interfaces ('A' for analog and 'D' for digital); Icons to simply show sensor functions; High - quality connector; Immersion gold surface. Specification: Supply Voltage: 3.3V to 5V; Interface: 2 Analog and 1 Digital; Size: 35x39mm (1.38x1.53 inches). Documents: WikiDoc, Schematic. Shipping List: 1 Joystick Module V2.

Using the Gravity Joystick Module V2 is a breeze. First, connect it to two analog inputs of your device. This will allow you to control your robot in the X and Y directions. The built - in switch, connected to a digital pin, gives you an extra control option. You can use the supplied cables and our IO Expansion Shield to connect it to your Arduino. Make sure to note that the new version has a different analog sensor port pin mapping. When it comes to voltage, this module can work with a supply voltage ranging from 3.3V to 5V. Keep it in a dry and clean place to maintain its performance. If you need more detailed information, check out the WikiDoc and Schematic provided.
