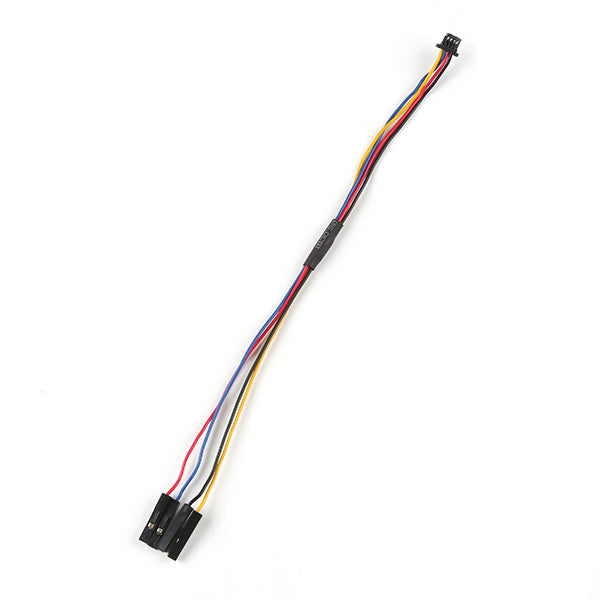

Flexible Qwiic Cable - Female Jumper (4-pin, Heat Shrink)

This pre-terminated jumper adapter cable has a female Qwiic JST connector on one end and female connectors on the other. It simplifies connecting Qwiic - enabled components to male pins on different development platforms. It's also an excellent choice for attaching a logic analyzer to your I2C system. The 28AWG wire is 165mm (about 6.49 inches) long. The wires are color - coded red, black, blue, and yellow. The female Qwiic connector has a 1mm pitch, and the female hookup pins can easily connect to a standard 0.1' male connector. All Qwiic cables follow this color scheme: Black is GND, Red is 3.3V, Blue is SDA, and Yellow is SCL. The SparkFun Qwiic connect system speeds up prototyping and reduces errors. All Qwiic - enabled boards use a common 1mm pitch, 4 - pin JST connector, saving PCB space and preventing wrong connections. Features include a 165mm length and 28 AWG wire. There's also a drawing available.

Using this Qwiic cable is easy. First, find the Qwiic - enabled component and the development platform with male pins. Connect the female Qwiic JST connector end of the cable to the Qwiic - enabled component. Then, connect the other end with female connectors to the male pins on the development platform. If you want to attach a logic analyzer to your I2C system, just plug it in using this cable. When handling the cable, be gentle as the wires are thin. Avoid bending the wires sharply as it may damage them. To keep the cable in good condition, store it in a dry and cool place when not in use. Also, make sure to check the color - coded wires before each connection to ensure correct polarity. If you need more information, refer to the available drawing.
