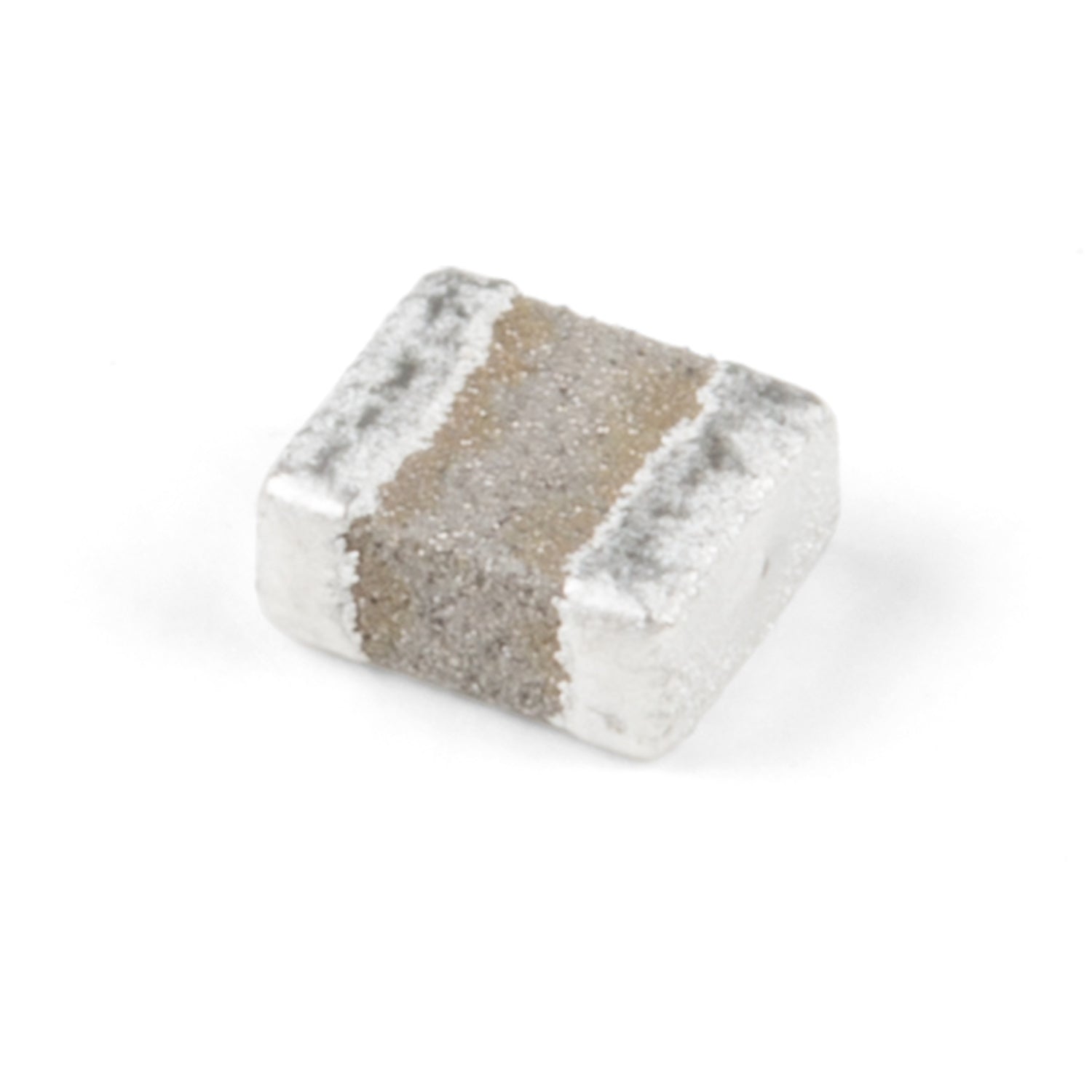

Fixed Inductor - 2.2uH, 1.7A, 140mOhm

This is a Murata DFE Series fixed inductor with an inductance of 2.2uH, a max DC current of 1.7A, and a max DC resistance of 140mOhm. These low - profile inductors use magnetic iron powder for large - current capability and flat wire for low DC resistance. The DFEC inductors feature magnetic shielding, low audible core noise, and are reflow solderable. They can operate in a temperature range from - 40ºC to 85/125ºC.

Using this inductor is straightforward. Just connect it to your circuit according to the polarity requirements. When handling, avoid dropping or applying excessive force as it could damage the inductor. Make sure to operate it within the temperature range of - 40ºC to 85/125ºC. If the temperature goes beyond this range, the performance may be affected. For maintenance, keep it in a dry and clean environment. Regularly check the connections to ensure they are secure. Avoid exposing it to moisture or corrosive substances as this can lead to degradation over time.
