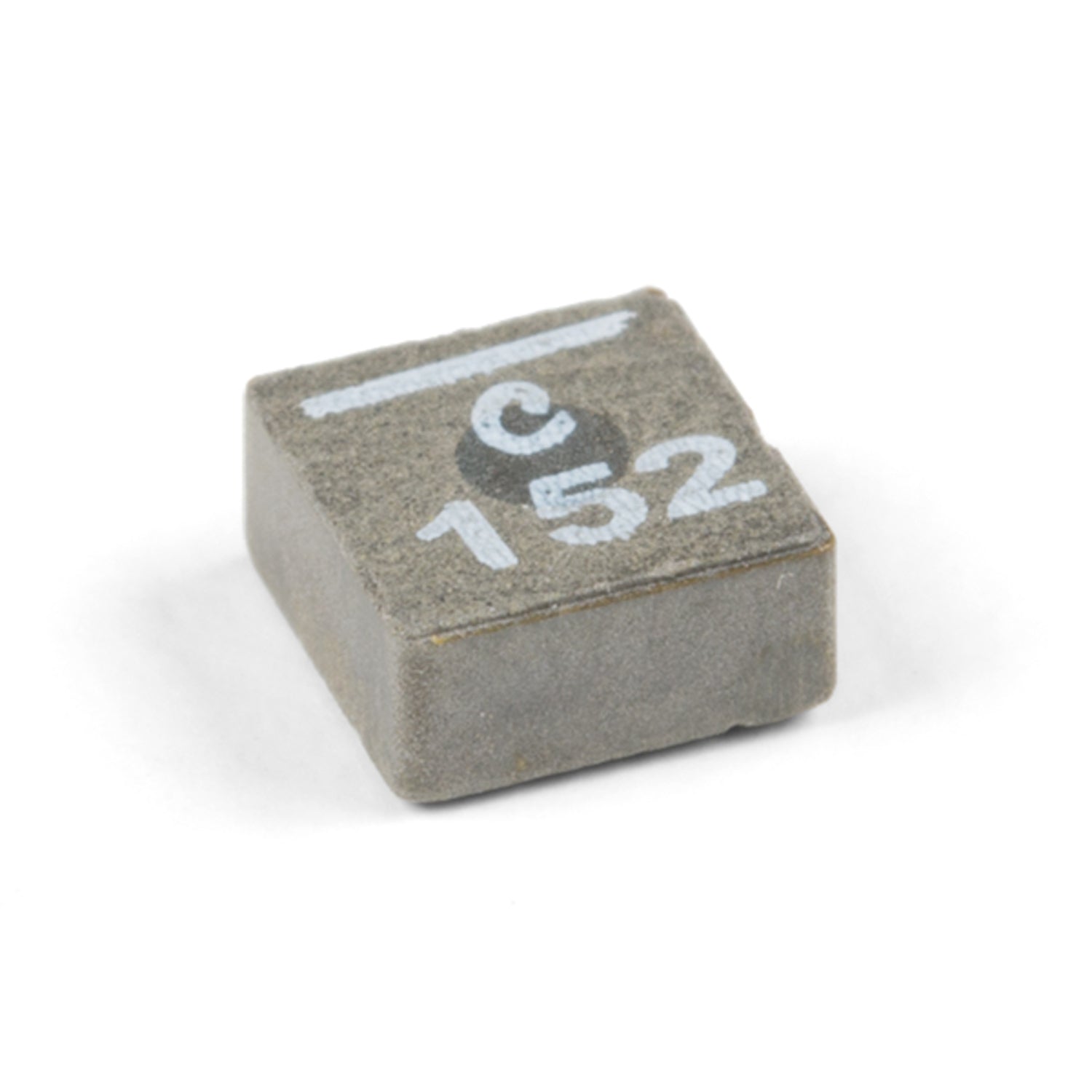

Fixed Inductor - 1.5uH, 9.1A, 15.8mOhm

This fixed inductor features an inductance of 1.5uH, a max DC current of 9.1A, and a max DC resistance of 15.8mOhm. The Coilcraft XFL4020 Ultra - Low DCR Shielded Power Inductors Series offer ultra - low DCR (10.8 mOhms), great current handling up to 5.4 amps, and meet AEC - Q200 Grade 1 (-40°C to +125°C). With an inductance range from 1.0µH to 4.7µH and soft saturation, they're perfect for VRM/VRD applications. The Designer’s Kit C436 has samples of selected values.

Using this fixed inductor is straightforward. First, make sure the circuit you're working with is compatible with its inductance, current, and resistance values. Connect it properly in your circuit according to the standard electrical connection methods. When handling it, avoid applying excessive force as it could damage the inductor. Keep it in a dry and clean environment to prevent corrosion. Also, don't expose it to temperatures outside the -40°C to +125°C range specified by the AEC - Q200 Grade 1. Regularly check the connections in your circuit to ensure the inductor is working well. If you're using the Designer’s Kit C436, you can test different values to find the best fit for your application.
