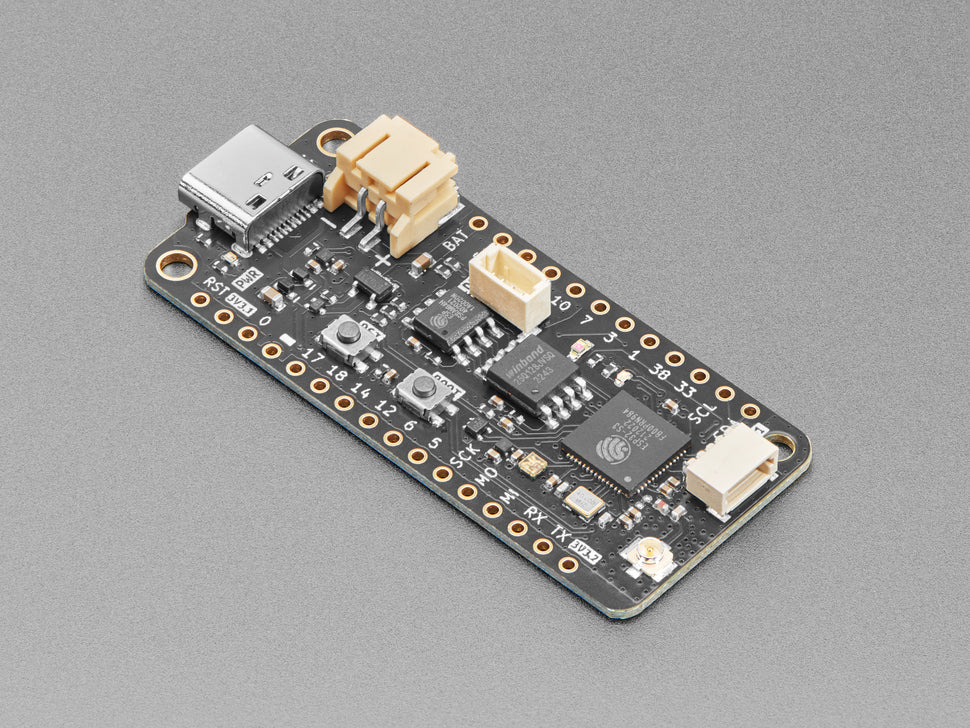

FeatherS3 ESP32-S3 with u.FL by Unexpected Maker

Meet the FeatherS3, a professional ESP32 - S3 development board in the Feather format. Now featuring a u.FL connector instead of an onboard antenna, it allows you to connect an external antenna for longer radio range or place your S3 boards inside a case. The FeatherS3 comes pre - loaded with the latest CircuitPython version supporting ESP32 - S3 and the UF2 bootloader. Updating to the latest CircuitPython firmware is a breeze - just plug it into your computer, and it'll show up as a USB flash drive. Copy or edit your code directly. You can also use Arduino 2.0.3 or later, ESP - IDF, or an early MicroPython port. Key features include a 32 - bit dual - core 240MHz processor, RISC - V ultra - low - power core, 2.4GHz Wifi, Bluetooth 5, 16MB QSPI Flash, 8MB Extra QSPI PSRAM, and more. It's also compatible with FeatherWings, and we also have the PCB antenna version available.

Using the FeatherS3 is easy. First, plug it into your computer via the USB - C connector. It will show up as a USB flash drive, allowing you to copy or edit your code directly. If you want to update the CircuitPython firmware, just grab the latest version from circuitpython.org and copy it to the drive. When using an external antenna, connect it to the u.FL connector for better radio range. You can use Arduino 2.0.3 or later, ESP - IDF, or an early MicroPython port as well. For power, the board has LiPo battery charging capabilities and reverse USB back - feed protection. When it comes to maintenance, keep the board clean and dry. Avoid exposing it to extreme temperatures or moisture. If you are using the STEMMA connectors, make sure the connections are secure. The RGB LED can be used for status indication, and the power and charge LEDs will show you the power status. Remember to check the VBAT voltage and 5V presence detection regularly to ensure proper operation.
