Extruded Aluminum Box - 100mm x 67mm x 26mm

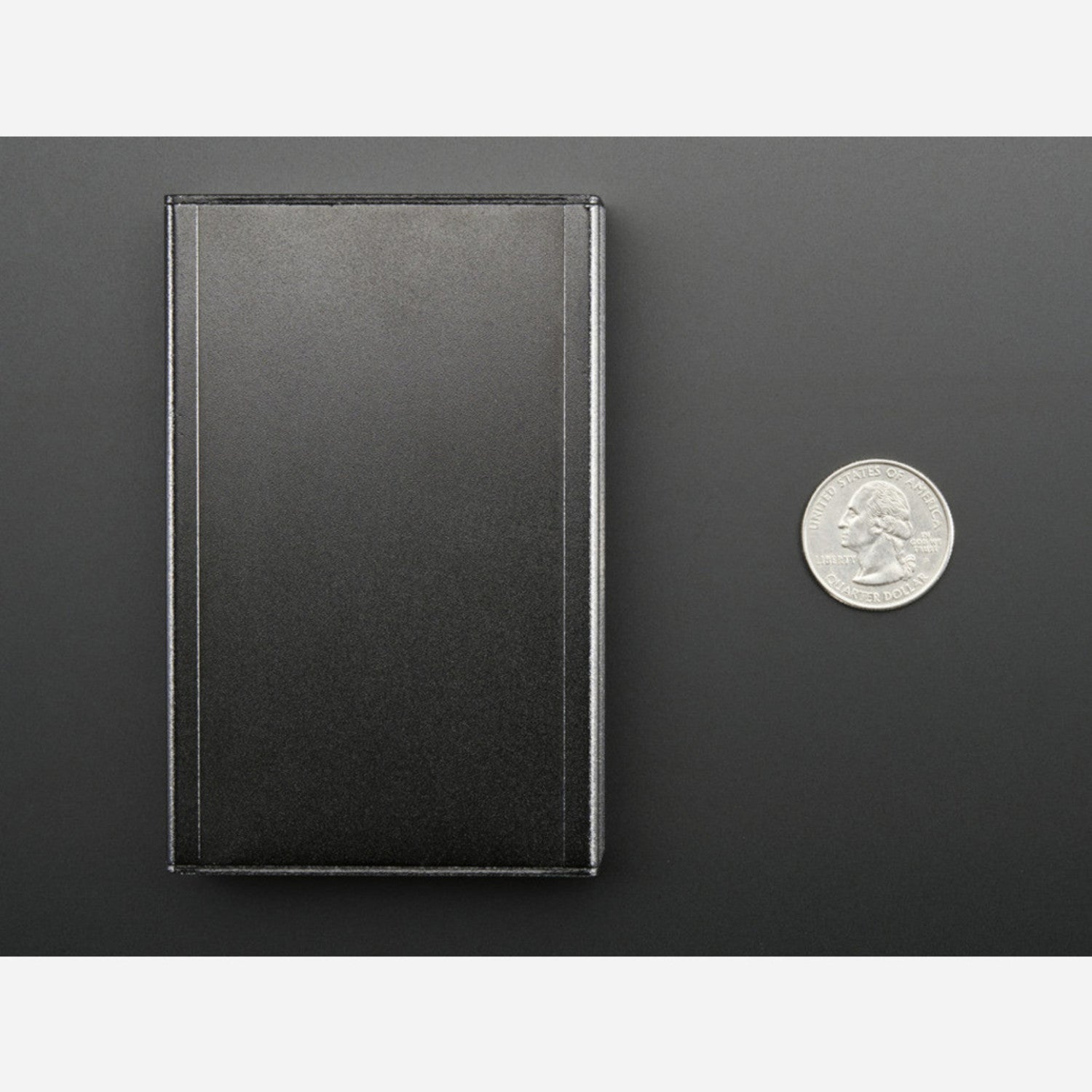

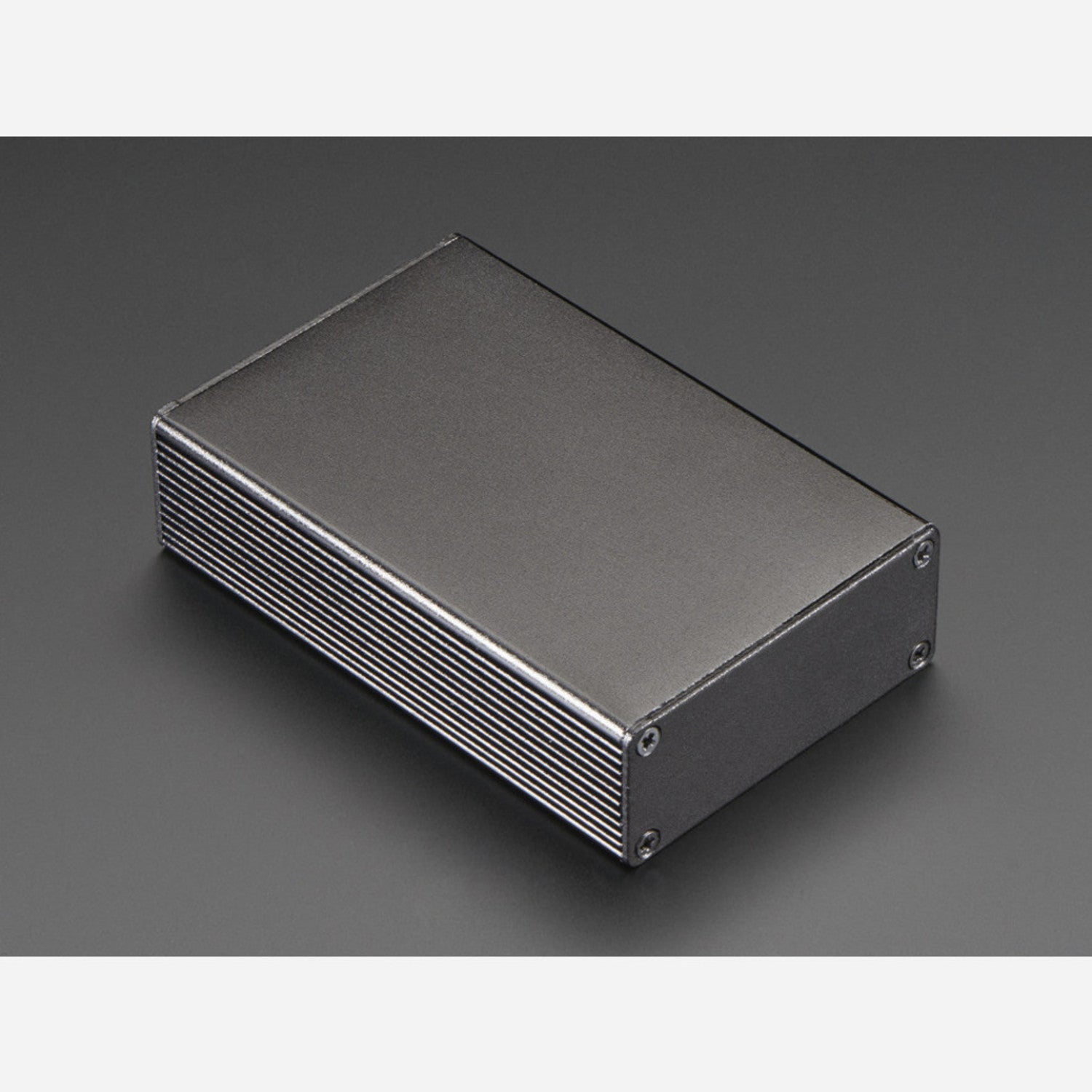

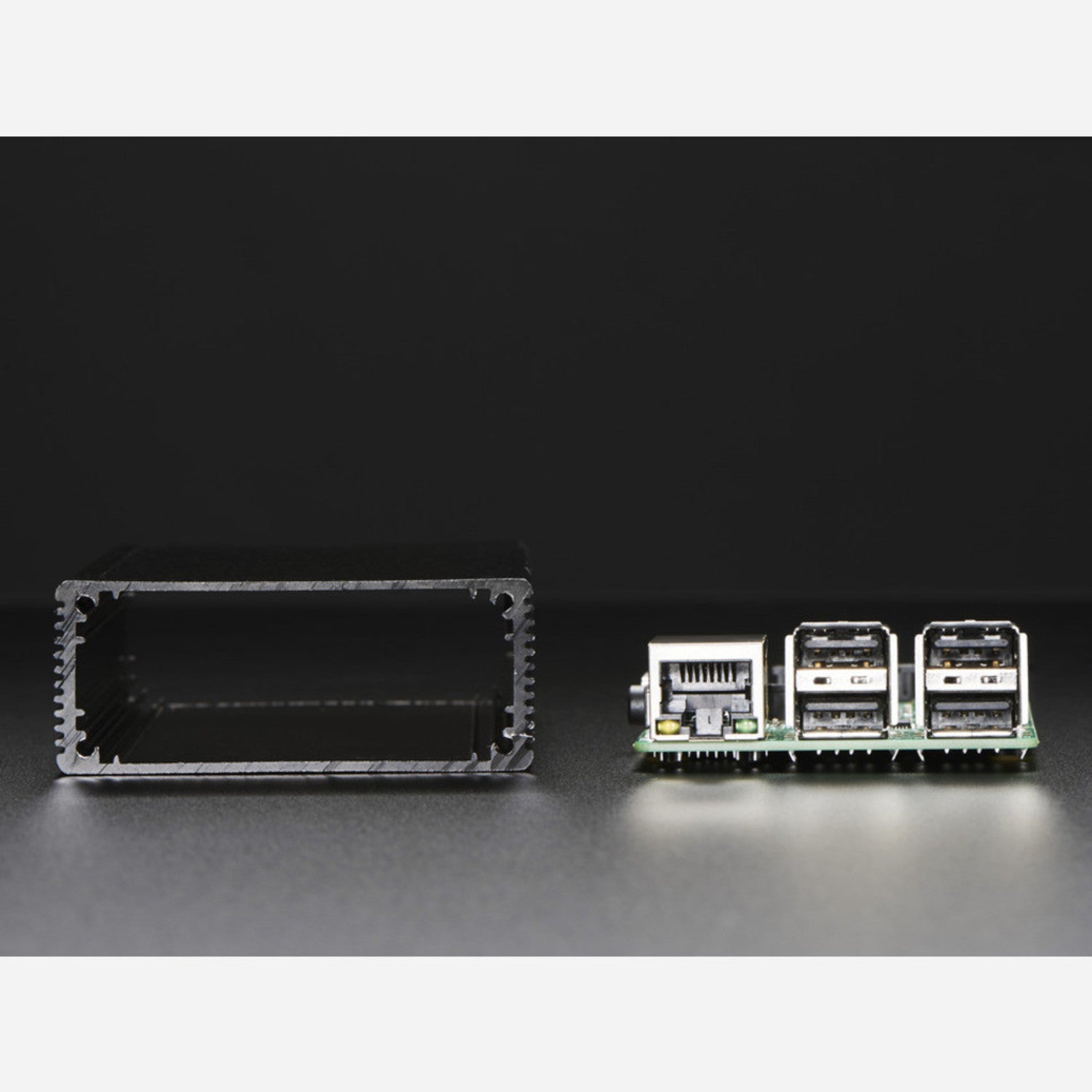

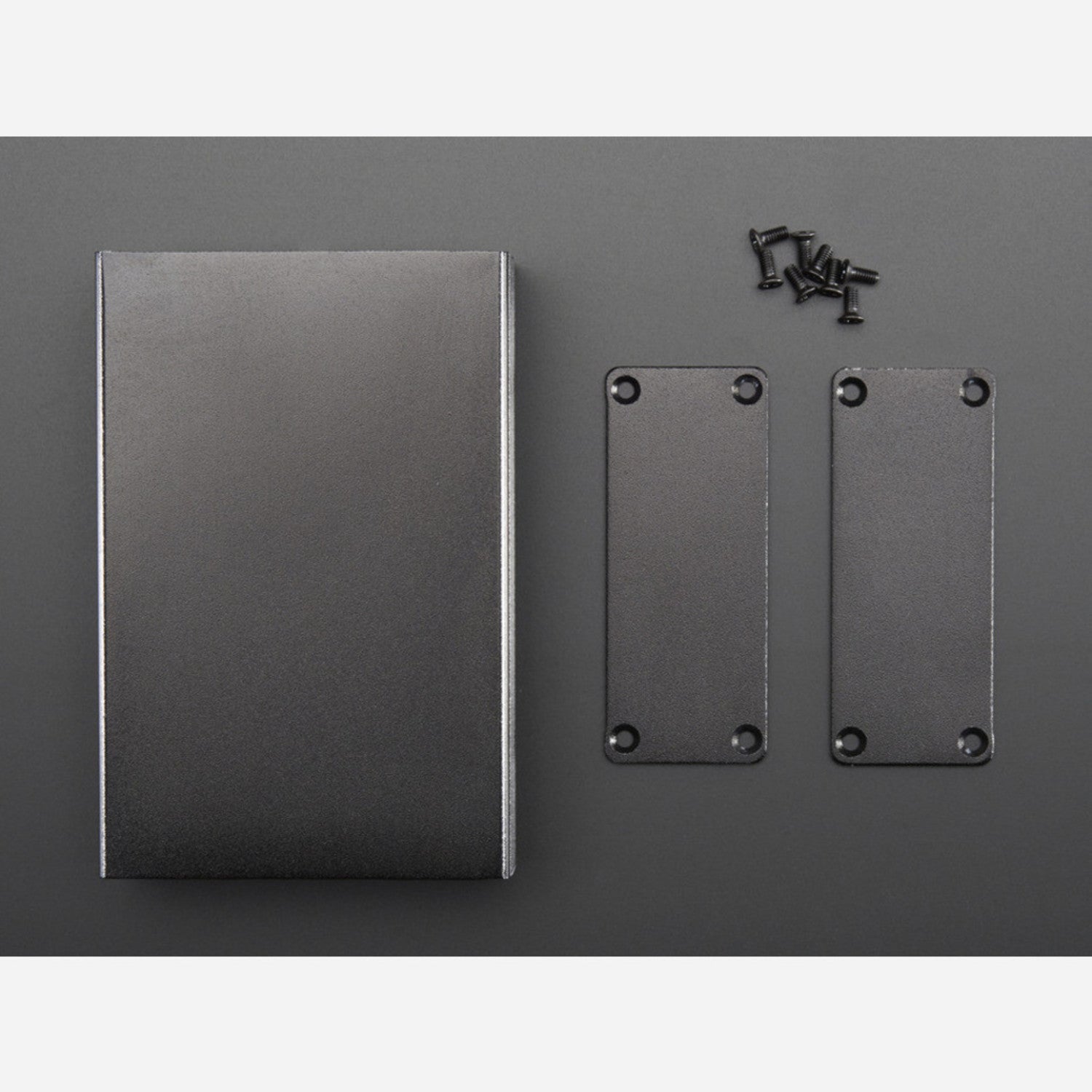

If you're looking to enclose a circuit board or a project and need something super durable, this extruded aluminum box is the ideal choice. It's crafted from solid anodized aluminum, making it both lightweight and tough. Plus, it's easy to machine or drill. The detachable end - plates allow you to create a custom one from another material if you wish. Inside, there are circuit board slots. This means your custom PCB can fit in without screws and won't make much noise. It's a great pick for DIY audio amplifiers or measurement tools that need RF shielding. These boxes come in a sleek dark anodized - black aluminum finish. Each package includes a box, eight 6mm - long, M2.5 - sized screws with a 0.45mm pitch, and two side panels. We also have a 90mm x 82mm version available. Note that the Raspberry Pi shown for scale is not included.

Using this box is easy. First, take off the end - plates if you want to customize them or install your circuit board. Slide your custom PCB into the slots inside the box. Then, put the end - plates back on and use the included screws to secure them. When it comes to maintenance, just use a soft, dry cloth to wipe the box clean. Avoid using abrasive cleaners as they may scratch the anodized finish. If you lose a screw, you can replace it with a 6mm - long, M2.5 - sized screw with a 0.45mm pitch. Also, be careful when machining or drilling the box to avoid any sharp edges that could cause injury.
