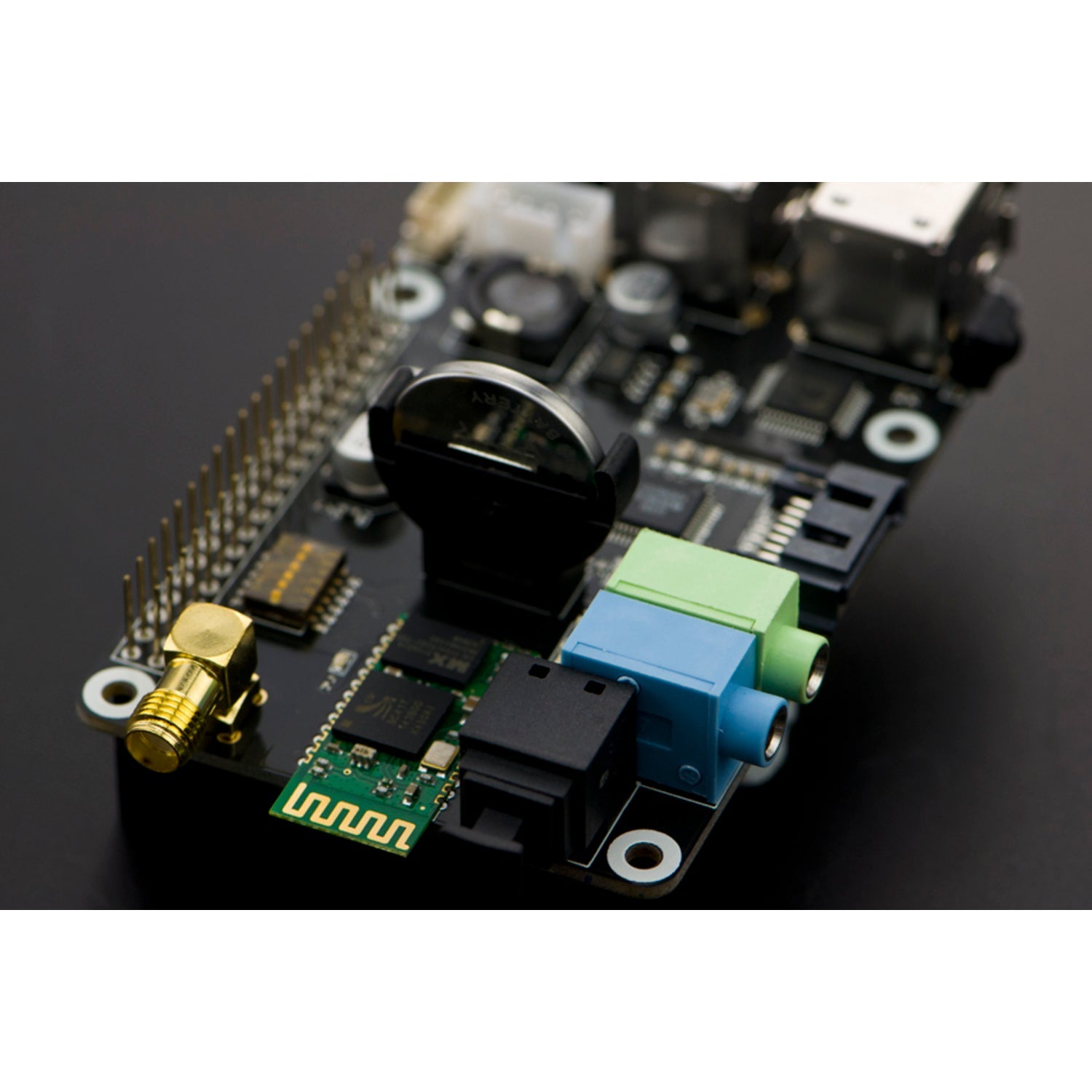

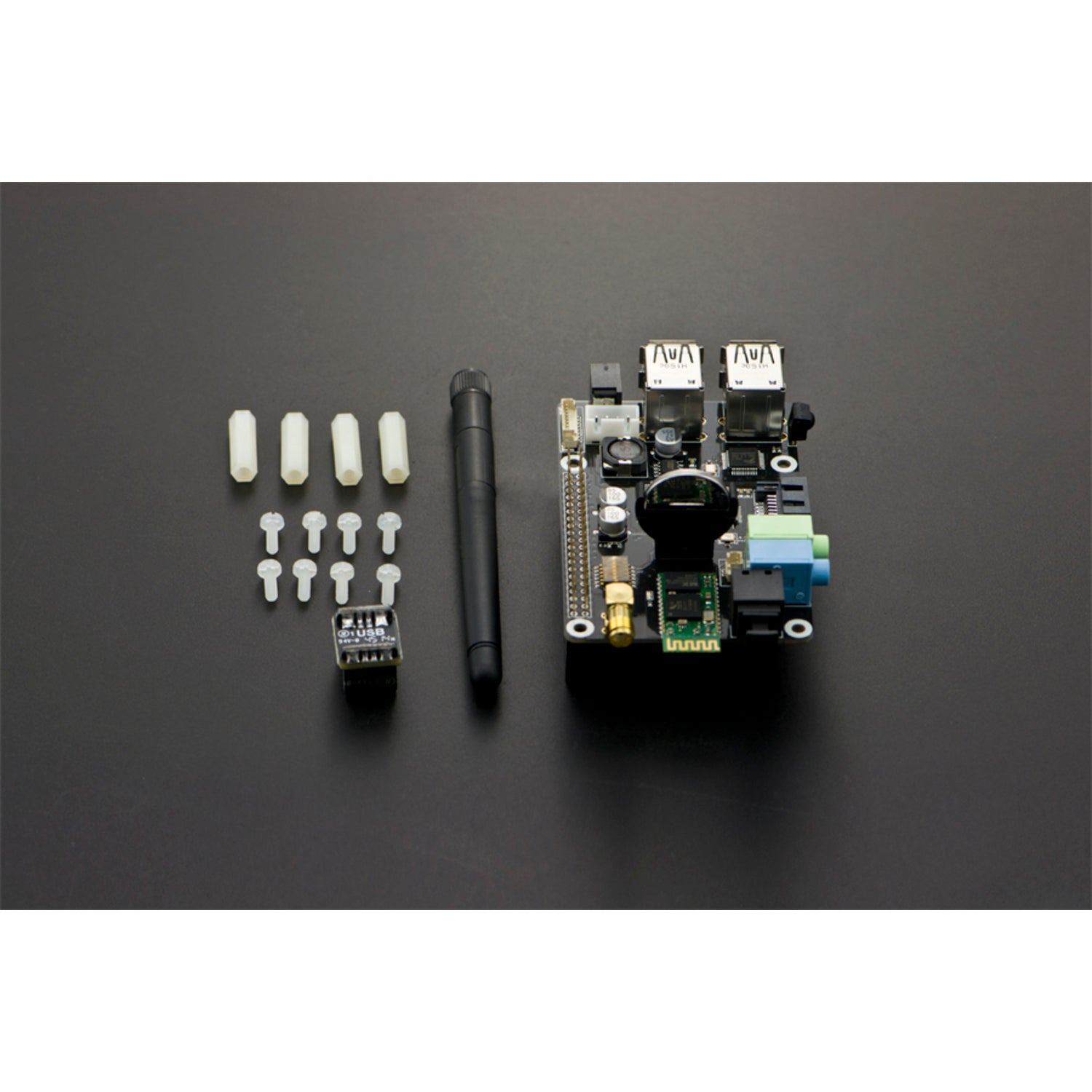

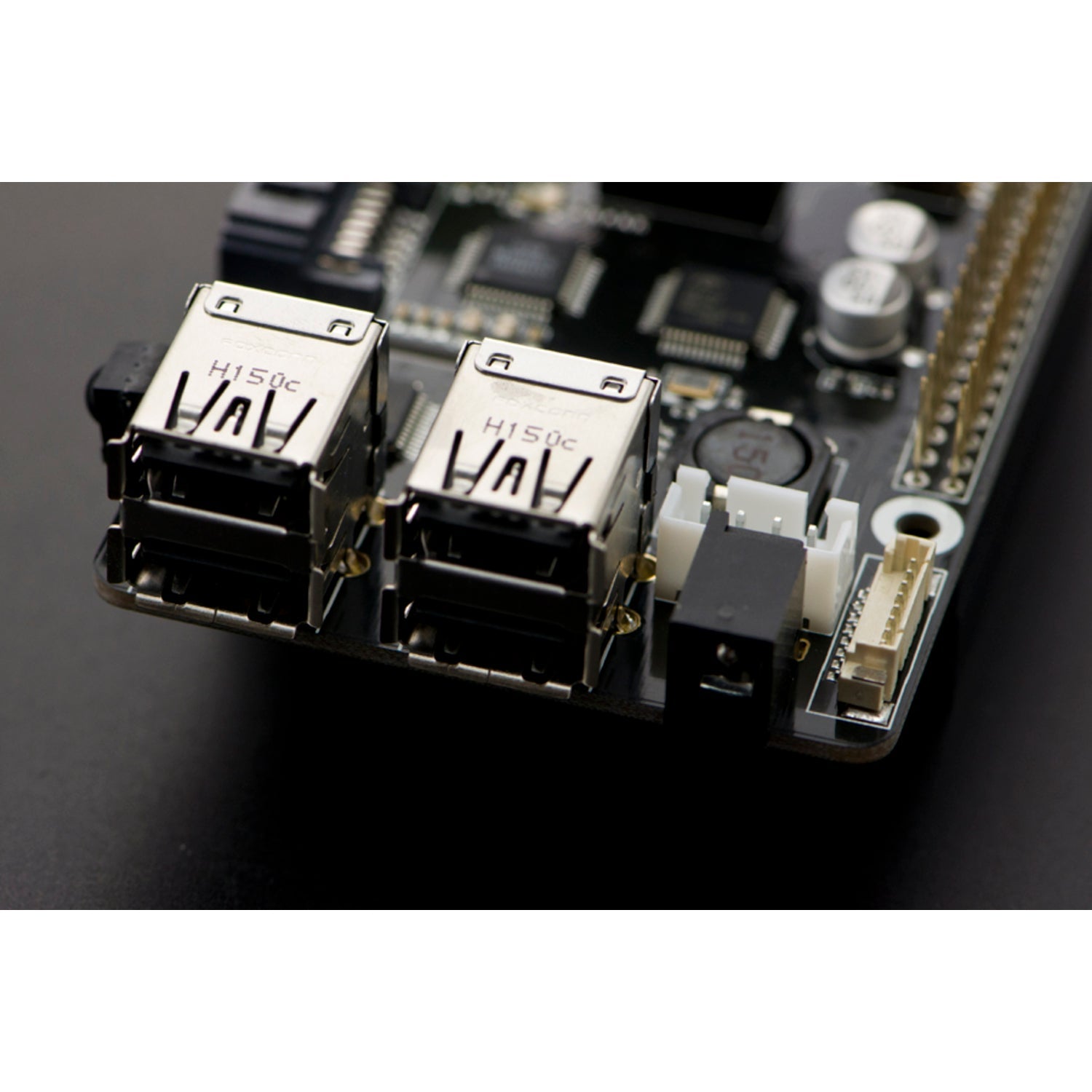

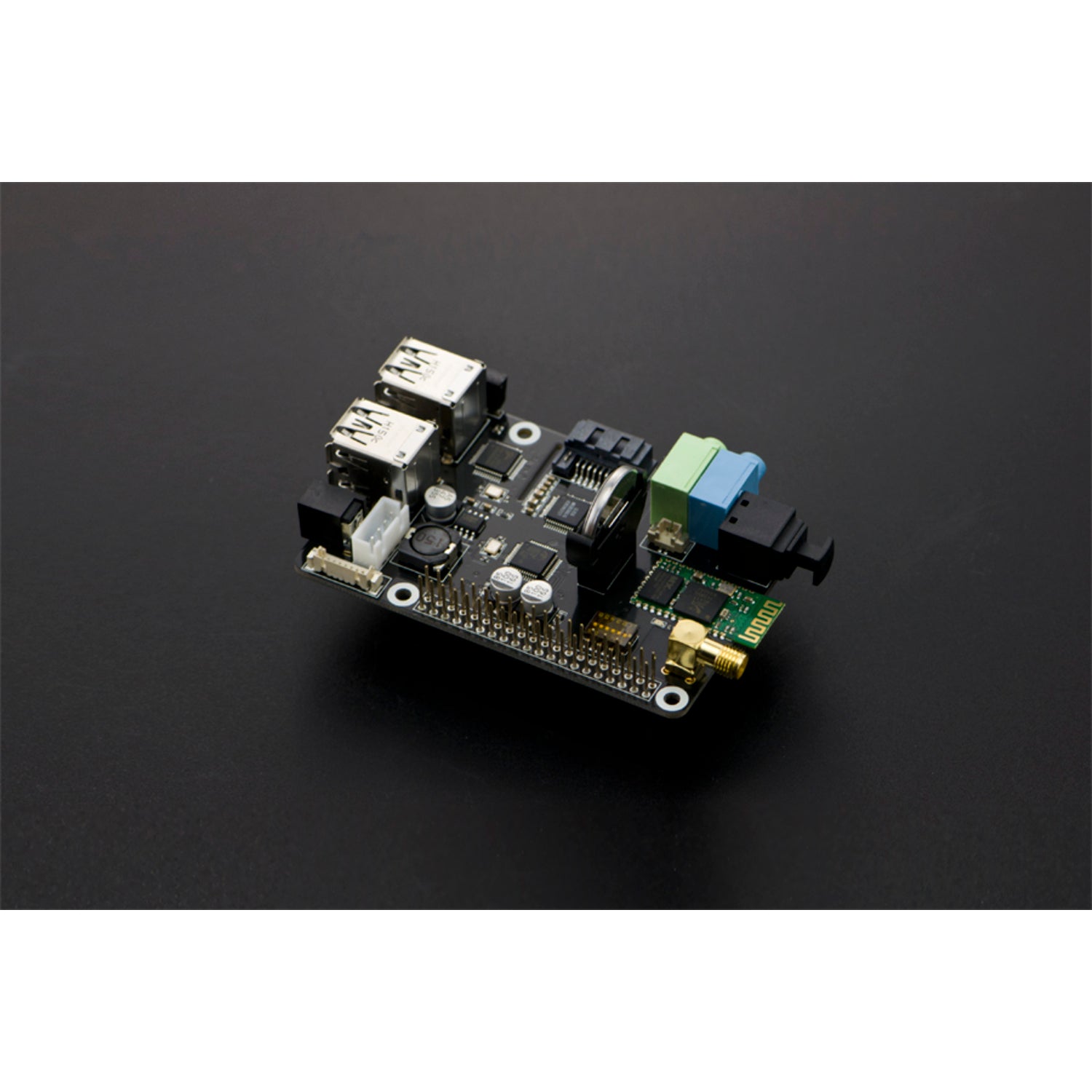

This Raspberry Pi model is no longer in production. We suggest other raspberry pi shields as great alternatives. The Expansion Shield X300 is an extremely cost - effective option for Raspberry Pi Model B+, Raspberry Pi 2 Model B, and the latest Raspberry Pi 3 Model B. It comes packed with many useful features like an RTC real - time clock, audio input and output, a USB hub, Bluetooth, Wi - Fi, and a SATA interface. With this shield, you can easily build Raspberry Pi projects, saving both time and money. Compared to the Expansion Shield X200, it has new features such as SATA and Bluetooth but removes the HDMI and VGA video ports, making it more project - friendly. FEATURES: Input Voltage ranges from 6V to 18Vdc, converted to 5V, 4A via a step - down DC/DC converter to power the Raspberry Pi. The SATA allows connection of SATA devices. It offers various audio options including a 3.5mm MIC in jack, 3.5mm stereo audio jack, SPDIF output, and an Audio IO connector. Wireless features include Wi - Fi with an external antenna, an IR sensor, and Bluetooth serial communication. There's a self - powered USB hub with 3 ports. The real - time clock is based on DS3231SN with a CR2032 battery. Miscellaneous features involve a power output socket, a camera flex slot, a DIP switch, and direct connection on top of the Raspberry Pi. No wiring or soldering is needed, and it duplicates the 40 - pin header to support existing expansion boards. It's suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B, with dimensions of 85 x 56mm. Note: Don't power the Raspberry Pi via the Micro - USB port when using the shield's power source to avoid damaging the board! DOCUMENTS: Driver Download and User Manual. SHIPPING LIST: One X300 Raspberry Pi expansion board, one USB adapter, one 2.4GHz Wi - Fi antenna, four nylon spacers (M3 x 20mm), and eight nylon screws (M3 x 6mm).
Using the Expansion Shield X300 is a breeze. First, connect the shield directly on top of your Raspberry Pi using the board GPIO header pins. There's no need for any wiring or soldering. Make sure to set the DIP switch according to your needs. When it comes to power, use the shield's power source. Just remember, if you're using the shield to power your Raspberry Pi, don't also plug in power via the Micro - USB port, as this can damage the board. The input voltage for the shield should be between 6V and 18Vdc, which it will convert to 5V, 4A to power the Raspberry Pi. You can connect SATA devices to your Raspberry Pi through the SATA interface. For audio, use the available audio jacks and connectors. The shield also offers Wi - Fi, Bluetooth, and an IR sensor for wireless functionality. There's a self - powered USB hub with 3 ports where you can plug in your USB devices. The real - time clock, based on DS3231SN with a CR2032 battery, keeps time accurately. To maintain the shield, keep it in a dry and clean environment. Avoid exposing it to extreme temperatures or moisture. If you need to download drivers or check the user manual, you can find the relevant information in the documents section. When receiving the product, you'll get an X300 Raspberry Pi expansion board, a USB adapter, a 2.4GHz Wi - Fi antenna, nylon spacers, and nylon screws in the shipping list.
