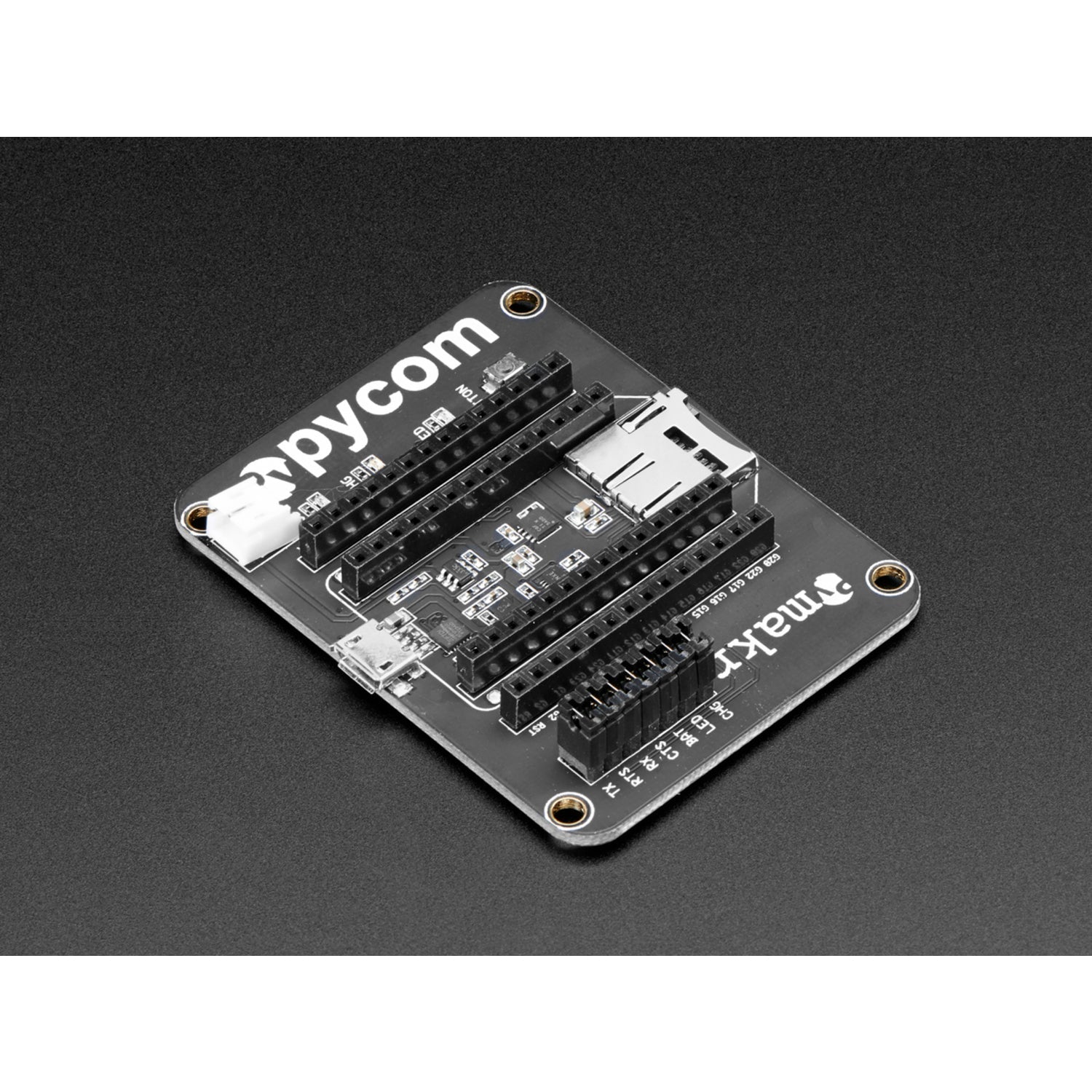

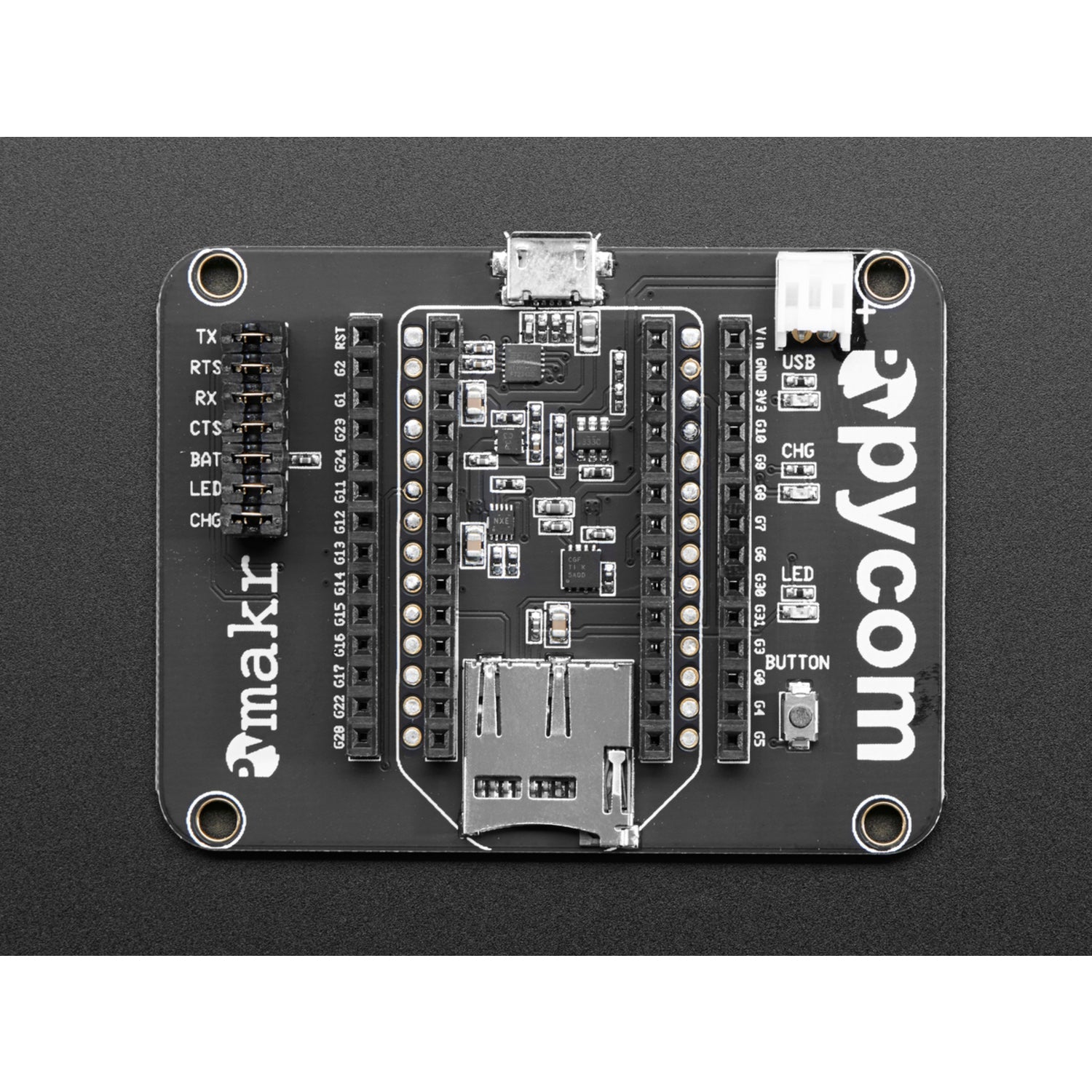

This amazing Pycom Expansion Board 2.0 is a great addition to your IoT project. It's compatible with LoPy and WiPy 2.0, bringing extra functionality. Just insert your WiPy or LoPy into the headers and access all the additional features! Note that it's not for the original WiPy, only for WiPy 2.0. Click for the v1.0 WiPy adapter. Key features include USB and LiPo battery power, an FT234XD USB to serial converter, a LiPo battery charger with charging current options, reverse voltage protection, a MicroSD card slot, female headers for easy plug - in, a JST style battery connector, power and charge status LEDs, a user LED and switch, battery voltage monitoring, and lots of jumpers. Dimensions are 65 x 50 x 12 mm. Remember, the WiPy and LoPy are not included, just the expansion board!
Using this expansion board is easy. First, make sure you have a LoPy or WiPy 2.0 as it's not compatible with the original WiPy. Then, simply insert your device into the female headers. You can power it via USB or a LiPo battery. When using the LiPo battery, choose the charging current that suits your needs. Don't forget, the WiPy and LoPy are not part of this purchase. As for maintenance, keep it in a dry and clean place. If there are any issues with the battery charger or other components, refer to the detailed specifications provided. And always check the power and charge status LEDs to know the board's condition.
