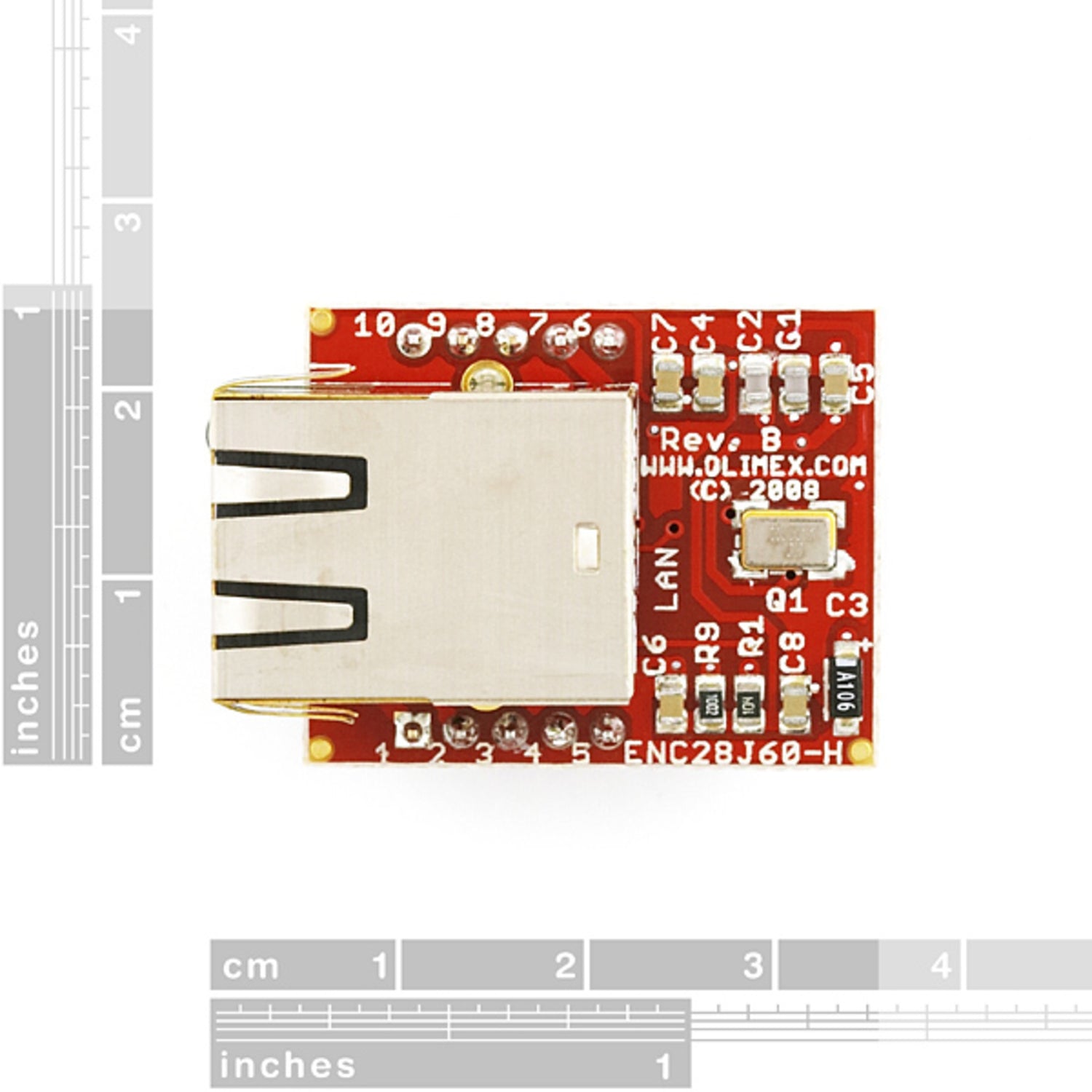

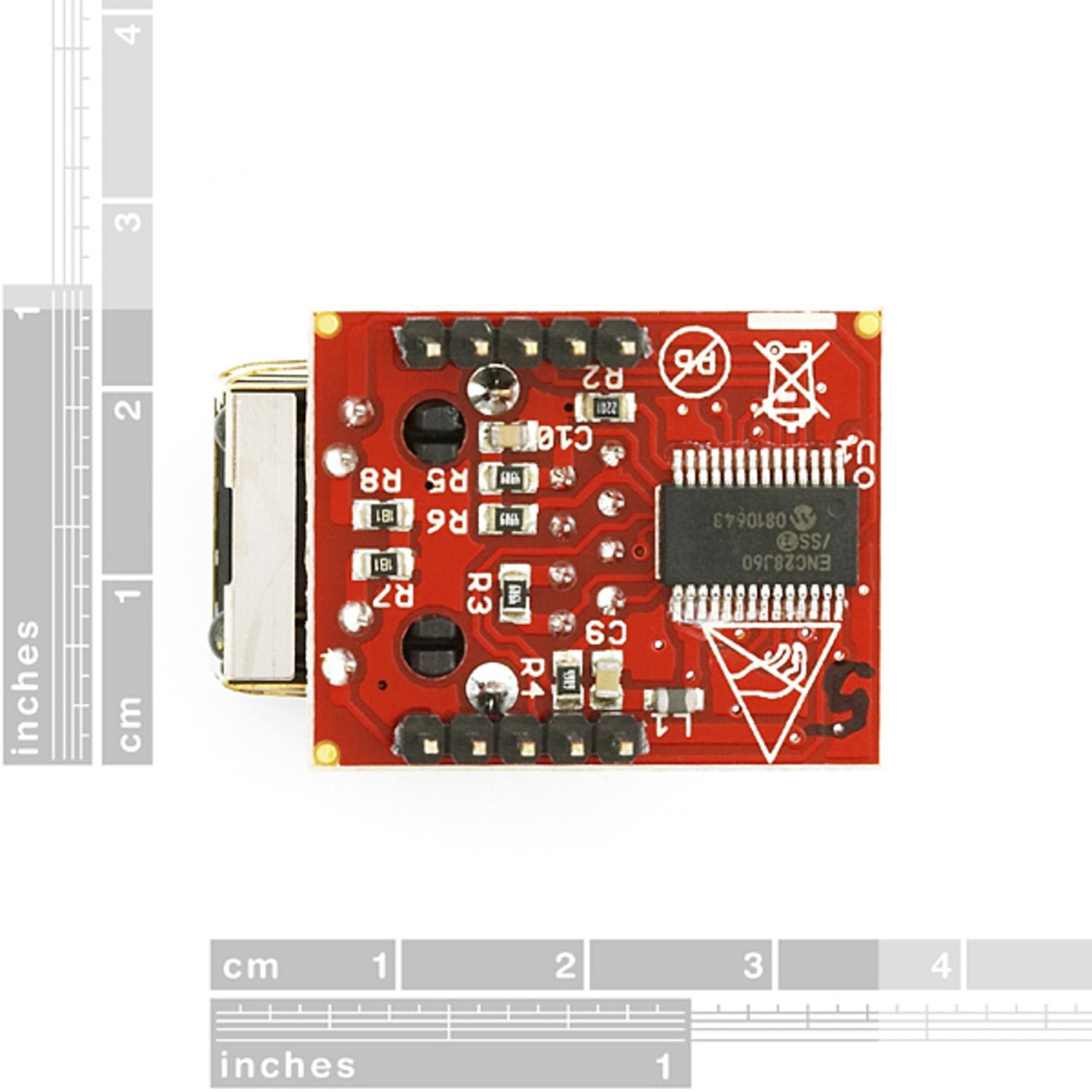

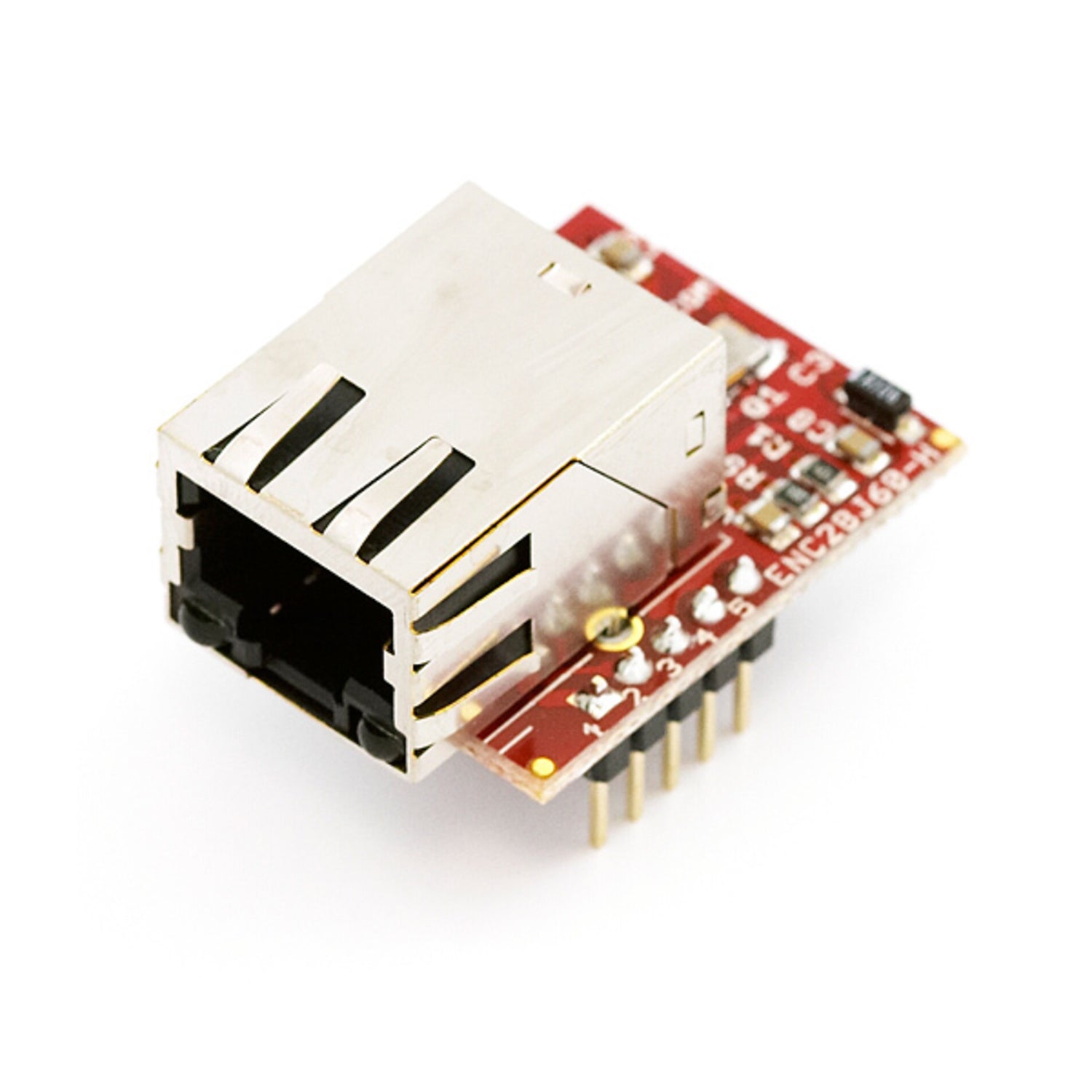

This small breakout board for the PIC Microchip ENC28J60 is a great choice for implementing an Ethernet interface. It comes with all the essential hardware, including an isolation transformer and LINK/STATUS LEDs. The SPI interface makes it one of the easiest 10Base - T ICs to use. It operates at 3.3V and has an 8KB buffer. The overall dimensions are 1.18x0.95' (30x24mm), and the space between rows is 0.8'. Also, you can access the schematic and the ENC28J60 datasheet for more details.
Using this ENC28J60 Ethernet Interface Breakout Board is quite straightforward. First, make sure it's properly connected to your device through the SPI interface. Since it operates at 3.3V, ensure your power source matches this voltage. When using, pay attention to the LINK/STATUS LEDs as they can show you the connection status. For maintenance, keep it in a dry and clean environment to prevent damage to the electronic components. If you need more technical details, refer to the provided schematic and datasheet.
