DIY Radio kit no soldering

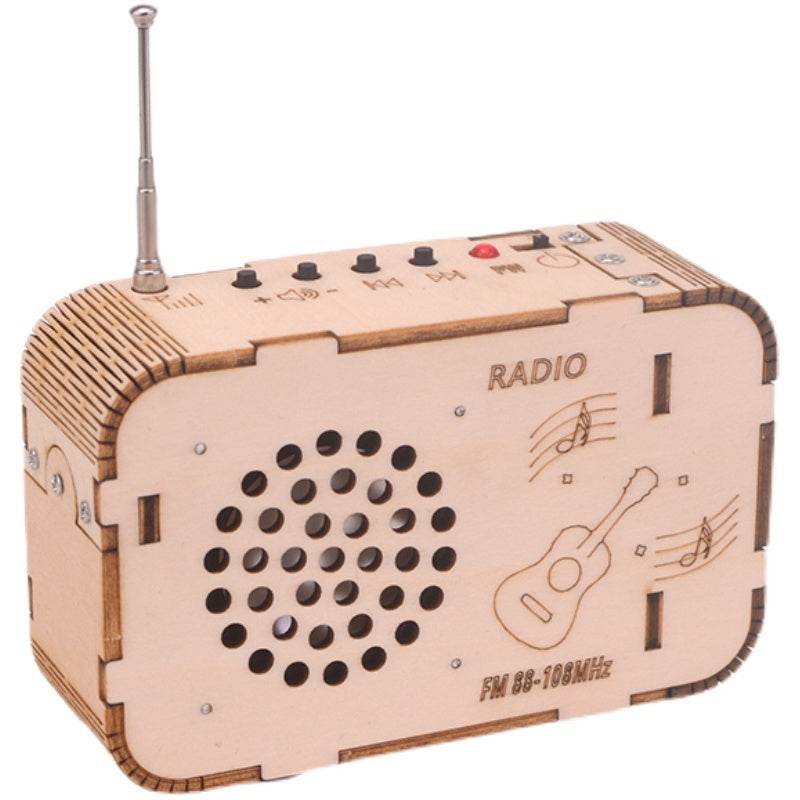

This is a fantastic FM Radio Amplifier Mono FM Music Player. It's designed as a handmade wooden assembly experimental device. With a wooden casing, it offers a primitive and rustic look. You can enjoy music from FM radio stations, and its 3W 4ohm speaker delivers clear and loud sound. Fixation with screws makes the installation process super convenient and easy. Here are the installation steps: 1. Remove all available boards from the 4 wooden boards carefully to avoid damage. 2. Fix 1 piece of 3W 4ohm Speaker on a Wooden Board using 4 pieces of M2*4mm Screws. 3. Attach double - sided adhesive to the back of the FM Radio Receiver Module. 4. Attach and fix the FM Radio Receiver Module on another Wooden Board using 4 pieces of M2*7mm Screws. Loosen the screws slightly. 5. Fix 1 piece of AA 2 Battery Box on another Wooden Board using 2 pieces of M2*4mm Screws. 6. Join the wooden boards from the battery box and FM receiver. Connect the battery socket and place the wires in the wiring slot. 7. Fix the FM Antenna gasket using 2 pieces of M2*6mm Screws. 8. Fix the FM Antenna and gasket from the FM Radio Receiver Module using 1 piece of M2*7mm Screw. 9. Insert the fixed small bracket. 10. Connect the 3W 4ohm Speaker to the FM Radio Receiver Module. 11. Join the wooden boards from the FM receiver and speaker. 12. Fix the TOP wooden board using 2 pieces of M2*7mm Screws. Align each installation hole. 13. Slowly bend the wooden board to avoid breaking and then fix it using 2 pieces of M2*10mm Screws. 14. Fix the Bottom wooden board using 2 pieces of M2*7mm Screws. 15. Slowly bend the wooden board to avoid breaking and then fix it using 1 piece of M2*10mm Screw. 16. Install 2 pieces of AA Battery. 17. Fix the last wooden board using 1 piece of M2*7mm Screw. 18. Slowly bend the wooden board to avoid breaking and then fix it using 1 piece of M2*7mm Screw. 19. Install 4 pieces of Black Sponge Base on the Bottom wooden board.

Using this DIY FM radio kit is a fun experience. First, follow the installation steps carefully as described in the product description. When you're done assembling, insert 2 AA batteries, and you're ready to tune in to your favorite FM radio stations. The 3W 4ohm speaker will give you clear and loud sound. Some important things to note: Be very careful when removing the boards from the wooden pieces to avoid any damage. When tightening the screws, especially those for the FM Radio Receiver Module, don't over - tighten them. Also, when bending the wooden boards, do it slowly to prevent them from breaking. For maintenance, keep the radio in a dry place. If the sound quality starts to decline, check the battery and make sure the connections are secure. You can clean the wooden casing gently with a soft, dry cloth. Enjoy your DIY radio!
