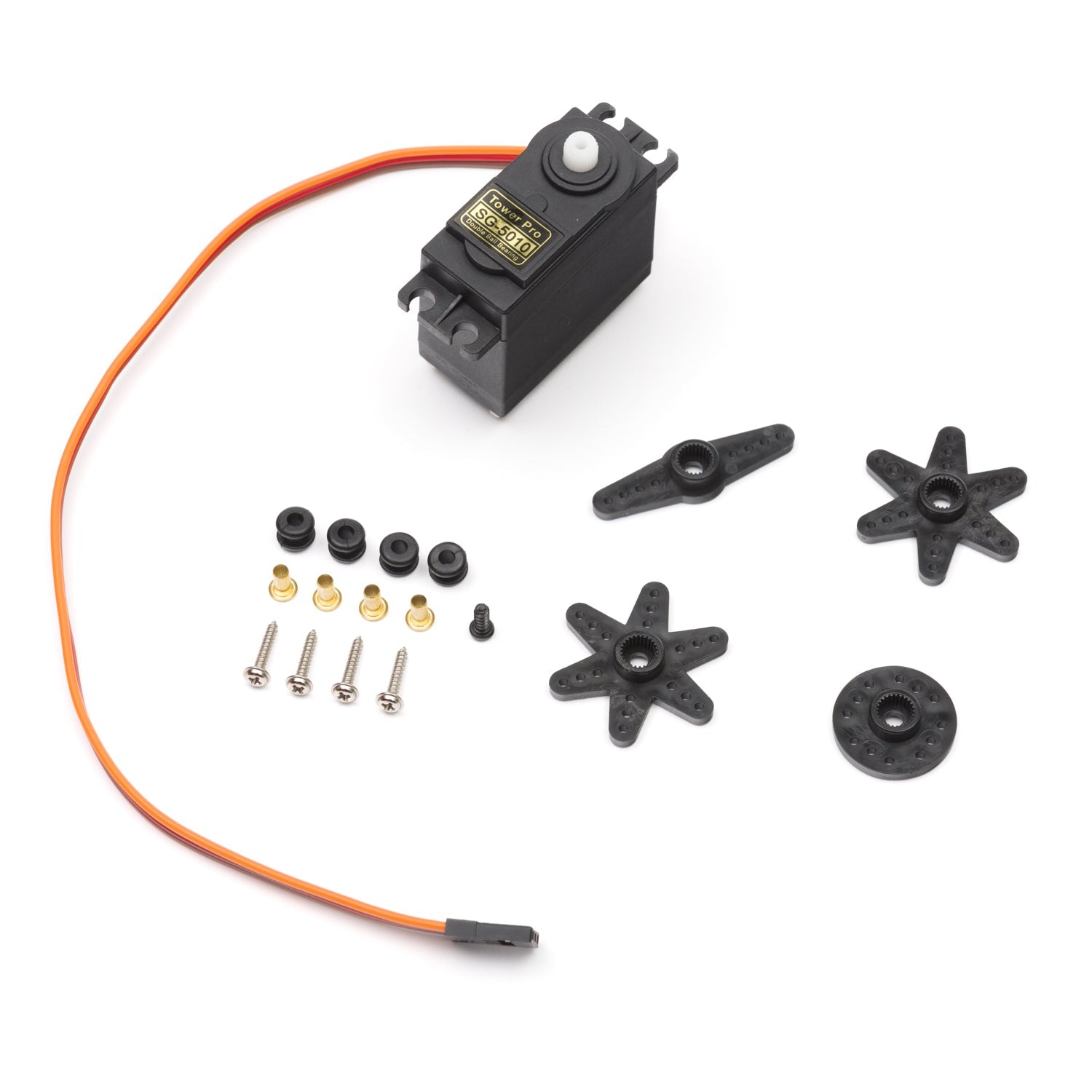

Digital Servo Motor

Dimensions are 1.57' x 0.79' x 1.44' (40 x 20 x 44mm) and it weighs only 38g. Operating at 4.8V no - load, it reaches a speed of 0.14sec / 60 degrees, and at 6.0V no - load, it's 0.11sec / 60 degrees. Stall torque is 8 kg/cm (110oz/in.) at 4.8V and 11kg/cm (156oz/in.) at 6.0V. It works well in a temperature range from - 30 to +60 Degree C with a dead - band width of 4ms and an operation voltage of 3.5 - 8.4Volts. This servo motor is compatible with most standard receiver connectors like Futaba, Hitec, Sanwa, GWS etc. It's perfect for trucks, boats, racing cars, helicopters, and airplanes. Powered by an external adapter, it's stable, shock - proof, and features a coreless motor and double ball bearings. It's lightweight, makes less noise, and has a 300mm connector wire length.

Using this digital servo motor is easy. First, connect it to a compatible receiver using the 300mm connector wire. Make sure to use an external adapter for power supply. You can use it in various vehicles like trucks, boats, racing cars, helicopters, and airplanes. When using, keep the motor within the temperature range of - 30 to +60 Degree C and use an operation voltage between 3.5 - 8.4Volts. For maintenance, keep it clean and dry. Check the connectors regularly to ensure a good connection. If you notice any unusual noise or performance issues, stop using it immediately and check for possible problems.
