Digital Card Multimeter

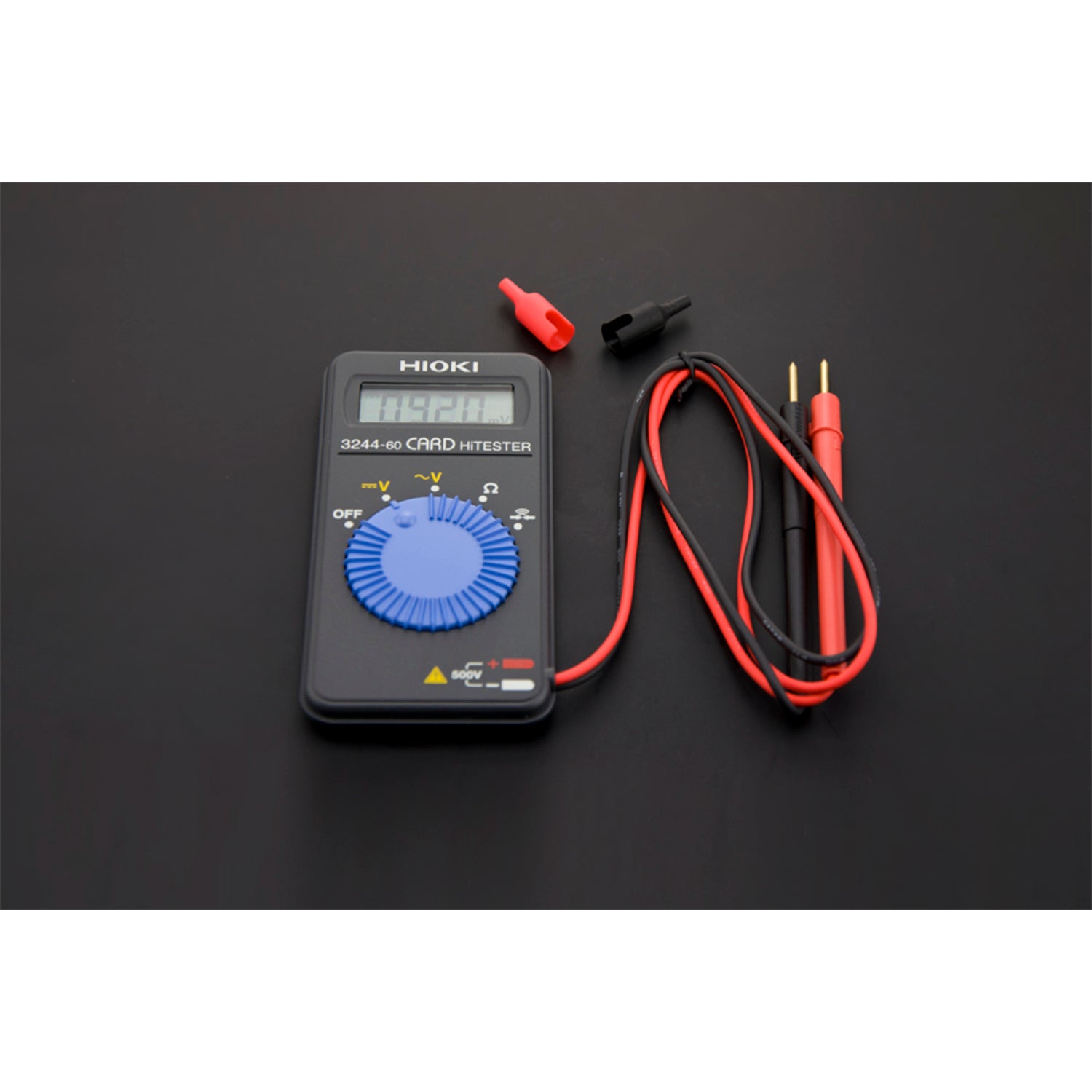

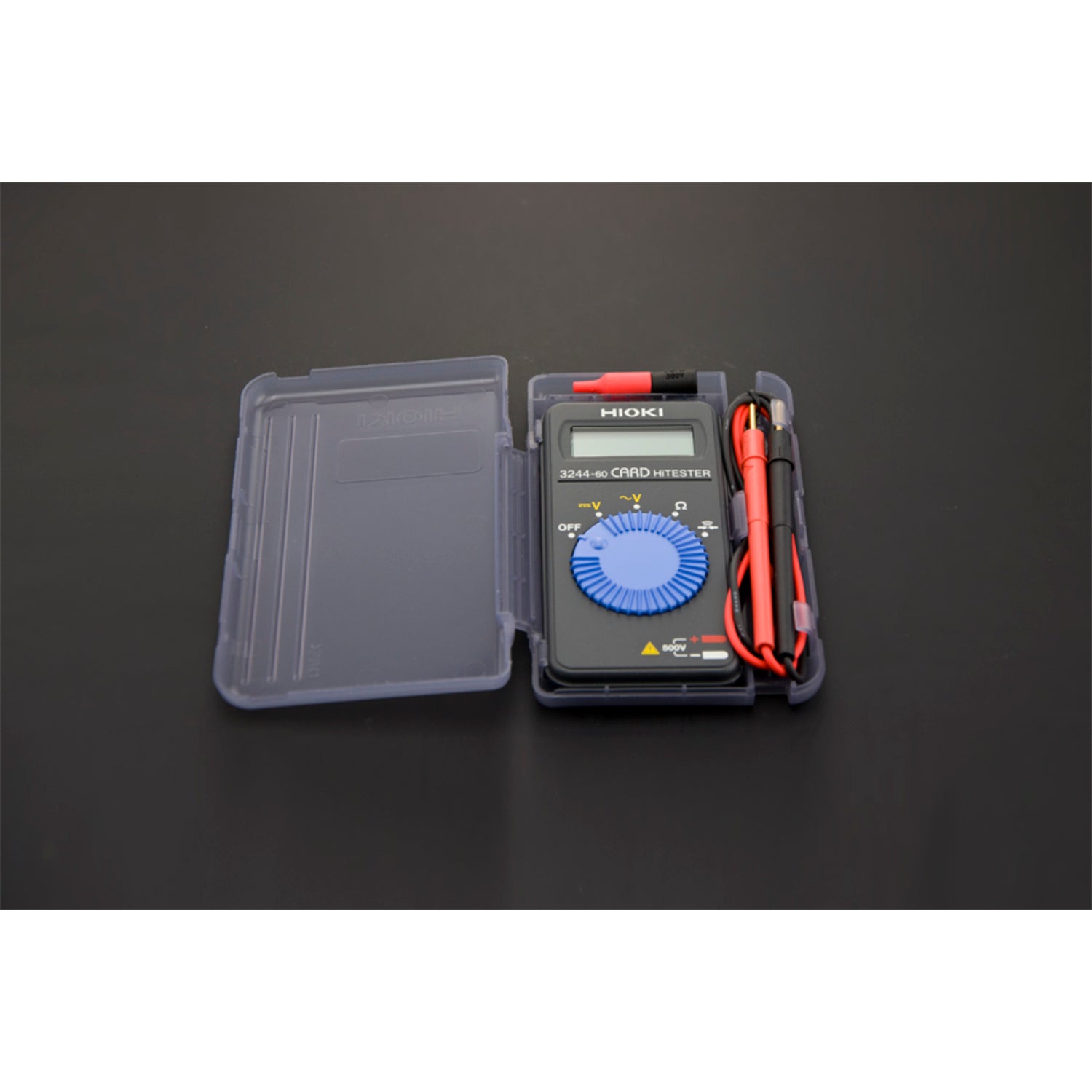

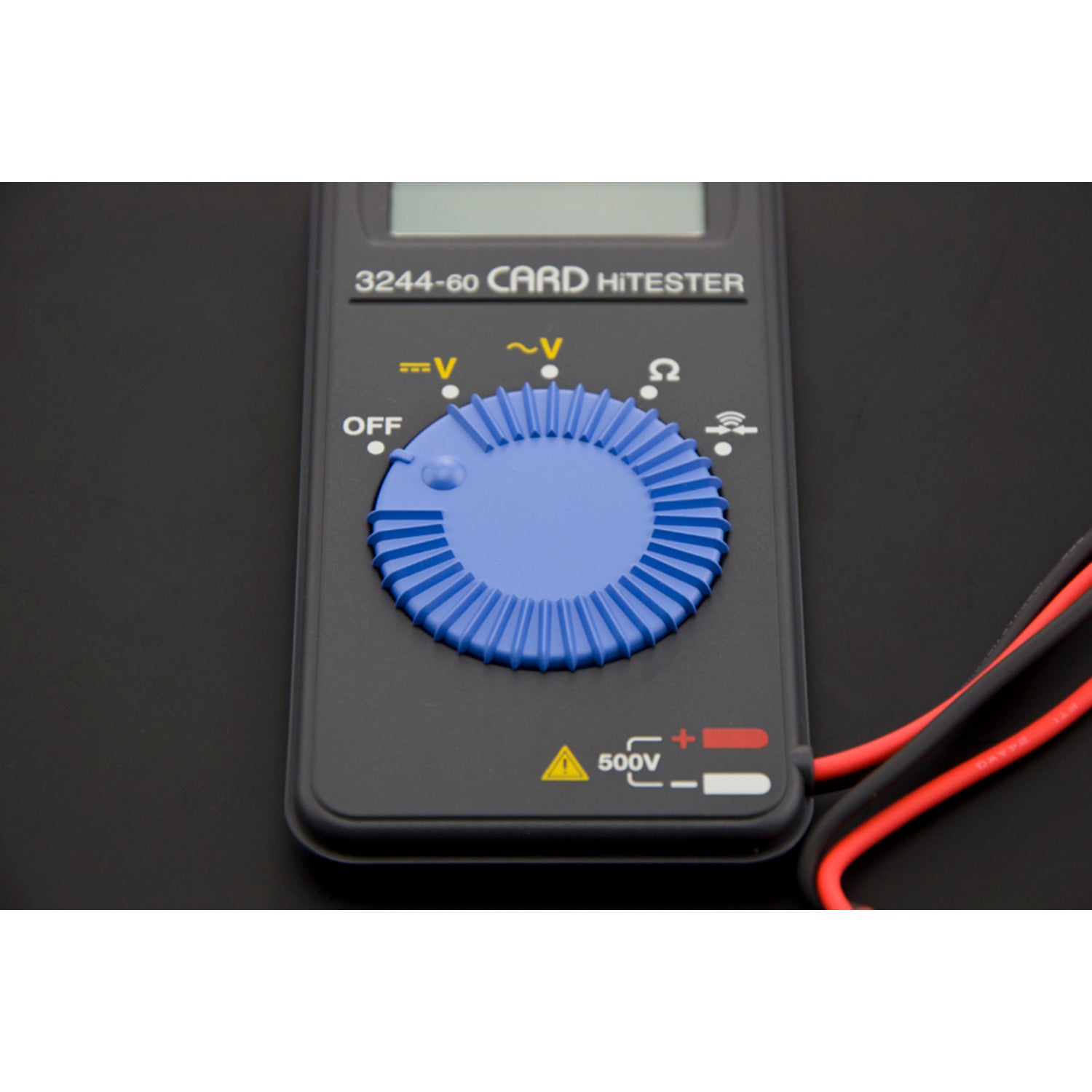

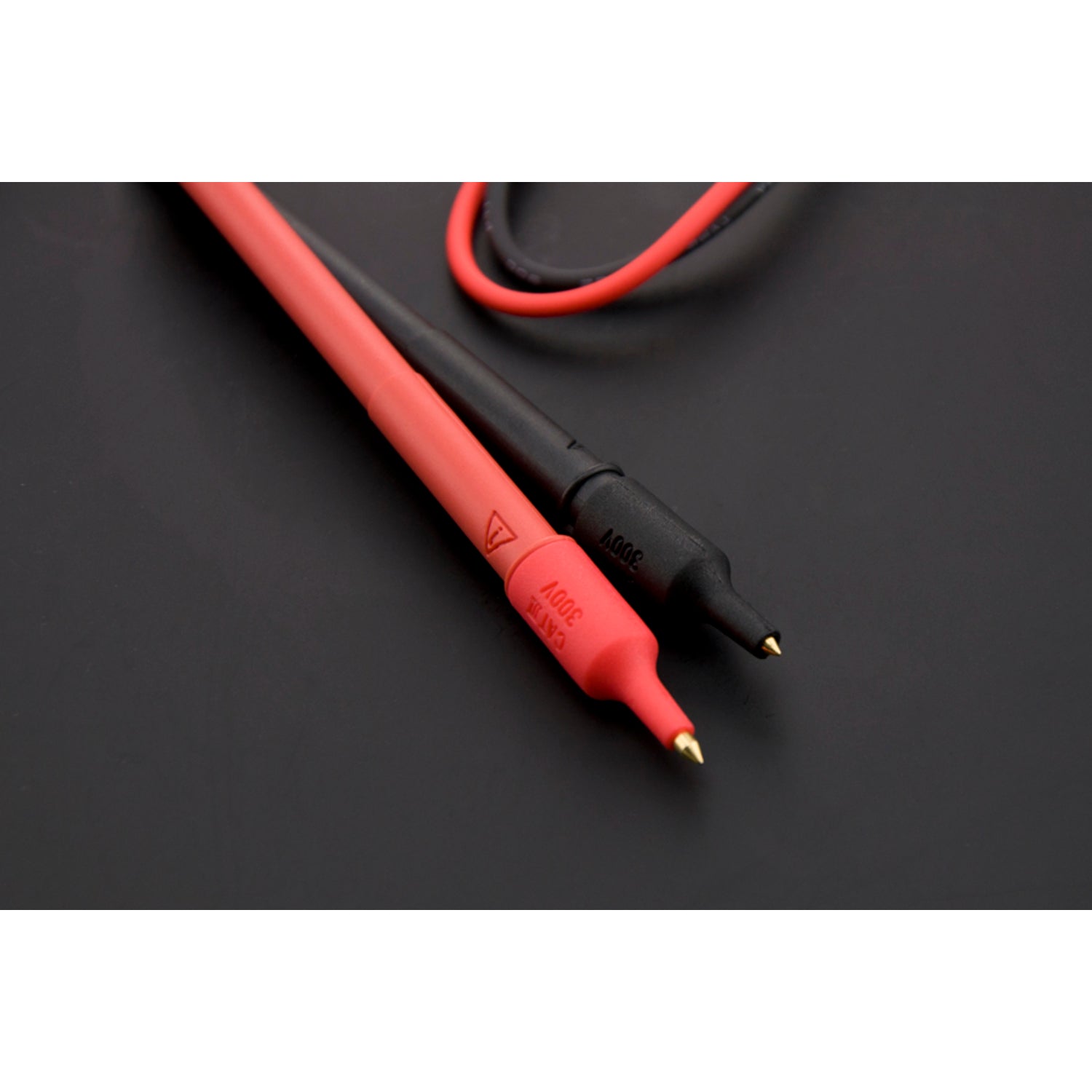

This 3244 - 60 digital card multimeter is a lightweight, compact, and mobile device perfect for general electrical maintenance and testing. It features gold - plated test leads with 15 mm tip pins for excellent contact and insulated test pin sleeves to prevent short - circuits. Measuring only 109 mm x 55 mm and weighing just 60 g, it easily fits in your pocket, making it ideal for on - the - go use. Key features include full auto - ranging and automatic power - saving functions, and overload protection up to 500 V for resistance or continuity. Specifications cover a wide range of electrical measurements with reliable accuracy. It comes with an instruction manual, and the shipping list includes one card multimeter.

Using this digital card multimeter is quite straightforward. First, make sure you have inserted the coin - type lithium battery (CR2032). Then, connect the test leads to the appropriate ports on the multimeter. You can start measuring DC voltage, AC voltage, or resistance by setting the multimeter to the corresponding function. The auto - ranging function will select the appropriate range for you. When using it, always ensure the test leads are well - connected and that there is no risk of short - circuits. Avoid overloading the multimeter beyond 500 V when using the resistance or continuity functions. For maintenance, keep the multimeter in a dry and clean place. If you don't plan to use it for a long time, remove the battery to prevent damage. You can also refer to the instruction manual for more detailed information.
