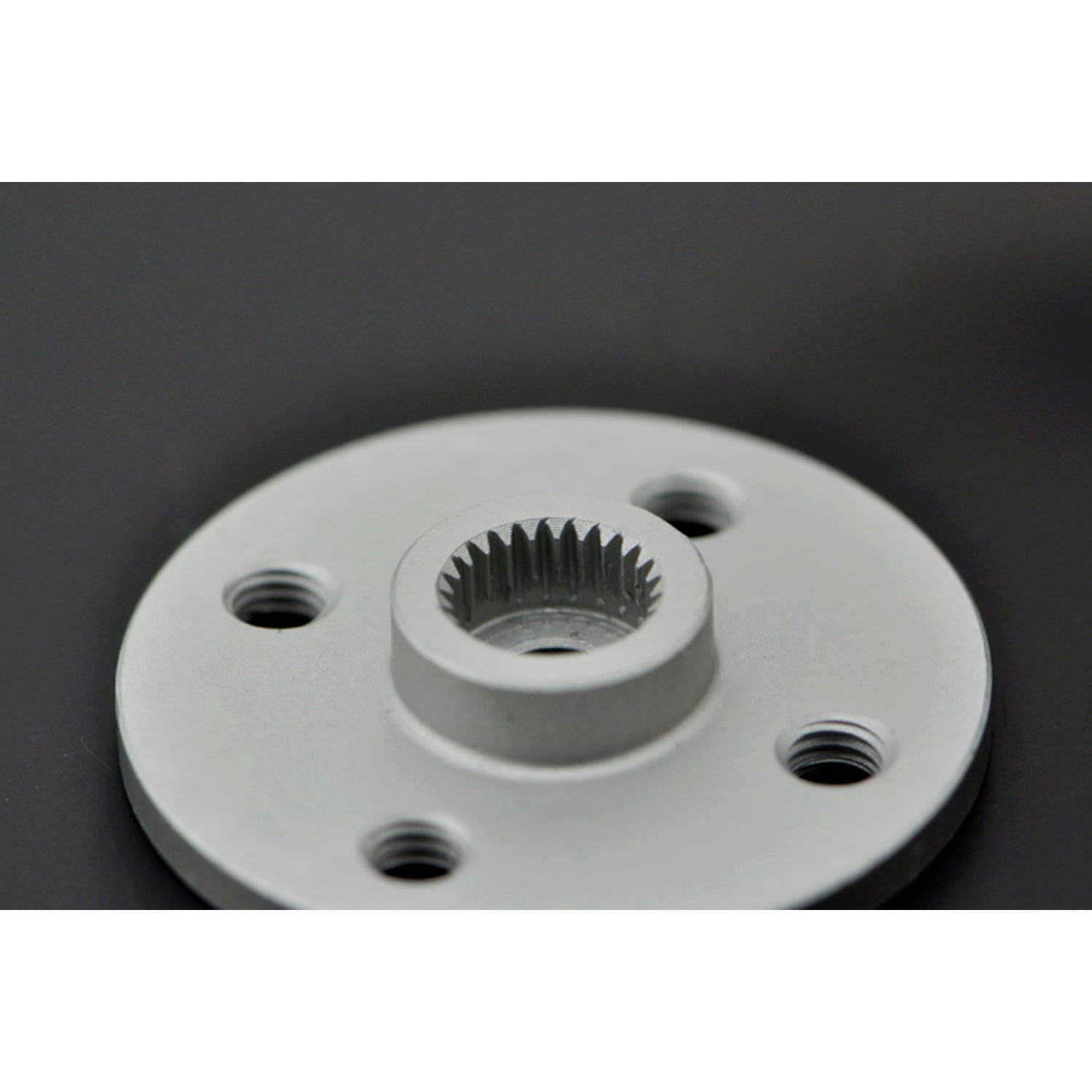

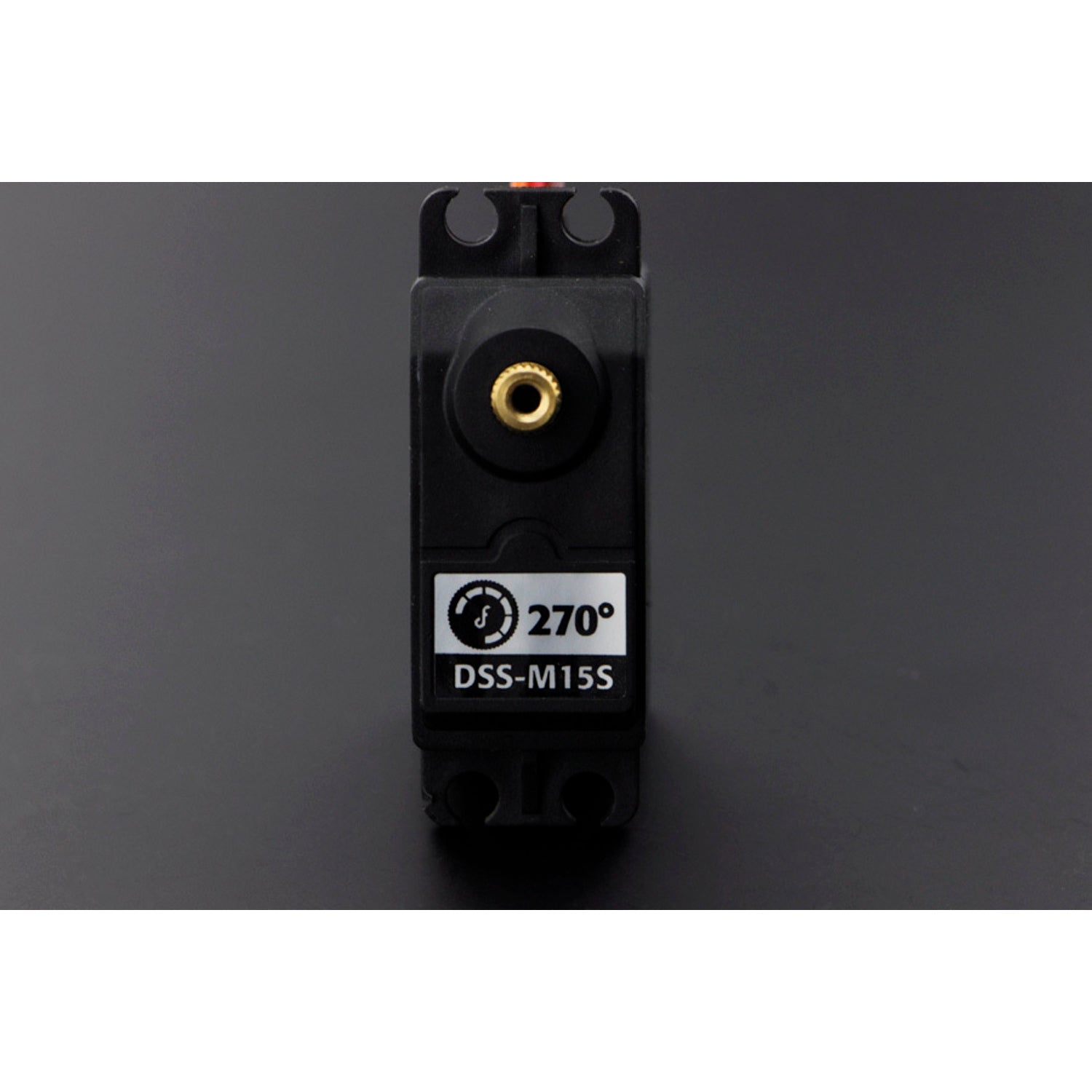

The DSS - M15S is an outstanding heavy - duty metal gear standard servo. It offers a 270° wide - angle rotation, high - torque power, and enhanced stability and durability. With the ability to operate at 6V and deliver a torque of over 15Kg, this servo is reliable when you need it most. After a 12 - hour high - load capacity test, it shows a maximum torque of 18Kg with minimal vibration and heat. We also include carefully selected steering parts like an aluminum alloy wheel and a long bracket to boost its performance. Here are the key specifications: Voltage ranges from 4.8 to 7.2 Volts. Torque is 13.5Kg*cm at 6.0V and 15Kg*cm at 7.0V. Speed is 0.18 sec/60° at 6.0V and 0.16 sec/60° at 7.0V. Free Run Current is 80mA at 6.0V and 100mA at 7.0V, Stall Current is 1.8A at 6.0V and 2A at 7.0V, and Standby Current is 4mA at 6.0V and 5mA at 7.0V. It has a 270° rotation, metal wheel gear, a gear ratio of 310:1, and dimensions of 54.5*20*47.5mm (2.15*0.79*1.87'). The signal type is RC PWM with a pulse range of 500 - 2500 us and a frequency of 50 - 330Hz (Arduino - compatible). Included documents are Electrical Specification, Mechanical Specification, Control Specification, and Mechanical Drawing. The shipping list contains a DSS - M15S Servo, a Metal round servo horn, an X servo horn, a long straight servo horn, a Straight servo horn, five M2*8 self - tapping screws, five M2 screw washers, and one M3*6 screw.

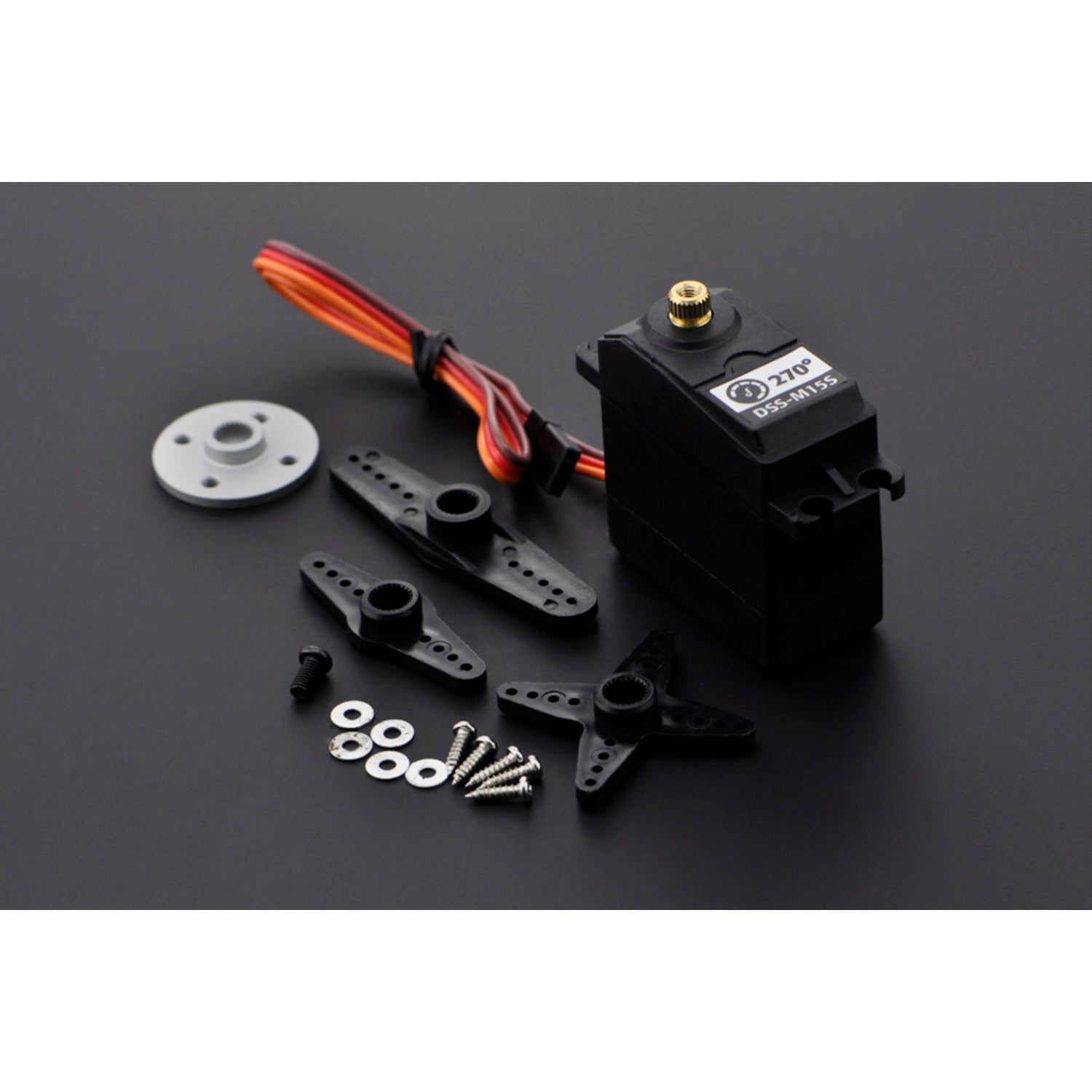

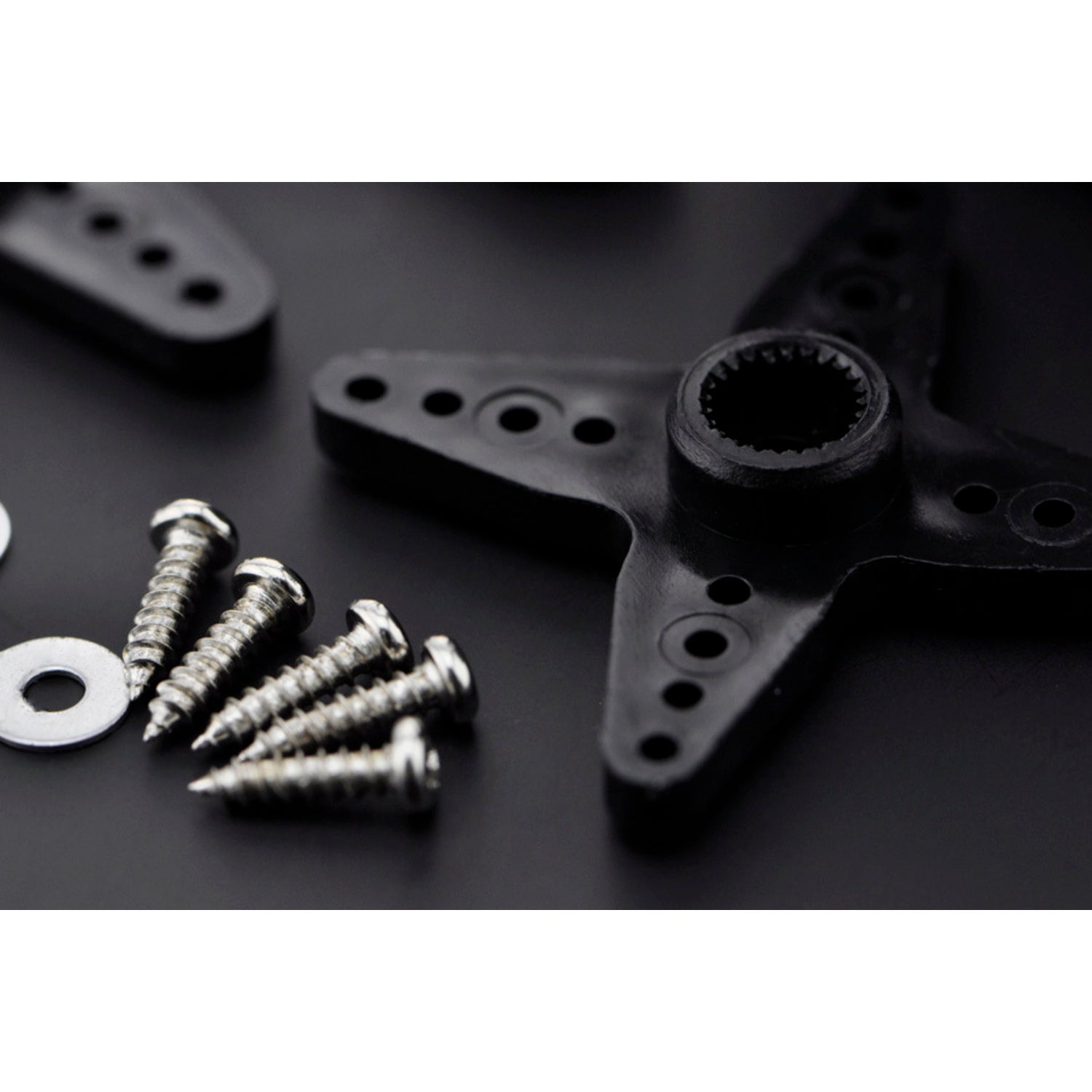

Using the DSS - M15S servo is easy. First, make sure to connect it to a power source within the 4.8 - 7.2 Volts range. You can use the included servo horns and screws to attach it to your project. The 270° wide - angle rotation gives you a great range of movement. When using, avoid overloading it too much. Although it has been tested for high - load capacity, excessive force can still cause damage. For maintenance, keep it clean and dry. If you notice any abnormal vibration or heat during operation, stop using it immediately and check for any loose parts. Also, make sure to store it in a cool and dry place when not in use to prolong its lifespan.
