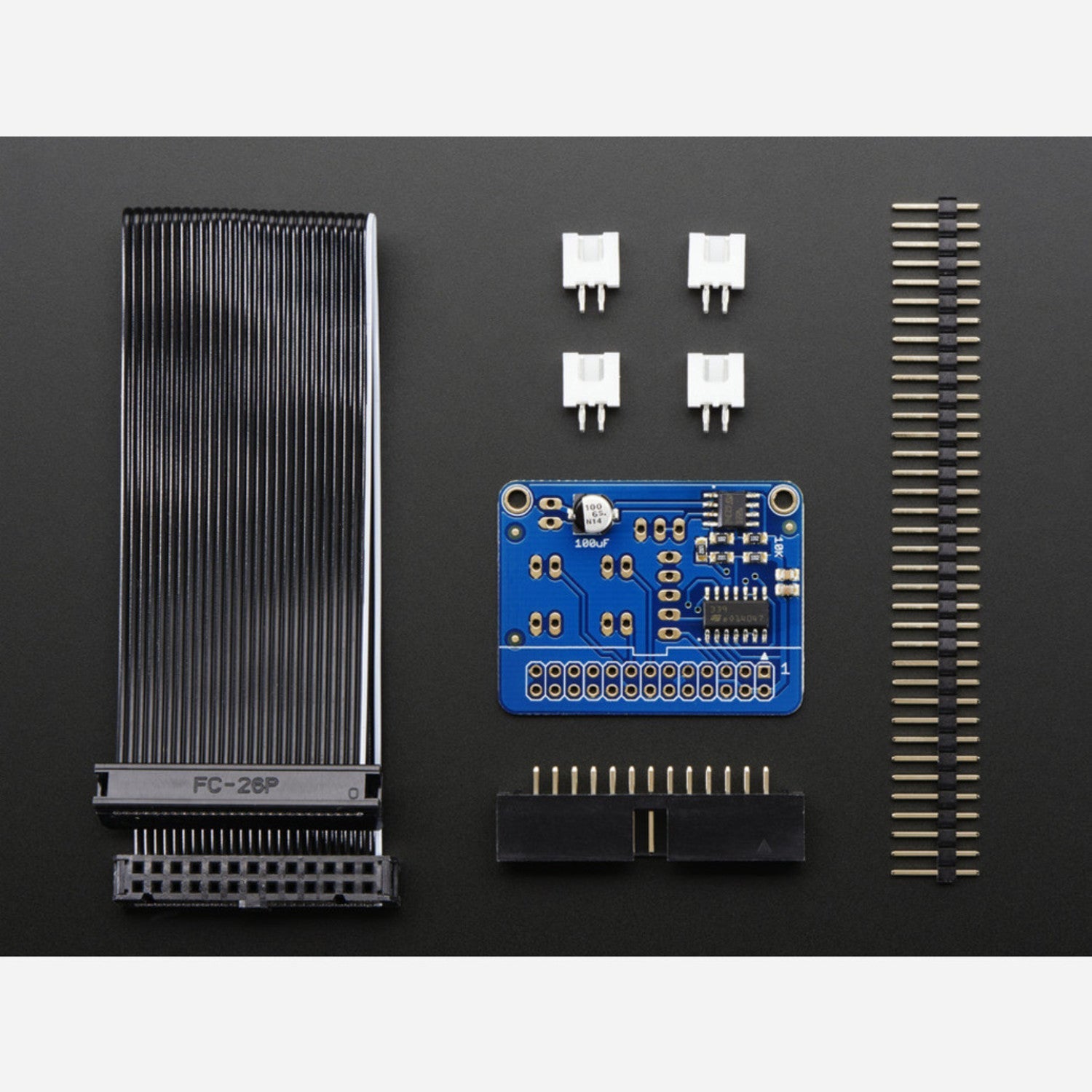

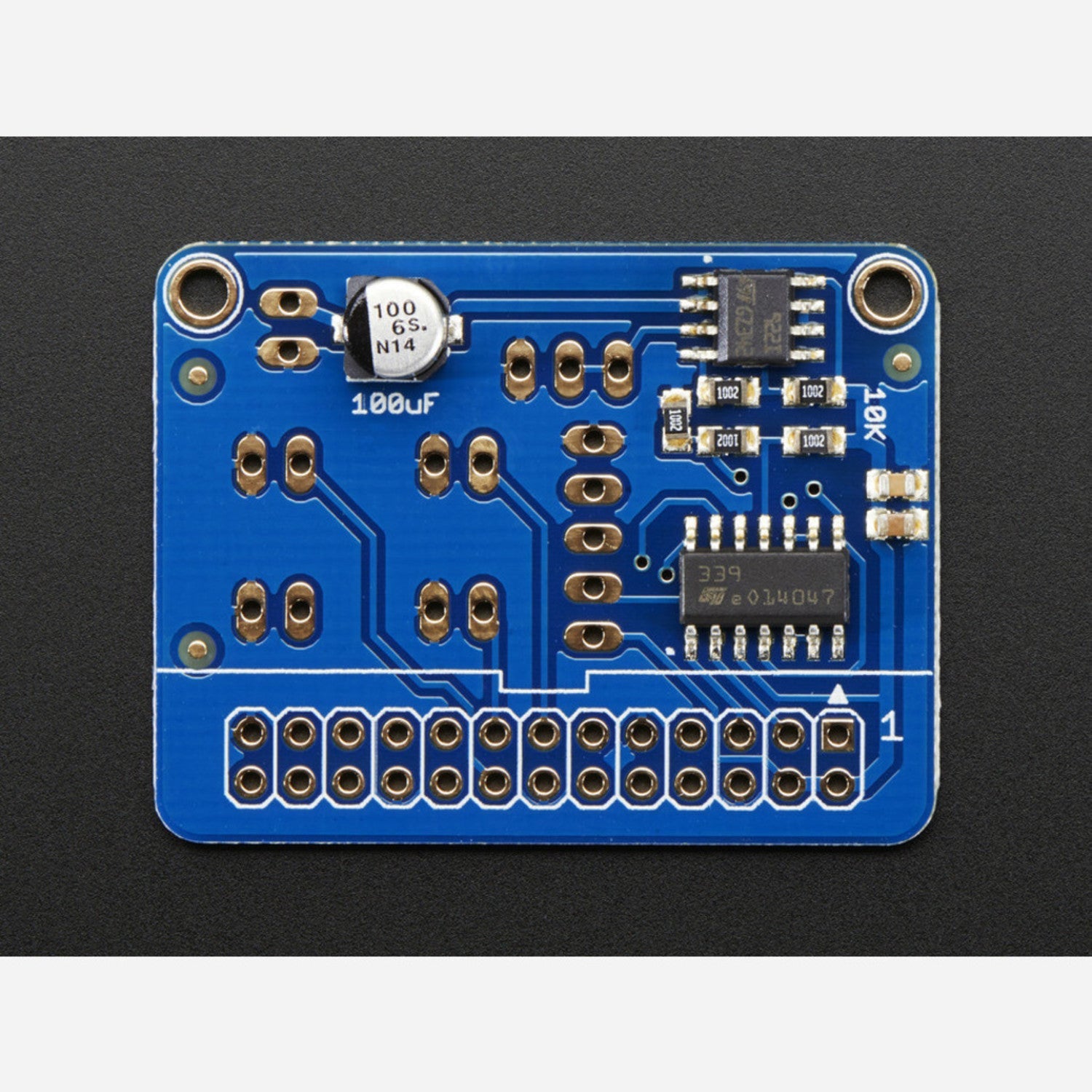

This is an awesome PCB and small parts pack from our super - fun and widely - loved Cupcade! It's a perfect choice for those who need to replace a PCB or wish to modify or build their own Cupcade. The pack includes: 1 assembled Cupcade PCB, 4 JST 0.1'-pitch straight through - hole connectors, 1 36 - pin header strip, 1 26 - pin GPIO ribbon cable, and 1 2x13 - pin IDC socket (the same one as in our Unassembled Pi T - Cobbler). Note that all other components of the Cupcade are not part of this pack. If you're looking to build the whole Cupcade, click here!
Using this Cupcade Adapter PCB and parts pack is easy. First, if you're replacing an old PCB, carefully remove the existing one from your Cupcade. Then, take the assembled Cupcade PCB from the pack and install it in the right place. Connect the JST 0.1'-pitch straight through - hole connectors, 36 - pin header strip, 26 - pin GPIO ribbon cable, and 2x13 - pin IDC socket as required. When handling the parts, be gentle to avoid any damage. Keep the parts away from moisture and static electricity to ensure their long - term performance. If you're building a Cupcade from scratch, follow the general assembly guide and use these parts in the right order. For maintenance, regularly check the connections to make sure they're secure. If you notice any loose parts or issues, don't hesitate to replace them.
