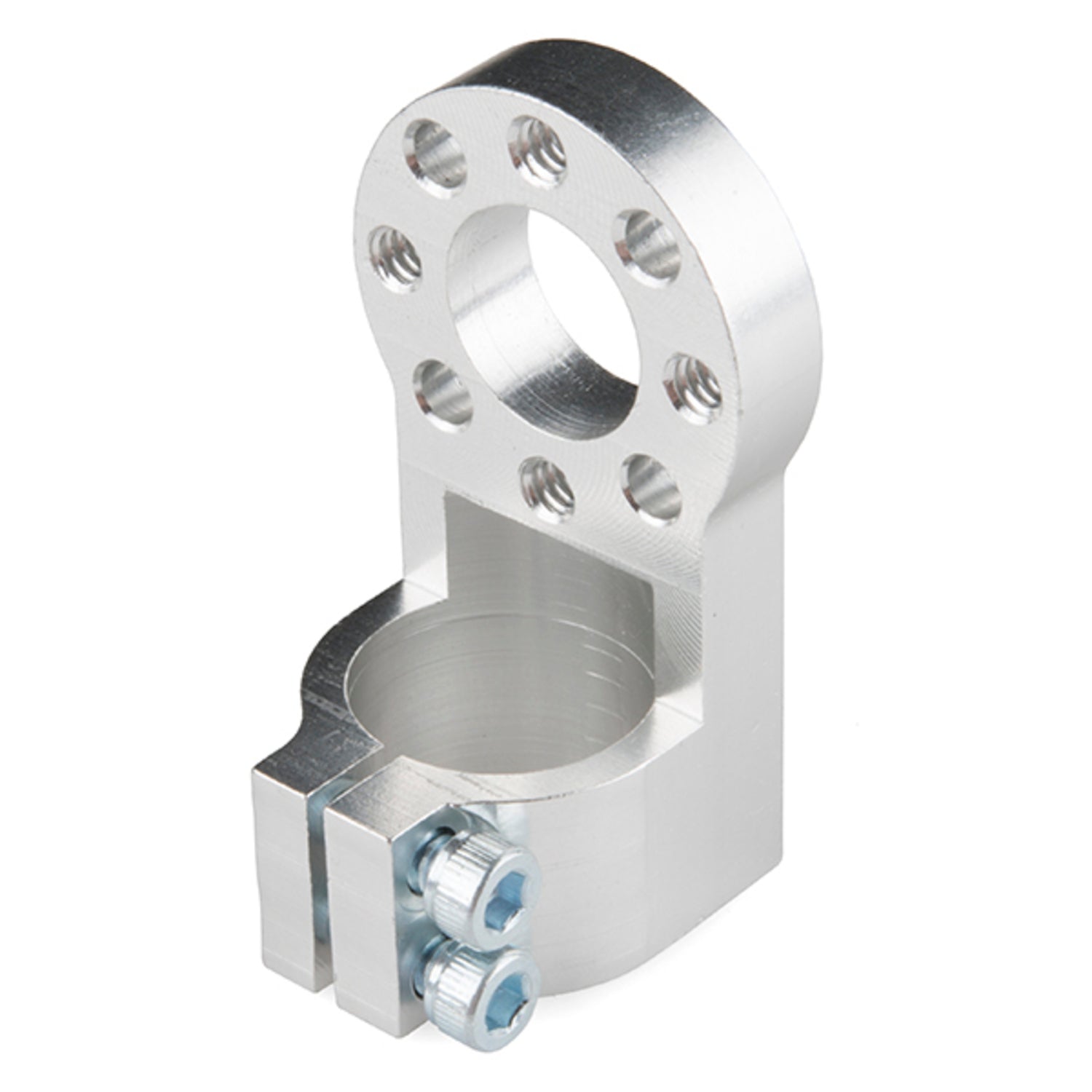

These 90° clamping hubs are an excellent solution for attaching a 5/8” diameter tube or shaft to a 1/2' diameter hub. They feature a 5/8' diameter bore for shaft connection and a 1/2' diameter bore for hub connection. With four 6-32 tapped holes, four 6-32 through-holes, and two 6-32 machine screws for tightening, they utilize a 0.77' hub pattern. Actobotics is a robotics building system centered around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to two standardized hole patterns, most Actobotics components can be easily connected. The wide variety of components makes it possible to build complex electromechanical prototypes or finished projects. Dimensions: Bore - 6mm, Hub Pattern - 0.77'. Documents: SketchUp Part, Product Page (545368).
Using this 90 degree clamping hub is easy. First, align the 5/8” diameter tube or shaft with the 5/8' diameter bore on the hub. Then, use the two 6 - 32 machine screws to tighten it securely. For the 1/2' diameter hub connection, fit it into the corresponding bore. When handling the product, be careful not to over - tighten the screws as it may damage the parts. Also, keep the hub away from areas with high humidity or corrosive substances. To maintain the product, clean it regularly with a dry cloth. Check the holes and screws periodically for any signs of wear or damage, and replace any worn - out parts promptly.
