Circuit Playground Proto Gizmo - Bolt-on Perma-Proto

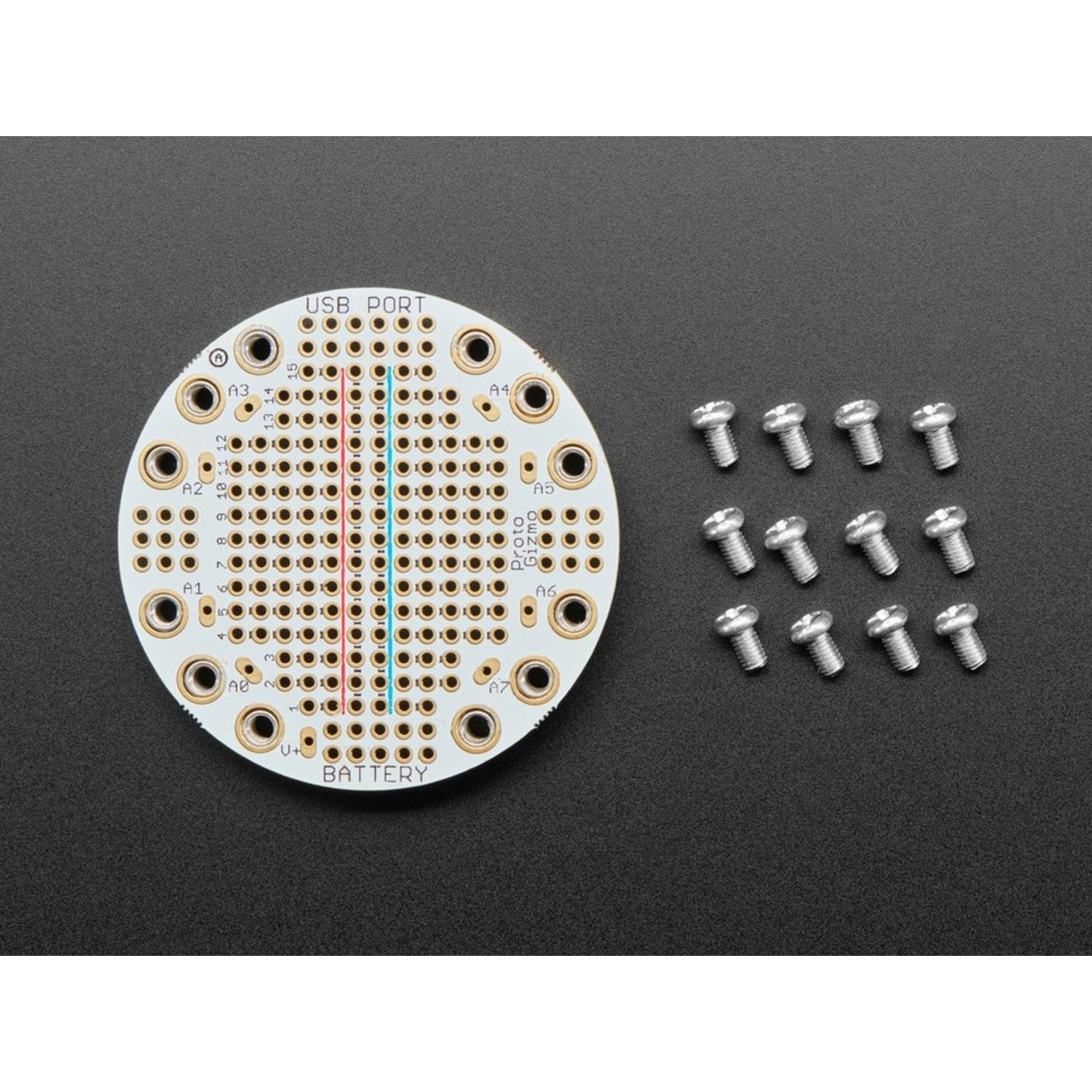

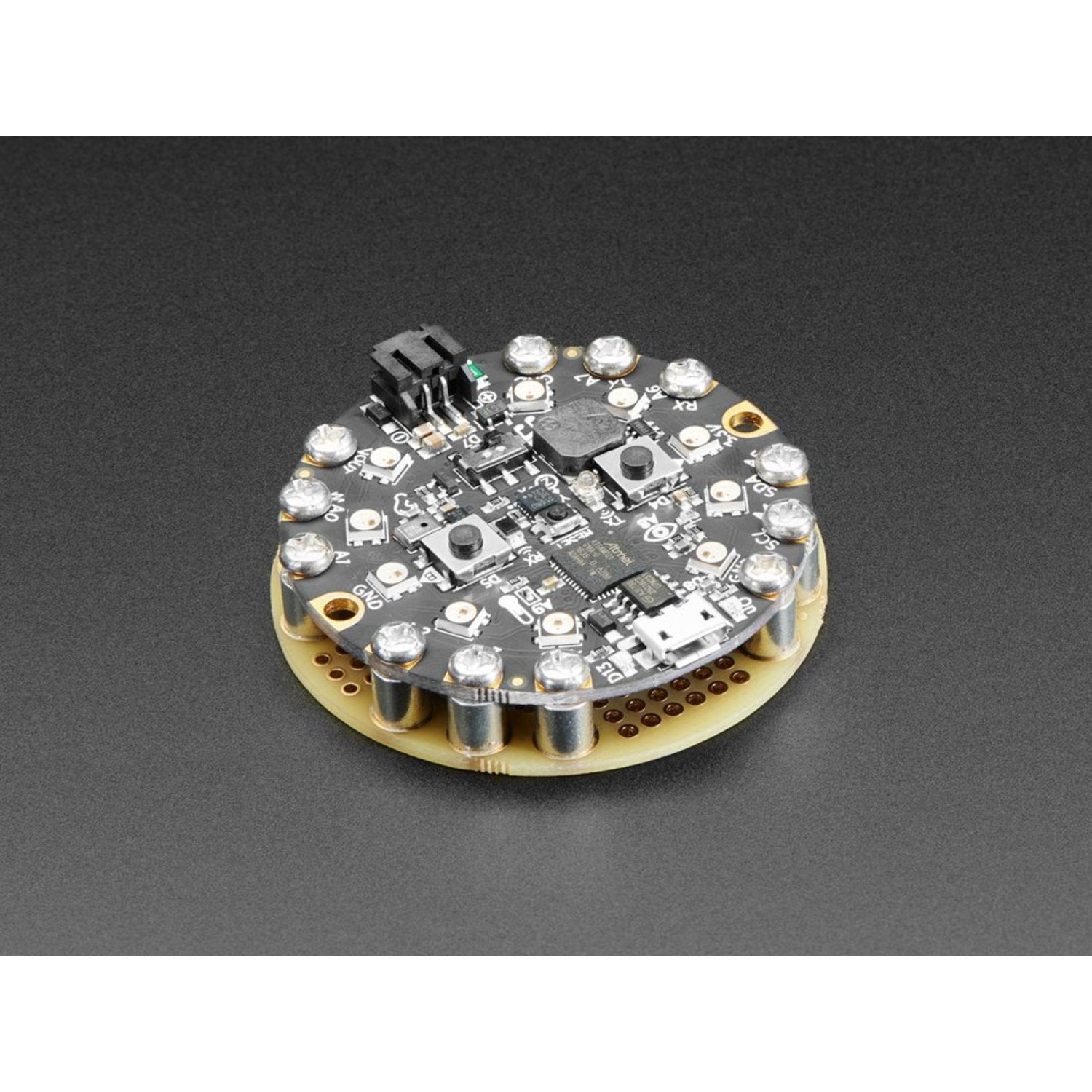

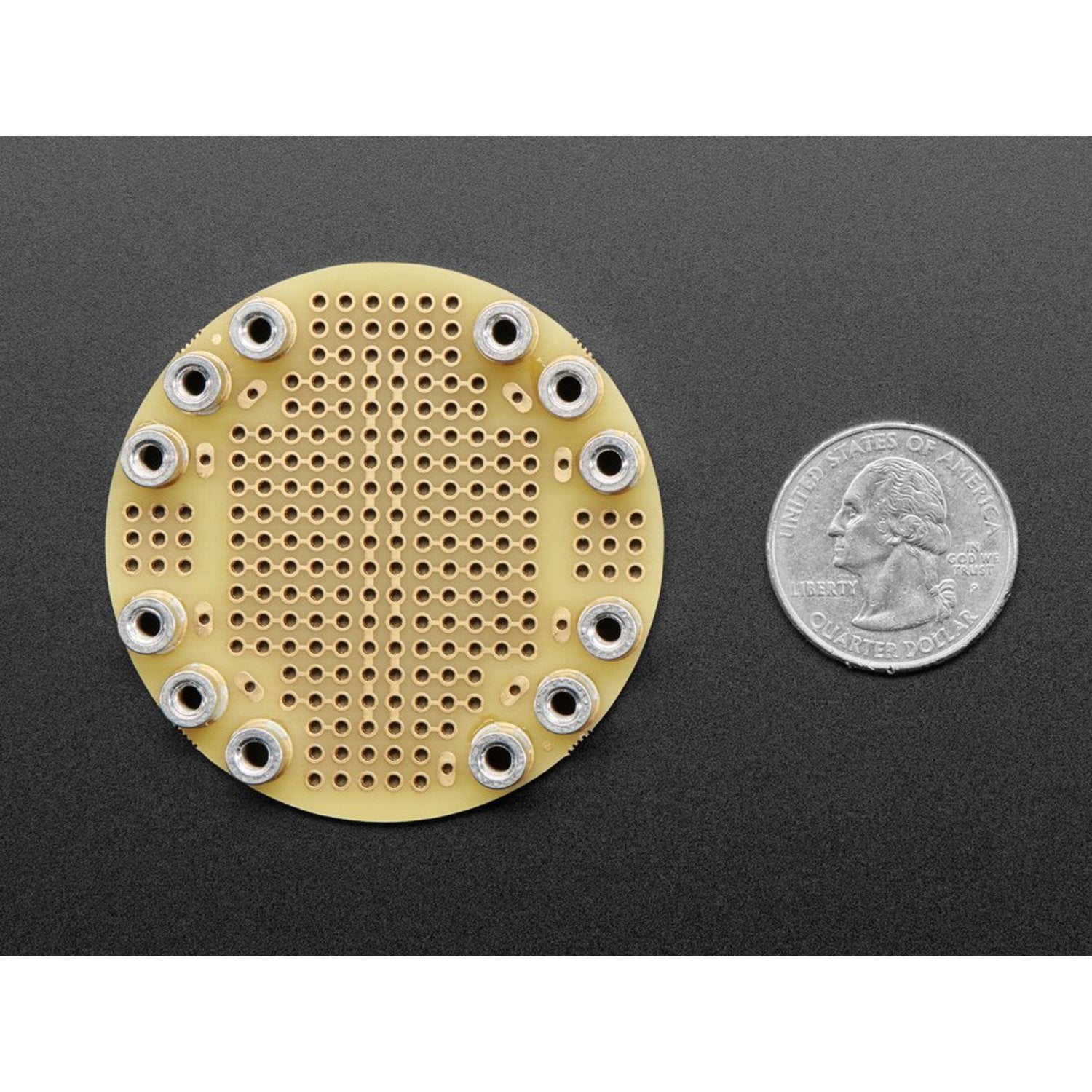

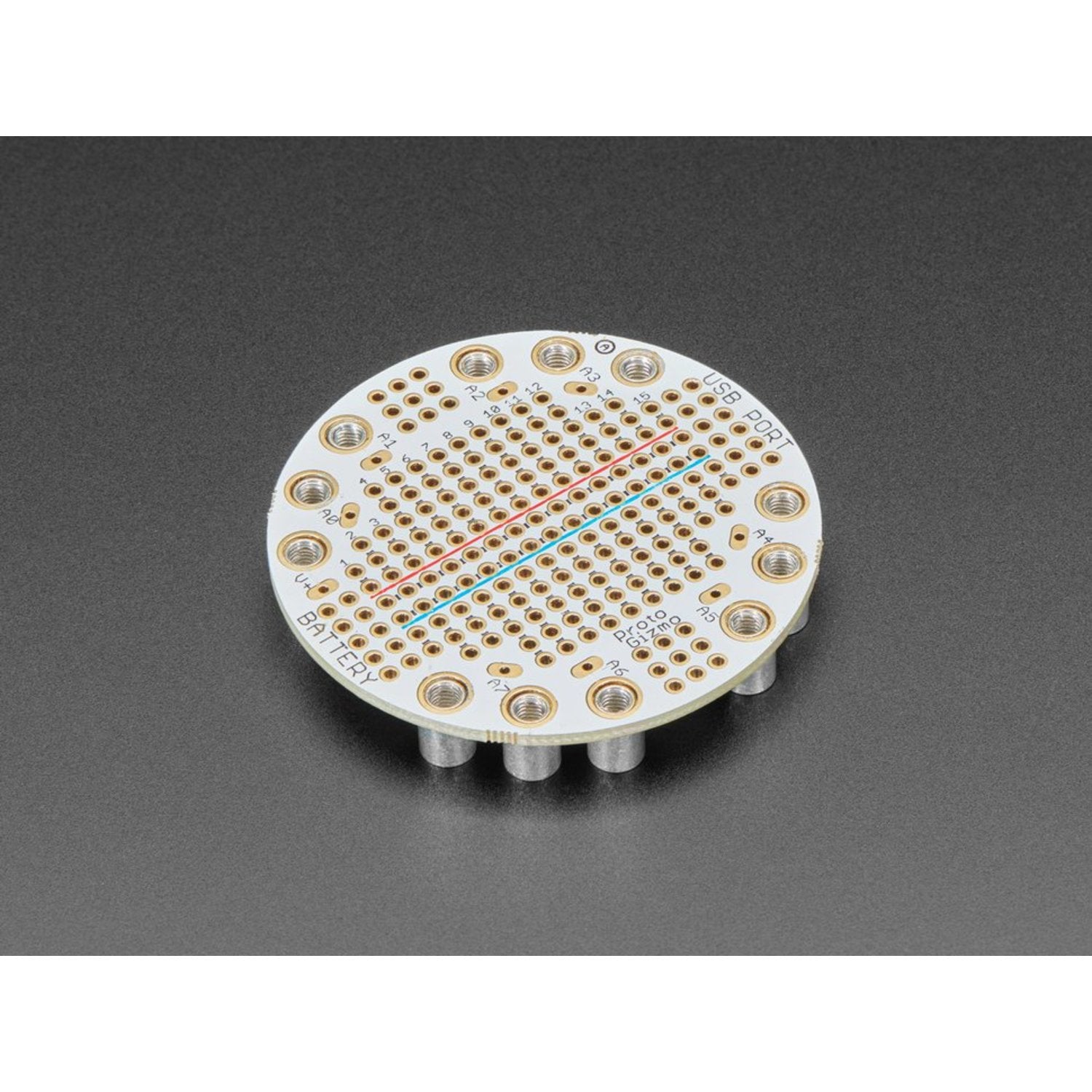

Enhance and expand your Circuit Playground projects effortlessly with our bolt-on Perma-Proto board. It allows you to connect solderable circuits in a strong and dependable way. This PCB resembles a solderless breadboard but comes with permanently attached M3 standoffs that serve as both mechanical and electrical connections. Simply solder to the gold-plated traces to craft your unique invention! Each pad on the Circuit Playground has a large oval pad for easy connection. In the center, there's a blue-marked Ground rail and a red-marked 3.3V rail. The center also has side-connected groups marked in black on top. Once you're finished, you can screw the gizmo on and off as often as you like. The package includes a PCB with pre-soldered standoffs and 12x M3 screws for attachment. It fits both Classic and Express Circuit Playgrounds, and the oval pad markings match the CPX pad naming.

Using this Circuit Playground Prototype Gadget is a breeze. First, take the PCB with pre - soldered standoffs and attach it to your Circuit Playground using the 12 M3 screws provided. You can connect your circuits by soldering to the gold - plated traces. Make sure to connect to the large oval pads on each part of the PCB. The blue - marked Ground rail and red - marked 3.3V rail in the center are important for proper circuit operation. As for the side - connected groups marked in black on top, they also play a key role in your circuit. After you've created your custom invention, you can easily screw the gizmo on and off whenever you need to. When it comes to maintenance, keep the PCB clean and dry. Avoid getting it wet as it may damage the electrical connections. If you're not using it for a long time, store it in a cool, dry place. And always be careful when soldering to prevent any accidental burns or damage to the PCB.
