BUS Module

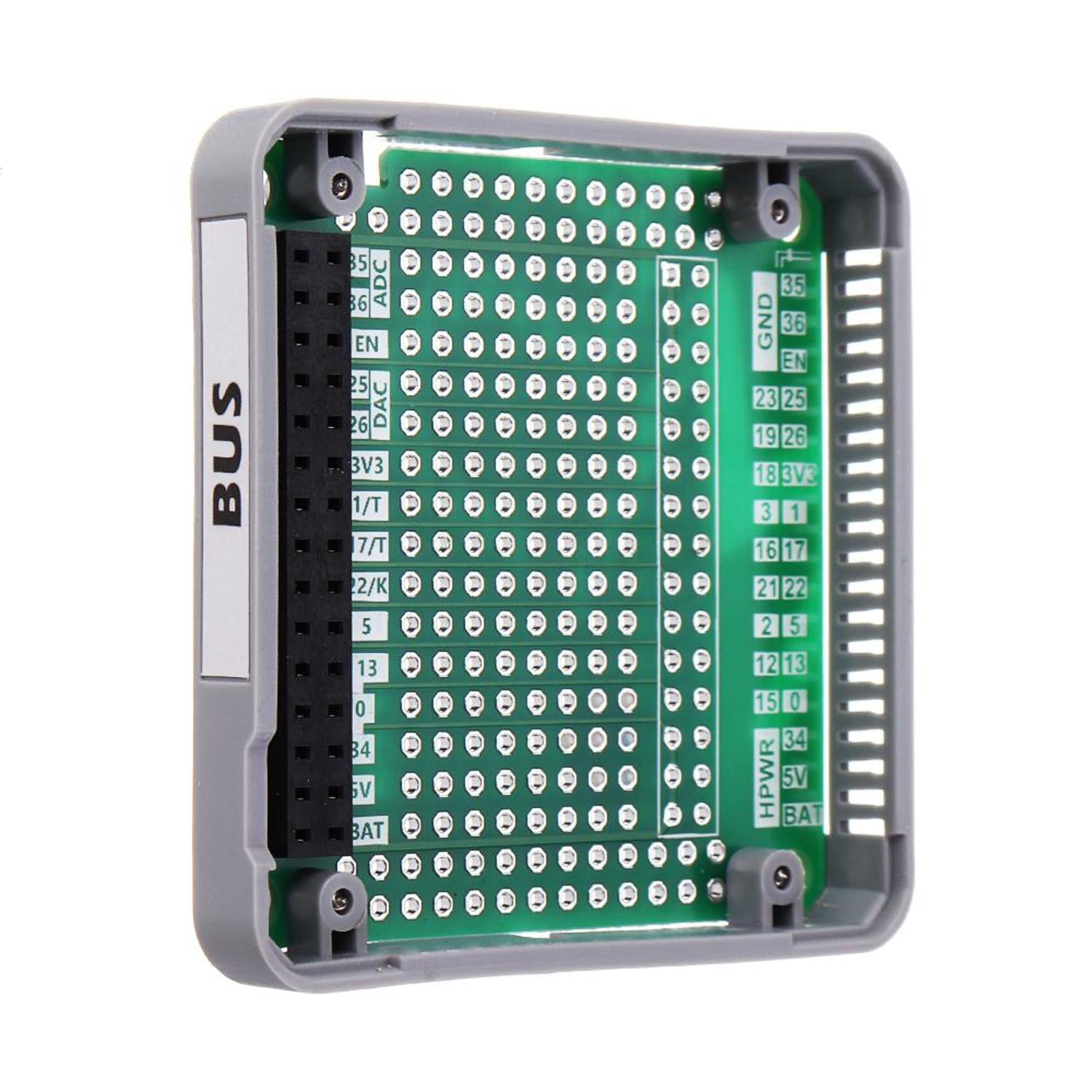

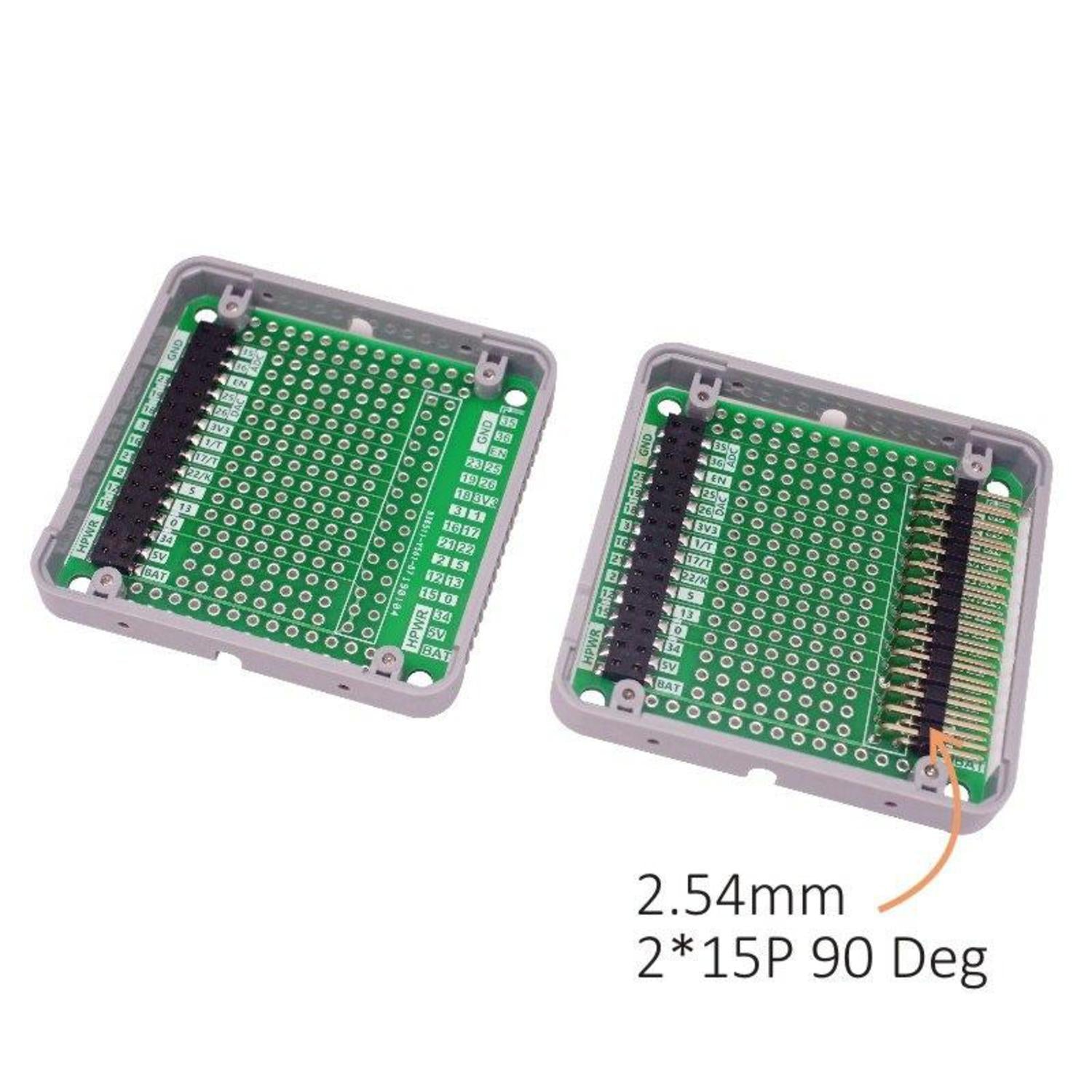

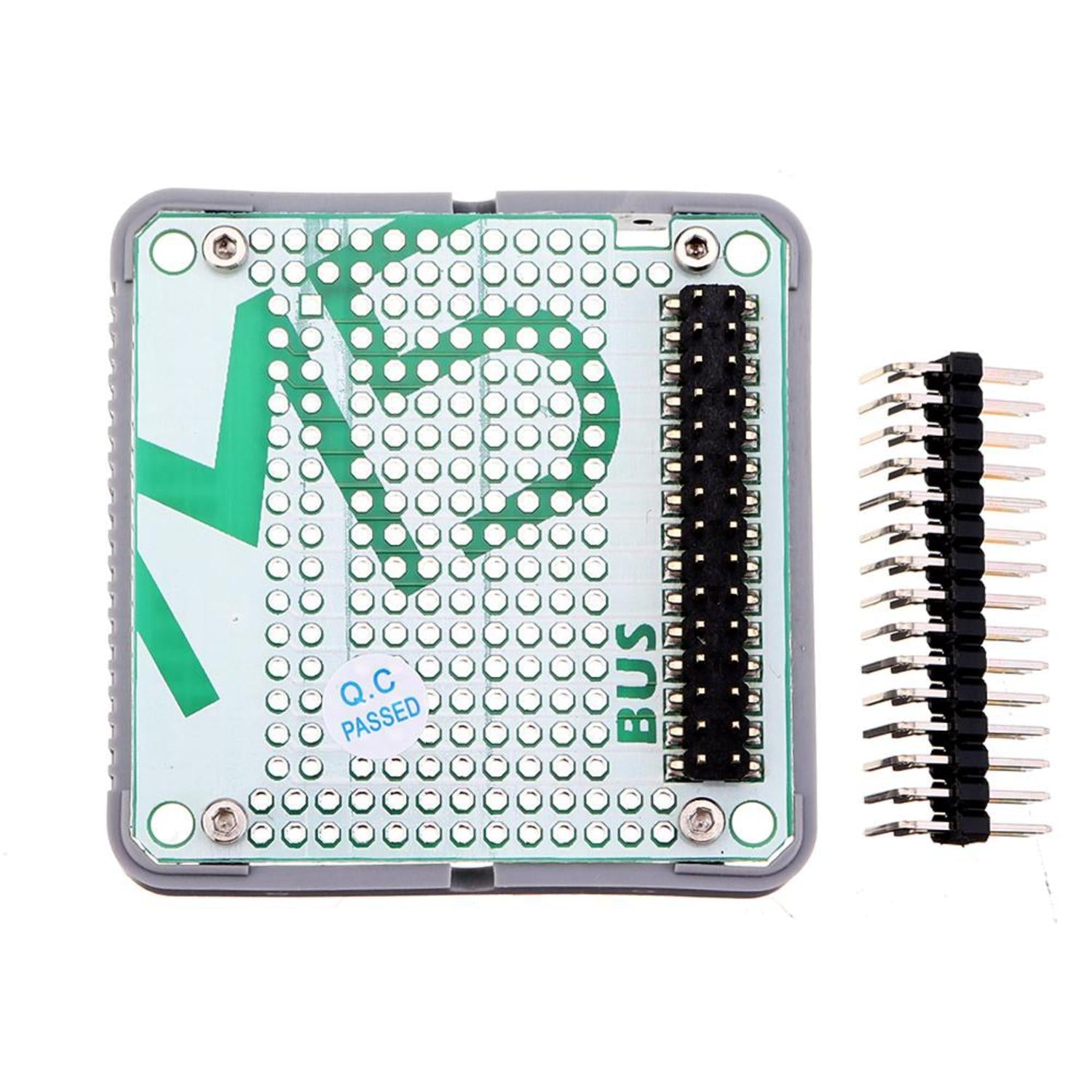

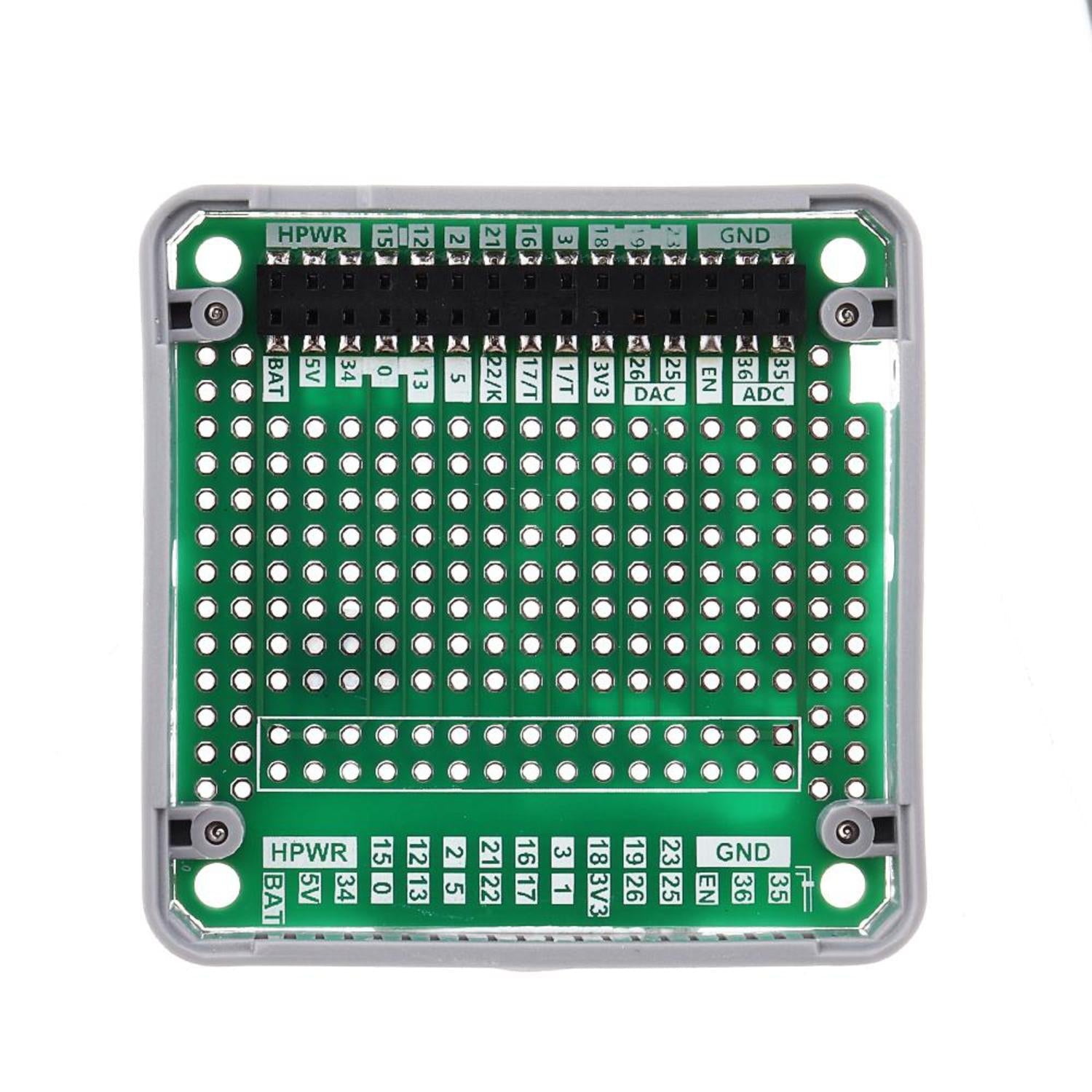

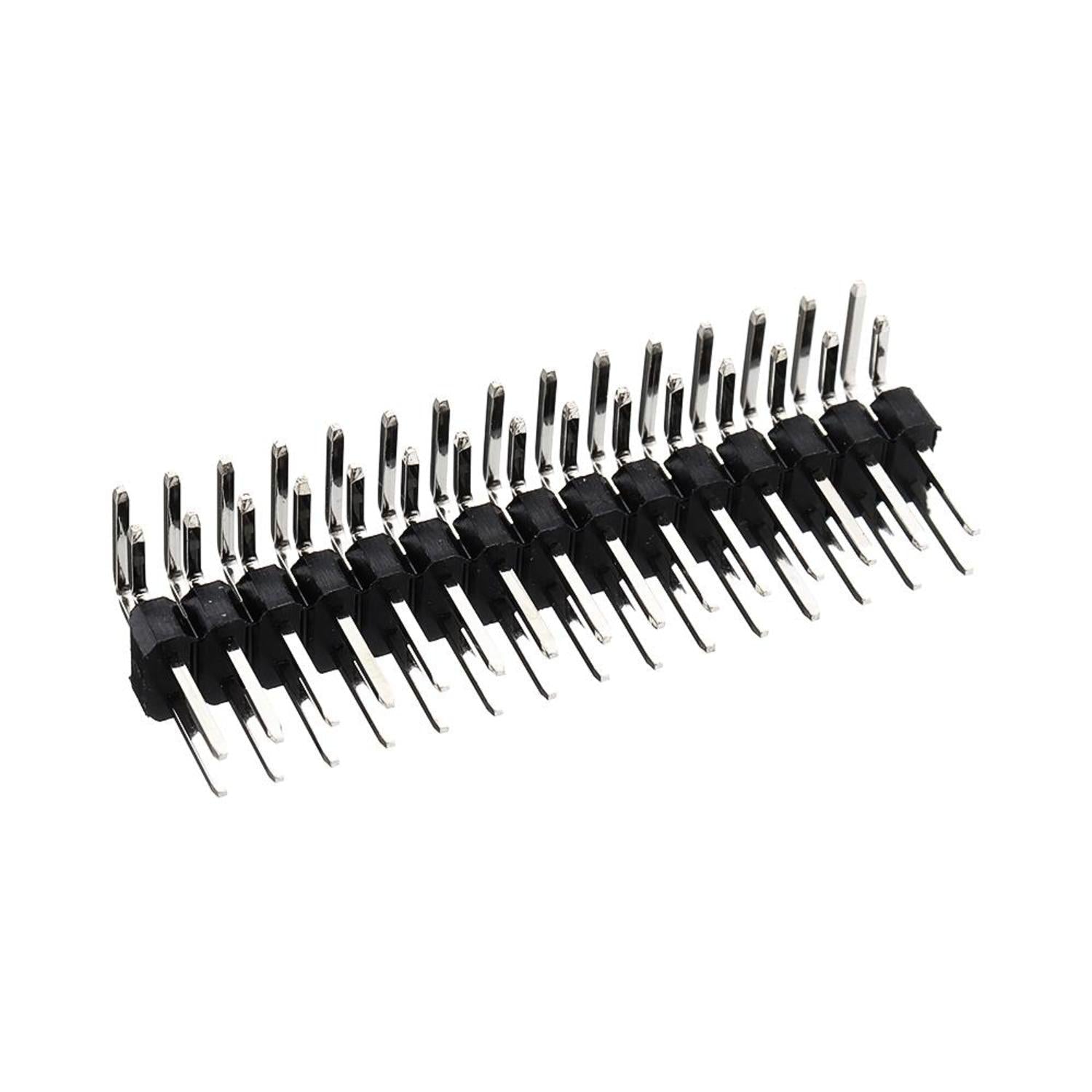

This BUS Module lets you add your custom circuit design to the Universal prototype perboard and communicate with the M5 core via M-BUS. Similar to other M5 modules, it can connect with other layers through M-BUS. We've extended the M_BUS pins to the other side of the board. You may need to cut the side fence to use dupont pins. The package includes a 2*15 90-degree pin set. Product features: Hole Size is 0.039' (1mm, CNC Drilled), Hole Pitch is 0.1 in (2.54 mm), and there are 200 holes in total. The kit contains 1x M5Stack BUS Module.

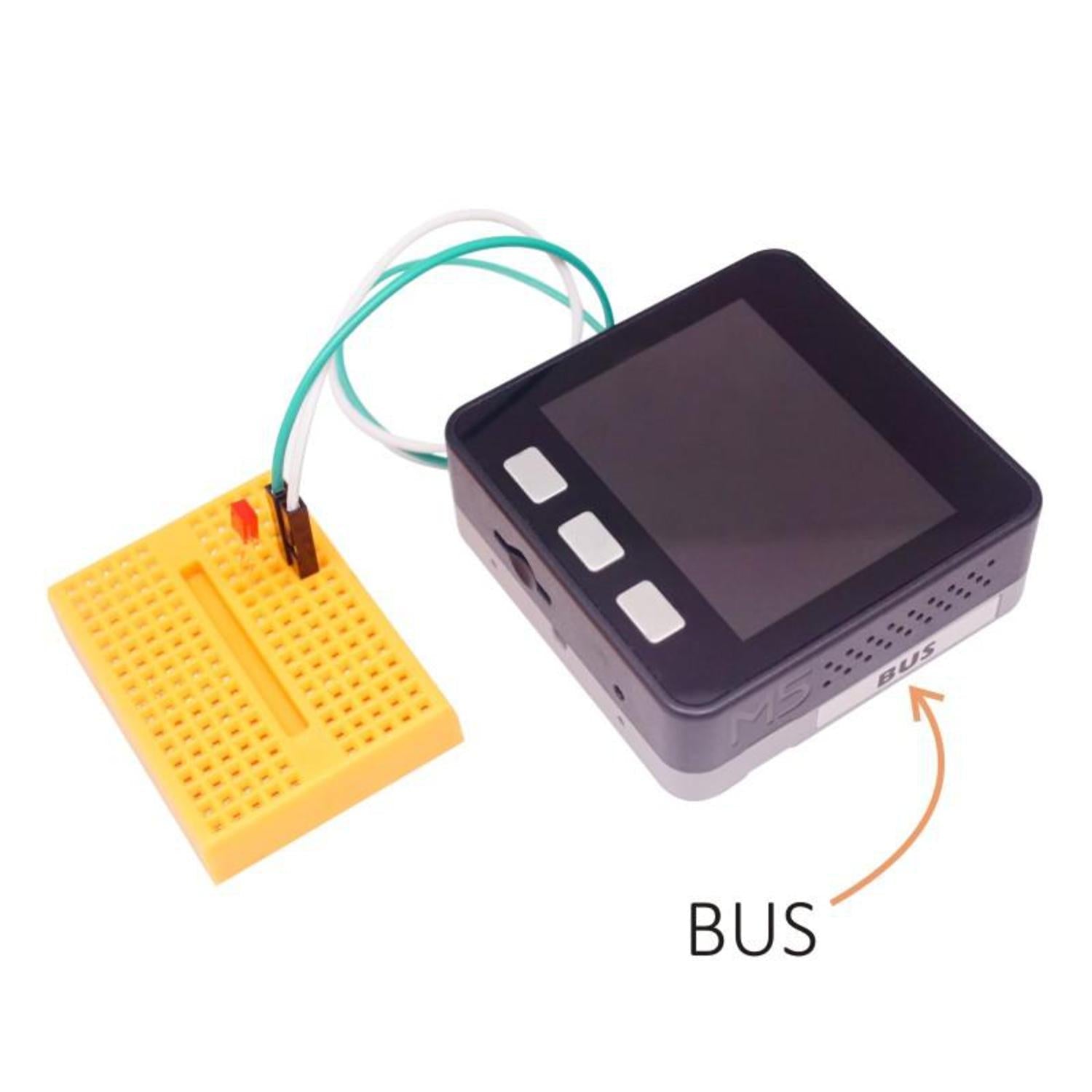

Using the BUS Module is easy. First, add your own circuit design to the Universal prototype perboard. Then, connect it to the M5 core via M-BUS to start interacting. When you want to use dupont pins, you'll need to cut off the fence on the side of the board. Be careful when doing this to avoid any damage. As for maintenance, keep the module in a dry and clean place. If it gets dirty, you can use a soft, dry cloth to gently wipe it. That's all you need to know to make the most of your BUS Module.
