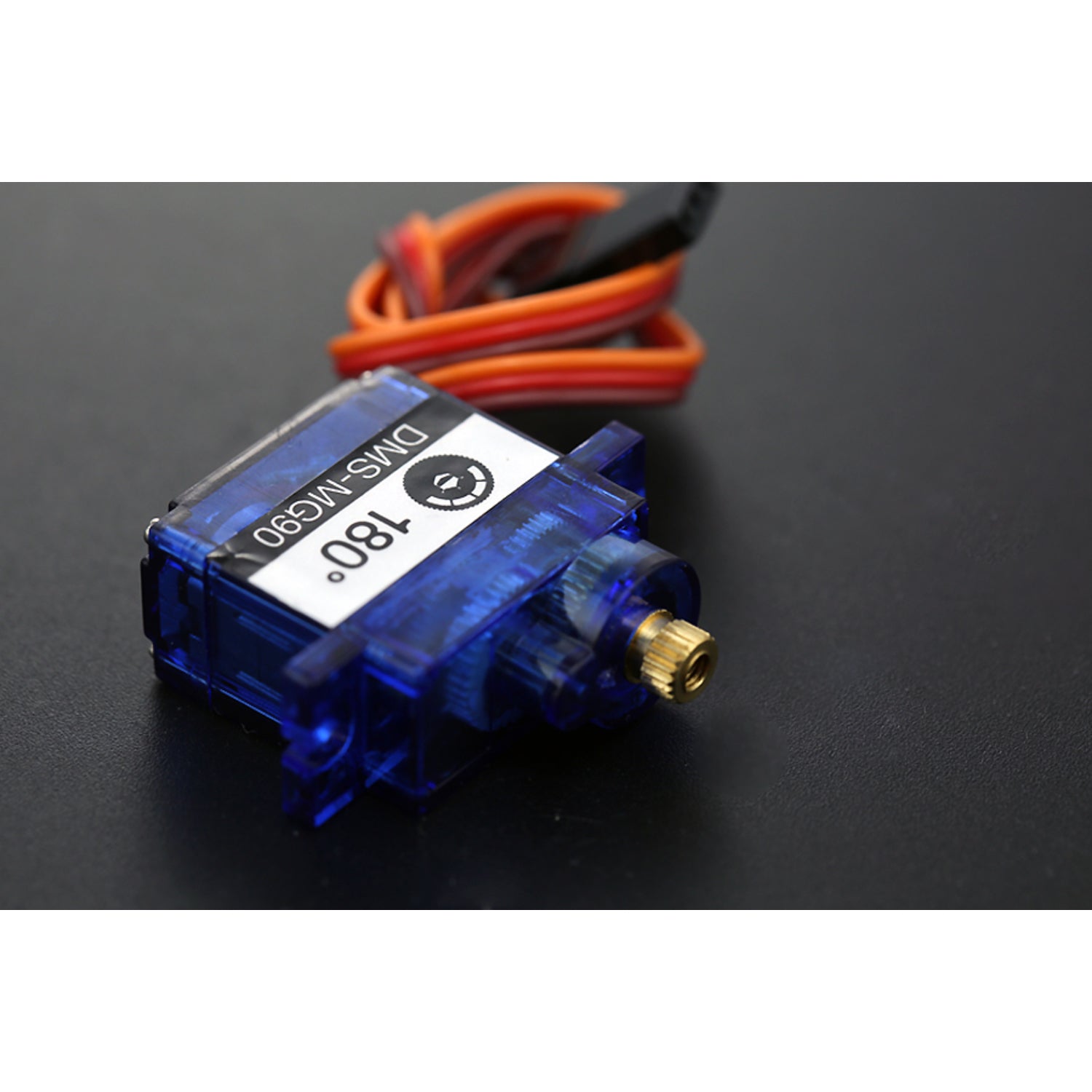

9g Metal Gear Micro Servo (1.8Kg )

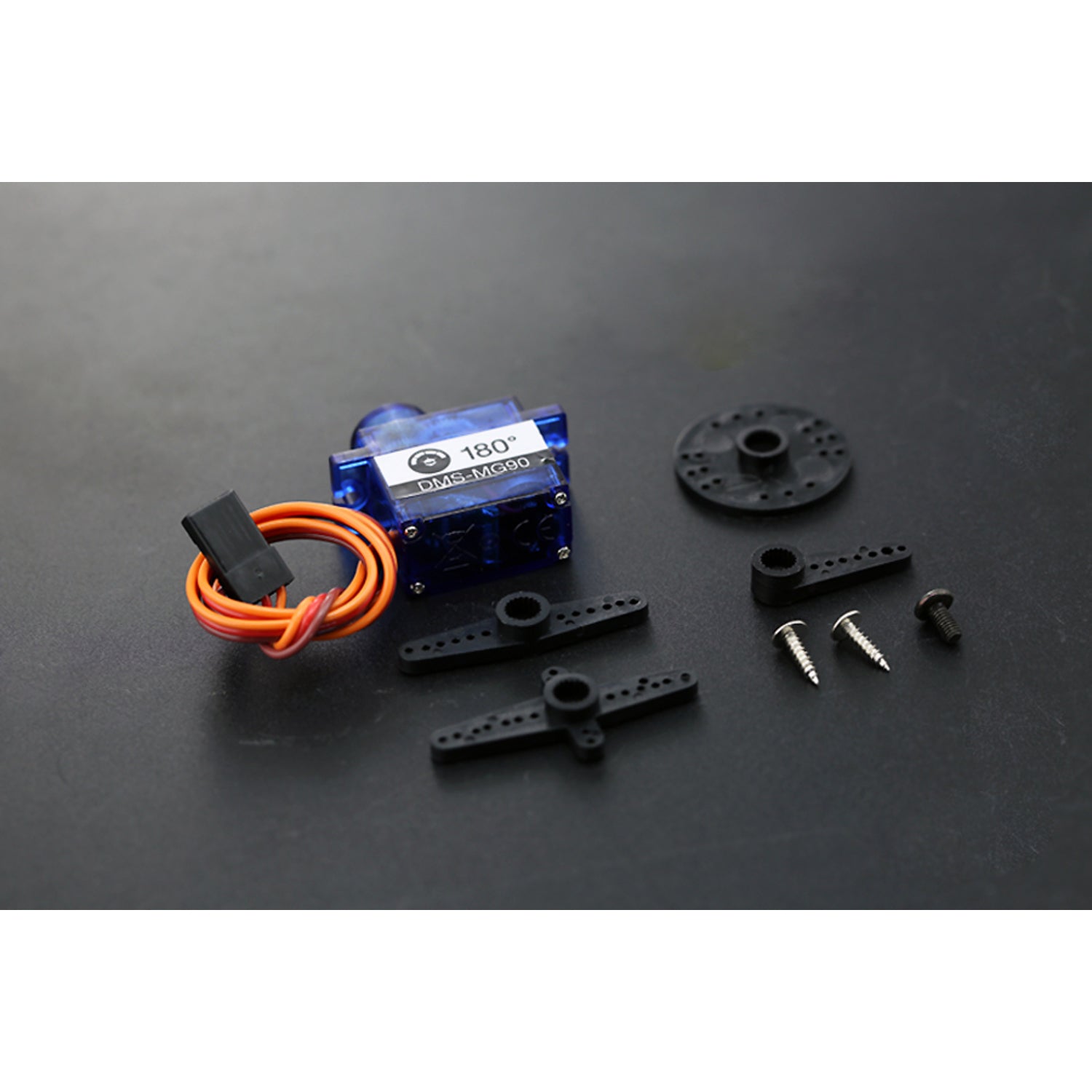

Are you working on a small project and in need of a servo? Or looking for an affordable option? This mini metal servo is truly remarkable. It can handle a wide variety of tasks. Equipped with a metal gear, it offers a 1.8kg*cm torque, which is quite strong considering its small size. It's perfect for Beam robots and other automation tasks. If you need to lift heavy loads, you might want to check out our other servos. But if you're planning to build smaller robots, this servo is ideal for you. Why choose metal? Metal gear servos generally last longer than plastic ones, especially in robotic applications where the servo moves most of the time. They offer much better and more solid performance. Specification: Operating Voltage: 4.8 - 6V; Limit angle: 180° ± 10°; Reduction ratio: 320:1; No load speed: 0.12 seconds / 60 degrees (4.8V); Stall torque: 1.8 kg / cm (4.8V); Stall current: 300mA (4.8V); Operating temperature: -10 to +50 degrees Celsius; Cable length: 180mm(7'); Size: 22.3*11.8*26.3 mm(0.88*0.46*1.04'); Weight: 12 grams. Documents: Dimension Diagram. Shipping List: DMS - MG90 micro servo x1.

Using this micro servo is easy. First, make sure the operating voltage is within the range of 4.8 to 6V. Connect it properly to your project, and it can start working. When using it, keep in mind that it's mainly for small - sized robots and light - duty automation tasks. If you try to use it for heavy - lifting jobs, it might not perform well. As for maintenance, try to keep it in an environment with a temperature between - 10 and +50 degrees Celsius. If it gets dirty, gently clean it with a soft cloth. And always check the cable to make sure it's not damaged. With proper use and maintenance, this servo will serve you well for a long time.
