7-Segment Display - 4-Digit (White)

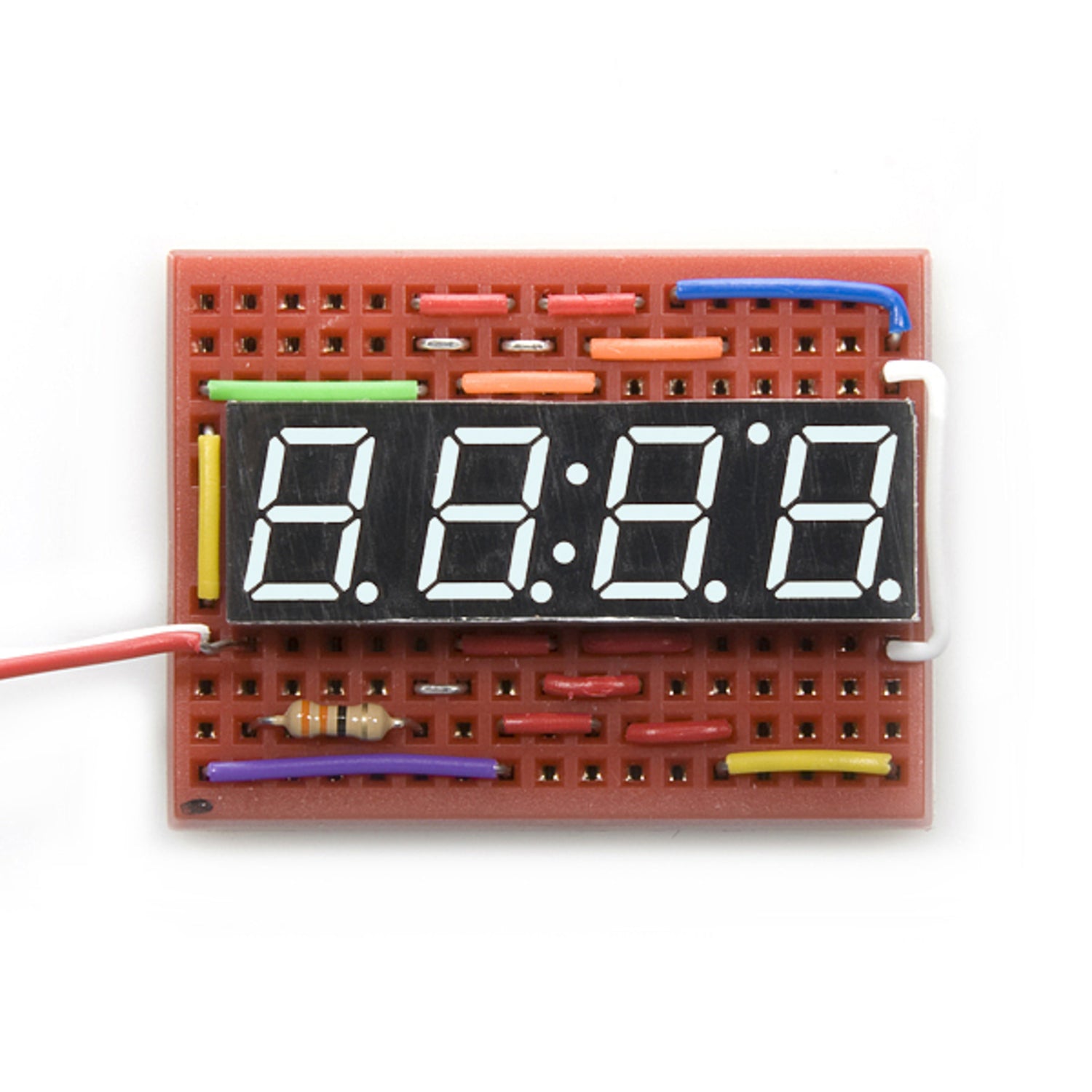

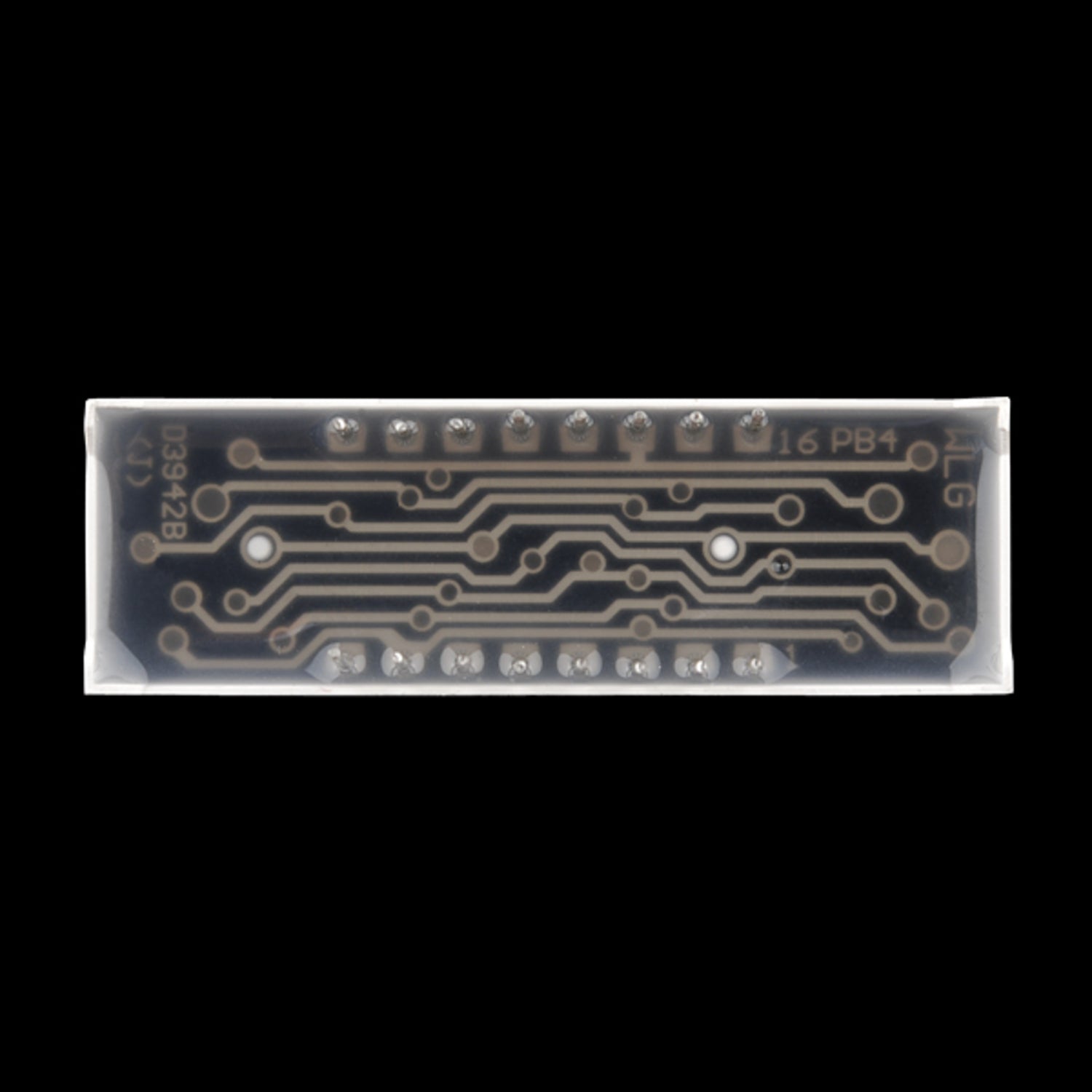

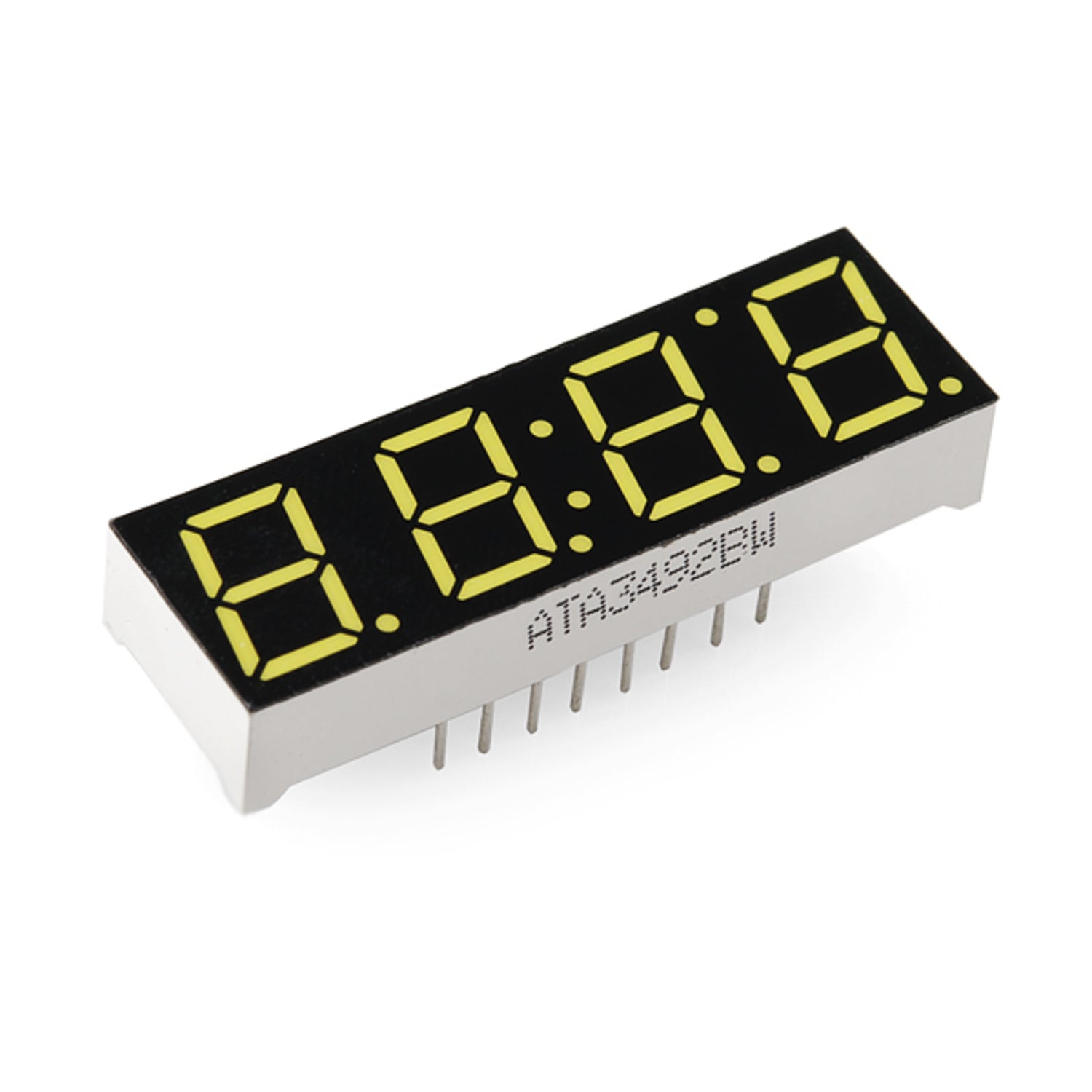

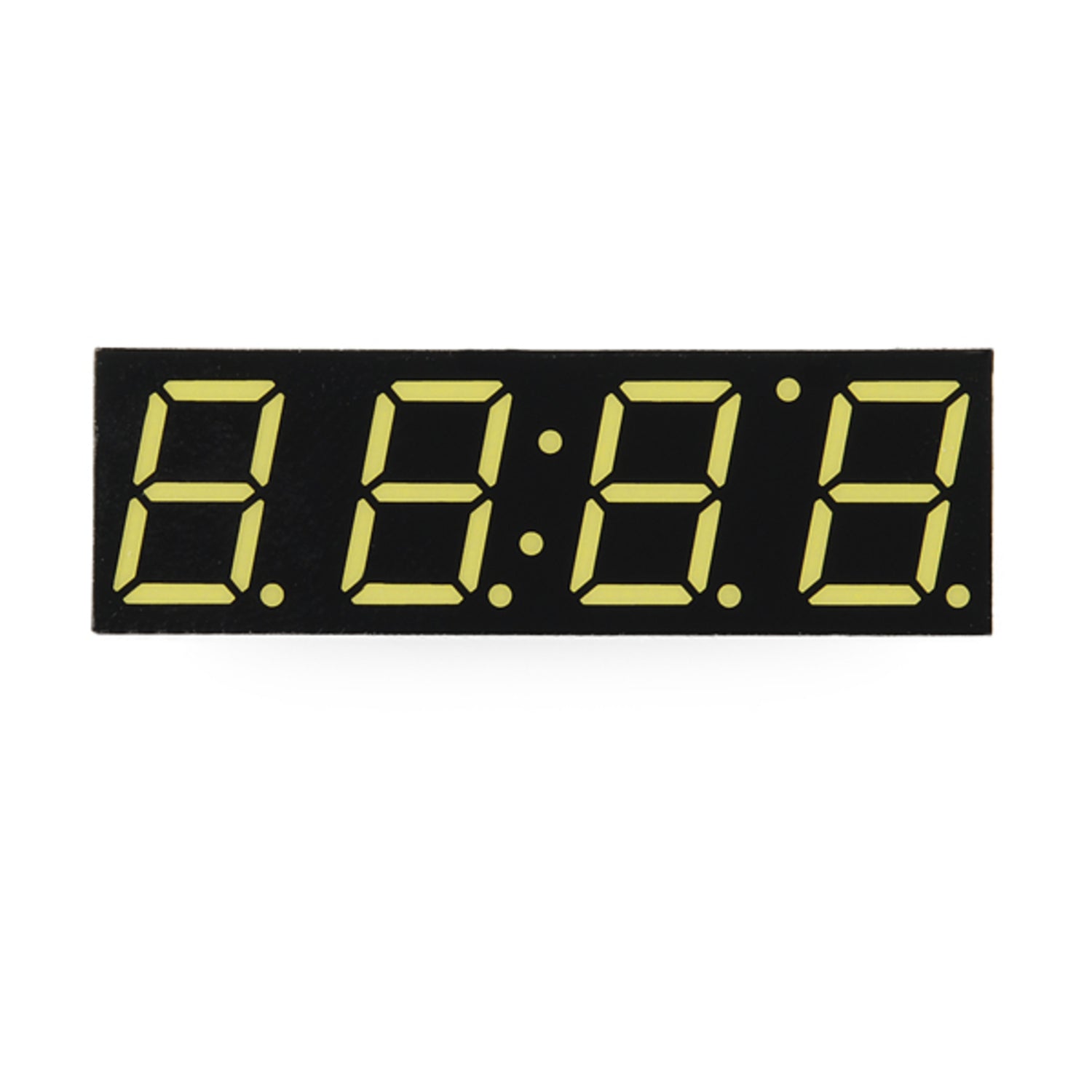

This is a basic 4-digit 7-segment display in white color with a common anode. Each digit has a decimal point, and there are individually controllable apostrophe and colon points. The LEDs have a forward voltage of 1.9VDC and a maximum forward current of 20mA. The hardware interface consists of sixteen through-hole pins in two rows of eight. The datasheet mentions 'blue' because the white display is a blue one with a colored film. We also offer this display in yellow, green, red, and blue. Overall display dimensions are 40.18 x 12.8 mm (1.58 x 0.50'), and the digit height is 10mm (0.39'). Documents include the datasheet and display example code.

Using this 4 - digit white 7 - segment display is easy. First, connect it to your circuit through the sixteen through - hole pins. Make sure the forward voltage doesn't exceed 1.9VDC and the current stays below 20mA to avoid damaging the LEDs. You can control each digit's decimal point, as well as the apostrophe and colon points individually. When handling the display, be gentle as it's a delicate device. For maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or humidity. If you need more information, refer to the datasheet. And if you want to see how it works in a real - world scenario, check out the display example code.
