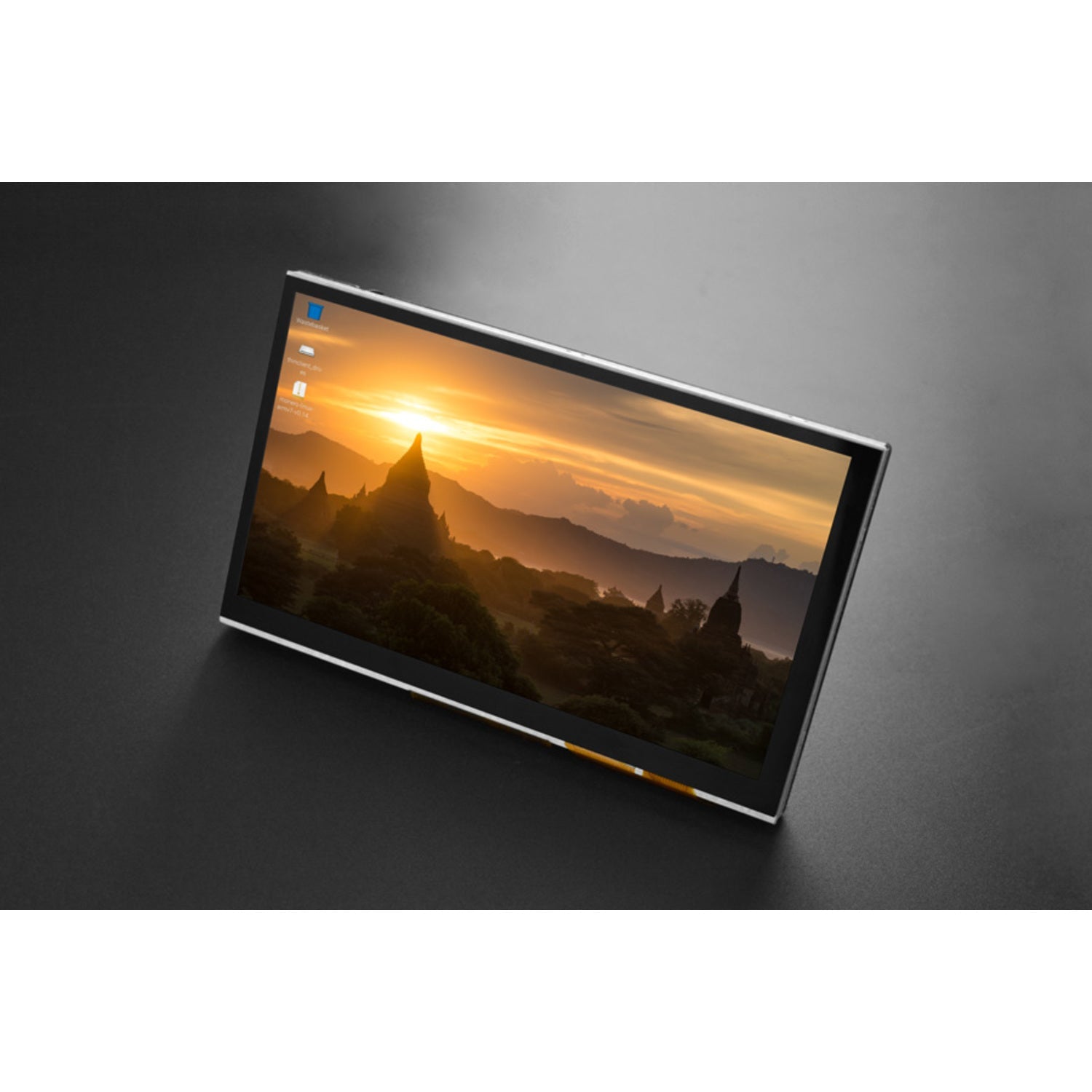

This 7-inch LCD touchscreen for Raspberry Pi offers an 800*480 resolution and a 154.8 x 85.92mm display area. It supports the Raspberry Pi DSI display interface and comes with a capacitive touch panel that allows 5 touch points. The back of the screen has a special holes design for easy direct installation of the Raspberry Pi. It uses the Raspberry Pi power supply, so no external power is needed. Also, it supports hardware backlight adjustment via the potentiometer on the back. Note that it's not compatible with Raspberry Pi Pico and Raspberry Pi 400 Personal Computer. Features include a capacitive touchscreen with 5-touch support and direct Raspberry DSI driver. Specification details: Operating Voltage is 3.3V from the Raspberry Pi Display Interface, Maximum Operating Current is 450mA, Resolution is 800*480, Video Interface is Raspberry Pi DSI, 5 touch points, Viewing Angle is 60°/70°/70°/70°, RGB888-16 Mega True Color, Refresh Frequency is 60Hz, Luminous Efficiency is 280 cd/m2, Operating Temperature ranges from -20℃ to 70℃, Dimension is 165mm×100mm (6.50' × 3.94'), Mounting Hole Size is M2.5, Outer Mounting Hole Position is 155mm × 80mm (6.10' × 3.15'), Inner Mounting Hole Position is 58mm x 49mm (2.28' x 1.93'). Shipping list includes one 7' 800x480 TFT Raspberry Pi DSI Capacitive Touchscreen (V1.0), eight M2.5*8+6 Hexagonal Copper Column Single-Head, eight M2.5*6 DK4.9 Machine Screws, one 150mm FPC Reverse Direction Cable, and one 50mm FPC Reverse Direction Cable.

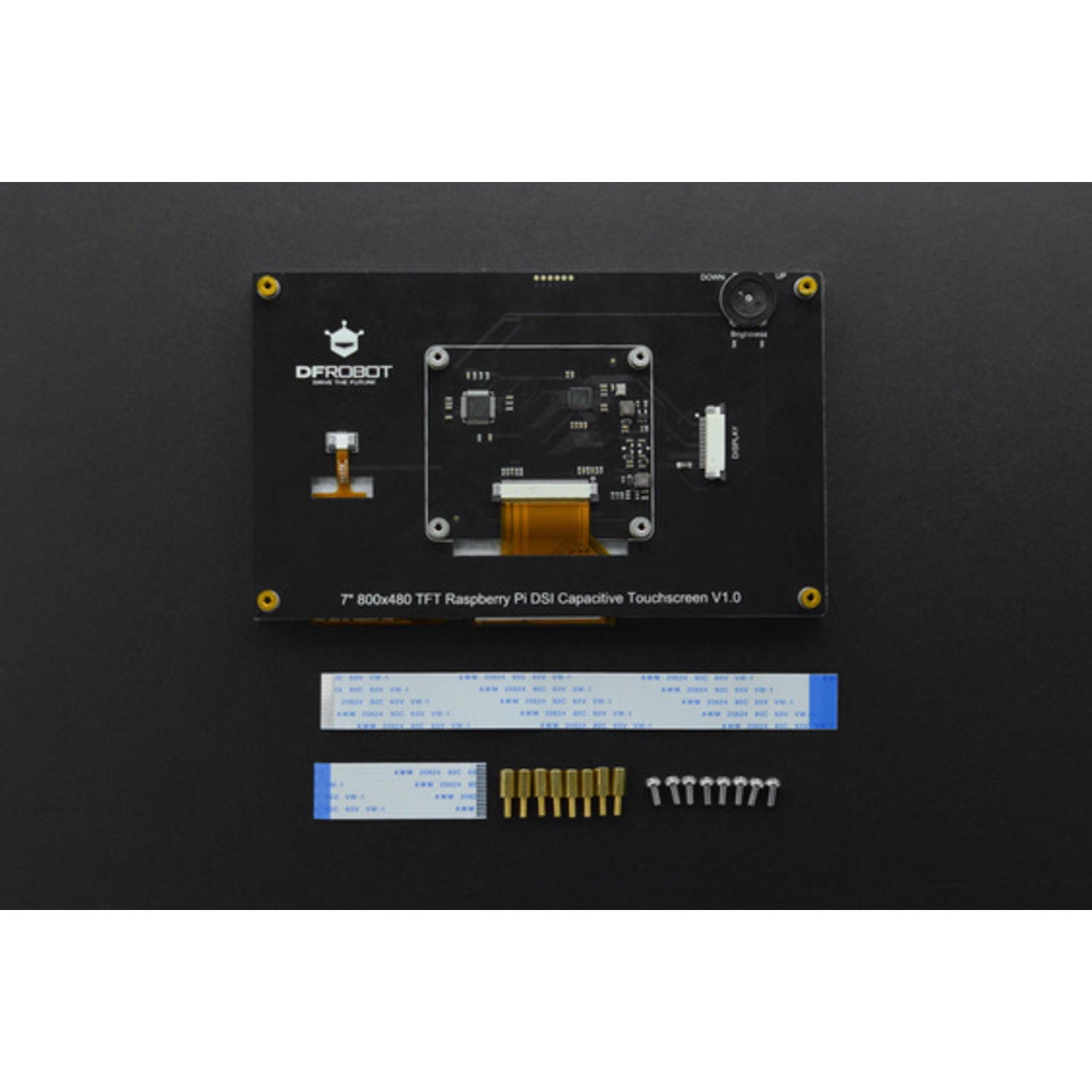

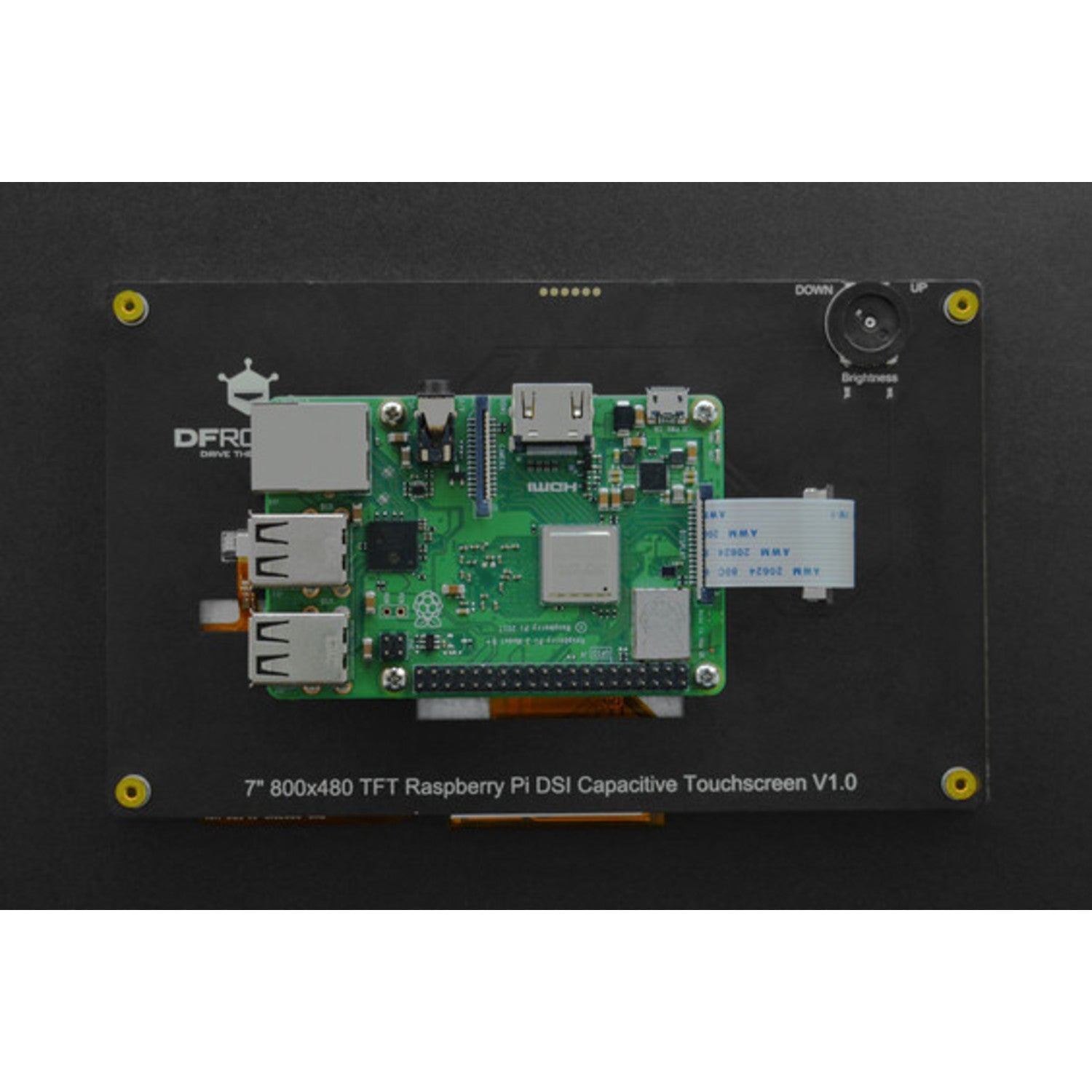

Using this touchscreen is easy. First, make sure your Raspberry Pi is not one of the incompatible models (Raspberry Pi Pico and Raspberry Pi 400 Personal Computer). Then, use the M2.5 screws and copper columns from the shipping list to install the Raspberry Pi on the back of the screen through the special holes. Connect the screen to your Raspberry Pi using the FPC reverse direction cables. The screen will get power from the Raspberry Pi, so no extra power supply is needed. To adjust the backlight, turn the potentiometer on the back of the display. When using the touchscreen, you can touch up to 5 points at once. For maintenance, keep the screen clean with a soft, dry cloth. Don't use abrasive materials or harsh chemicals. Store the screen in a dry place within the operating temperature range of -20℃ to 70℃ to keep it working well.
