64x32 Flexible RGB LED Matrix-4mm Pitch

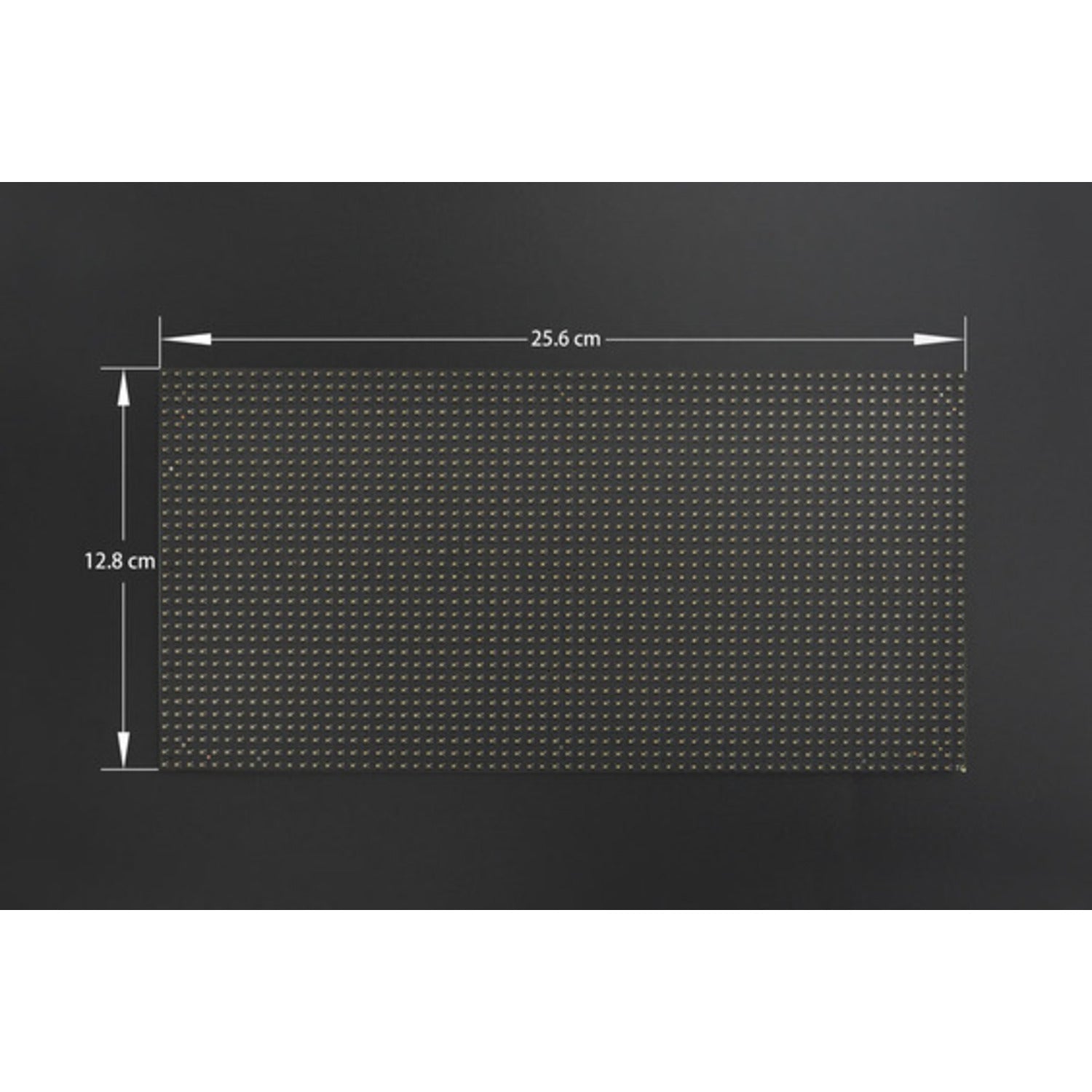

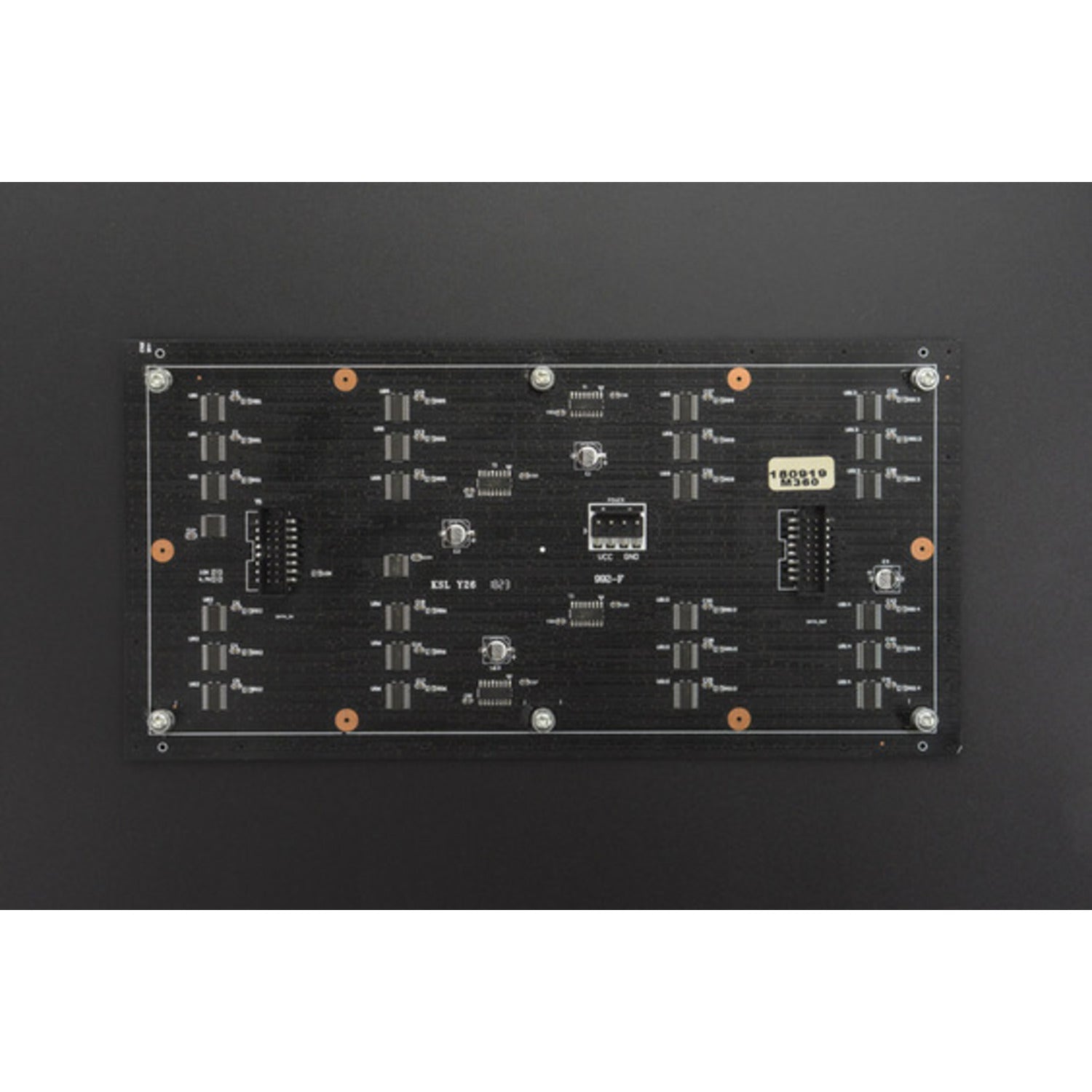

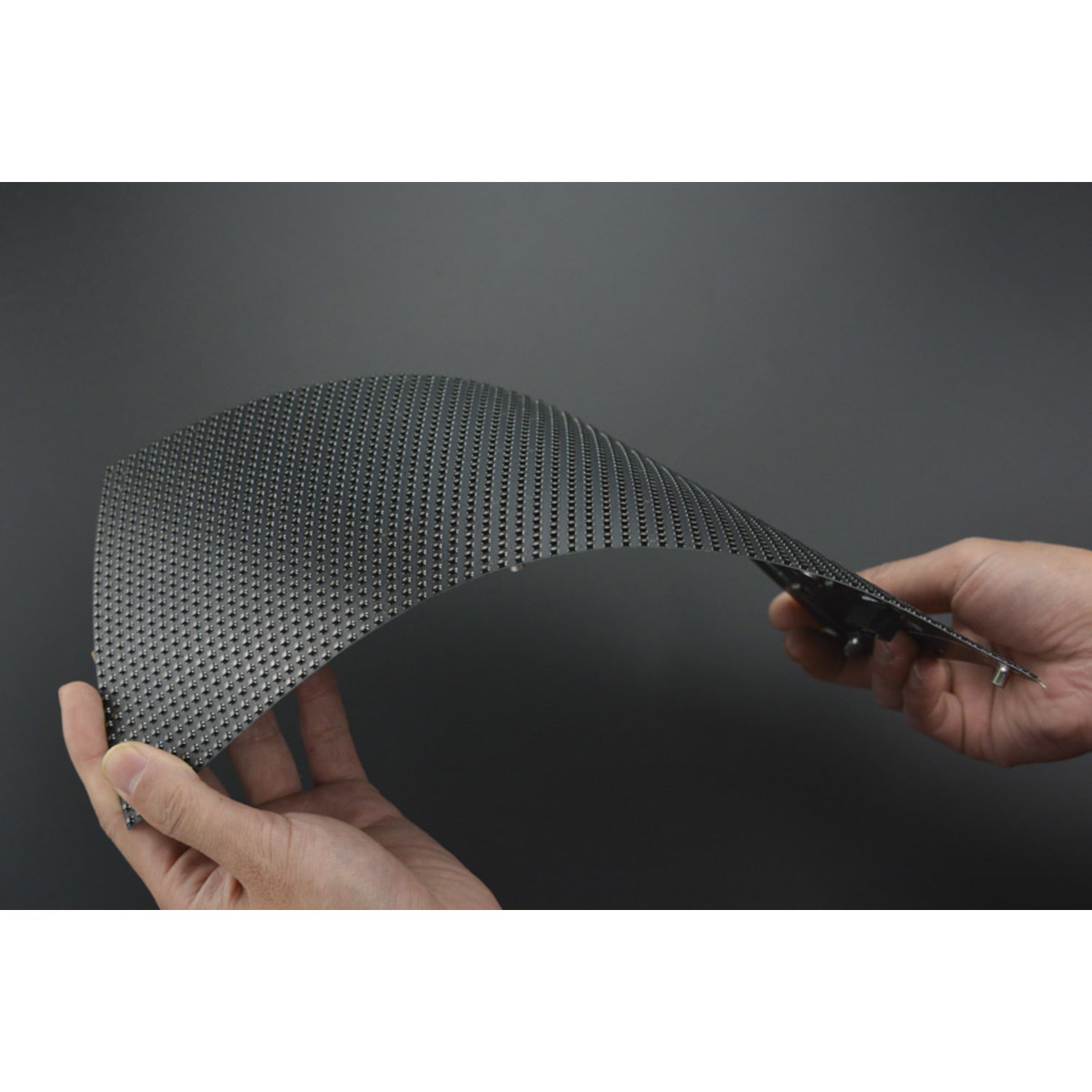

If you've tested our 64×64 or 64×32 RGB LED Matrix Panels but had to abandon some ideas due to thickness and weight limitations, this 64×32 flexible RGB LED Matrix is a great alternative. Measuring 256×128mm and being flexible, it can fulfill almost all your requirements. Don't bend the product over 30° or bend it repeatedly to avoid damage. Similar to regular matrix panels, this screen won't work with the Uno board. We suggest using high - speed microcontrollers with large RAM like Raspberry Pi or Mega 2560 to control the LEDs. The LED matrix has two IDC connectors (DATA_IN, DATA_OUT) on the back, allowing you to cascade multiple panels for a large - scale display. Always provide an external power supply during operation to ensure clear and complete screen display. **SPECIFICATION** - Pixel Pitch: 4mm - Operating Voltage: 5V - Maximum Power Consumption: 18W - Repetition Frequency: ≧60Hz - Refresh Frequency: ≧300Hz - Viewing Angle: ≧160° - Resolution: 64x32 = 2048 Dots - Optimal Visual Distance: 4 - 30M - Dimension: 256x128mm/10.08x5.04” **DOCUMENTS** - Product wiki

This 64x32 flexible RGB LED matrix is a great choice for your display needs. To use it, first, connect it to a suitable microcontroller like Raspberry Pi or Mega 2560, as it won't work with the Uno board. You can connect multiple panels together using the DATA_IN and DATA_OUT connectors on the back to create a large screen. Make sure to provide an external power supply, or the display might be unclear or incomplete. When handling the matrix, be careful not to bend it more than 30 degrees or bend it repeatedly, as this can cause damage. For the best viewing experience, view it from a distance of 4 to 30 meters. As for maintenance, keep it in a dry and clean environment. If there's dust on it, use a soft, dry cloth to gently wipe it. That's all you need to know to make the most of this awesome LED matrix!
