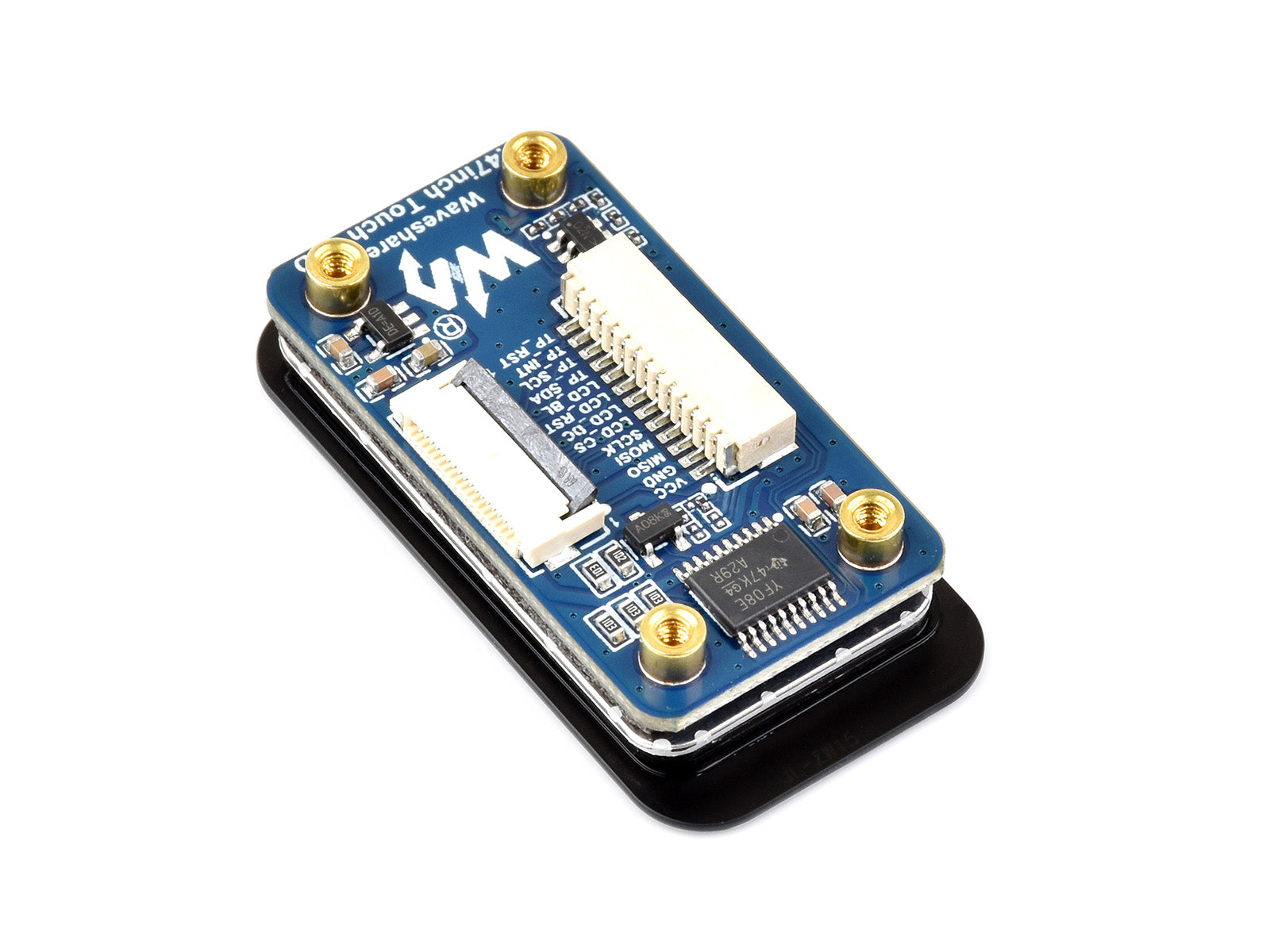

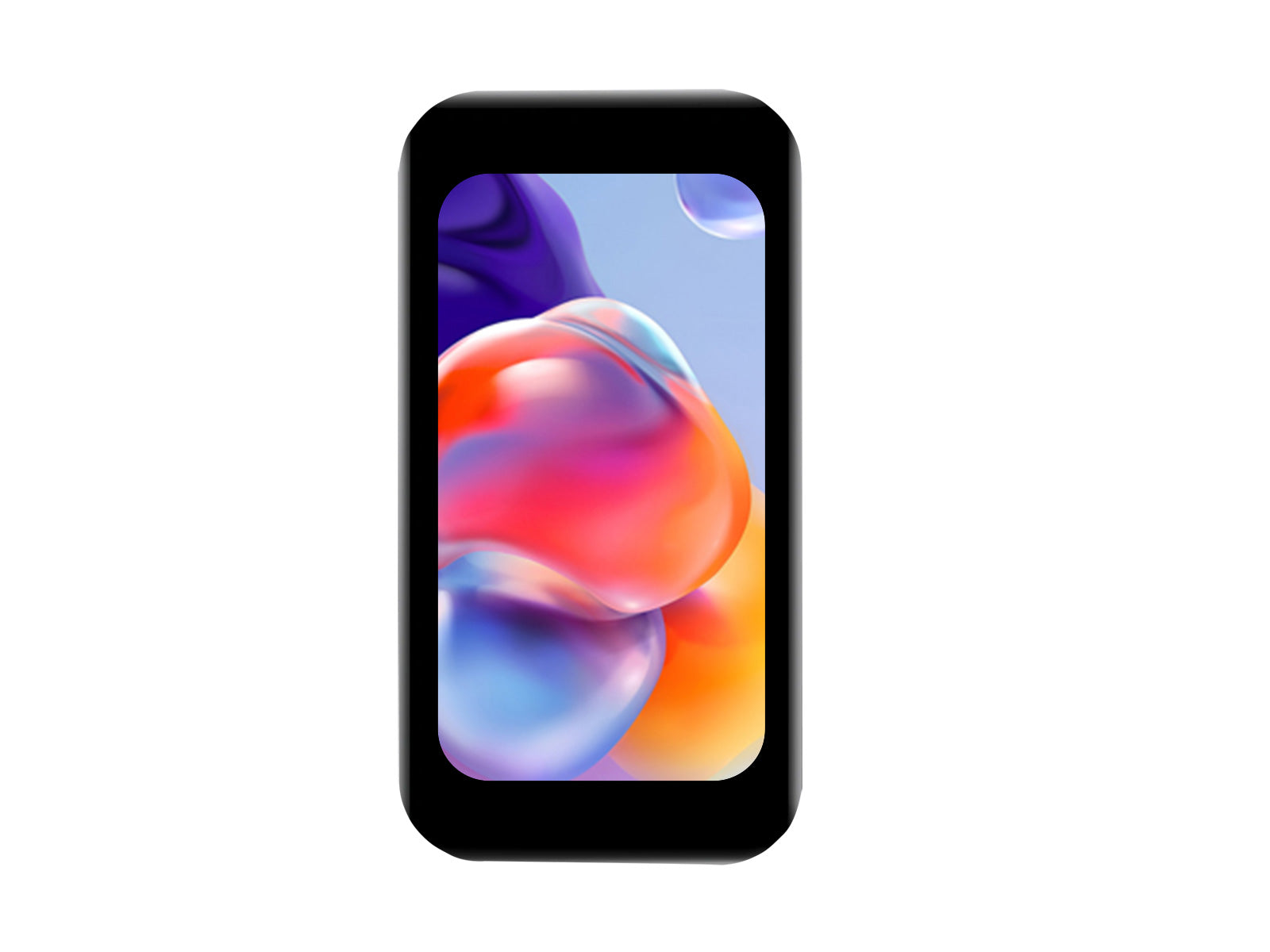

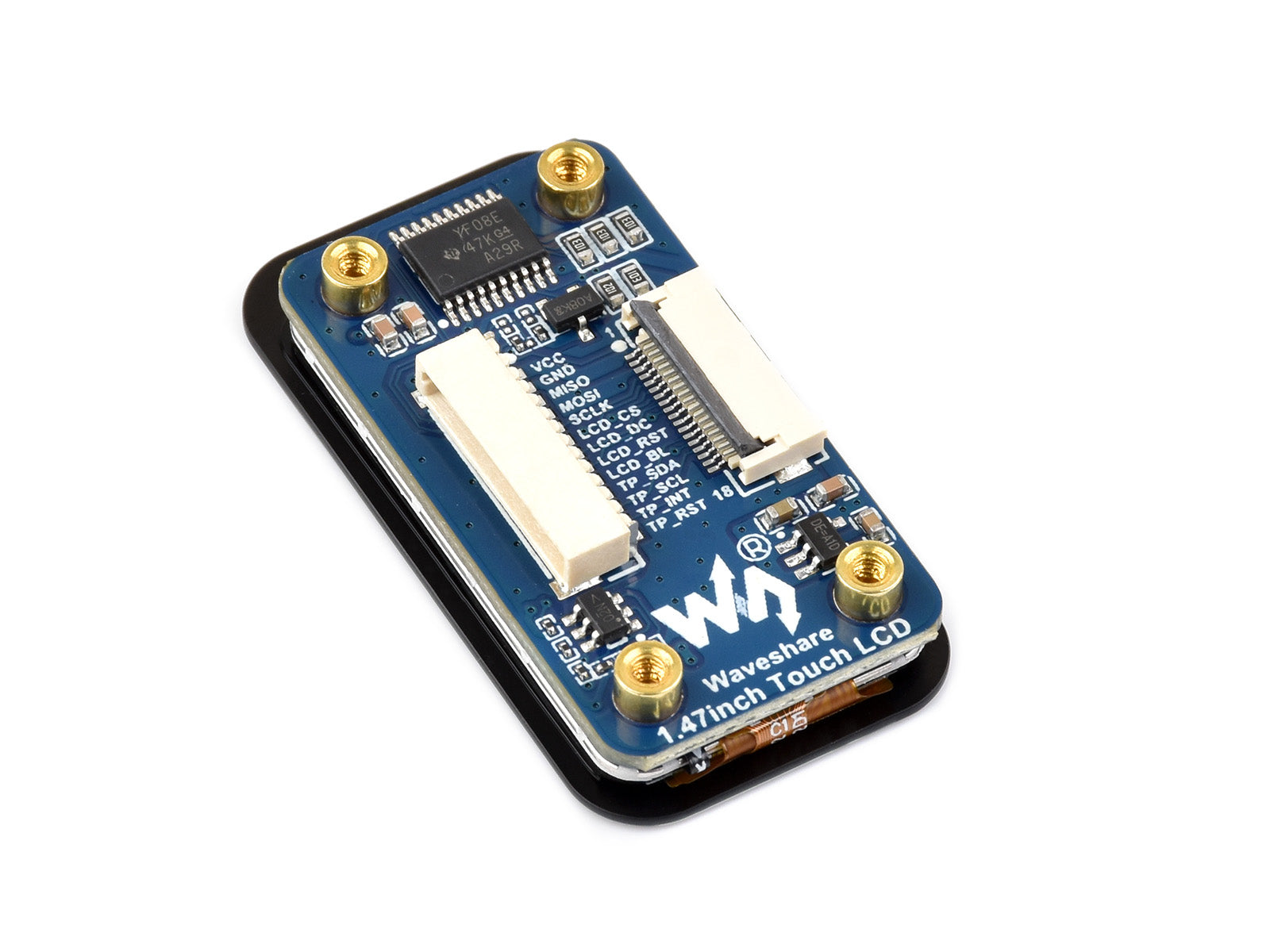

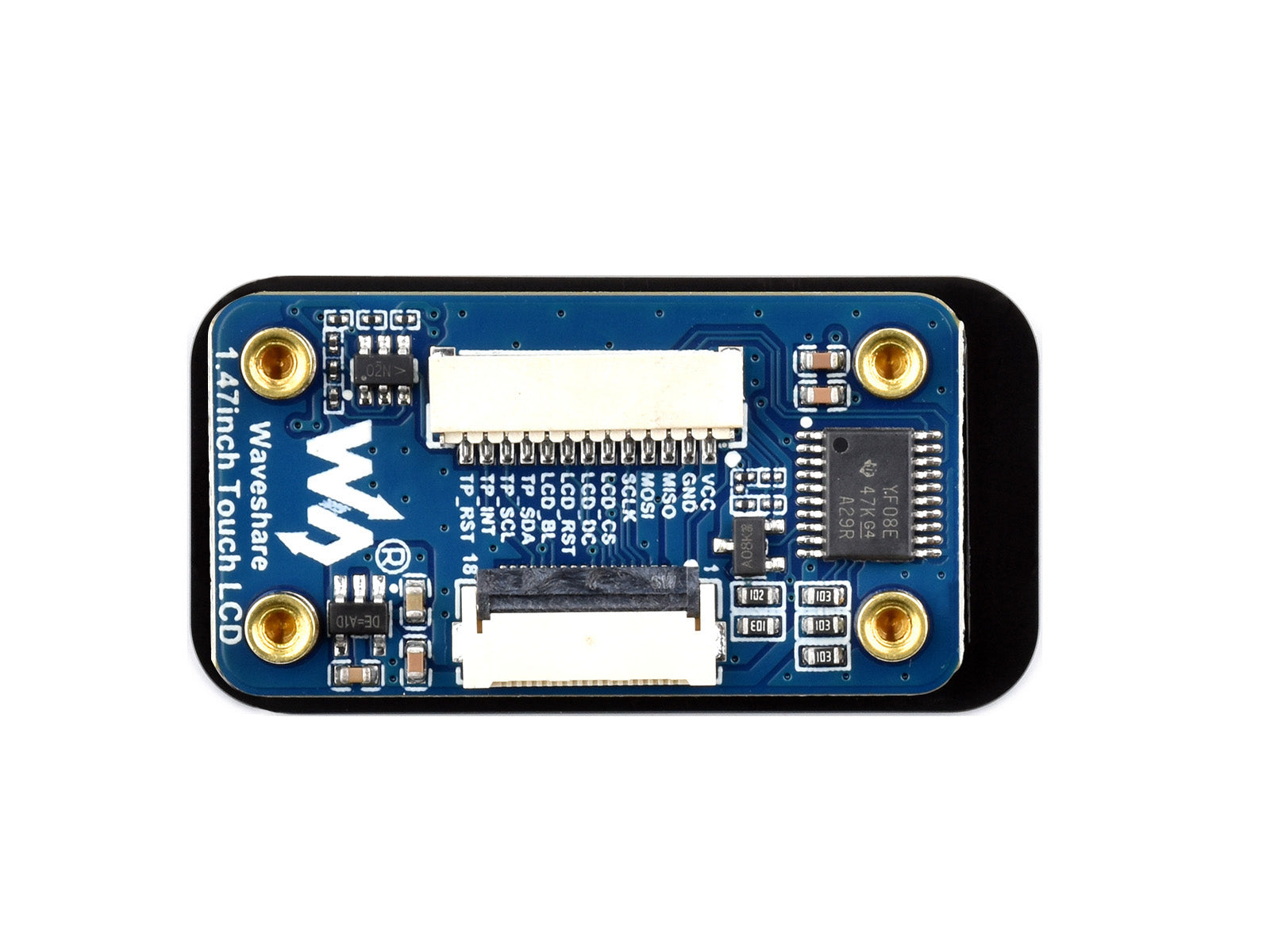

Elevate your embedded projects with our dynamic 1.47-inch LCD display module featuring a touch panel. This small yet powerful microdisplay offers a sharp 172×320 resolution and an IPS panel, delivering outstanding color and wide viewing angles. The capacitive touch panel ensures a seamless interactive experience, making it a perfect choice for DIY lovers and professionals.
This 1.47-inch LCD display module is an innovative and adaptable solution for all your project requirements. With its clear 172×320 resolution and vivid 262K color spectrum, your visuals will be brought to life with stunning detail. The IPS technology guarantees consistent image quality from every angle, providing top performance in various applications.
Featuring both SPI and I2C communication, this display module reduces the number of required IO pins while maintaining strong functionality. Its built-in JD9853 driver chip and AXS5106L capacitive touch control chip simplify integration, offering you a hassle-free user experience.
Whether you're using a Raspberry Pi, ESP32S3, Pico, or Arduino, this module has you covered. It comes with examples for each platform, ensuring a smooth start to any project. With online development resources and a comprehensive manual, you'll have all the guidance you need.
**Key Features:**
- **High-Quality Display:** Enjoy a 172×320 resolution with 262K vivid colors for crystal-clear images.
- **IPS Technology:** Get stable visuals with consistent colors at all viewing angles.
- **Touch Interaction:** Experience smooth and accurate touch responses thanks to the built-in capacitive touch sensor.
- **Easy Communication:** Communicate using standard SPI or I2C protocols, compatible with various microcontrollers.
- **Multi-Platform Support:** Access ready-to-use examples for popular platforms like Raspberry Pi, ESP32S3, Pico, and Arduino.
- **Compact Design:** Measuring just 22.05 × 41.69mm, it fits perfectly into your custom builds or portable devices.
**Specifications:**
- Operating Voltage: 3.3V / 5V (Onboard voltage translator included)
- Display Resolution: 172 × 320 pixels
- Display Driver: JD9853
- Touch Driver: AXS5106L
- Display Interface: 4-wire SPI
- Touch Interface: I2C
- Touch Panel: Capacitive
- Display Size: 17.75 × 32.93mm
- Module Size: 22.05 × 41.69mm
**Package Includes:**
- 1 × 1.47-inch Touch LCD Display Module
- 1 × SH1.0 13PIN Cable (~100mm)
- 1 × FFC Cable
Start creating with ease - grab your 1.47-inch LCD display module today and add a new dimension to your projects!
Using this 1.47-inch LCD touch display module is a breeze. First, pick the platform you want to use, like Raspberry Pi, ESP32S3, Pico, or Arduino. There are examples for each platform to help you get started right away. Just connect the module to your device using the provided SH1.0 13PIN Cable and FFC Cable.
When it comes to power, the module can work with either 3.3V or 5V thanks to the onboard voltage translator. Once it's connected and powered, you can start interacting with the display using the capacitive touch panel. It gives smooth and accurate touch responses.
Here are some things to keep in mind. Avoid exposing the module to extreme temperatures or humidity as it can affect the performance. When handling the cables, be gentle to prevent any damage. Also, make sure to follow the correct wiring instructions for the SPI and I2C interfaces.
For maintenance, keep the display clean by gently wiping it with a soft, dry cloth. If you're not using the module for a long time, store it in a cool, dry place. With these tips, you'll be able to make the most of your 1.47-inch LCD touch display module.
