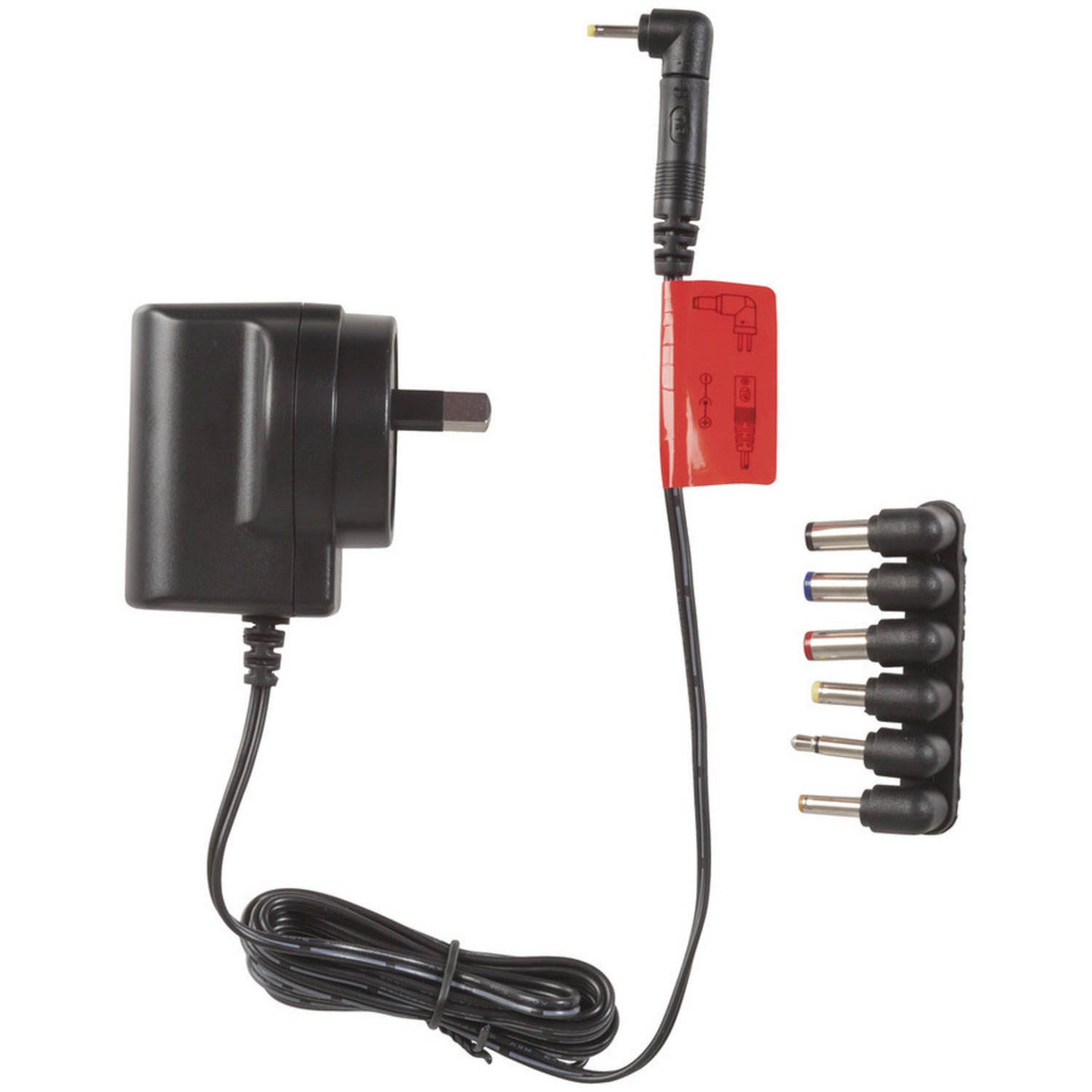

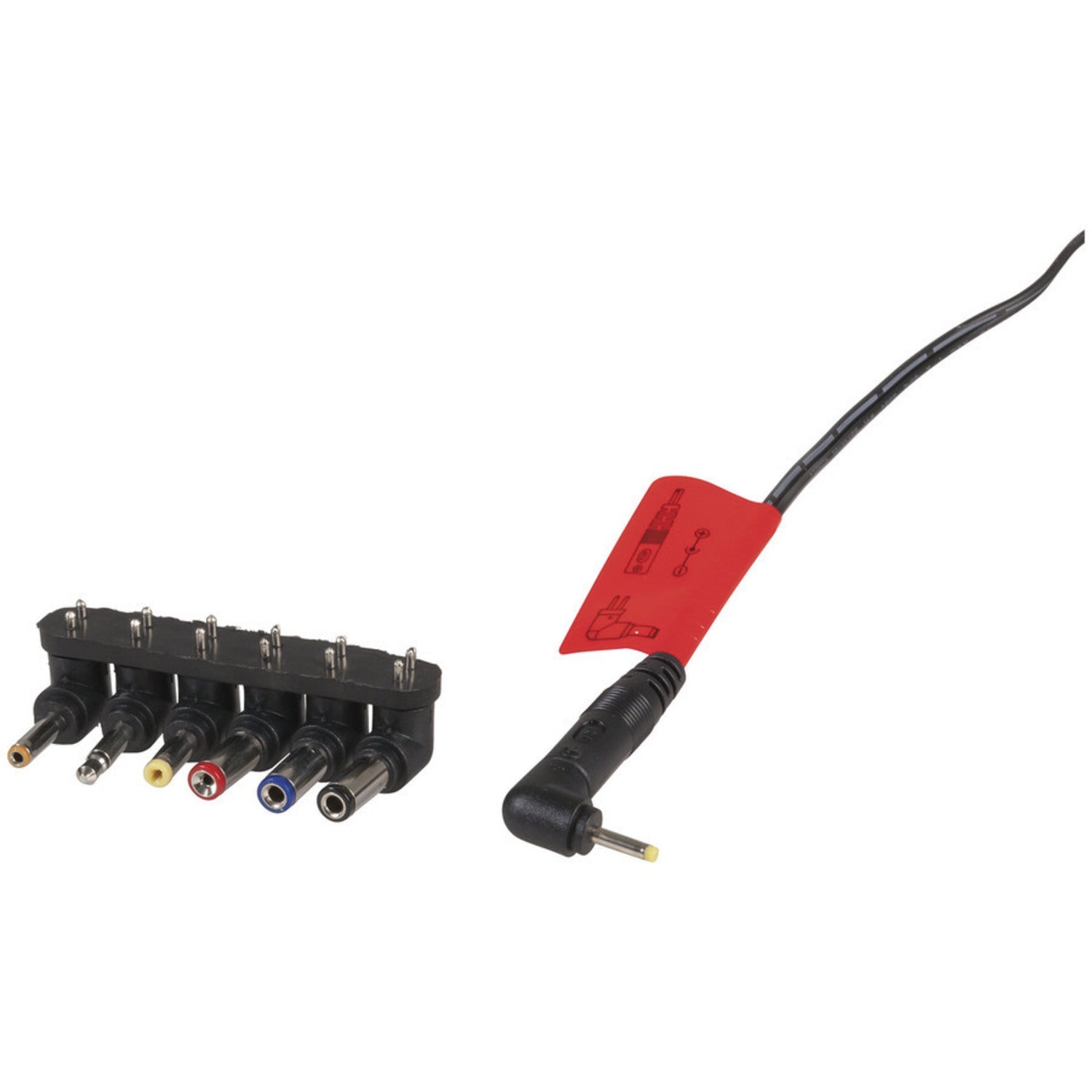

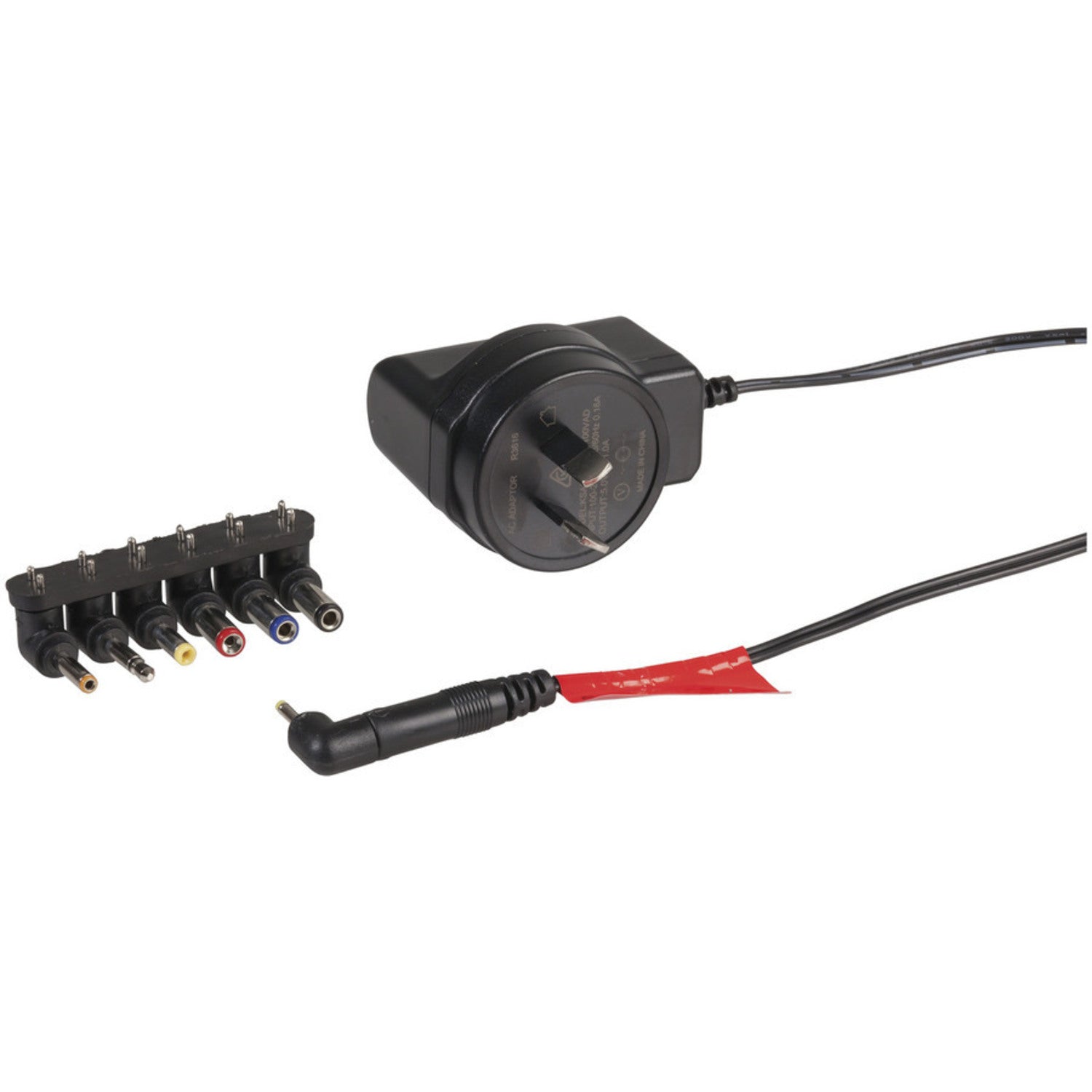

Discover our new series of ultra-thin switching mode AC adaptors. These adaptors are incredibly lightweight, stylish, and compact. They can fit neatly side by side on a power board, eliminating wasted AC outlets. They feature a high-efficiency circuit, built-in EMI filter, short circuit protection, overcurrent protection, and thermal shutdown capability. There are four models available: MP-3144 with an input of 240VAC 50Hz, output of 5VDC 1A, and 70% efficiency; MP-3145 with an input of 240VAC 50Hz, output of 6VDC 800mA, and 70% efficiency; MP-3146 with an input of 240VAC 50Hz, output of 9VDC 500mA, and 70% efficiency; MP-3147 with an input of 240VAC 50Hz, output of 12VDC 400mA, and 70% efficiency. They come with 7 plugs, have a safety approval No N20276, and meet MEPS requirements. The power supply is a plug pack type with selectable DC plugs, 7 output plugs, 70% efficiency, SMPS regulation type, 12V DC voltage, 0.4A DC current rating, a mains voltage range of 100V - 240V, 50Hz frequency, and a mains max power of 5W. It comes with a 12-month warranty.

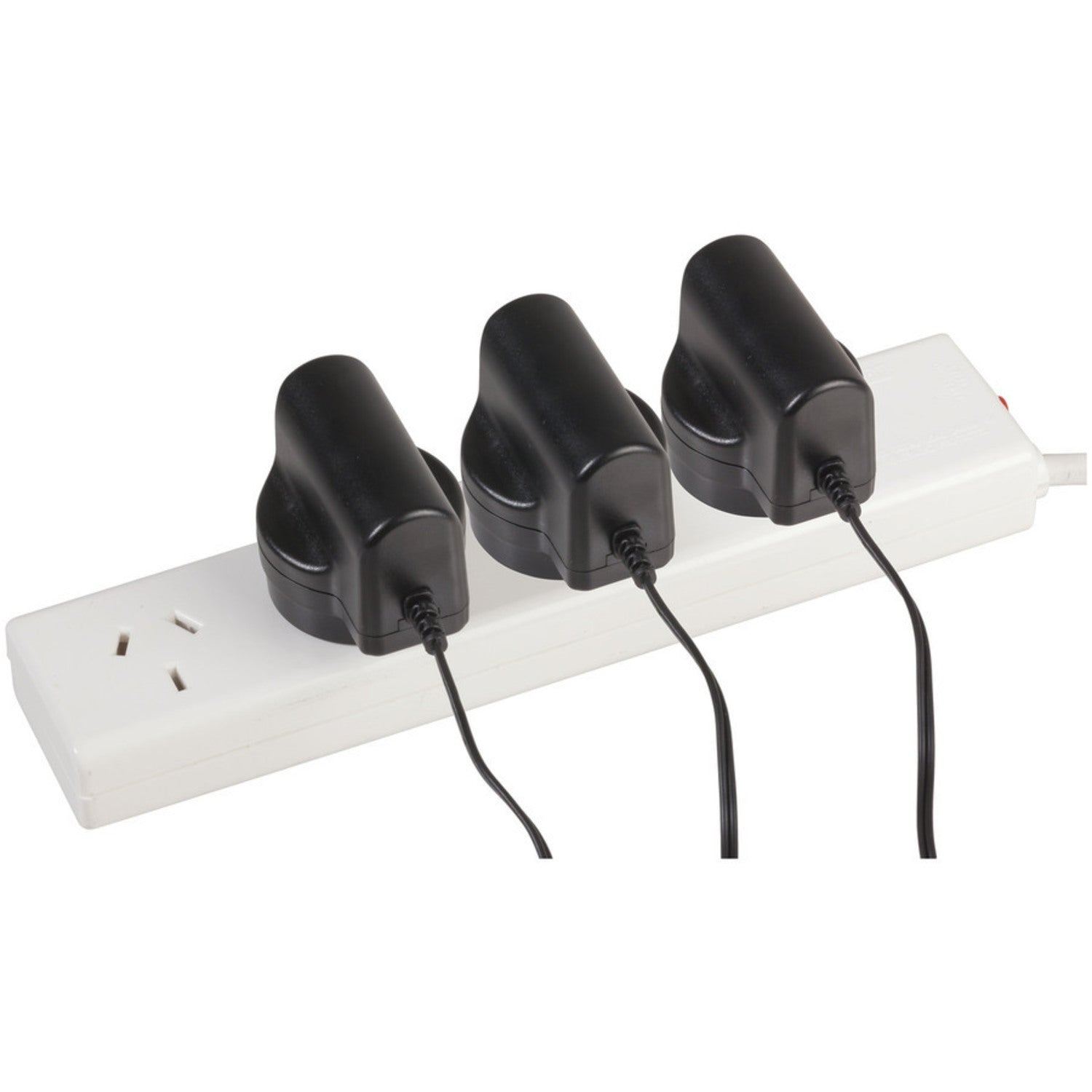

Using these power adaptors is easy. First, make sure the mains voltage in your area is within the 100V - 240V range. Then, plug the adaptor into a power board using the provided AU/NZ 2 Pin (No Earth) connection. Select the appropriate DC plug for your device and connect it. Remember, these adaptors are designed to fit side by side on a power board, so you can use multiple ones without wasting outlets. When it comes to safety, these adaptors have built - in protection features like short circuit and overcurrent protection. But still, don't overload them. For maintenance, keep the adaptors clean and dry. Avoid exposing them to extreme temperatures. If you have any issues, refer to the 12 - month warranty for support.
