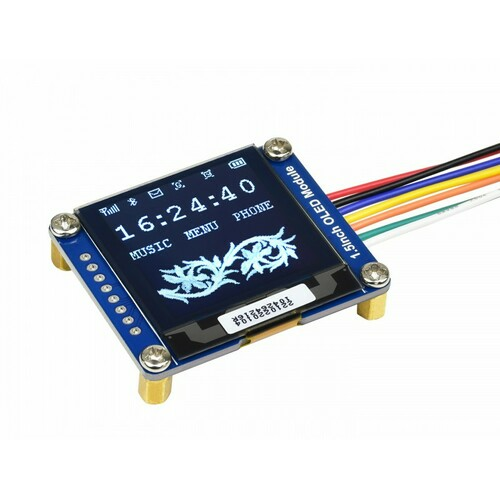

128x128, General 1.5inch OLED display Module

This 1.5-inch OLED display module offers a high resolution of 128x128 pixels and 16 gray scales, providing a better display effect. It features an embedded controller and communicates via SPI or I2C interface, which can be configured via an onboard resistor. With a viewing angle of over 160°, it supports both 3.3V and 5V operating voltages. It comes with development resources and a manual for Raspberry Pi, Jetson Nano, Arduino, and STM32. Its driver is 1327, and the display color is white. The module's dimension is 44.5 x 37 mm. The available drive interfaces are 4-wire SPI and I2C. Visit the wiki at www.waveshare.com/wiki/1.5inch_OLED_Module for more information. Package includes 1 x 1.5-inch OLED Module and 1 x PH2.0 7Pin.

Using this 1.5-inch OLED display module is quite straightforward. First, connect it to your device using either the 4-wire SPI or I2C interface, which you can configure via the onboard resistor. Make sure to use the appropriate operating voltage, either 3.3V or 5V. You can then start using it with the help of the development resources and manual provided for Raspberry Pi, Jetson Nano, Arduino, and STM32. When it comes to maintenance, keep it in a dry and clean environment. Avoid exposing it to extreme temperatures or physical shocks. If you have any questions, refer to the wiki at www.waveshare.com/wiki/1.5inch_OLED_Module. Also, note that the 0.96-inch OLED has a non - regular dual - color display with 1/4 yellow upper section and 3/4 blue lower section.
