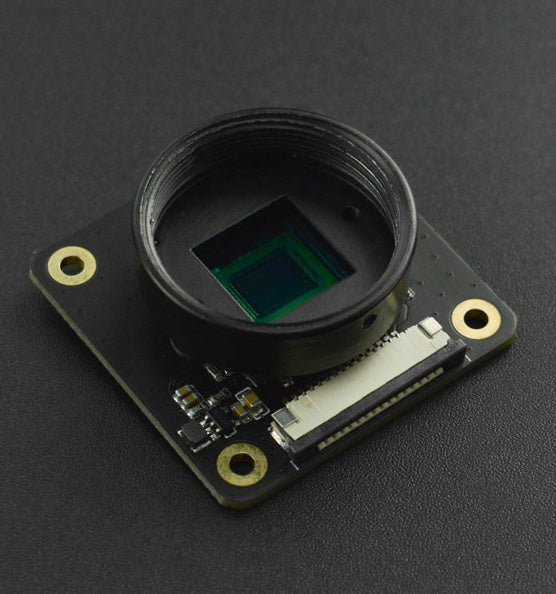

12.3MP Camera Module for NVIDIA Jetson Nano & Raspberry Pi CM3

This top - notch 12.3MP camera module is equipped with Sony's IMX477R chip and needs a C or CS - mount lens to function. It's fully compatible with the NVIDIA Jetson Nano series and Raspberry Pi CM3 compute module. Compared to IMX219 cameras, it offers a much higher resolution of 12.3MP and greater sensitivity. Each pixel has nearly 50% more area, which significantly enhances low - light performance. This makes it a great fit for both industrial and consumer applications. **Features** - High - resolution 12.3MP Sony IMX477R sensor. - Larger pixel area for better low - light shooting. - Back - illuminated sensor architecture for increased sensitivity. - Support for various C - and CS - mount lenses. **Specification** - Sensor Model: Sony IMX477R - CMOS Diagonal Length: 7.9mm - Resolution: 12.3 million pixels (4056×3040) - Single Pixel Size: 1.5μm(H)×1.55μm(V) - Output Format: RAW12/10/8, COMP8 - Back Focal Length: adjustable - Lens Standard: C - mount/CS - mount (supports C/CS connecting ring) - Infrared Filter: integrated **Documents** - Product wiki

Using this camera module is quite straightforward. First, make sure you have a compatible C or CS - mount lens. Connect the lens to the camera module following the instructions. Then, link the camera module to your NVIDIA Jetson Nano series device or Raspberry Pi CM3 compute module. You're good to start capturing high - quality images and videos. When it comes to maintenance, keep the lens clean. You can use a soft, lint - free cloth to gently wipe the lens surface. Avoid touching the sensor directly to prevent damage. Also, store the camera module in a dry and cool place when not in use. This will help ensure its long - term performance and durability. Remember, if you have any technical questions, refer to the product wiki for more detailed information.
